产品应用与封装尺寸
图纸取自原厂规格书，点击可放大查看原始尺寸标注。

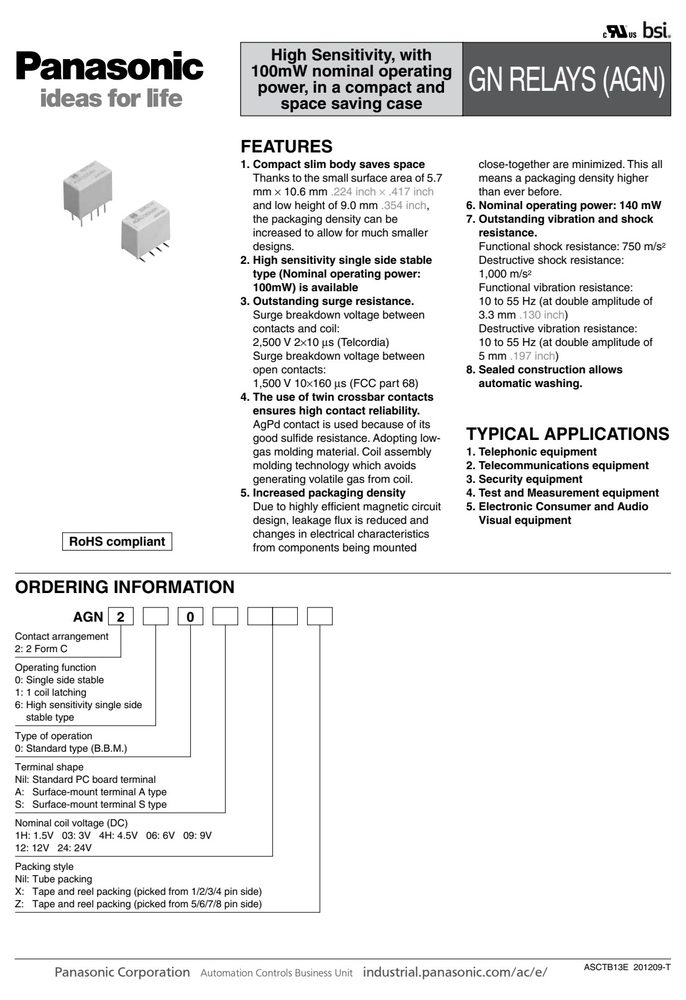

产品特点 Features
- 1. Compact slim body saves space
- Thanks to the small surface area of 5.7 mm × 10.6 mm .224 inch × .417 inch and low height of 9.0 mm .354 inch, the packaging density can be increased to allow for much smaller designs.
- 2. High sensitivity single side stable type (Nominal operating power:
- 100mW) is available
- 3. Outstanding surge resistance.
- Surge breakdown voltage between contacts and coil:
- 2,500 V 2×10 µs (Telcordia)
- Surge breakdown voltage between open contacts:
- 1,500 V 10×160 µs (FCC part 68)
- 4. The use of twin crossbar contacts ensures high contact reliability.
- AgPd contact is used because of its close-together are minimized. This all means a packaging density higher than ever before.
- 6. Nominal operating power: 140 mW
- 7. Outstanding vibration and shock resistance.
- Functional shock resistance: 750 m/s2
- Destructive shock resistance:
- 1,000 m/s2
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| 列1 | 列2 |
|---|---|
| Between open contacts | 750 Vrms for 1min. (Detection current: 10mA) |
| Between contact and coil | 1,500 Vrms for 1min. (Detection current: 10mA) |
| Between contact sets | 1,000 Vrms for 1min. (Detection current: 10mA) |
| Between open contacts | 1,500 V (10×160µs) (FCC Part 68) |
| External dimensions | Suggested mounting pad (Tolerance: ±0.1 ±.004) |
| .417±.012 .126 | .224±.012 .087 |
| .087±.006 | 0.80 |
| .417±.012 .126 | .224±.012 .087 |
| .016±.004 | .087±.006 |
| Single side stable | 1 coil latching |
| 8 7 6 5 | 8 7 6 5 |
| 1 2 3 4 | 1 2 3 4 |
| Direction indication | Direction indication |
| (Deenergized condition) | (Reset condition) |
| relay orientation mark on the left side, as | relay, the chucking pressure should not |
| Orientation (indicates PIN No.1)stripe | 11.50 |
| .453 24.00±0.3 | 4.9 N {500gf} or less |
| .437 .630 | Chucking pressure in the direction B: .248 |
| Tape coming out direction | avoided. |
电气特性 Electrical Characteristics（TA = 25°C）
| 型号 | 型号 | 型号2 | No.2 | 型号3 | No.3 |
|---|---|---|---|---|---|
| Single side | stable | 1 coil | latching | High sensitivity | single side stable |
| Part | No. | Part | No. | Part | No. |
| 3V DC AGN20003 | AGN21003 | AGN26003 | |||
| 6V DC AGN20006 | AGN21006 | AGN26006 | |||
| 9V DC AGN20009 | AGN21009 | AGN26009 | |||
| 12V DC AGN20012 | AGN21012 | AGN26012 | |||
| 24V DC AGN20024 | AGN21024 | AGN26024 | |||
| Single side | stable | 1 coil | latching | High sensitivity | single side stable |
| Part | No. | Part | No. | Part | No. |
| 3V DC AGN200µ03 | AGN210µ03 | AGN260µ03 | |||
| 6V DC AGN200µ06 | AGN210µ06 | AGN260µ06 | |||
| 9V DC AGN200µ09 | AGN210µ09 | AGN260µ09 | |||
| 12V DC AGN200µ12 | AGN210µ12 | AGN260µ12 | |||
| 24V DC AGN200µ24 | AGN210µ24 | AGN260µ24 | |||
| Nominal coil voltage Single side | stable | 1 coil | latching | High sensitivity | single side stable |
| Part | No. | Part | No. | Part | No. |
| 3V DC AGN200µ03Z | AGN210µ03Z | AGN260µ03Z | |||
| 6V DC AGN200µ06Z | AGN210µ06Z | AGN260µ06Z | |||
| 9V DC AGN200µ09Z | AGN210µ09Z | AGN260µ09Z | |||
| 12V DC AGN200µ12Z | AGN210µ12Z | AGN260µ12Z | |||
| 24V DC AGN200µ24Z | AGN210µ24Z | AGN260µ24Z | |||
| Nominal coil Pick-up voltage Drop-out voltage | Coil | resistance Nominal | operating | Max. applied voltage | |
| voltage (at 20°C 68°F) (at 20°C 68°F) | [±10%] (at | 20°C 68°F) | power | (at 20°C 68°F) | |
| [±10%] (at 20°C | 68°F) | ||||
| 3V DC | 46.7mA | 64.2Ω | |||
| 4.5V DC | 31mA | 145Ω | 150%V of | ||
| 75%V or less of 10%V or more of | 140mW | ||||
| 6V DC | 23.3mA | 257Ω | nominal voltage | ||
| 9V DC (Initial) (Initial) | 15.5mA | 579Ω | |||
| 12V DC | 11.7mA | 1,028Ω | 120%V of | ||
| 24V DC | 9.6mA | 2,504Ω | 230mW | ||
| Nominal coil Set voltage Reset voltage | Coil | resistance Nominal | operating | Max. applied voltage | |
| voltage (at 20°C 68°F) (at 20°C 68°F) | [±10%] (at | 20°C 68°F) | power | (at 20°C 68°F) | |
| [±10%] (at 20°C | 68°F) | ||||
| 3V DC | 33.3mA | 90Ω | |||
| 100mW | 150%V of | ||||
| 6V DC nominal voltage* nominal voltage* | 16.7mA | 360Ω | |||
| 9V DC (Initial) (Initial) | 11.1mA | 810Ω | |||
| 12V DC | 8.3mA | 1,440Ω | |||
| 24V DC | 5.0mA | 4,800Ω | 120mW |
