Name: PANASONIC AQV252GAX
Brand: PANASONIC
Availability: InStock

产品实拍图

本型号暂无已核对的专属实拍图。为避免图文不符，本页不放同系列近似图；如需实物照片，请联系销售获取本批次实拍。

索取实拍图在产品目录查看同类型号

产品应用与封装尺寸

图纸取自原厂规格书，点击可放大查看原始尺寸标注。

关键参数速览

正向电压 VF: 1.5
正向电流 IF: 1.14 V (1.32 V at

产品特点 Features

Greatly increased load current in a compact DIP package
8.8 6.4 8.8 6.4
Continuous load current: 3.5A (AQV251G)
3.9 3.6
Greatly improved specifications allow you to use this in place of mercury and mechanical relays
(Height includes standoff) Low on-resistance (Typ. 35mΩ, AQV251G)

绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）

超过下表数值可能造成器件永久损坏，设计时请留余量。

项目	符号	AQV251G	(A)	AQV252G	(A)2	备注
LED forward current	I -		50 mA			f = 100 Hz,
Peak forward current	I -		1 A
	FP					Duty Ratio = 0.1%
Power dissipation	P -		75 mW
Load voltage (peak	AC) V -	30 V		60 V
	A	3.5	A	2.5	A
tuptuO	L B	4.0	A	3.5	A
	C	6.0	A	5.0	A
Peak load current	I -		6.0	A		100 ms (1 shot),
Power dissipation	P -		600	mW
Total power dissipation	P -		650	mW

数据来源：原厂规格书

安全与绝缘额定值（DIN EN/IEC 60747−5−5）

项目	符号	(A)	AQV252G	备注
Ambient temperature (Operating)	T -	–40 to	+85°C
	opr			condensation)
Ambient temperature (Storage)	T -	–40 to	+100°C
Junction temperature	Tj -	125°C

电气特性 Electrical Characteristics（TA = 25°C）

项目	符号	AQV251G	(A)	AQV252G	(A)2	条件
LED operate	Typical	0.55	mA	0.5	mA
	I -					I = 100 mA
current	Maximum Fon		3 mA			L
tupnI LED turn off	Minimum		0.2	mA
	I -					I = 100 mA
current	Typical Foff		0.45	mA		L
LED dropout	Typical V -		1.14 V (1.32 V at	I F = 50 mA)		I = 5 mA
voltage	Maximum F		1.5	V		F
	Typical	0.035	Ω	0.08	Ω	I F = 5 mA
	Maximum	0.08	Ω	0.12	Ω	Within 1 s
	Typical	0.018	Ω	0.04	Ω	I F = 5 mA
tuptuO On resistance	R on B					I L = Max.
	Maximum	0.04	Ω	0.06	Ω	Within 1 s
	Typical	0.01	Ω	0.02	Ω	I F = 5 mA
	Maximum	0.02	Ω	0.03	Ω	Within 1 s
Off state leakage						I = 0 mA
	Maximum I -		1 μA			F
current	Leak					V = Max.
	Typical		1.1	ms		I = 5 mA
Turn on time*	T -					I = 100 mA
	Maximum		5.0	ms		V = 10 V
	Typical	0.1	ms	0.25	ms	I = 5 mA
Turn off time*	T -					I = 100 mA
	Maximum		0.5	ms		V = 10 V
	Typical		0.8	pF		f = 1 MHz
	Maximum iso		1.5	pF		V B = 0 V
	Minimum R -		1,000	MΩ		500 V DC I = 5 mA
	Maximum - -	10 cps		-		duty = 50%
						V ×I = 100 V•A

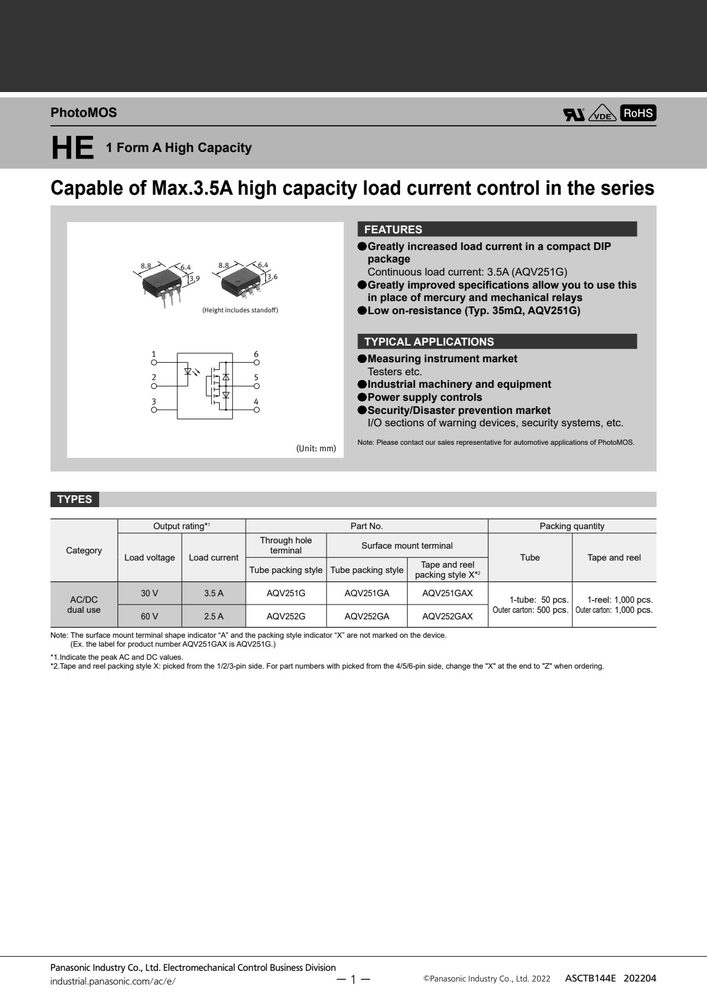

特性曲线（Typical Performance Curves）

应用领域 Applications

Measuring instrument marketTesters etc.Industrial machinery and equipmentPower supply controls(Unit: mm)TYPESThrough holeSurface mount terminalCategory terminalTape and reel30 V 3.5 A AQV251G AQV251GA AQV251GAX60 V 2.5 A AQV252G AQV252GA AQV252GAX

资料下载

📄 AQV252GAX 规格书 PDF

规格书为原厂公开资料，点击在新窗口打开下载。
