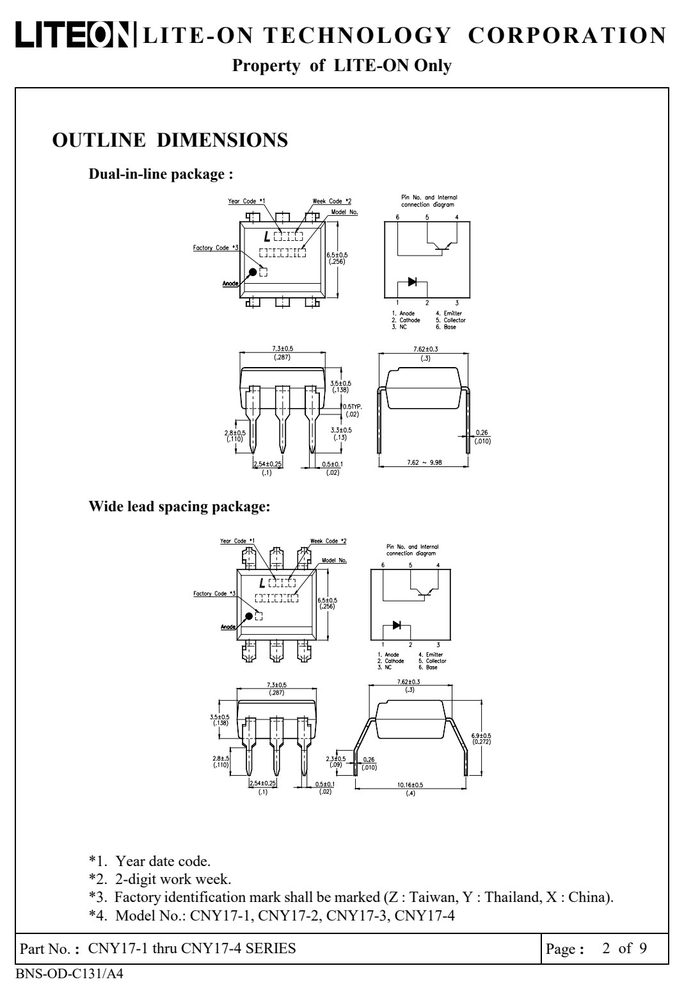

产品应用与封装尺寸
图纸取自原厂规格书，点击可放大查看原始尺寸标注。
关键参数速览
- 正向电流 IF
- 60
产品特点 Features
- High collector-emitter voltage
- ( V = 70V )
- L I T E - O N T E C H N O L O G Y C O R P O R A T I O N
- Property of LITE-ON Only
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 符号 | 额定值 | 单位 |
|---|---|---|---|
| ( | Ta = 25°C ) | ||
| Forward Current | I | 60 | mA |
| Power Dissipation | P | 100 | mW |
| Collector - Emitter Voltage | V | 70 | V |
| Emitter - Collector Voltage | V | 7 | V |
| OUTPUT Collector - Base Voltage | V | 70 | V |
| Collector Current | I | 150 | mA |
| Collector Power Dissipation | P | 150 | mW |
| Total Power Dissipation | P | 250 | mW |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| 参数 | 符号 | 额定值 | 单位 |
|---|---|---|---|
| Operating Temperature | T | -55 ~ +100 | °C |
| Storage Temperature | T | -55 ~ +150 | °C |
| Isolation voltage shall be measured | using the following method. | ||
| (1) Short between anode and cathode | on the primary side and | between collector, | |
| emitter and base on the secondary | side. | ||
| (2) The isolation voltage tester with | zero-cross circuit shall be | used. | |
| (3) The waveform of applied voltage | shall be a sine wave. | ||
| Part No. : CNY17-1 thru CNY17-4 SERIES | Page : 5 of 9 | ||
| BNS-OD-C131/A4 |
