关键参数速览
- 电源电压 VCC
- 6.5
- 工作温度 TA
- 130
产品特点 Features
- Compatible with all I 2 C bus modes
- 1 MHz
- 400 kHz
- 100 kHz
- Memory array
- TSSOP8 (DW) – 64 Kbit (8 Kbytes) of EEPROM
- 169 mil width
- Page size: 32 bytes
- Additional Write lockable page
- (Identification page)
- Extended temperature and voltage ranges
- -40 °C to 125 °C; 1.8 V to 5.5 V
- Schmitt trigger inputs for noise filtering.
- Short Write cycle time
- SO8 (MN)
- 150 mil width – Byte Write within 4 ms
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 符号 | 参数 | 最小 | 最大 | 单位 |
|---|---|---|---|---|
| Ambient | operating temperature | –40 | 130 | °C |
| T Storage | temperature | –65 | 150 | °C |
| T Lead | temperature during soldering | see | note (1) | °C |
| V Input or | output range | –0.50 | 6.5 | V |
| I DC output | current (SDA = 0) | - | 5 | mA |
| V Supply | voltage | –0.50 | 6.5 | V |
数据来源：原厂规格书
订货信息与供货形式
| 器件 | 型号 |
|---|---|
| Device | type |
| Device | function |
| C64-D | = 64 Kbit (8192 K x 8 bits) plus identification page |
| Operating Device | voltage grade |
| flame | retardants). |
产品应用与封装尺寸

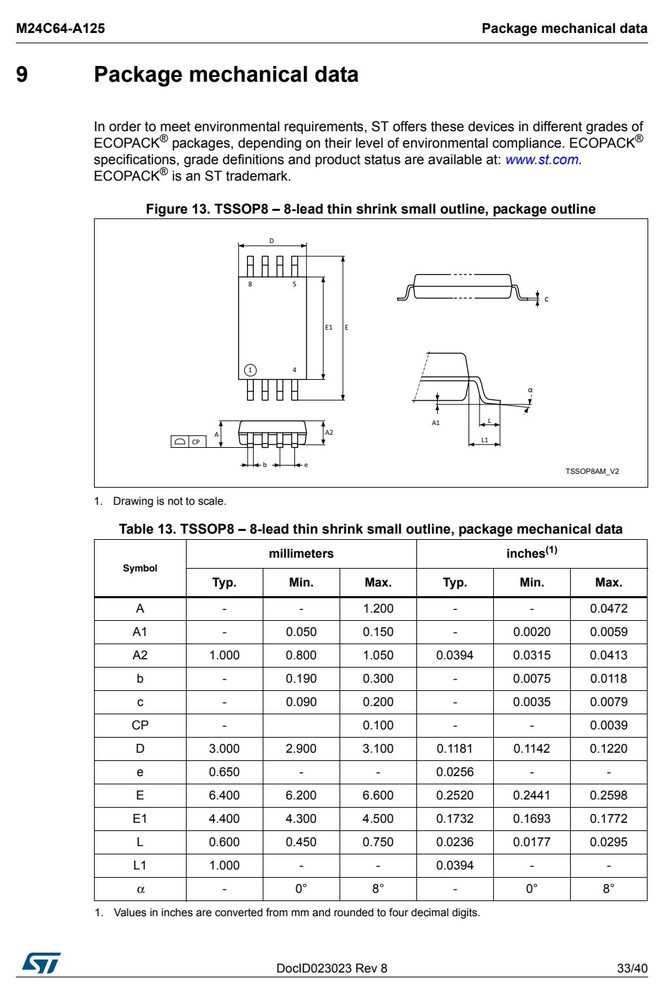

图纸取自该型号原厂规格书的应用电路与封装尺寸章节，点击图片可放大查看原始尺寸标注。
