Name: AVAGO 6N136-000E
Brand: AVAGO
Availability: InStock

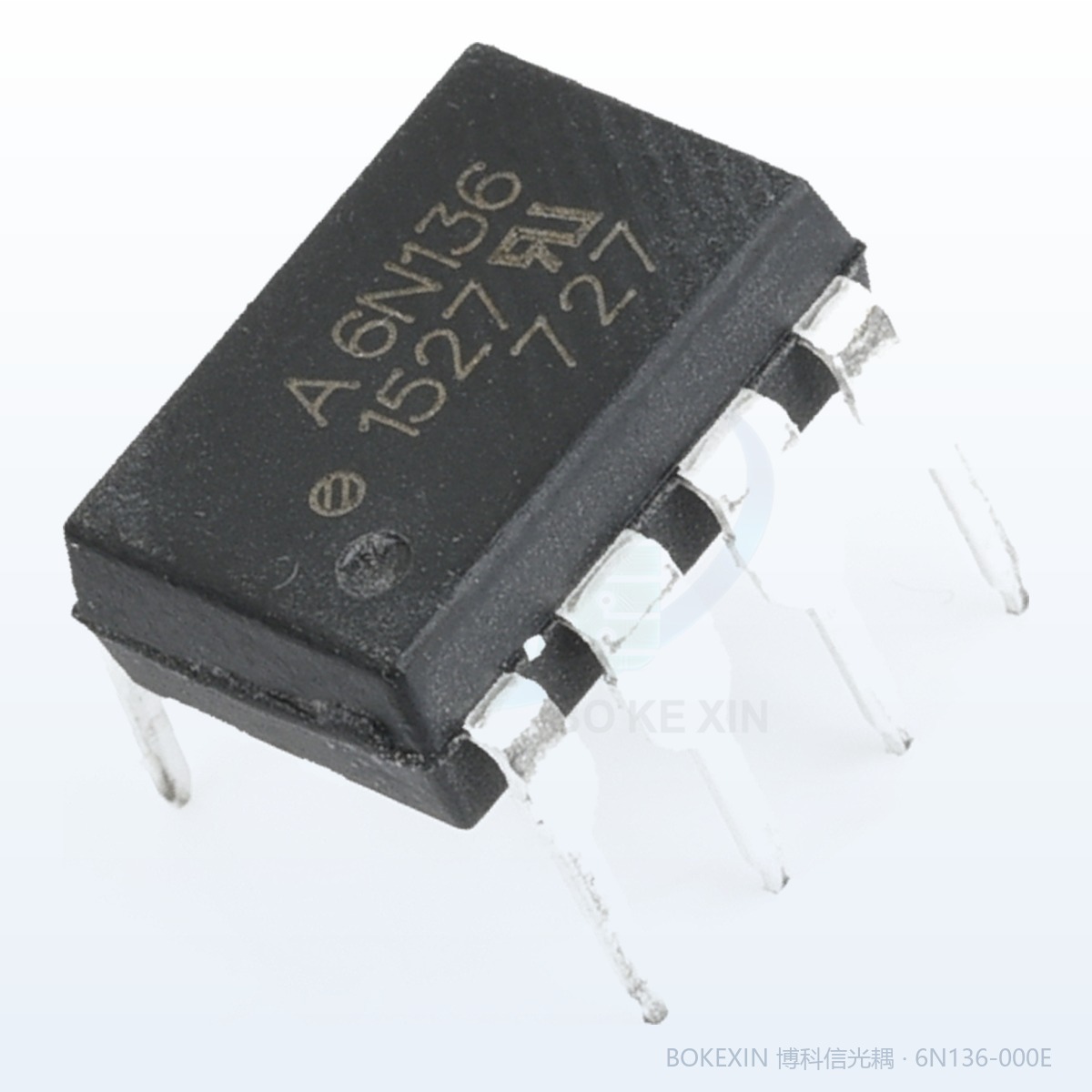

产品实拍图

本页为博科信现货实拍（器件丝印见规格书）。图片已加防盗水印，需要最新批次照片或未加水印原图请联系销售；点击图片可放大。

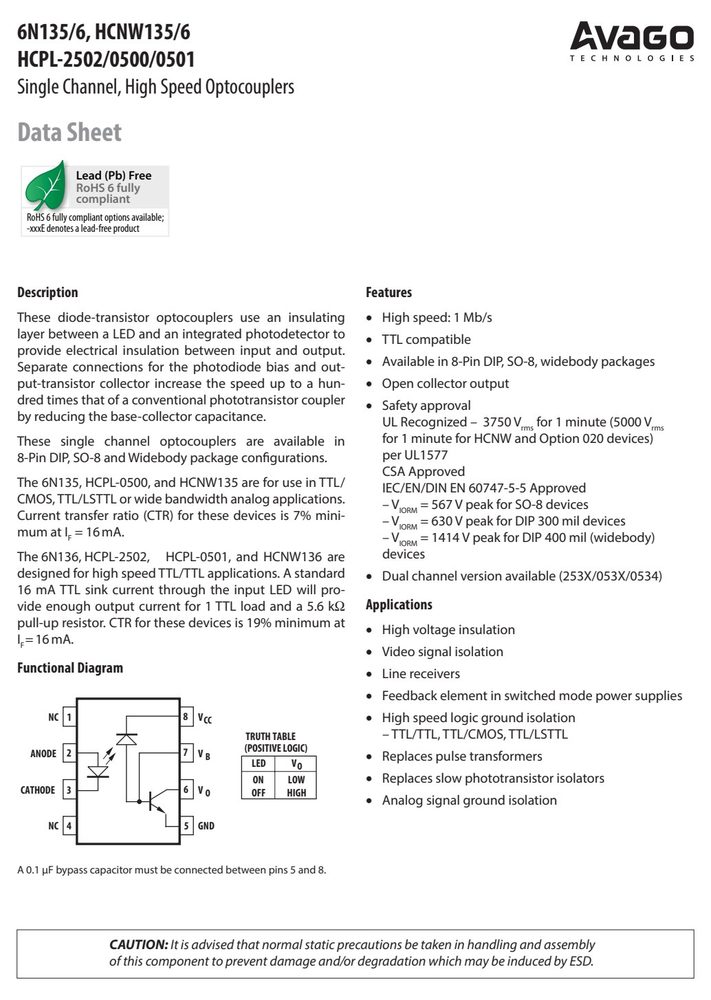

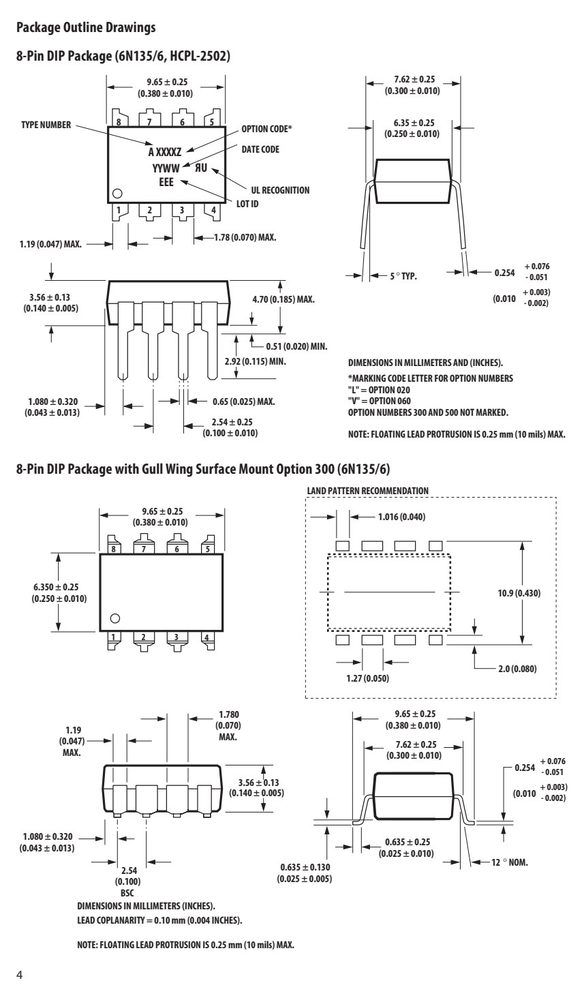

产品应用与封装尺寸

图纸取自原厂规格书，点击可放大查看原始尺寸标注。

引脚定义与内部结构

引脚	符号	名称
5	GND
6	V
7	V
8	V

数据来源：原厂规格书引脚图

关键参数速览

电流传输比 CTR: 5, 11
正向电流 IF: 60747-5-5
隔离电压 VISO: 60747-5-5
电源电压 VCC: 30
工作温度 TA: 100

产品特点 Features

These diode-transistor opto coup lers use an insulating layer between a LED and an integrated photodetector to provide elec trical in su lation between input and out put.
Separate connections for the photodiode bias and out- put-transistor collector increase the speed up to a hun- dred times that of a conven tional phototransistor coupler
High speed: 1 Mb/s
TTL compatible
Available in 8-Pin DIP, SO-8, widebody packages
Open collector output
Schematic
ANODE
CATHODE
SHIELD
Selection Guide
Minimum CMR 8-Pin DIP Small-Outline Widebody
(300 Mil) SO-8 (400 Mil)
Current Single Dual Single Dual Single dV/dt V Transfer Channel Channel Channel Channel Channel
(V/µs) (V) Ratio (%) Package Package* Package Package* Package
1,000 10 7 6N135 HCPL-2530 HCPL-0500 HCPL-0530 HCNW135

绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）

超过下表数值可能造成器件永久损坏，设计时请留余量。

参数	符号	器件	最小	最大	单位	备注
Storage Temperature*	T		-55	125	°C
Operating Temperature*	T	8-Pin DIP SO-8	-55	100	°C
		Widebody	-55	85
Average Forward Input Current*	I			25	mA	1
Peak Forward Input Current*	I	8-Pin DIP SO-8 Widebody		50 40	mA	2
Peak Transient Input Current*	I	8-Pin DIP SO-8 Widebody Widebody		1 0.1 3	A
Input Power Dissipation*	P	8-Pin DIP SO-8 Widebody		45 40	mW	3
Average Output Current* (Pin	6) I			8	mA
Peak Output Current*	I			16	mA
Supply Voltage (Pin 8-5)	V		-0.5	30	V
Output Voltage (Pin 6-5)	V		-0.5	20	V
Supply Voltage* (Pin 8-5)	V		-0.5	15	V
Output Voltage* (Pin 6-5)	V		-0.5	15	V
Base Current* (Pin 7)	I			5	mA
Output Power Dissipation*	P			100	mW	4
Lead Solder Temperature*	T	8-Pin DIP		260	°C
		Widebody		260	°C

数据来源：原厂规格书

安全与绝缘额定值（DIN EN/IEC 60747−5−5）

参数	符号	值	值2	值3	单位	条件
		8-Pin DIP		Widebody
		(300 Mil)	SO-8	(400 Mil)
Minimum External	L(101)	7.1	4.9	9.6	mm	Measured from input terminals to
Air Gap (External						output terminals, shortest distance
Clearance)						through air.
Minimum External	L(102)	7.4	4.8	10.0	mm	Measured from input terminals to out-
Tracking (External						put terminals, shortest distance path
Creepage)						along body.
Plastic Gap						to conductor, usually the direct distance
(Internal Clearance)						between the photoemitter and photo-
Minimum Internal		NA	NA	4.0	mm	Measured from input terminals to out-
Tracking (Internal						put terminals, along internal cavity.
Tracking Resistance	CTI	200	200	200	Volts	DIN IEC 112/VDE 0303 Part 1
Isolation Group		IIIa	IIIa	IIIa		Material Group
						(DIN VDE 0110, 1/89, Table 1)
Option 300 - surface	mount classification	is Class A in	accordance	with CECC	00802.

电气特性 Electrical Characteristics（TA = 25°C）

参数	符号	器件	最小	Typ.**	最大	单位	测试条件	图号	备注
Over	recommended	temperature (T	= 0°C to	70°C)	unless	otherwise	specified. See note 13.
Current	CTR*	6N135	7	18	50	% T = A	25°C V = 0.4 V I = O F	16 mA, 1, 2,	5, 11
Transfer Ratio		HCPL-0500	5	19			V = 0.5 V V	= 4.5 V 4
		HCPL-2502	15		22	T =	25°C V = 0.4 V
			15	25			V = 0.5 V
		6N136	19	24	50	T =	25°C V = 0.4 V
		HCPL-0501	15	25			V = 0.5 V
Logic Low	V	6N135		0.1	0.4	V T =	25°C I = 1.1 mA I =	16 mA,
	OL					A	O F
Output Voltage		HCPL-0500		0.1	0.5		I = 0.8 mA V	= 4.5 V
		6N136		0.1	0.4	T =	25°C I = 3.0 mA
		HCPL-2502		0.1	0.5		I = 2.4 mA
Logic High	I *			0.003	0.5	µA T =	25°C V = V = 5.5 V I =	0 mA 7
	OH					A	O CC F
Output Current				0.01	1	T = A	25°C V = V = 15 V O CC
					50		V = V = 15 V
Logic Low	I			50	200	µA I	= 16 mA, V = Open,	13
	CCL					F	O
Supply Current							V = 15 V
Logic High	I *			0.02	1	µA T =	25°C I = 0 mA,	13
	CCH					A	F
Supply Current					2		V = Open, V = 15 V
Input Forward	V *	8-Pin DIP		1.5	1.7	V T =	25°C I = 16 mA	3
	F					A	F
		Widebody	1.45	1.68	1.85	T =	25°C I = 16 mA
		Widebody	3			I =	100
Temperature	∆V /	8-Pin DIP		-1.6		mV/°C I = 16	mA
Input	C	8-Pin DIP		60		pF f	= 1 MHz, V = 0 V
Transistor DC	h	8-Pin DIP		150			V = 5 V, I = 3 mA
Current Gain		SO-8		130		V	= 0.4 V, I = 20 µA
		Widebody		180		V	= 0.4 V, I = 20 µA
				160			V = 5 V, I = 3 mA
Over	recommended	temperature (T = 0°C	to 70°C) unless	otherwise	specified.
Input-Output	V	8-Pin DIP SO-8	3750			V rms	RH < 50%,		6, 14
Momentary							t = 1 min.,
		Widebody	5000						6, 15
Withstand							T = 25°C
Voltage**		8-Pin DIP (Option	020) 5000						6, 12, 15
	I	8-Pin DIP			1	µA	45% RH, t = 5 s, V = 3 kVdc, T = 25°C		6, 16
Input-Output	R	8-Pin DIP SO-8		1012		Ω	V = 500 Vdc		6
		Widebody	1012	1013			T = 25°C
			1011				T = 100°C
Input-Output	C	8-Pin DIP SO-8		0.6		pF	f = 1 MHz		6
1. Derate linearly	above 70°C	free-air temperature	at a rate of 0.8 mA/°C	(8-Pin	DIP).
Derate linearly	above 85°C	free-air temperature	at a rate of 0.5 mA/°C	(SO-8).
2. Derate linearly	above 70°C	free-air temperature	at a rate of 1.6 mA/°C	(8-Pin	DIP).
Derate linearly	above 85°C	free-air temperature	at a rate of 1.0 mA/°C	(SO-8).
3. Derate linearly	above 70°C	free-air temperature	at a rate of 0.9 mW/°C	(8-Pin	DIP).
Derate linearly	above 85°C	free-air temperature	at a rate of 1.1 mW/°C	(SO-8).
4. Derate linearly	above 70°C	free-air temperature	at a rate of 2.0 mW/°C	(8-Pin	DIP).
Derate linearly	above 85°C	free-air temperature	at a rate of 2.3 mW/°C	(SO-8).

订货信息与供货形式

3.937	±	0.127	YWW	型号	型号2	7.49	(0.295)
Small		Outline SO-8	Package	(HCPL-0500/1)
LEAD		COPLANARITY =	0.10 mm (0.004 INCHES)	MAX.

应用领域 Applications

SchematicANODECATHODESHIELDSelection Guide(300 Mil) SO-8 (400 Mil)15 HCPL-2502

资料下载

📄 6N136-000E 规格书 PDF

规格书为原厂公开资料，点击在新窗口打开下载。
