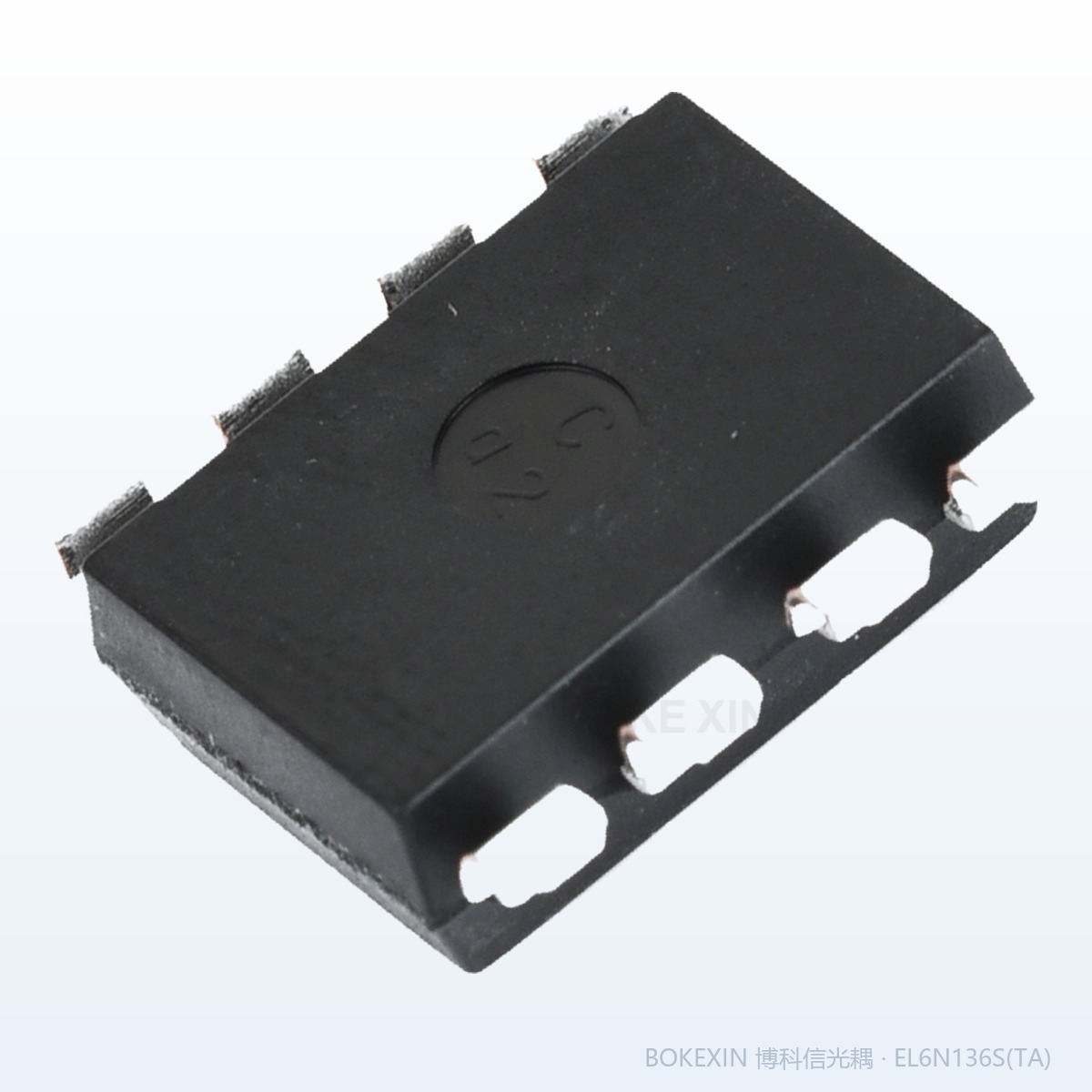

产品实拍图
/01.jpg)
本页为博科信现货实拍（器件丝印 见规格书）。图片已加防盗水印，需要最新批次照片或未加水印原图请联系销售；点击图片可放大。

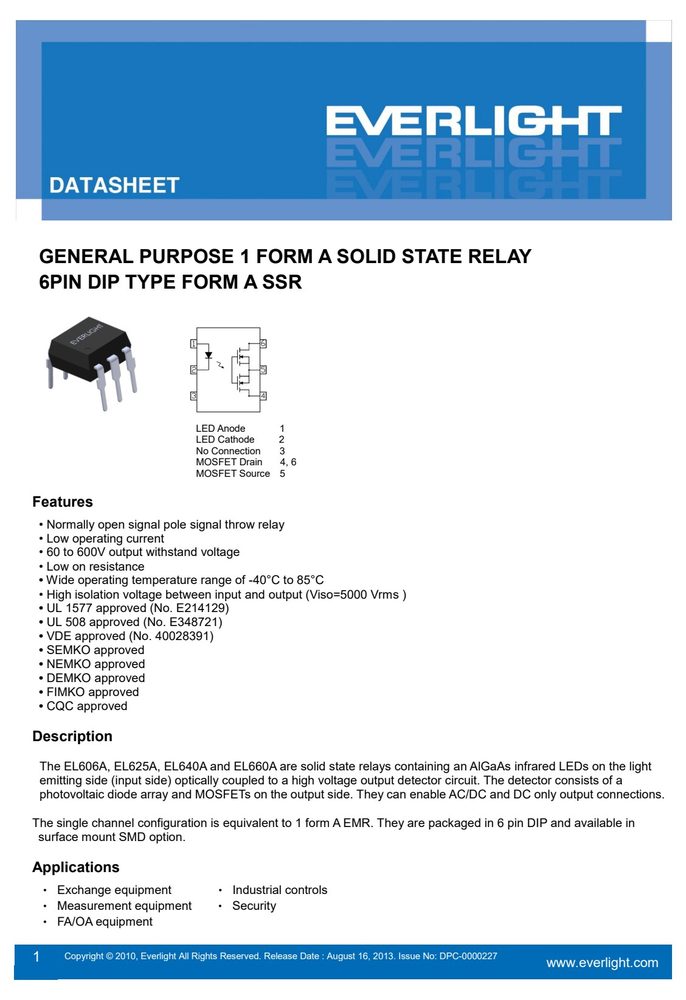

产品应用与封装尺寸
-appcircuit.jpg)
图纸取自原厂规格书，点击可放大查看原始尺寸标注。
关键参数速览
- 正向电压 VF
- 1.5
- 正向电流 IF
- 1.5
- 隔离电压 VISO
- 5×1010
产品特点 Features
- Normally open signal pole signal throw relay
- Low operating current
- DATASHEET
- 6 Pin DIP TYPE
- 1 Form A Controls Load Voltage 60 to 600V
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 符号 | 单位 |
|---|---|---|
| EL606A EL625A | EL640A EL660A | |
| Forward Current | I | 50 mA |
| Peak Forward Current* | I | 1 A |
| Power Dissipation | P | 75 mW |
| Break Down Voltage | V 60 250 | 400 600 V |
| I 550 180 | 120 50 mA | |
| Pulse Load Current* | 2 I 1.2 0.5 | 0.3 0.15 A |
| Power Dissipation | P | 500 mW |
| Total Power Dissipation | P | 550 mW |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| 参数 | 符号 | 单位 |
|---|---|---|
| 6 Pin DIP TYPE | ||
| 1 Form A Controls Load | Voltage 60 to 600V | |
| Storage Temperature | T -40 to | 125 oC |
| Operating Temperature | T -40 | to 85 oC |
| Soldering Temperature* 4 | T | 260 oC |
电气特性 Electrical Characteristics（TA = 25°C）
| 参数 | 符号 | 条件 | 最小 | 典型 | 最大 | 单位 |
|---|---|---|---|---|---|---|
| Input Forward Voltage | V F I F | = 10mA | - | 1.18 | 1.5 | V |
| Output Off State leakage | Current I leak V F | = Max. | - | - | 1 | μA |
| EL606A | - | 0.75 | 2.5 | |||
| EL625A IF | = 5mA, IL = Max. | - | 6.5 | 15 | ||
| On Resistance* | R A | Ω | ||||
| EL640A | - | 20 | 30 | |||
| EL660A | - | 42 | 70 | |||
| EL606A | 0.4 | 1 | ||||
| EL625A IF | = 5mA, IL = Max. | 3 | 5 | |||
| On Resistance* | R B | Ω | ||||
| EL640A | 14 | 20 | ||||
| EL660A | 30 | 50 | ||||
| EL606A | 0.2 | 0.5 | ||||
| EL625A IF | = 5mA, IL = Max. | 1.5 | 3 | |||
| On Resistance* | R C | Ω | ||||
| EL640A | 7 | 15 | ||||
| EL660A | 15 | 30 | ||||
| EL606A | - | 85 | - | |||
| Output | EL625A | - | 60 | - | ||
| C V | = 0V, f = 1MHz | pF | ||||
| Capacitance | EL640A | - | 45 | - | ||
| EL660A | - | 30 | - | |||
| Transfer LED turn on Current | I F(on) I L | = Max. | - | 1.5 | 3 | mA |
| Characteristics LED turn off current | I F(off) I L | = Max. | 0.4 | 1.5 | - | mA |
| Turn On Time | EL606A | - | 1.3 | 3 | ||
| EL625A | - | 1 | 3 | |||
| EL640A | - | 0.35 | 3 | |||
| EL660A F | - | 1 | 3 | |||
| Turn Off Time | EL606A R | = 200Ω , | - | 0.1 | 0.5 | |
| EL625A | 0.1 | 0.5 | ||||
| EL640A | 0.1 | 0.5 | ||||
| EL660A | 0.1 | 0.5 | ||||
| Isolation Resistance | R I-O V | I-O = 500V DC | 5×1010 | - | - | Ω |
| Isolation Capacitance | C I-O V | = 0V, f = 1MHz | - | 1.5 | - | pF |
订货信息与供货形式
| 包装 | M | 型号 |
|---|---|---|
| Package | Dimension | |
| Standard | DIP Type | |
| Option | M | Type |
| Option | S | Type |
| Option | S1 | Type |
