78T09AL-TQ2-R 信号继电器

The UTC 78TXXA family is circuit. They are suitable for fixed voltage regulator integrated that required supply current up to LINEAR INTEGRATED CIRCUIT  MARKING INFORMATION PACKAGE VOLTAGE CODE MARKI
原厂规格书参数现货供应
📞 咨询 / 询价 📄 下载规格书 🔍 搜索同类型号

产品实拍图

本型号暂无已核对的专属实拍图。为避免图文不符，本页不放同系列近似图；如需实物照片，请联系销售获取本批次实拍。
索取实拍图在产品目录查看同类型号

引脚定义与内部结构

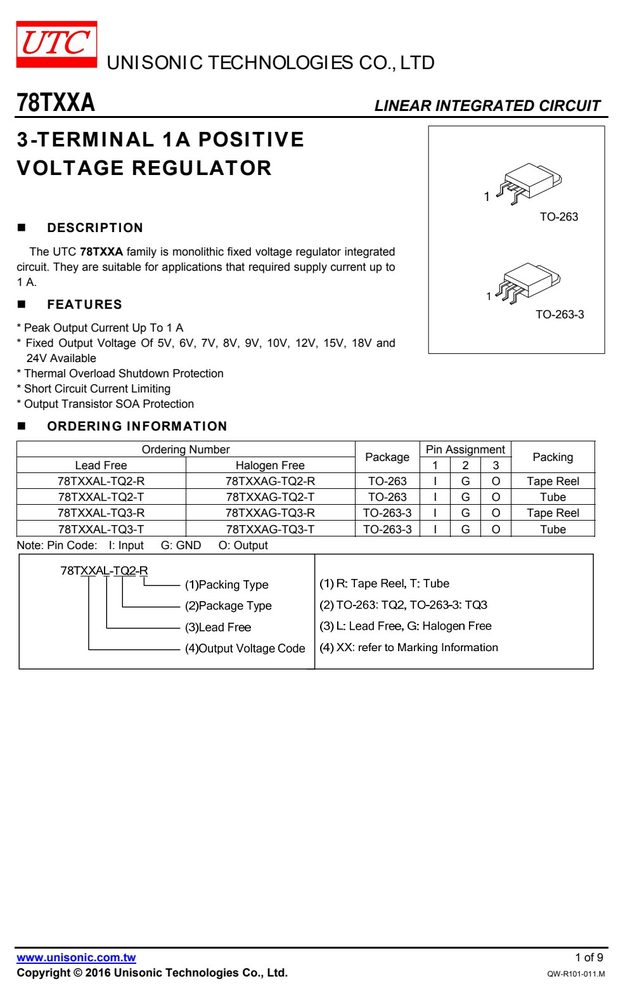

内部结构 / 引脚图（原厂规格书引脚章节）
内部结构 / 引脚图（原厂规格书引脚章节）
引脚符号名称
1of 9
055.0V
066.0V
077.0V
088.0V
数据来源：原厂规格书引脚图

产品特点 Features

  • Peak Output Current Up To 1 A
  • Fixed Output Voltage Of 5V,
  • 24V Available
  • Thermal Overload Shutdown
  • Short Circuit Current Limiting
  • Output Transistor SOA
  •  ORDERING
  • TO-263-3
  • 7V, 8V, 9V, 10V, 12V, 15V, 18V and
  • 78TXXA
  • LINEAR INTEGRATED CIRCUIT
  •  MARKING INFORMATION
  • PACKAGE VOLTAGE CODE MARKING
  • 05 :5.0V
  • 06 :6.0V
  • 07 :7.0V

电气特性 Electrical Characteristics（TA = 25°C）

参数符号测试条件最小典型最大单位
(T = 0°C-125°C,C =0.33uF,C=0.1uF,unlessotherwise specified) (Note 1)
T=25C, I =5mA - 1.0A4.805.05.20V
V=7.5V~20V,I =5mA-1.0A, P≦15W 4.755.25V
T=25C, I =5mA-1.0A50mV
T=25C, I =0.25A-0.75A25mV
V=7V~25V, T =25C50mV
V=7.5V~20V, T =25C, I =1.0A50mV
Quiescent CurrentI T=25C, I ≦1.0A8.0mA
V=7.5V~20V1.0mA
I=5mA-1.0A0.5mA
Output Noise VoltageeN10Hz≦f≦100kHz40V
Temperature coefficient ofVo Vo/T I=5mA-0.6mV/C
Ripple RejectionRR V=8V-18V, f=120Hz, T =25C6280dB
Peak Output CurrentI T=25C1.8A
Short-Circuit CurrentI V=35V, T =25C250mA
Dropout VoltageV T=25C2.0V
T=25C, I =5mA-1.0A5.766.06.24V
V=8.5V~21V,I =5mA-1.0A, P≦15W 5.706.30V
T=25C, I =5mA-1.0A60mV
T=25C, I =0.25A-0.75A30mV
V=8V~25V, T =25C60mV
V=8.5V~21V, T =25C, I =1.0A60mV
Quiescent CurrentI T=25C, I ≦1.0A8.0mA
V=8.5V~21V1.0mA
I=5mA-1.0A0.5mA
Output Noise VoltageeN10Hz≦f≦100kHz45V
Temperature coefficient ofVo Vo/T I=5mA-0.7mV/C
Ripple RejectionRR V=9V-19V, f=120Hz, T =25C5975dB
Peak Output CurrentI T=25C1.8A
Short-Circuit CurrentI V=35V, T =25C250mA
Dropout VoltageV T=25C2.0V
LINEARINTEGRATEDCIRCUIT
T=25C, I =5mA-1.0A6.727.07.28V
V=9.5V~22V,I =5mA-1.0A,P≦15W 6.657.35V
T=25C, I =5mA-1.0A70mV
T=25C, I =0.25A-0.75A35mV
V=9V~25V, T =25C70mV
V=9.5V~22V, T =25C, I =1.0A70mV
Quiescent CurrentI T=25C, I ≦1.0A8.0mA
V=9.5V~22V1.0mA
I=5mA-1.0A0.5mA
Output Noise VoltageeN10Hz≦f≦100kHz50V
Temperature coefficient ofVo Vo/T I=5mA-0.8mV/C
Ripple RejectionRR V=10V-20V, f=120Hz, T =25C5975dB
Peak Output CurrentI T=25C1.7A
Short-Circuit CurrentI V=35V, T =25C250mA
Dropout VoltageV T=25C2.0V
T=25C, I =5mA-1.0A7.688.08.32V
V=10.5V~23V,I =5mA-1.0A,P≦15W 7.608.40V
T=25C, I =5mA-1.0A80mV
T=25C, I =0.25A-0.75A40mV
V=10.5V~25V, T =25C80mV
V=10.5V~23V, T =25C, I =1.0A80mV
Quiescent CurrentI T=25C, I ≦1.0A8.0mA
V=10.5V~23V1.0mA
I=5mA-1.0A0.5mA
Output Noise VoltageeN10Hz≦f≦100kHz58V
Temperature coefficient ofVo Vo/T I=5mA-0.9mV/C
Ripple RejectionRR V=11.5V~21.5V, f=120Hz, T =25C5672dB
Peak Output CurrentI T=25C1.8A
Short-Circuit CurrentI V=35V, T =25C250mA
Dropout VoltageV T=25C2.0V
T=25C, I =5mA - 1.0A8.649.09.36V
V=11.5V~24V,I =5mA-1.0A,P≦15W 8.559.45V
T=25C, I =5mA-1.0A90mV
T=25C, I =0.25A-0.75A45mV
V=11.5V~25 V, T =25C90mV
V=11.5V~24V, T =25C, I =1.0A90mV
Quiescent CurrentI T=25C, I ≦1.0A8.0mA
V=11.5V~24V1.0mA
I=5mA–1.0A0.5mA
Output Noise VoltageeN10Hz≦f≦100kHz58V
Temperature coefficient ofVo Vo/T I=5mA-1.1mV/C
RR V=12.5V~22.5V,5672dB
Peak Output CurrentI T=25C1.8A
Short-Circuit CurrentI V=35V, T =25C250mA
Dropout VoltageV T=25C2.0V
LINEARINTEGRATEDCIRCUIT
T=25C, I =5mA-1.0A9.6010.010.40V
V=12.5V~25V,I =5mA-1.0A,P≦15W 9.5010.50V
T=25C, I =5mA-1.0A100mV
T=25C, I =0.25A-0.75A50mV
V=13V~25V, T =25C100mV
V=13V~25V, T =25C, I =1.0A100mV
Quiescent CurrentI T=25C, I ≦1.0A8.0mA
V=12.6V~25V1.0mA
I=5mA-1.0A0.5mA
Output Noise VoltageeN10Hz≦f≦100kHz58V
Temperature coefficient ofVo Vo/T I=5mA-1.1mV/C
Ripple RejectionRR V=13V-23V, f=120Hz, T =25C5672dB
Peak Output CurrentI T=25C1.8A
Short-Circuit CurrentI V=35V, T =25C250mA
Dropout VoltageV T=25C2.0V
T=25C, I =5mA-1.0A11.5212.012.48V
V=14.5V~27V,I =5mA-1.0A,P≦15W 11.4012.60V
T=25C, I =5mA-1.0A120mV
T=25C, I =0.25A-0.75A60mV
V=14.5V~30V, T =25C120mV
V=14.6V~27V, T =25C, I =1.0A120mV
Quiescent CurrentI T=25C, I ≦1.0A8.0mA
V=14.5V~30V1.0mA
I=5mA-1.0A0.5mA
Output Noise VoltageeN10Hz≦f≦100kHz75V
Temperature coefficient ofVo Vo/T I=5mA-1.5mV/C
Ripple RejectionRR V=15V-25V, f=120Hz, T =25C5572dB
Peak Output CurrentI T=25C1.8A
Short-Circuit CurrentI V=35V, T =25C250mA
Dropout VoltageV T=25C2.0V
T=25C, I =5mA-1.0A14.4015.015.60V
V=17.5V~30V,I =5mA-1.0A,P≦15W 14.2515.75V
T=25C, I =5mA-1.0A150mV
T=25C, I =0.25A-0.75A75mV
V=18.5V~30V, T =25C150mV
V=17.7V~30V, T =25C, I =1.0A150mV
Quiescent CurrentI T=25C, I ≦1.0A8.0mA
V=17.5V~30V1.0mA
I=5mA-1.0A0.5mA
Output Noise VoltageeN10Hz≦f≦100kHz90V
Temperature coefficient ofVo Vo/T I=5mA-1.8mV/C
Ripple RejectionRR V=18.5V~28.5V, f=120Hz, T =25C5470dB

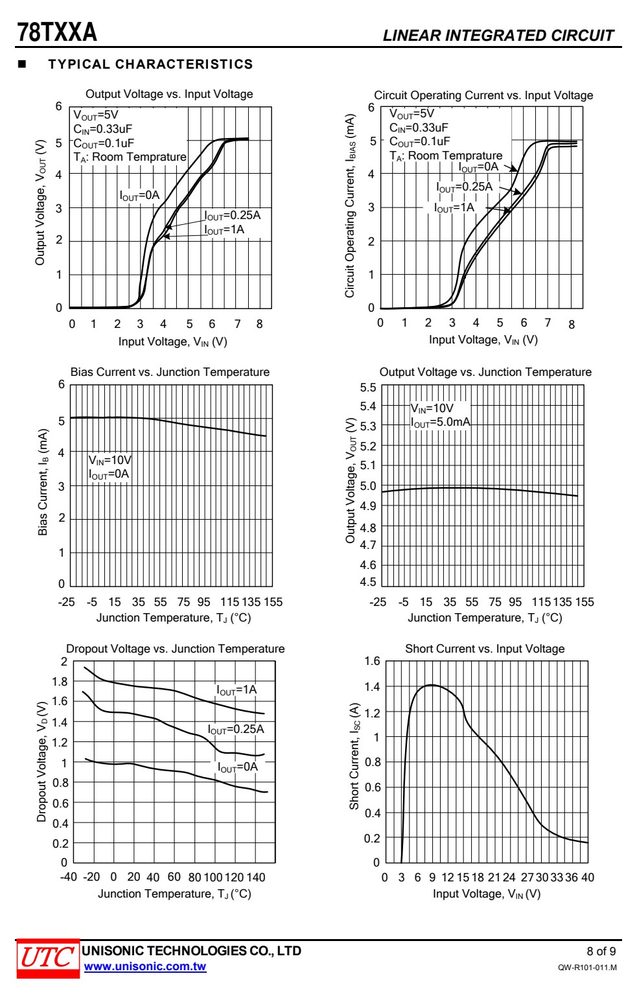

特性曲线（Typical Performance Curves）

典型特性曲线（原厂规格书性能曲线章节）
典型特性曲线（原厂规格书性能曲线章节）

产品应用与封装尺寸

78T09AL-TQ2-R 特性曲线
特性曲线
图纸取自该型号原厂规格书的应用电路与封装尺寸章节，点击图片可放大查看原始尺寸标注。
