产品实拍图
本页为博科信现货实拍（器件丝印 见规格书）。图片已加防盗水印，需要最新批次照片或未加水印原图请联系销售；点击图片可放大。

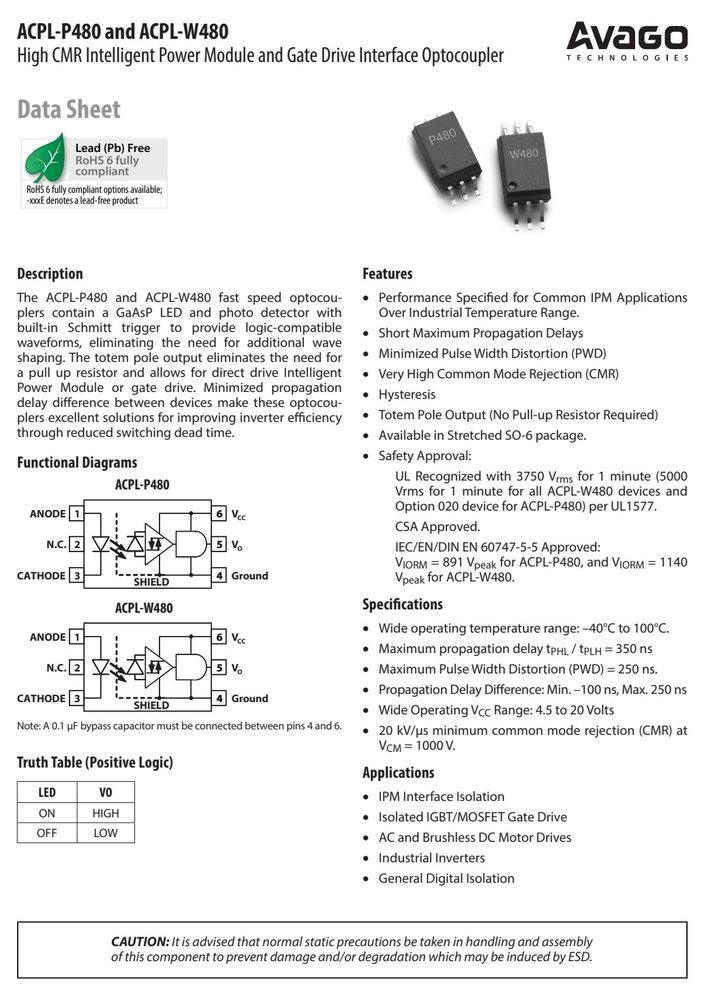

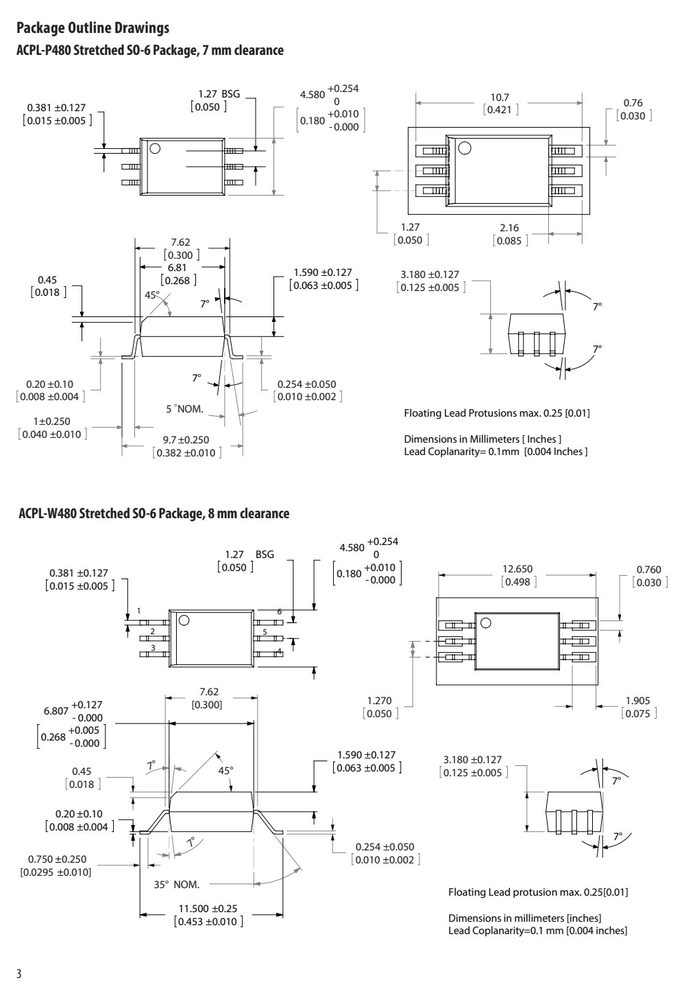

产品应用与封装尺寸
图纸取自原厂规格书，点击可放大查看原始尺寸标注。
关键参数速览
- 正向电压 VF
- 4
- 正向电流 IF
- 2.5
- 电源电压 VCC
- 25
- 工作温度 TA
- 100
产品特点 Features
- The ACPL-P480 and ACPL-W480 fast speed optocou-
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 符号 | 最小 | 最大 | 单位 | 备注 |
|---|---|---|---|---|---|
| Storage Temperature | T | -55 | 125 | °C | |
| Operating Temperature | T | -40 | 100 | °C | |
| Average Input Current | I | 10 | mA | ||
| (<1 µs pulse width, 300 pps) | 1.0 | A | |||
| (<200 µs pulse width, < 1% | duty cycle) | 40 | mA | ||
| Average Output Current | I | 25 | mA | ||
| Supply Voltage | V | 0 | 25 | ||
| Output Voltage | V | -0.5 | 25 | ||
| Total Package Power Dissipation | P | 210 | mW | 1 |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| 参数 | 符号 | ACPL-P480 | ACPL-W480 | 单位 | 条件 |
|---|---|---|---|---|---|
| Minimum External Air | Gap L(101) | 7.0 | 8.0 | mm | Measured from input terminals to output |
| (External Clearance) | terminals shortest distance through air. | ||||
| Minimum External | Tracking L(102) | 8.0 | 8.0 | mm | Measured from input terminals to output |
| (External Creepage) | terminals shortest distance path along body. | ||||
| (Internal Clearance) | conductor, usually the straight line distance | ||||
| Minimum Internal | Tracking | NA | mm | Measured from input terminals to output | |
| (Internal Creepage) | tereminals, along internal cavity. | ||||
| Tracking Resistance | CTI | >175 | V | DIN IEC 112/VDE 0303 Part 1 | |
| Isolation Group | IIIa | Material Group (DIN VDE 0110, 1/89, Table 1) |
电气特性 Electrical Characteristics（TA = 25°C）
| 参数 | 符号 | 最小 | 典型 | 最大 | 单位 | 测试条件 | 图号 | 备注 |
|---|---|---|---|---|---|---|---|---|
| A | CC | F(ON) | F(OFF) | |||||
| V to 0.8 V, unless | otherwise specified. | All typicals | at T | = 25 °C. | ||||
| Logic Low Output | Voltage V | 0.5 | V | I = 6.4 mA | 1, 3, 9, | |||
| Logic High Output | Voltage V | 2.4 | V - 1.1 | V | I = -2.6 mA | 2, 3, 7, | ||
| OH | CC | OH | ||||||
| ACPL-P480 | 2.7 | I = -0.4 mA | 9, 10 | |||||
| ACPL-W480 | 2.7 | I = -1.6 mA | ||||||
| Threshold Input | Current I | 2.2 | 5.5 | mA | ||||
| Output Leakage | Current I OHH | 100 | µA | V = 5 V, I = 10mA CC F | ||||
| O CC | 500 | µA | V = 20 V, I = 10mA | |||||
| Logic Low Supply | Current I CCL | 1.9 | 3.0 | mA | V = 5.5 V, V = 0 V, I CC F O | = Open | ||
| 2.0 | 3.0 | mA | V = 20 V, V = 0 V, I | = Open | ||||
| Logic High Supply | Current I CCH | 1.5 | 2.5 | mA | V = 5.5 V, I = 10 mA, CC F | |||
| 1.6 | 2.5 | mA | V = 20 V, IF = 10 mA | |||||
| Logic Low Short Circuit | I OSL | 25 | mA | V = V = 5.5 V, V =0V O CC F | 1 | |||
| 50 | mA | V = V = 20 V, V =0V | ||||||
| Logic High Short | Circuit I OSH | -25 | mA | V = 5.5 V, I =6mA, V CC F O | =GND | 1 | ||
| -50 | mA | V = 20 V, I =6mA, V | =GND | |||||
| Input Forward Voltage | V F | 1.5 | 1.7 | V | T = 25˚C, I =6mA A F | 4 | ||
| Input Diode Temperature | DV /DT | 1.7 | mV/°C | I = 6 mA | ||||
| Input Capacitance | C | 60 | pF | f = 1 MHz, V = 0 V | 2 | |||
| 1. Duration of output | short circuit time should | not exceed | 10 ms. |
