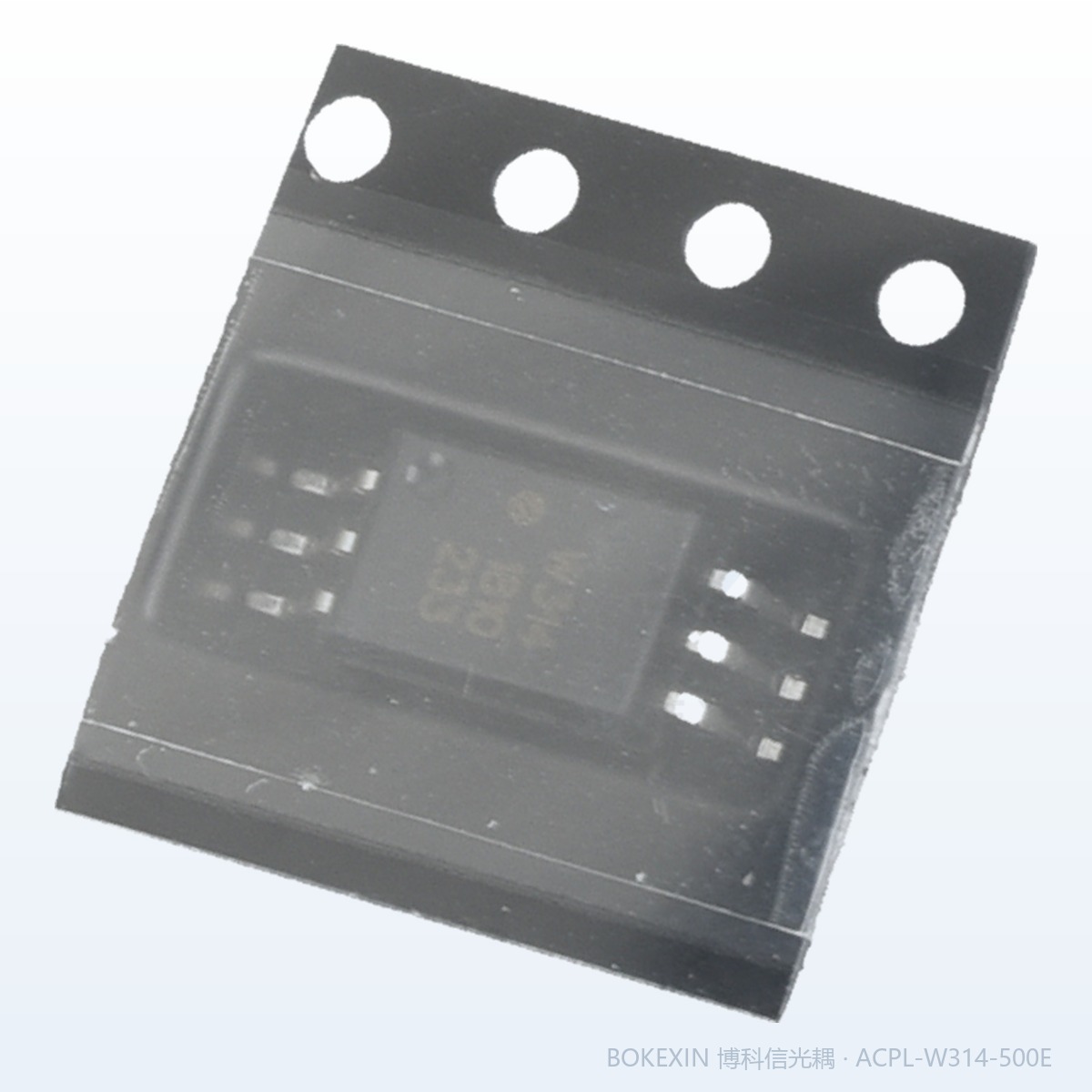

产品实拍图
本页为博科信现货实拍（器件丝印 见规格书）。图片已加防盗水印，需要最新批次照片或未加水印原图请联系销售；点击图片可放大。

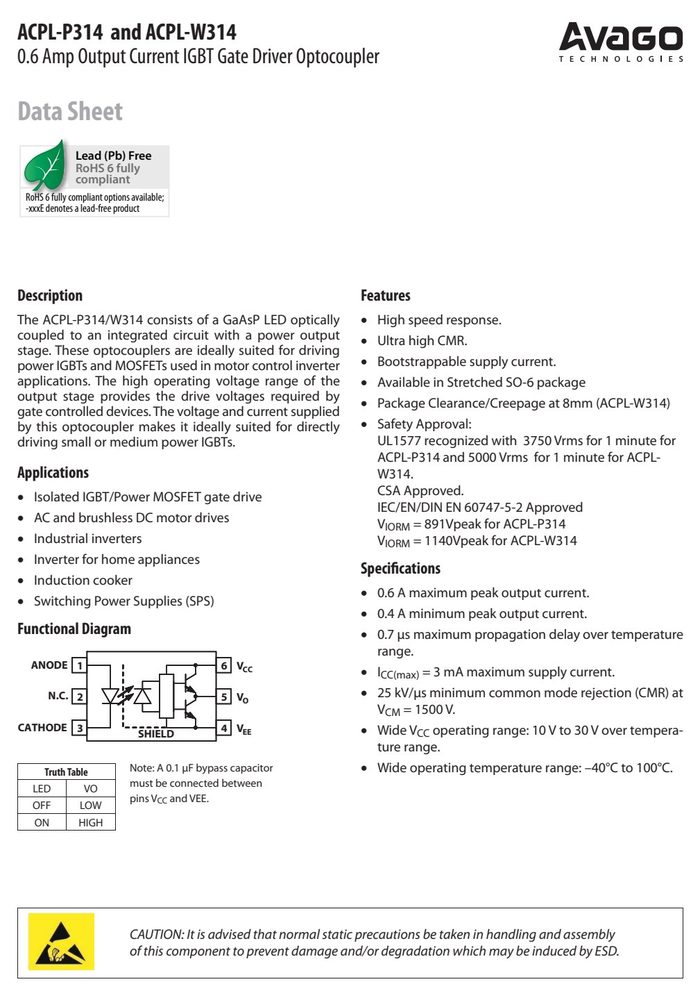

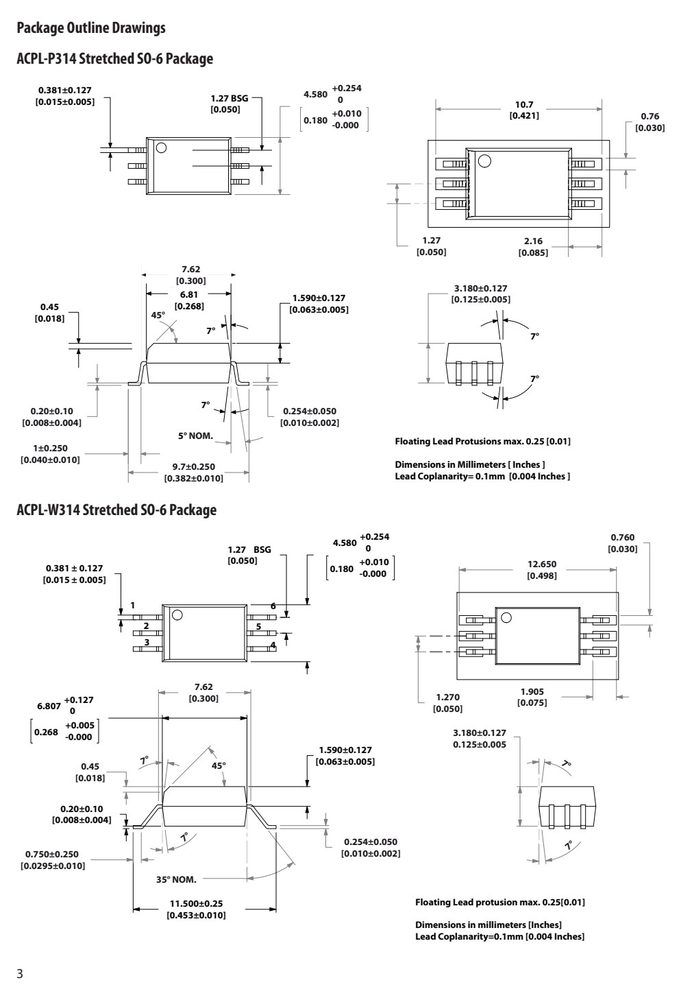

产品应用与封装尺寸
图纸取自原厂规格书，点击可放大查看原始尺寸标注。
引脚定义与内部结构
| 引脚 | 符号 | 名称 |
|---|---|---|
| 3 | SHIELD | |
| 4 | V | |
| 5 | V | |
| 6 | V |
数据来源：原厂规格书引脚图
关键参数速览
- 电源电压 VCC
- 35
- 工作温度 TA
- 100
产品特点 Features
- The ACPL-P314/W314 consists of a GaAsP LED optically coupled to an integrated circuit with a power output stage. These optocouplers are ideally suited for driving power IGBTs and MOSFETs used in motor control inverter
- High speed response.
- Ultra high CMR.
- Bootstrappable supply current.
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 符号 | 最小 | 最大 | 单位 | 备注 |
|---|---|---|---|---|---|
| Storage Temperature | T | -55 | 125 | °C | |
| Operating Temperature | T | -40 | 100 | °C | |
| Average Input Current | I | 25 | mA | 1 | |
| Peak Transient Input Current | I | 1.0 | A | ||
| “High” Peak Output Current | I | 0.6 | A | 2 | |
| “Low” Peak Output Current | I | 0.6 | A | 2 | |
| Supply Voltage | V - V | -0.5 | 35 | V | |
| Output Voltage | V | -0.5 | V | V | |
| Output Power Dissipation | P | 250 | mW | 3 | |
| Input Power Dissipation | P | 45 | mW | 4 | |
| Lead Solder Temperature | 260°C for | 10 sec., 1.6 mm | below seating | plane |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| 说明 | 符号 | ACPL-W14 | ACPL-P314 | 单位 |
|---|---|---|---|---|
| Input to Output Test Voltage, Method | b* | |||
| V x 1.875 = V , 100% Production | Test with t = 1 sec V | 2137 | 1670 | V |
| IORM PR | m PR | peak | ||
| Input to Output Test Voltage, Method | a* | |||
| V x 1.6 = V , Type and sample test, | t = 10 sec, V | 1824 | 1426 | V |
| IORM PR | m PR | peak | ||
| Highest Allowable Overvoltage* | V | 8000 | 6000 | V |
订货信息与供货形式
| 型号 | 型号2 | RoHS | Compliant | 封装 | Mount | & | 包装 | 额定值 | 60747-5-2 | 数量 |
|---|---|---|---|---|---|---|---|---|---|---|
| column | to form | an order | entry. | |||||||
| RoHS | compliant | option | will use | ‘-XXXE‘. |
