产品应用与封装尺寸

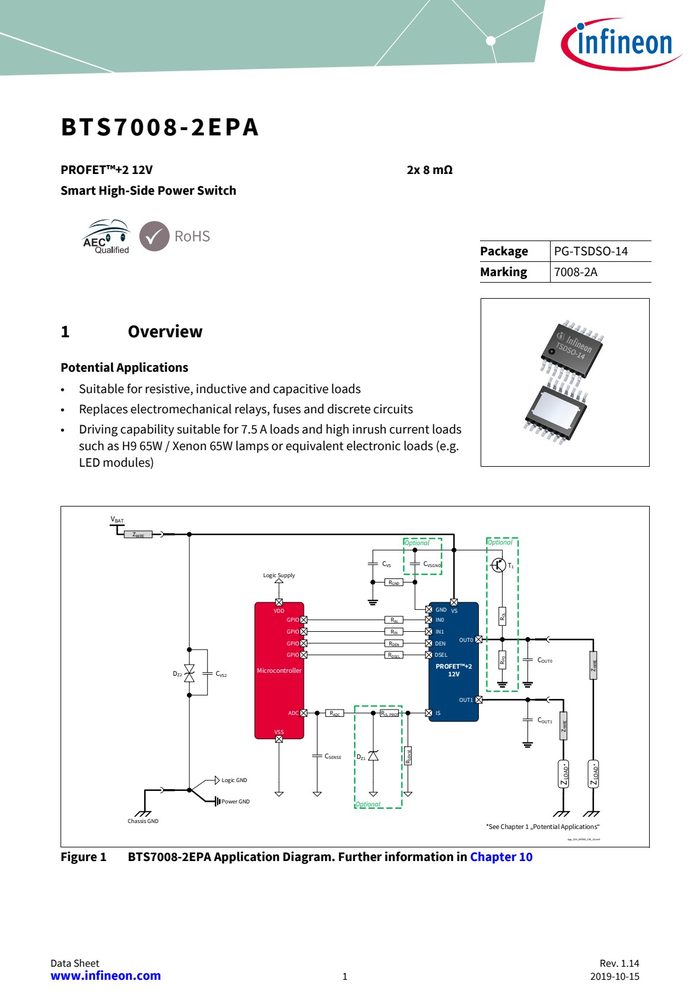

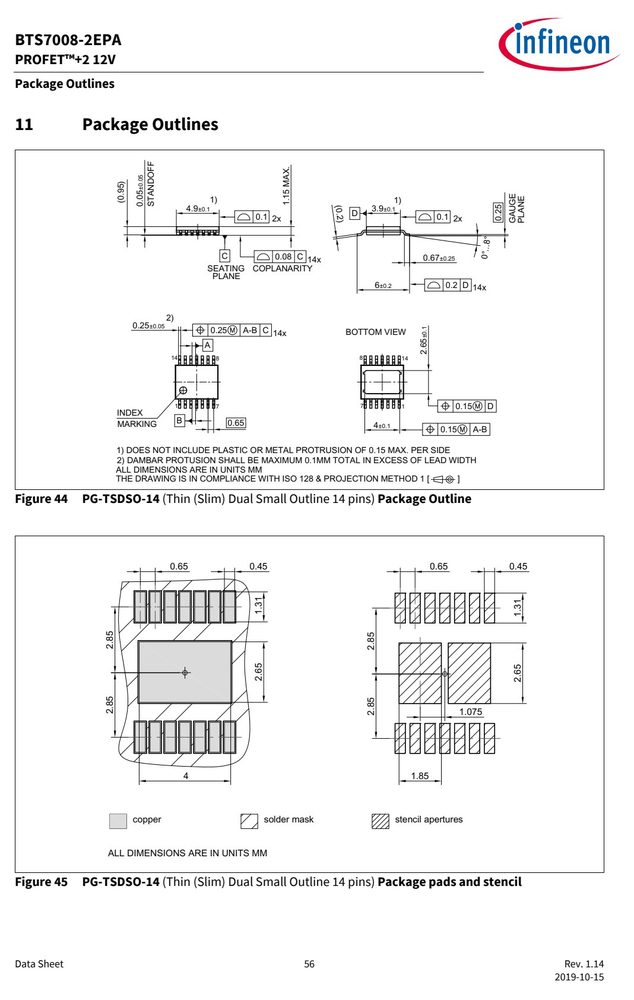

图纸取自原厂规格书，点击可放大查看原始尺寸标注。

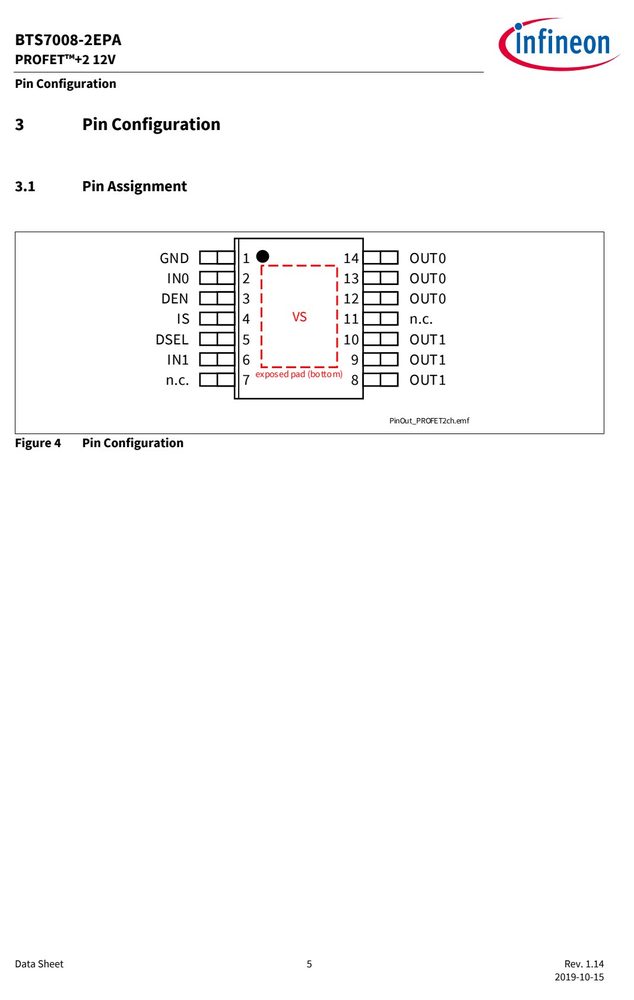

引脚定义与内部结构
| 引脚 | 符号 | 名称 |
|---|---|---|
| 1 | GND Ground | |
| 3 | DEN Diagnostic Enable | |
| 4 | IS SENSE current output | |
| 5 | DSEL Diagnosis Selection |
数据来源：原厂规格书引脚图
产品特点 Features
- High-Side Switch with Diagnosis and Embedded Protection
- Part of PROFET™+2 12V Family
- Switch ON capability while Inverse Current condition (InverseON)
- Green Product (RoHS compliant)
- Absolute and dynamic temperature limitation with controlled restart
- Overcurrent protection (tripping) with Intelligent Restart Control
- Undervoltage shutdown
- Overvoltage protection with external components
- Proportional load current sense
- Open Load in ON and OFF state
- Short circuit to ground and battery
- Product Validation
- Qualified for automotive applications. Product validation according to AEC-Q100 Grade 1.
- BTS7008-2EPA
- PROFET™+2 12V
- Block Diagram and Terms
电气特性 Electrical Characteristics（TA = 25°C）
| 参数 | 符号 | 值 | 单位 | 备注 | or | 型号 |
|---|---|---|---|---|---|---|
| 2019-10-15 2019-10-15 |
