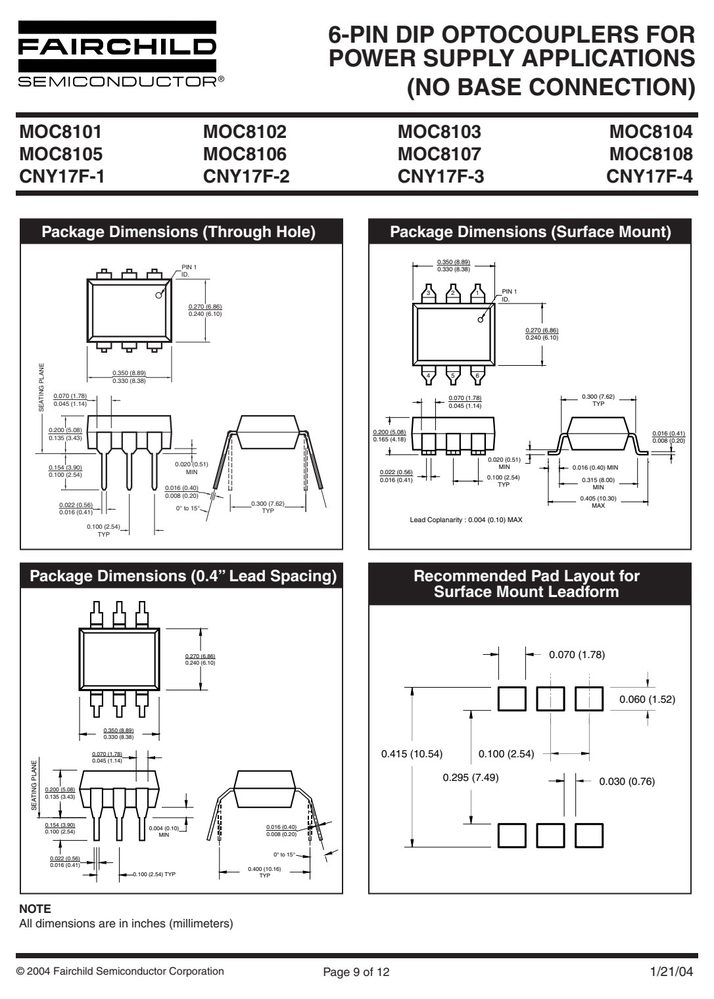

产品应用与封装尺寸
图纸取自原厂规格书，点击可放大查看原始尺寸标注。
关键参数速览
- 正向电压 VF
- 1.65
- 正向电流 IF
- 133
- 集电极-发射极电压 VCEO
- 50

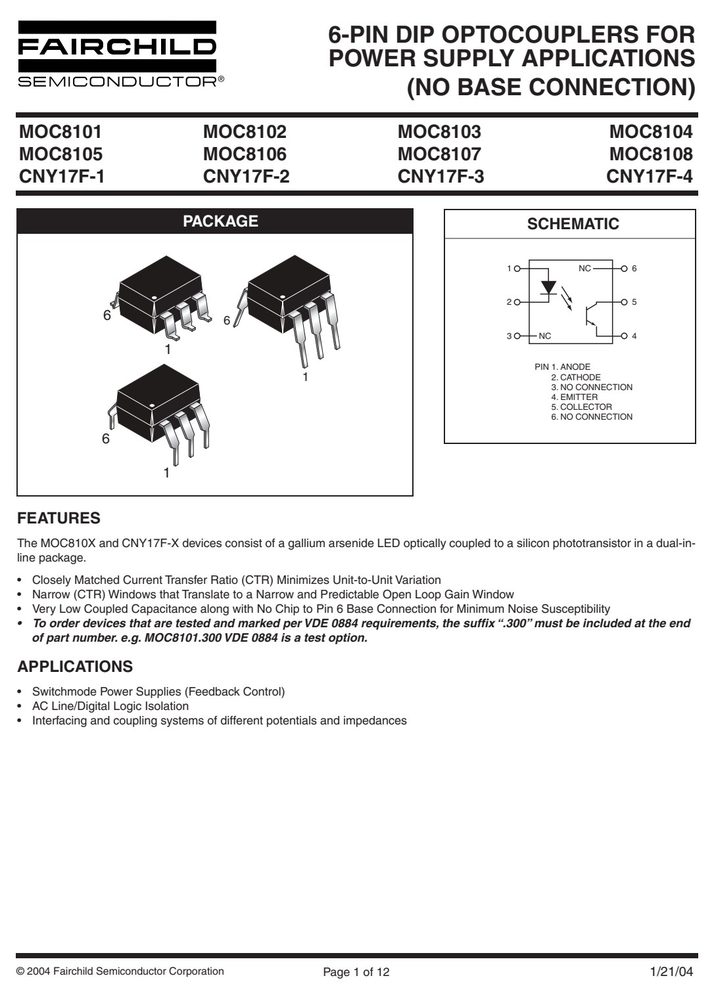

产品特点 Features
- The MOC810X and CNY17F-X devices consist of a gallium arsenide LED optically coupled to a silicon phototransistor in a dual-in- line package.
- 6-PIN DIP OPTOCOUPLERS FOR
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 符号 | 值 | 单位 |
|---|---|---|---|
| Forward Current - Continuous | I | 100 | mA |
| Forward Current - Peak (PW = 1µs, 300pps) | I (pk) | 1 | A |
| LED Power Dissipation @ T = 25°C | 150 | mW | |
| Derate above 25°C | 2.0 | mW/°C | |
| MOC8106/7/8, CNY17F-1/2/3/4 | 70 | ||
| MOC8101/2/3/4/5 | 30 | ||
| Emitter-Collector Voltage | V | 7 | Volts |
| Detector Power Dissipation @ T = 25°C | 150 | mW | |
| Derate above 25°C | 2.0 | mW/°C |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| 参数 | 符号 | 值 | 单位 |
|---|---|---|---|
| V | 5300 | Vac(rms) | |
| (f = 60 Hz, t = 1 min.) | |||
| Total Device Power Dissipation @ T = | 25°C | 250 | mW |
| Derate above 25°C | 3.3 | mW/°C | |
| Ambient Operating Temperature Range | T | -55 to +100 | °C |
| Storage Temperature Range | T | -55 to +150 | °C |
| T | 260 | °C | |
| (1/16” from case, 10 sec. duration) |
电气特性 Electrical Characteristics（TA = 25°C）
| Characteristic | 符号 | 最小 | Typ** | 最大 | 单位 |
|---|---|---|---|---|---|
| Forward Voltage (I = 60 mA) | CNY17F-X V | — | 1.40 | 1.65 | V |
| (I = 10 mA) | MOC810X | 1.0 | 1.18 | 1.5 | |
| Capacitance | C | — | 18 | — | pF |
| Collector-Emitter Dark Current | (V = 10 V, T = 25°C) I | — | 1.0 | 50 | nA |
| (V = 10 V, T = 100°C) I | — | 1.0 | — | µA | |
| MOC8101/2/3/4/5 | (I = 1.0 mA) | 30 | 100 | — | |
| MOC8106/7/8, CNY17F-1/2/3/4 | (I = 1.0 mA) | 70 | 100 | — | |
| Emitter-Collector Breakdown Voltage | (I = 100 µA) V | 7.0 | 10 | — | V |
| Collector-Emitter Capacitance | (f = 1.0 MHz, V = 0) C | — | 8 | — | pF |
| MOC8101 | 50 | — | 80 | ||
| MOC8102 | 73 | — | 117 | ||
| MOC8103 | 108 | — | 173 | ||
| Output Collector Current | MOC8104 | 160 | — | 256 | |
| (I F = 10 mA, V CE = 10 V) | MOC8105 | 65 | — | 133 | |
| MOC8106 | 50 | — | 150 |

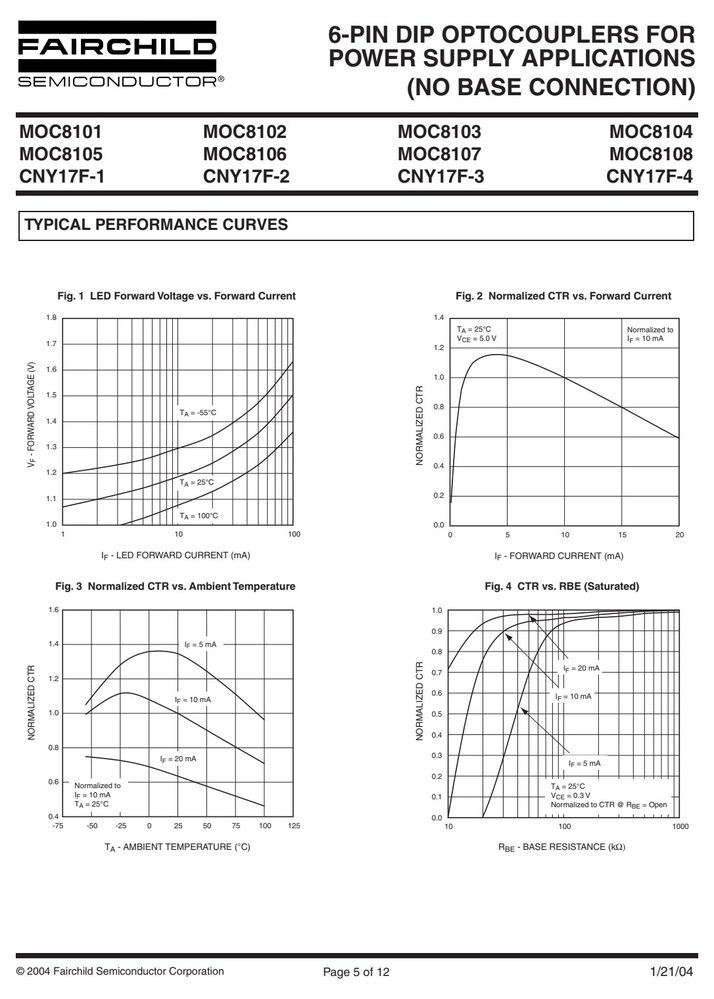

特性曲线（Typical Performance Curves）
