产品应用与封装尺寸

图纸取自原厂规格书,点击可放大查看原始尺寸标注。
引脚定义与内部结构

| 引脚 | 符号 | 名称 |
|---|---|---|
| 5 | FB | |
| 6 | SS | |
| 7 | GND | |
| 8 | SW |
数据来源:原厂规格书引脚图
产品特点 Features

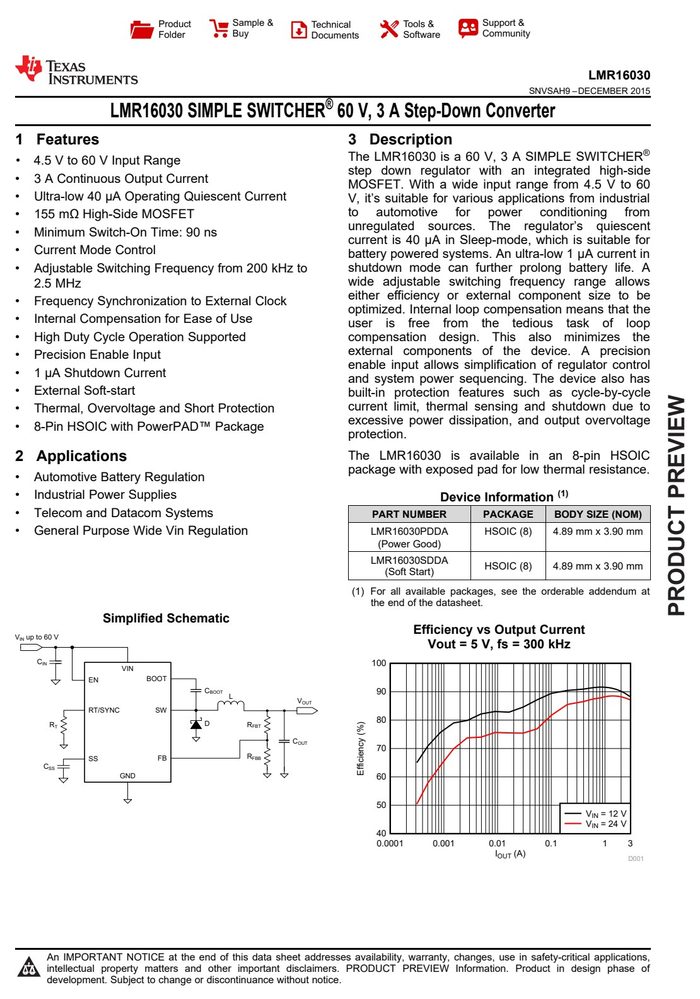

- The LMR16030 is a 60 V, 3 A SIMPLE SWITCHER®
- 4.5 V to 60 V Input Range
- 1 step down regulator with an integrated high-side
- 3 A Continuous Output Current
- MOSFET. With a wide input range from 4.5 V to 60
- Ultra-low 40 µA Operating Quiescent Current V, it’s suitable for various applications from industrial
- 155 mΩ High-Side MOSFET to automotive for power conditioning from unregulated sources. The regulator’s quiescent
- Minimum Switch-On Time: 90 ns current is 40 µA in Sleep-mode, which is suitable for
- Current Mode Control battery powered systems. An ultra-low 1 μA current in
- Adjustable Switching Frequency from 200 kHz to shutdown mode can further prolong battery life. A
- 2.5 MHz wide adjustable switching frequency range allows either efficiency or external component size to be
- Frequency Synchronization to External Clock optimized. Internal loop compensation means that the
- Internal Compensation for Ease of Use user is free from the tedious task of loop
- High Duty Cycle Operation Supported compensation design. This also minimizes the external components of the device. A precision
- Precision Enable Input enable input allows simplification of regulator control
- 1 µA Shutdown Current and system power sequencing. The device also has
