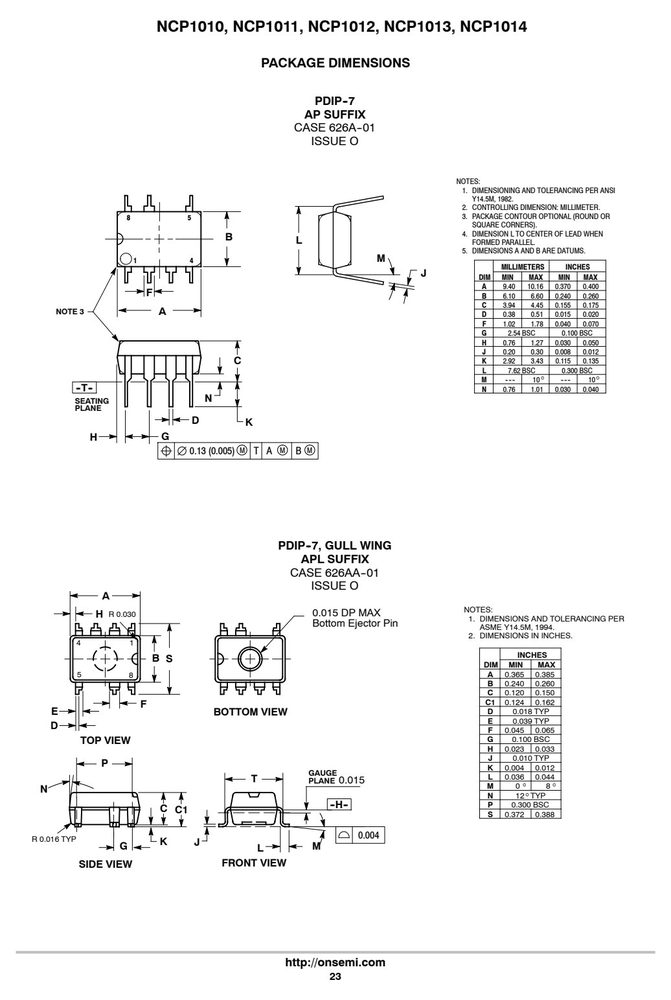

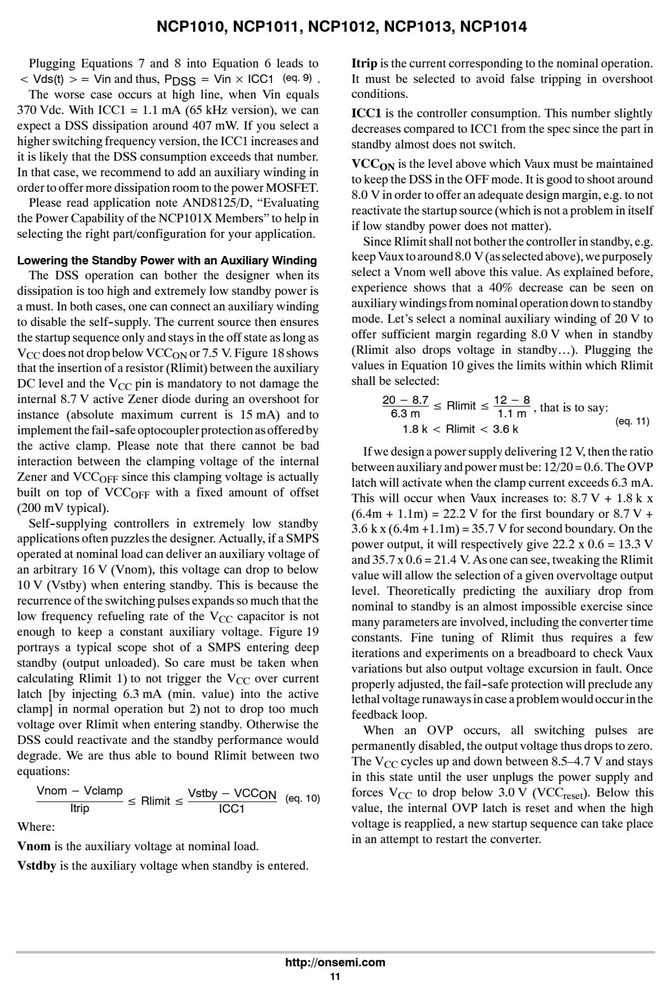

产品应用与封装尺寸
图纸取自原厂规格书，点击可放大查看原始尺寸标注。

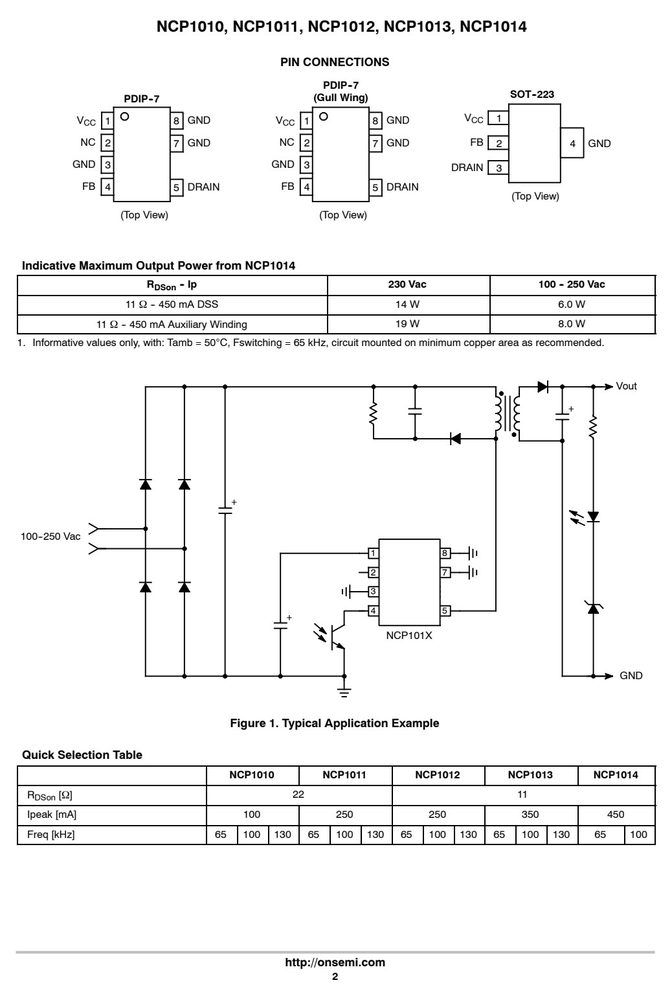

引脚定义与内部结构
| 引脚 | 符号 | 名称 |
|---|---|---|
| 1 | ST | |
| 2 | NC | |
| 3 | GND | |
| 4 | GND | |
| 5 | DRAIN |
数据来源：原厂规格书引脚图
关键参数速览
- 电源电压 VCC
- --0.3 to 10
产品特点 Features
- Built--in 700 V MOSFET with Typical R of 11 Ω
- DSon and 22 Ω
- Large Creepage Distance Between High--Voltage Pins
- Current--Mode Fixed Frequency Operation: is
- 65 kHz – 100 kHz -- 130 kHz
- Skip--Cycle Operation at Low Peak Currents Only:
- No Acoustic Noise!
- Dynamic Self--Supply, No Need for an Auxiliary These
- Winding
- Internal 1.0 ms Soft--Start Typical
- Latched Overvoltage Protection with Auxiliary Low
- Winding Operation
- Frequency Jittering for Better EMI Signature
- Internal Output Short--Circuit
- 100 mW Standby Power if Auxiliary Winding
- Temperature Shutdown
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 额定值 | 符号 | 值 | 单位 |
|---|---|---|---|
| Power Supply Voltage on all pins, except Pin 5 (Drain) | V | --0.3 to 10 | V |
| Drain Voltage | -- | --0.3 to 700 | V |
| NCP1010/11 | 550 | mA | |
| NCP1012/13/14 | 1.0 | A | |
| P Suffix, Case 626A | |||
| Junction--to--Lead | R | 9.0 | |
| Junction--to--Air, 2.0 oz (70 mm) Printed Circuit Copper Clad | R | ||
| PL Suffix (Gull Wing), Case 626AA | |||
| Junction--to--Lead | R | 11.9 | |
| Junction--to--Air, 2.0 oz (70 mm) Printed Circuit Copper Clad | R | ||
| ST Suffix, Plastic Package Case 318E | |||
| Junction--to--Lead | R | 14 | |
| Junction--to--Air, 2.0 oz (70 mm) Printed Circuit Copper Clad | R | ||
| Maximum Junction Temperature | T | 150 | C |
| Storage Temperature Range | -- | --60 to +150 | C |
| ESD Capability, Human Body Model (All pins except HV) | -- | 2.0 | kV |
数据来源：原厂规格书
特性曲线（Typical Performance Curves）
订货信息与供货形式
| 器件 | Order | 型号 | (kHz) | 封装 | 型号2 | Shipping† | (Ω) | Ipk | (mA) |
|---|---|---|---|---|---|---|---|---|---|
| NCP1010AP065G | 65 | PDIP--7 | 23 | 100 | |||||
| NCP1010AP100G | 100 | PDIP--7 | 23 | 100 | |||||
| NCP1010AP130G | 130 | PDIP--7 | 23 | 100 | |||||
| NCP1011APL065R2G | 65 | PDIP--7 (Gull | Wing) | 23 | 250 | ||||
| NCP1010ST65T3G | 65 | SOT--223 | 23 | 100 | |||||
| NCP1010ST100T3G | 100 | SOT--223 | 23 | 100 | |||||
| NCP1010ST130T3G | 130 | SOT--223 | 23 | 100 | |||||
| NCP1011AP065G | 65 | PDIP--7 | 23 | 250 | |||||
| NCP1011APL065R2G | 65 | PDIP--7 (Gull | Wing) | 1000 / Tape & Reel | 23 | 250 | |||
| NCP1011AP100G | 100 | PDIP--7 | 23 | 250 | |||||
| NCP1011AP130G | 130 | PDIP--7 | 23 | 250 | |||||
| NCP1011APL130R2G | 130 | PDIP--7 (Gull | Wing) | 23 | 250 | ||||
| NCP1011ST65T3G | 65 | SOT--223 | 23 | 250 | |||||
| NCP1011ST100T3G | 100 | SOT--223 | 23 | 250 | |||||
| NCP1011ST130T3G | 130 | SOT--223 | 23 | 250 | |||||
| NCP1012AP065G | 65 | PDIP--7 | 11 | 250 | |||||
| NCP1012APL065R2G | 65 | PDIP--7 (Gull | Wing) | 11 | 250 | ||||
| NCP1012AP100G | 100 | PDIP--7 | 11 | 250 | |||||
| NCP1012APL100R2G | 100 | PDIP--7 (Gull | Wing) | 1000 / Tape & Reel | 11 | 250 | |||
| NCP1012AP133G | 130 | PDIP--7 | 11 | 250 | |||||
| NCP1012APL130R2G | 130 | PDIP--7 (Gull | Wing) | 11 | 250 | ||||
| NCP1012ST65T3G | 65 | SOT--223 | 11 | 250 | |||||
| NCP1012ST100T3G | 100 | SOT--223 | 11 | 250 | |||||
| NCP1012ST130T3G | 130 | SOT--223 | 11 | 250 | |||||
| NCP1013AP065G | 65 | PDIP--7 | 11 | 350 | |||||
| NCP1013AP100G | 100 | PDIP--7 | 11 | 350 | |||||
| NCP1013AP133G | 130 | PDIP--7 | 11 | 350 | |||||
| NCP1013ST65T3G | 65 | SOT--223 | 11 | 350 | |||||
| NCP1013ST100T3G | 100 | SOT--223 | 11 | 350 | |||||
| NCP1013ST130T3G | 130 | SOT--223 | 11 | 350 | |||||
| NCP1014AP065G | 65 | PDIP--7 | 11 | 450 | |||||
| NCP1014APL065R2G | 65 | PDIP--7 (Gull | Wing) | 11 | 450 | ||||
| NCP1014AP100G | 100 | PDIP--7 | 11 | 450 | |||||
| NCP1014APL100R2G | 100 | PDIP--7 (Gull | Wing) | 11 | 450 | ||||
| NCP1014ST65T3G | 65 | SOT--223 | 11 | 450 | |||||
| NCP1014ST100T3G | 100 | SOT--223 | 11 | 450 |
