产品应用与封装尺寸
-appcircuit.jpg)

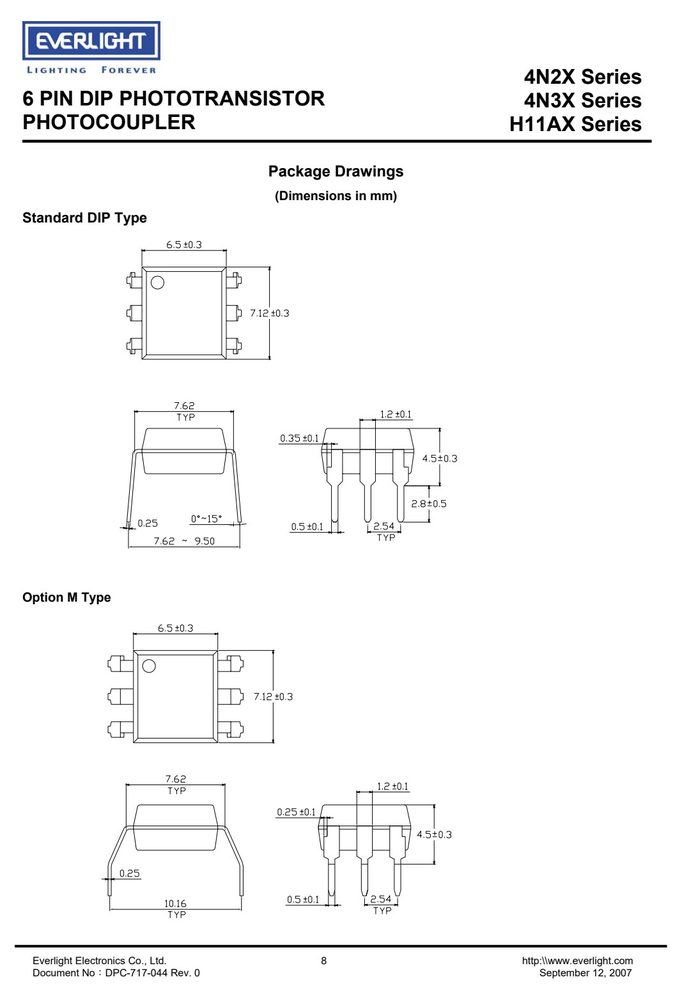

-package.jpg)
图纸取自原厂规格书，点击可放大查看原始尺寸标注。
关键参数速览
- 正向电压 VF
- 10mA
- 正向电流 IF
- 50
- 集电极-发射极电压 VCEO
- 50
产品特点 Features
- 4N2X series: 4N25, 4N26, 4N27, 4N28
- 4N3X series: 4N35, 4N36, 4N37, 4N38
- H11AX series: H11A1, H11A2, H11A3, H11A4, H11A5
- High isolation voltage between input and output
- (Viso=5000 V rms)
- Creepage distance >7.6mm
- Operating temperature up to +110°C
- Compact dual-in-line package
- Pb free and RoHS compliant.
- UL approved (No. E214129)
- VDE approved (No. 132249)
- SEMKO approval pending
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 符号 | 额定值 | 单位 |
|---|---|---|---|
| Forward current | I | 50 | mA |
| Peak forward current (t = | 10µs) I | 1 | A |
| Power dissipation (T = | 25°C) | 70 | mW |
| Derating factor (above | 100°C) | 3.8 | mW/°C |
| Collector-Emitter voltage | V | 80 | V |
| Collector-Base voltage | V | 80 | V |
| Emitter-Collector voltage | V | 7 | V |
| Emitter-Base voltage | V | 7 | V |
| Power dissipation (T = | 25°C) | 150 | mW |
| Derating factor (above | 100°C) | 9.0 | mW/°C |
| Total power dissipation | P | 200 | mW |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| 参数 | 符号 | 额定值 | 单位 |
|---|---|---|---|
| 4N2X | Series | ||
| 6 PIN DIP PHOTOTRANSISTOR | 4 N | 3 X Series | |
| PHOTOCOUPLER | H11AX | Series | |
| Operating temperature | T | -55~+110 | °C |
| Storage temperature | T | -55~+125 | °C |
| Soldering temperature | T | 260 | °C |
电气特性 Electrical Characteristics（TA = 25°C）
| 参数 | 符号 | 最小 | Typ.* | 最大 | 单位 | 条件 |
|---|---|---|---|---|---|---|
| Forward voltage | V | - | 1.2 | 1.5 | V I = | 10mA |
| Input capacitance | C | - | 30 | - | pF V = | 0, f = 1MHz |
| Collector-Base dark | current I | - | - | 20 | nA V | = 10V |
| Collector-Emitter dark | - | - | 50 | V CE | = 10V, IF=0mA | |
| - | - | 50 | V | = 60V, IF=0mA | ||
| BV | 80 | - | - | V I | =1mA | |
| breakdown voltage | CEO | c | ||||
| BV | 80 | - | V I | =0.1mA | ||
| breakdown voltage | CBO | C | ||||
| BV | 7 | - | - | V I | =0.1mA | |
| breakdown voltage | ECO | E | ||||
| BV | 7 | - | - | V I | =0.1mA | |
| breakdown voltage | EBO | E | ||||
| C | - | 8 | - | pF | VCE=0V, f=1MHz 4N2X Series | |
| 6 PIN DIP | PHOTOTRANSISTOR | 4 N 3 X Series | ||||
| PHOTOCOUPLER | H11AX Series | |||||
| Transfer Characteristics | (T =25°C unless | specified 100 | otherwise) - | |||
| H11A1 | 50 | - | - | |||
| Current H11A5 | 30 | - | - |

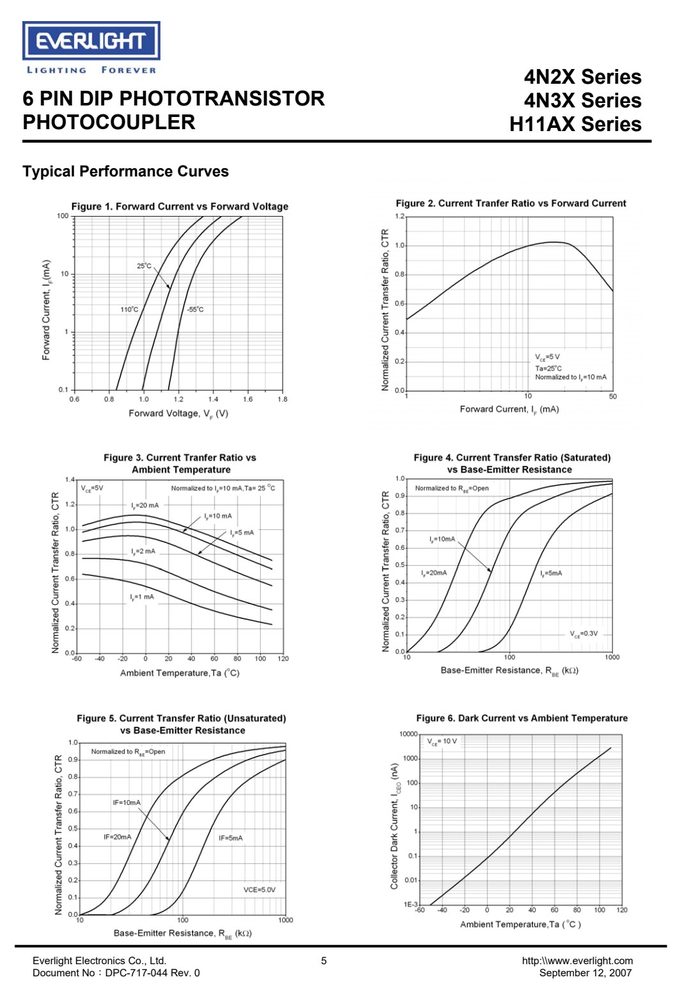

特性曲线（Typical Performance Curves）
-curves.jpg)
订货信息与供货形式
| 包装 | S | 型号 |
|---|---|---|
| Option | S | Type |
| Option | S1 | Type |
