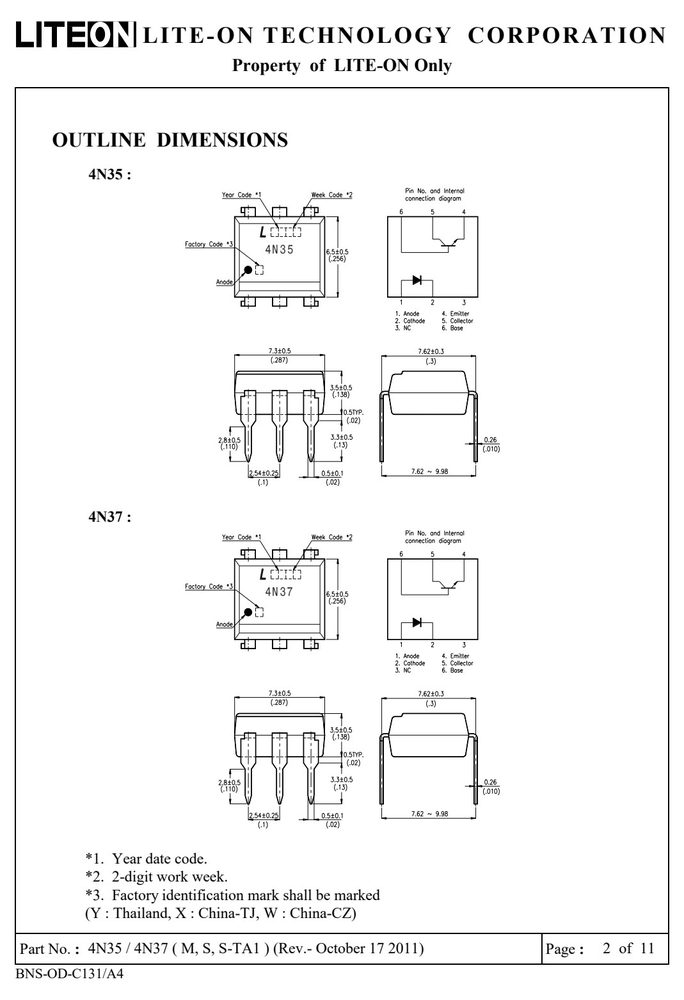

产品应用与封装尺寸
图纸取自原厂规格书，点击可放大查看原始尺寸标注。
关键参数速览
- 正向电流 IF
- 60
产品特点 Features
- High crrent transfer ratio
- ( CTR : MIN. 100% at I = 10mA, V = 10V )
- Response time
- ( t : TYP. 3s at V = 10V, I = 2mA, R = 100 ) on CC C L
- L I T E - O N T E C H N O L O G Y C O R P O R A T I O N
- Property of LITE-ON Only
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 符号 | 额定值 | 单位 |
|---|---|---|---|
| ( | Ta = 25C ) | ||
| Forward Current | I | 60 | mA |
| Power Dissipation | P | 100 | mW |
| Collector - Emitter Voltage | V | 30 | V |
| Emitter - Collector Voltage | V | 7 | V |
| OUTPUT Collector - Base Voltage | V | 70 | V |
| Collector Current | I | 100 | mA |
| Collector Power Dissipation | P | 300 | mW |
| Total Power Dissipation | P | 350 | mW |
| 4N35 | series | 3550 |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| * | 包装 | and | 包装2 | packaging | : |
|---|---|---|---|---|---|
| 4N35 | series : | V = | 3,550Vrms | ||
| 4N37 | 4N35, 4N35M, 4N35S, | series : 4N37 4N37S | V = 4N37M | 1,500Vrms | |
| 4N35S-TA1, | 4N37S-TA1 |
