Name: EVERLIGHT 6N137S1(TA)
Brand: EVERLIGHT
Availability: InStock

产品实拍图

本型号暂无已核对的专属实拍图。为避免图文不符，本页不放同系列近似图；如需实物照片，请联系销售获取本批次实拍。

索取实拍图在产品目录查看同类型号

产品应用与封装尺寸

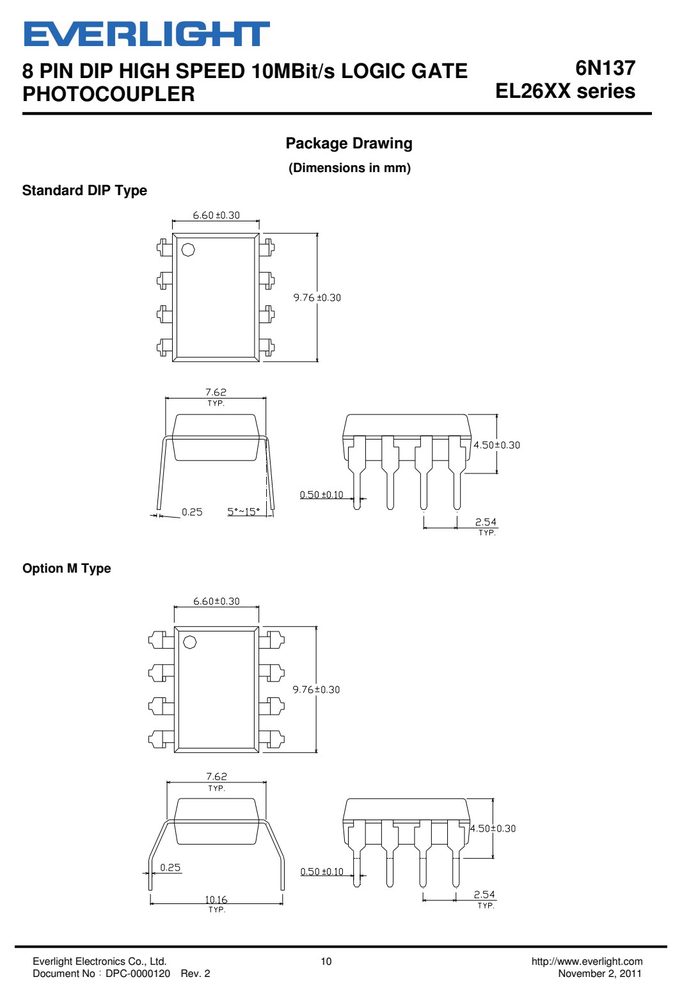

图纸取自原厂规格书，点击可放大查看原始尺寸标注。

关键参数速览

正向电压 VF: 10mA
电源电压 VCC: 7.0

产品特点 Features

High speed 10Mbit/s
10kV/ µs min. common mode transient immunity
(EL2611)
Guaranteed performance from -40 to 85℃
Logic gate output
High isolation voltage between input
and output (Viso=5000 V rms )
Pb free and RoHS compliant.
UL approved (No. 214129)
VDE approved (No. 132249)
SEMKO approved
NEMKO approved

绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）

超过下表数值可能造成器件永久损坏，设计时请留余量。

参数	符号	额定值	单位
	I	50	mA
Enable input voltage Not exceed	V by
	V	5.5	V
more than 500mV	E
Power dissipation	P	100	mW
Power dissipation	P	85	mW
Output current	I	50	mA
Output voltage	V	7.0	V
Supply voltage	V	7.0	V
Output Power Dissipation	P	100	mW

数据来源：原厂规格书

安全与绝缘额定值（DIN EN/IEC 60747−5−5）

参数	符号	额定值	单位
8 PIN DIP HIGH SPEED	10MBit/s LOGIC GATE	EL26XX	6 N 137 series
Operating temperature	T	-40 ~ +85	°C
Storage temperature	T	-55 ~ +125	°C
Soldering temperature	T	260	°C
8 are shorted together.

电气特性 Electrical Characteristics（TA = 25°C）

参数	符号	最小	Typ.*	最大	单位	条件
Forward voltage	V	-	1.4	1.8	V I =	10mA
	∆V /∆T	-	-1.8	-	mV/°C I	=10mA
forward voltage	F A				F
Input capacitance	C	-	60	-	pF V	=0, f=1MHz
					I	=10mA, V =0.5V,
High level supply current		-	7	10	F	E
	CCH				V	=5.5V
					I	=0mA, V =0.5V,
Low level supply current	I	-	9	13	mA F V	E =5.5V
High level enable current	I	-	- 0.6	-1.6	mA V	=0.5V, V =5.5V
	EH				E	CC
Low level enable current	I	-	- 0.8	-1.6	mA V	=2.0V, V =5.5V
	EL				E	CC
High level enable voltage	V	2.0	-	-	V I	=10mA, V =5.5V
	EH				F	CC
Low level enable voltage*	4 V	-	-	0.8	V I	=10mA, V =5.5V
	EL				F	CC
Transfer Characteristics	(T =-40	to 85°C	unless	specified	otherwise)
					V	=5.5V, V =5.5V,
HIGH Level Output Current	I	-	2.1	100	uA CC	O
	OH				I	=250µA, V =2.0V
					V	= 5.5V, I =5mA,
LOW Level Output Current		-	0.35	0.6	CC	F
	OL				V	=2.0V,I =13mA
					V	= 5.5V, V =0.6V,
Input Threshold Current		-	2.5	5	CC	O
	FT				V	=2.0V,I =13mA
8 PIN DIP HIGH	SPEED	10MBit/s	LOGIC	GATE		6 N 137
						EL26XX series
Switching Characteristics	(T =-40	to 85°C,	V =5V,	I =7.5mA	unless specified	otherwise)
	a		CC	F
					C	= 15pF, R =350Ω,
output High level* 5	T PHL	-	35	75	ns L	L TA=25°C
					C	= 15pF, R =350Ω,
output Low level* 6	PLH	-	40	75	L	L TA=25°C
Pulse width distortion		-	5	35
	\|Tphl – Tplh\|				ns C	= 15pF, R =350Ω
		-	40	-
	tr				ns C	= 15pF, R =350Ω
(Fig.12)					L	L
		-	10	-
	tf				ns C	= 15pF, R =350Ω
(Fig.12)					L	L
Switching Characteristics	(T =-40	to 85°C,	V =5V,	I =7.5mA	unless specified	otherwise)
	a		CC	F
					I =	7.5mA , V =3.5V,
Time to Output High Level*	9	-	15	-	F	EH
	ELH				C	= 15pF, R =350Ω
(Fig.13)					L	L
					I =	7.5mA , V =3.5V,
Time to Output Low Level*	10	-	15	-	F	EH
	EHL				C	= 15pF, R =350Ω
(Fig.13)					L	L
					I =	7.5mA , V =2.0V,
6N137		-	-	-	R	=350Ω, TA=25°C
					V	=10Vp-p (Fig.14)
					I =	7.5mA , V =2.0V,
Common Mode EL2601		5,000	-	-	R	=350Ω, TA=25°C
Transient					V	=50Vp-p (Fig.14)
Immunity at	CM H				V/µS I =	7.5mA , V =2.0V,
Logic High EL2611		10,000	-	-	R	=350Ω, TA=25°C
					V	=400Vp-p (Fig.14)
					I =	7.5mA , V =2.0V,
EL2611		20,000	-	-	R	=350Ω, TA=25°C
					V	=400Vp-p (Fig.15)
					I =	0mA , V =0.8V,
6N137		-	-	-	R	=350Ω, TA=25°C
					V	=10Vp-p (Fig.14)
					I =	0mA , V =0.8V,
Common Mode EL2601		5,000	-	-	R L	=350Ω, TA=25°C
Transient					V	=50Vp-p (Fig.14)
Immunity at	CM L				V/µS I F =	0mA , V OL =0.8V,
Logic Low EL2611		10,000	-	-	R	=350Ω, TA=25°C
					V	=400Vp-p (Fig.14)
					I =	7.5mA , V =2.0V,
EL2611		20,000	-	-	R	=350Ω, TA=25°C
					V	=400Vp-p (Fig.15)

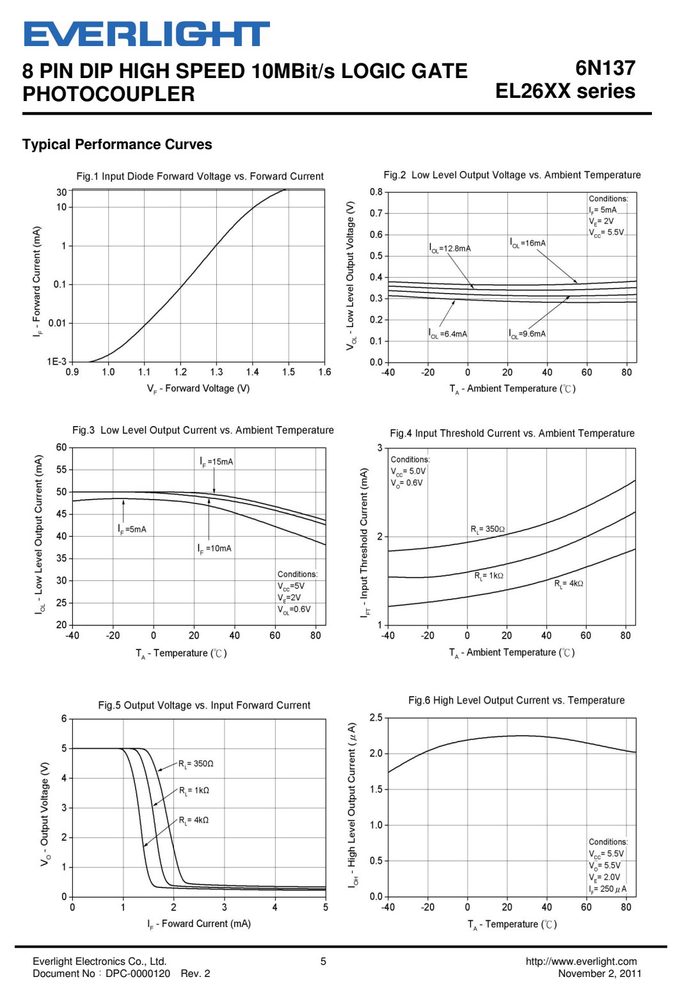

特性曲线（Typical Performance Curves）

订货信息与供货形式

包装	S	型号
Option	S	Type
Option	S1	Type

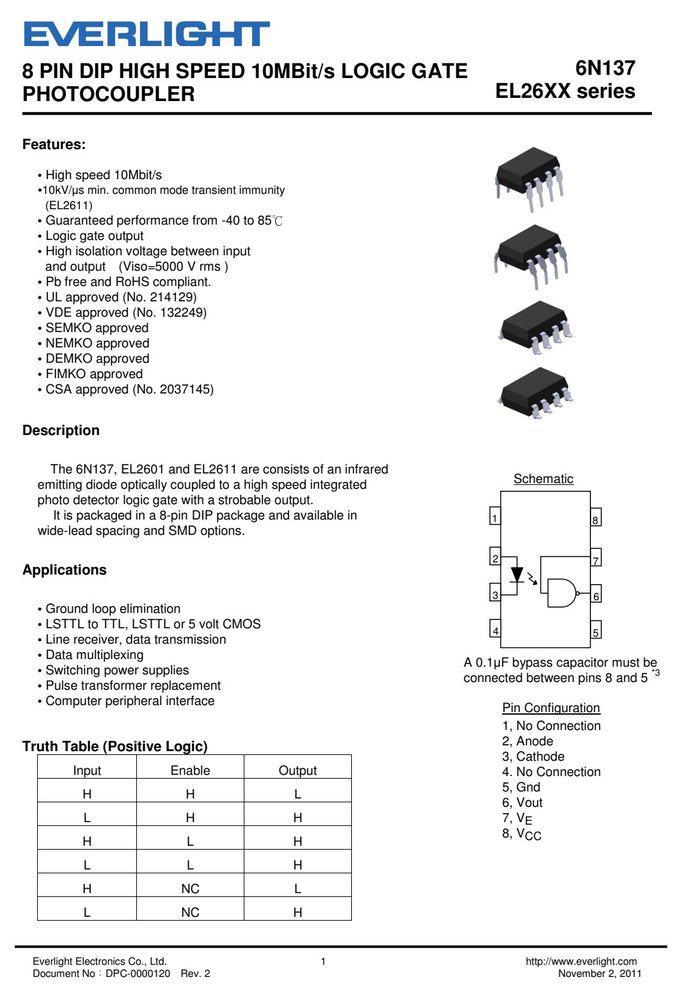

应用领域 Applications

Ground loop eliminationLSTTL to TTL, LSTTL or 5 volt CMOSLine receiver, data transmissionData multiplexingA 0.1µF bypass capacitor must bePulse transformer replacementComputer peripheral interfaceEL26XX seriesPHOTOCOUPLERPropagation delay time toPHL TA=25°C(Fig.12)

资料下载

📄 6N137S1(TA) 规格书 PDF

规格书为原厂公开资料，点击在新窗口打开下载。

获取报价 / 申请样品

常备现货、免费送样、支持小批量试产。报出用量与封装要求，当天给报价与交期。

💬 咨询 / 询价查看完整产品目录

6N137S1(TA) 8-pin DIP
