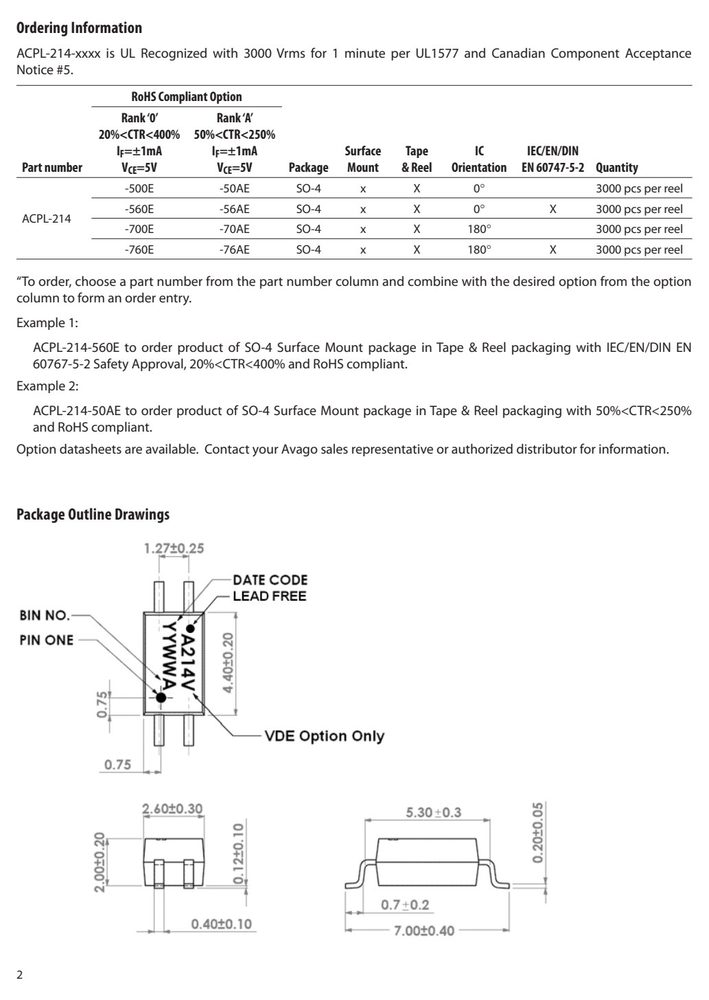

产品应用与封装尺寸
图纸取自原厂规格书，点击可放大查看原始尺寸标注。
关键参数速览
- 正向电流 IF
- ±50
- 集电极-发射极电压 VCEO
- 80
- 工作温度 TA
- -55~110

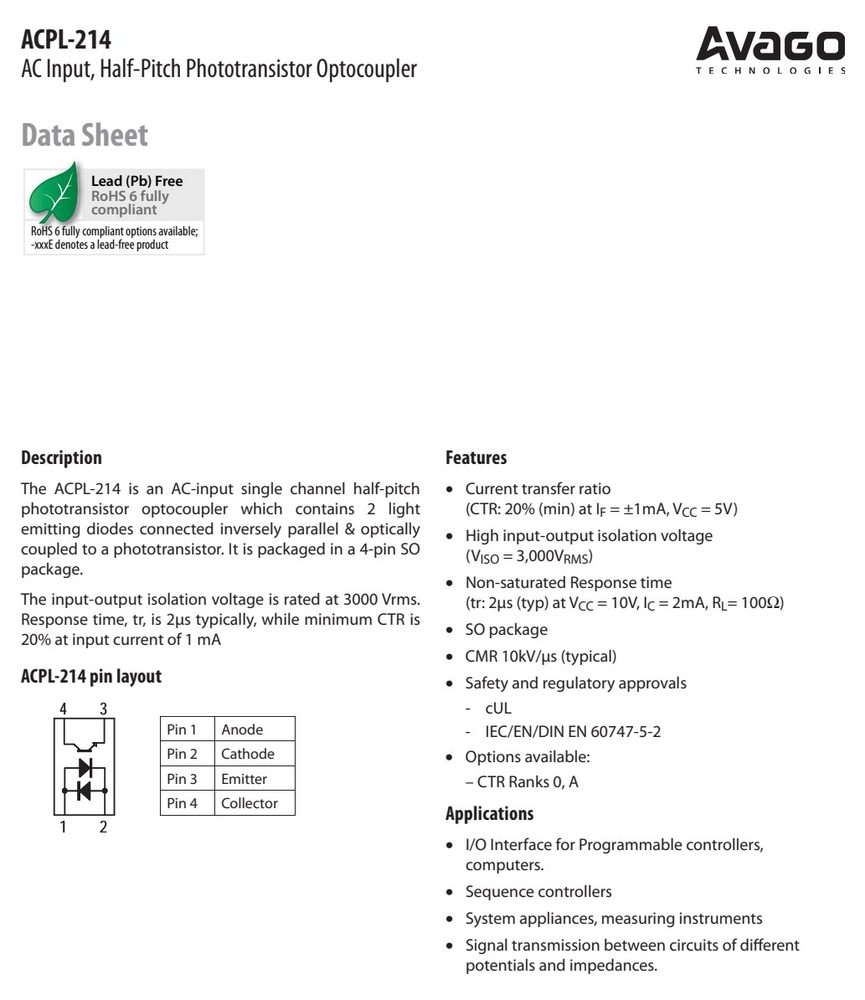

产品特点 Features
- The ACPL-214 is an AC-input single channel half-pitch • Current transfer ratio phototransistor optocoupler which contains 2 light (CTR: 20% (min) at I = ±1mA, V = 5V)
- F CC emitting diodes connected inversely parallel & optically • High input-output isolation voltage coupled to a phototransistor. It is packaged in a 4-pin SO
- (V = 3,000V )
- ISO RMS package.
- Non-saturated Response time
- The input-output isolation voltage is rated at 3000 Vrms. (tr: 2μs (typ) at V = 10V, I = 2mA, R = 100Ω)
- CC C L
- Solder Refl ow Temperature Profi le
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 符号 | ACPL-214 | 单位 | 备注 |
|---|---|---|---|---|
| Storage Temperature | T | -55~125 | °C | |
| Operating Temperature | T | -55~110 | °C | |
| Average Forward Current | I | ±50 | mA | |
| Pulse Forward Current | I | ±1 | A | |
| LED Power Dissipation | P | 65 | mW | |
| Collector Current | I | 50 | mA | |
| Collector-Emitter Voltage | V | 80 | V | |
| Emitter-Collector Voltage | V | 7 | V |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| 参数 | 符号 | ACPL-214 | 单位 | 备注 |
|---|---|---|---|---|
| Collector Power Dissipation | P | 150 | mW | |
| Total Power Dissipation | P | 200 | mW | |
| Lead Solder Temperature | 260°C | for 10 seconds |
