Name: AVAGO ACPL-332J-500E
Brand: AVAGO
Availability: InStock

产品实拍图

本型号暂无已核对的专属实拍图。为避免图文不符，本页不放同系列近似图；如需实物照片，请联系销售获取本批次实拍。

索取实拍图在产品目录查看同类型号

产品应用与封装尺寸

图纸取自原厂规格书，点击可放大查看原始尺寸标注。

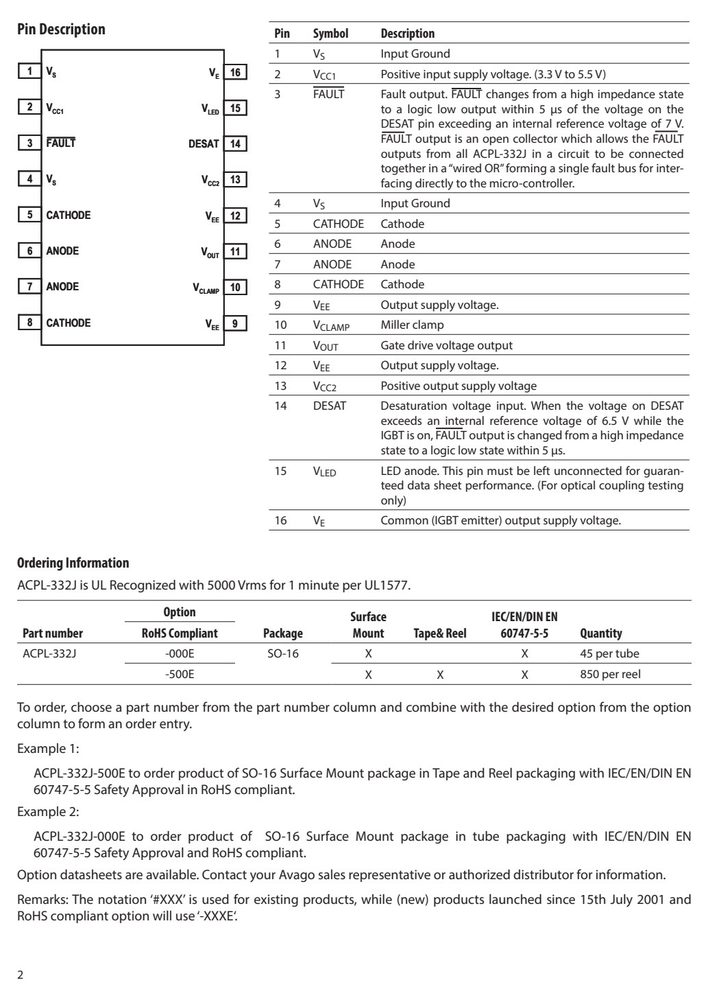

引脚定义与内部结构

引脚	符号	名称
1	V
2	V
3	FAULT
4	V
5	CATHODE
6	ANODE
7	ANODE
8	CATHODE
9	V
10	V
11	VV
12	V
13	V
14	DESAT
15	V
16	V

数据来源：原厂规格书引脚图

关键参数速览

电源电压 VCC: 7.0
工作温度 TA: 2

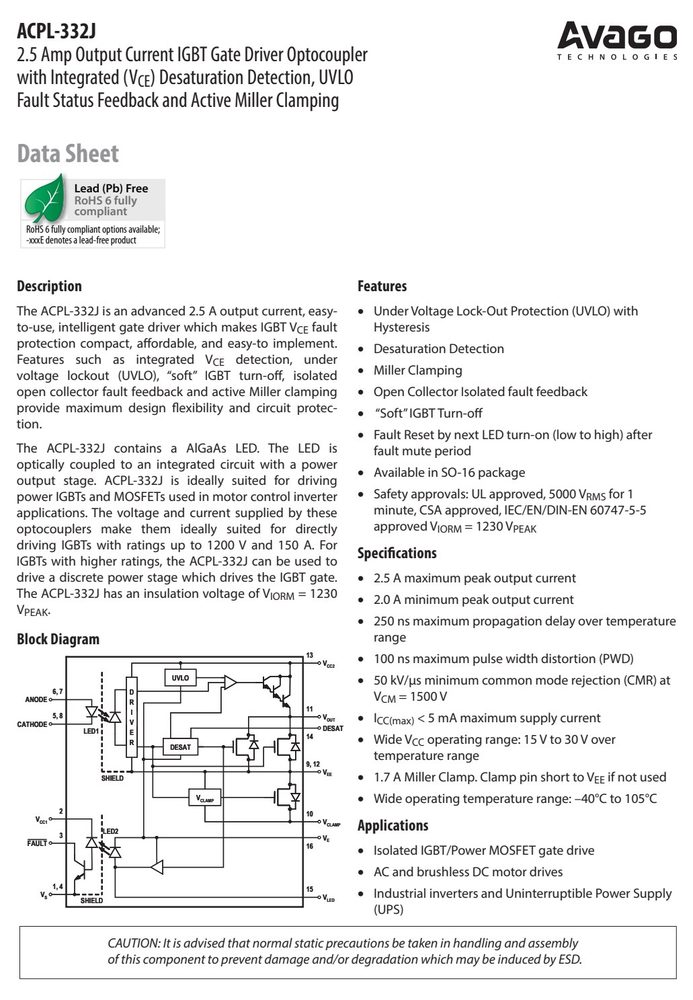

产品特点 Features

The ACPL-332J is an advanced 2.5 A output current, easy- to-use, intelligent gate driver which makes IGBT V fault protection compact, aff ordable, and easy-to implement.
voltage lockout (UVLO), “soft” IGBT turn-off , isolated open collector fault feedback and active Miller clamping provide maximum design fl exibility and circuit protec- tion.
The ACPL-332J contains a AlGaAs LED. The LED is optically coupled to an integrated circuit with a power output stage. ACPL-332J is ideally suited for driving
Under Voltage Lock-Out Protection (UVLO) with
Hysteresis
Desaturation Detection
Miller Clamping
Open Collector Isolated fault feedback
“Soft” IGBT Turn-off
Fault Reset by next LED turn-on (low to high) after fault mute period
Available in SO-16 package mentioned at the end of this datasheet.
voltage to the IGBT, by forcing the ACPL-332J’s output low. Once the output is in the high state, the DESAT (VCE) tection. Thus, UVLO and DESAT work in conjunction to provide constant IGBT protection.
1 V V 16
2 V V 15
CC1 LED
+ 0.1μF F

绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）

超过下表数值可能造成器件永久损坏，设计时请留余量。

参数	符号	最小	最大	单位	备注
Storage Temperature	T	-55	125	°C
Operating Temperature	T	-40	105	°C	2
Output IC Junction Temperature	T		125	°C	2
Average Input Current	I		25	mA	1
Peak Transient Input Current,	I		1.0	A
“High” Peak Output Current	I		2.5	A	3
“Low” Peak Output Current	I		2.5	A	3
Positive Input Supply Voltage	V	-0.5	7.0	V
FAULT Output Current	I		8.0	mA
FAULT Pin Voltage	V FAULT	-0.5	V CC1	V
Total Output Supply Voltage	(V - V )	-0.5	35	V
Negative Output Supply	Voltage (V - V )	-0.5	15	V	6
Positive Output Supply	Voltage (V - V )	-0.5	35 - (V - V	) V
	CC2 E		E	EE
Gate Drive Output Voltage	V O(PEAK)	-0.5	V CC2	V
Peak Clamping Sinking	Current I		1.7	A
Miller Clamping Pin Voltage	V Clamp	-0.5	V CC2	V
DESAT Voltage	V	V	V + 10	V
	DESAT	E	E
Output IC Power Dissipation	P		600	mW	2
Input IC Power Dissipation	P		150	mW	2

数据来源：原厂规格书

安全与绝缘额定值（DIN EN/IEC 60747−5−5）

说明	符号	Characteristic	单位
The ACPL-332J is approved by the following	organizations:
IEC/EN/DIN EN 60747-5-5	UL
Approval under:	Approval under UL 1577,	component	recognition
DIN EN 60747-5-5 (VDE 0884-5):2011-11	program up to V = 5000 V	. File E55361.
EN 60747-5-5:2011
	Approval under CSA Component	Acceptance	Notice #5,
	File CA 88324.
Input to Output Test Voltage, Method b**,	V	2306	V
V x 1.875=V , 100% Production Test with t	=1 sec, Partial discharge < 5 pC
Input to Output Test Voltage, Method a**,	V	1968	V
V x 1.6=V , Type and Sample Test, t =10	sec, Partial discharge < 5 pC
Highest Allowable Overvoltage (Transient	Overvoltage t = 60 sec) V ini IOTM	8000	V peak
Case Temperature	T	175	°C
Input Current	I	400	mA
Output Power	P	1200	mW
Insulation Resistance at T , V = 500 V	R	>109	Ω
Surface mount classifi cation is class A in accordance	with CECCOO802.
Dependence of Safety Limiting Values on Temperature.	(take from DS AV01-0579EN Pg.7)

订货信息与供货形式

型号	型号2	RoHS	Compliant	封装	Mount	Tape&	包装	60747-5-5	数量
ACPL-332J	is UL	Recognized	with 5000	Vrms for 1 minute	per UL1577.
Part	number	RoHS	Compliant	Package	Mount	Tape&	Reel	60747-5-5	Quantity
column	to form	an order	entry.
RoHS	compliant	option will	use ‘-XXXE‘.

应用领域 Applications

approved V = 1230 VIORM PEAKSpecifi cations2.5 A maximum peak output currentLLEEDD2233 VVFFAAUULLTT 1166 EE11,, 44 1155VV SS SSHHIIEELLDD VV LLEEDDIsolated IGBT/Power MOSFET gate driveAC and brushless DC motor drives(UPS)

资料下载

📄 ACPL-332J-500E 规格书 PDF

规格书为原厂公开资料，点击在新窗口打开下载。

获取报价 / 申请样品

常备现货、免费送样、支持小批量试产。报出用量与封装要求，当天给报价与交期。

💬 咨询 / 询价查看完整产品目录

ACPL-332J-500E 栅极驱动光耦
