Name: AVAGO ACPL-7970-500E
Brand: AVAGO
Availability: InStock

产品实拍图

本型号暂无已核对的专属实拍图。为避免图文不符，本页不放同系列近似图；如需实物照片，请联系销售获取本批次实拍。

索取实拍图在产品目录查看同类型号

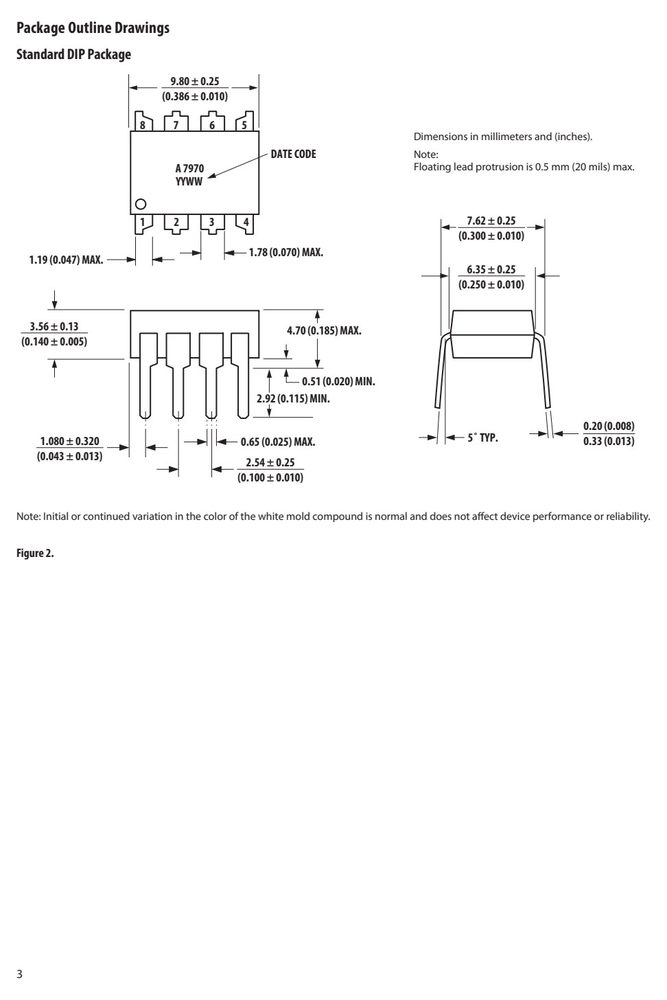

产品应用与封装尺寸

图纸取自原厂规格书，点击可放大查看原始尺寸标注。

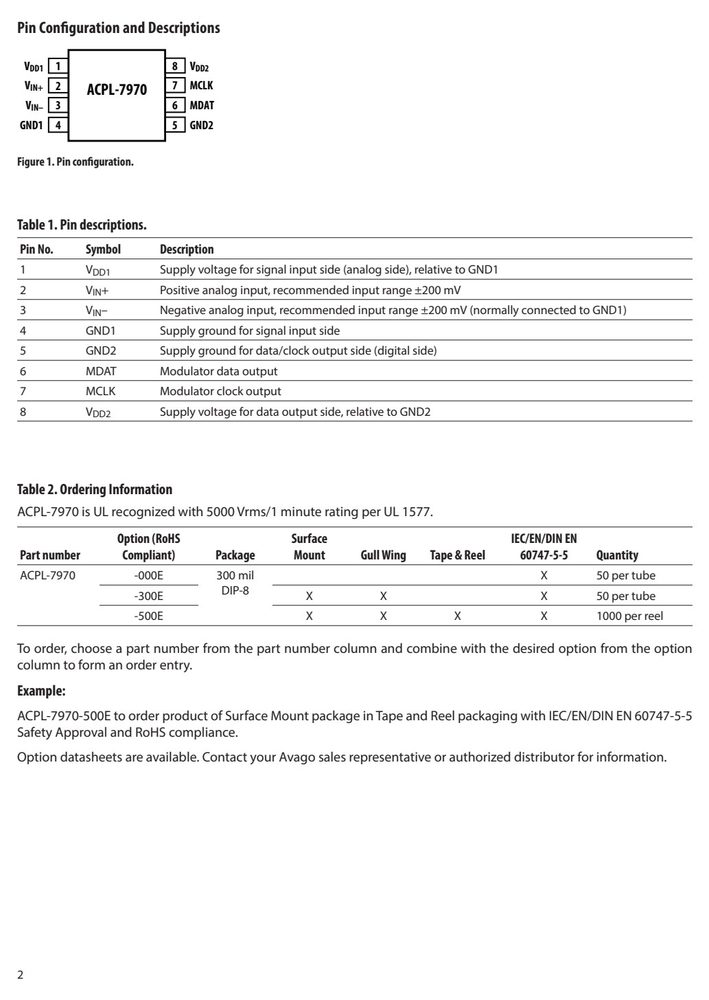

引脚定义与内部结构

引脚	符号	名称
9	80 ± 0.25
1	016 (0.040)
10	9 (0.430)
2	0 (0.080)
7	62 ± 0.25
0	20 (0.008)
3	56 ± 0.13 0.33 (0.013)

数据来源：原厂规格书引脚图

关键参数速览

隔离电压 VISO: 1 kV; See Definitions
电源电压 VCC: 6.0
工作温度 TA: 3

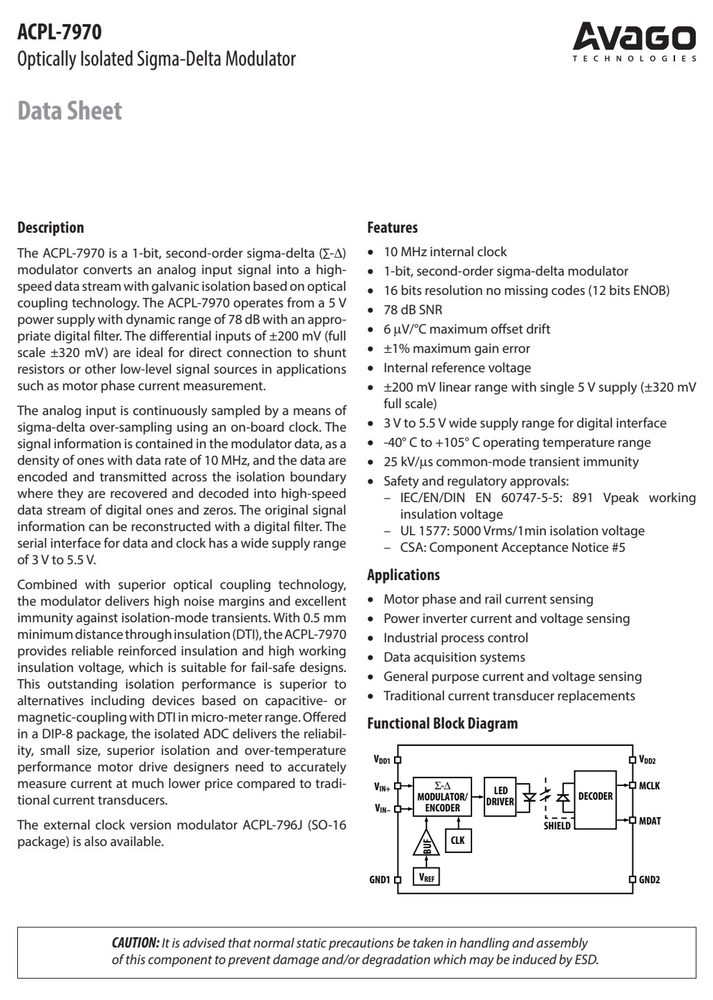

产品特点 Features

10 MHz internal clock
1-bit, second-order sigma-delta modulator
16 bits resolution no missing codes (12 bits ENOB)
78 dB SNR
6 mV/°C maximum offset drift
±1% maximum gain error
ACPL-7970 to form an isolated programmable two-chip
A/D converter.
figuration port. A second multiplexed input is available to allow measurements with a second isolated modulator without additional hardware. Refer to the HCPL-0872 data sheet for details.
Notes:
SPI and QSPI are trademarks of Motorola Corp.
Power Supplies and Bypassing
As shown in Figure 19, a floating power supply (which in
PC Board Layout
The design of the printed circuit board (PCB) should follow
When sensing currents large enough to cause signifi- cant heating of the shunt, the temperature coefficient

绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）

超过下表数值可能造成器件永久损坏，设计时请留余量。

参数	符号	最小	最大	单位
Storage Temperature	T	-55	+125	°C
Ambient Operating Temperature	T	-40	+105	°C
Supply Voltage	V , V DD1 DD2	-0.5	6.0	V
Steady-State Input Voltage [1, 3]	V , V IN+ IN–	-2	V + 0.5 DD1	V
Two-Second Transient Input	Voltage [2] V , V IN+ IN–	-6	V + 0.5 DD1	V
Digital Output Voltages	MCLK, MDAT	-0.5	V + 0.5 DD2	V
Lead Solder Temperature	260° C for 10	sec., 1.6 mm below	seating plane

数据来源：原厂规格书

安全与绝缘额定值（DIN EN/IEC 60747−5−5）

说明	符号	值	单位
Installation classification per DIN VDE	0110/1.89, Table 1
for rated mains voltage ≤ 150 Vrms		I-IV
for rated mains voltage ≤ 300 Vrms		I-IV
for rated mains voltage ≤ 450 V rms		I-IV
for rated mains voltage ≤ 600 Vrms		I-IV
Pollution Degree (DIN VDE 0110/1.89)		2
Input to Output Test Voltage, Method b	V	1671	Vpeak
V x 1.875 = V , 100% Production Test	with t = 1 sec,
Partial Discharge < 5 pC
Input to Output Test Voltage, Method a	V	1426	Vpeak
V x 1.6 = V , Type and Sample Test, t	= 10 sec,
Partial Discharge < 5 pC
Highest Allowable Overvoltage (Transient	Overvoltage, t = 60 sec) V	8000	Vpeak
(External Clearance)	distance through	air
(External Creepage)	distance path along	body
Minimum Internal Plastic Gap	0.5 mm Through insulation	distance, conductor	to conductor,
(Internal Clearance)	usually the direct	distance between	the photoemitter and
	photodetector	inside the optocoupler	cavity
Tracking Resistance CTI	>175 V DIN IEC 112/VDE	0303 Part 1
Isolation Group	IIIa Material Group	(DIN VDE 0110, 1/89,	Table 1)

电气特性 Electrical Characteristics（TA = 25°C）

参数	符号	最小	Typ.[1]	最大	单位	测试条件	图号
	A		DD1		DD2	IN
V – = 0 V (single-ended	connection);	tested with	Sinc3	filter,	256 decimation	ratio.
Resolution		16			Bits	Decimation filter output set	to 16 bits
Integral Nonlinearity	INL	-15	3	15	LSB	T = -40° C to +85° C; see	Definitions
		-25	3	25	LSB	T = 85° C to 105° C
Differential Nonlinearity	DNL	-0.9		0.9	LSB	No missing codes, guaranteed	by
						design; see Definitions section
Offset Error	V	-2	0.4	2	mV	T = -40° C to +105° C;	5
						see Definitions section
Offset Drift vs. Temperature	TCV OS		2	6	mV/°C	V = 5 V DD1
Offset Drift vs. V			220		mV/V
Internal Reference	Voltage V		320		mV
Reference Voltage	Tolerance G E	-1		1	%	T = 25° C, V + = -320 to A IN	+320 mV;
						see Definitions section
		-2		2	%	T = -40° C to +105° C,	6
						V + = -320 to +320 mV
V Drift vs. Temperature	TCG		60		ppm/°C
V Drift vs. V			-1.3		mV/V	Note 4
Full-Scale Differential	Voltage FSR		320		mV	V = V + – V –; Note 2
Average Input Bias	Current I		-0.3		mA	V = 5V, V = 5V, V + =	0 V; 7
	INA					DD1 DD2 IN
Average Input Resistance	R		24		kΩ	Across V + or V – to GND1;	Note 3
Input Capacitance	C		8		pF	Across V + or V – to GND1
DYNAMIC CHARACTERISTICS						V + = 400 mVpp, 1 kHz sine	wave
Signal-to-Noise Ratio	SNR	68	78		dB	T = -40° C to +105° C;	8
						see Definitions section
Signal-to-(Noise +	Distortion) SNDR	65	75		dB	T = -40° C to +105° C;	9
Ratio						see Definitions section
Effective Number of	Bits ENOB		12		Bits	see Definitions section
Isolation Transient	Immunity CMR		25		kV/ms	V = 1 kV; See Definitions	section
Common-Mode Rejection	Ratio CMRR		74		dB
Output High Voltage	V	V –	V –		V	I = -200 mA
	OH	DD2	DD2			OUT
Output Low Voltage	V			0.6	V	I = +1.6 mA
V Supply Current	I		9	14	mA	V + = –320 mV to +320 mV	10
DD1	DD1					IN
V Supply Current	I		5.2	8	mA	V = 5 V supply	11
DD2	DD2					DD2
			4.6	7	mA	V = 3.3 V supply DD2	12
4. V Drift vs. V can	be expressed as –0.4%/V	with	reference to V	.
Unless otherwise noted,	T = -40° C to +105° C, V	= 4.5	V to 5.5	V, V	= 3 V	to 5.5 V.
Modulator Clock Output	Frequency f	9	10	11	MHz	Clock duty cycle 40% to	60% 13
Data Access Time After MCLK	Rising Edge t			40	ns	C = 15 pF	4
Data Hold Time After MCLK	Rising Edge t	10			ns	C = 15 pF	4
Input-Output Momentary	Withstand V	5000			Vrms	RH < 50%, t = 1 min; T	= 25° C 1, 2
Input-Output Resistance	R I-O	1012	1013		Ω	V I-O = 500 V DC	3
		1011			Ω	T A = 100° C	3
Input-Output Capacitance	C		1.4		pF	f = 1 MHz	3

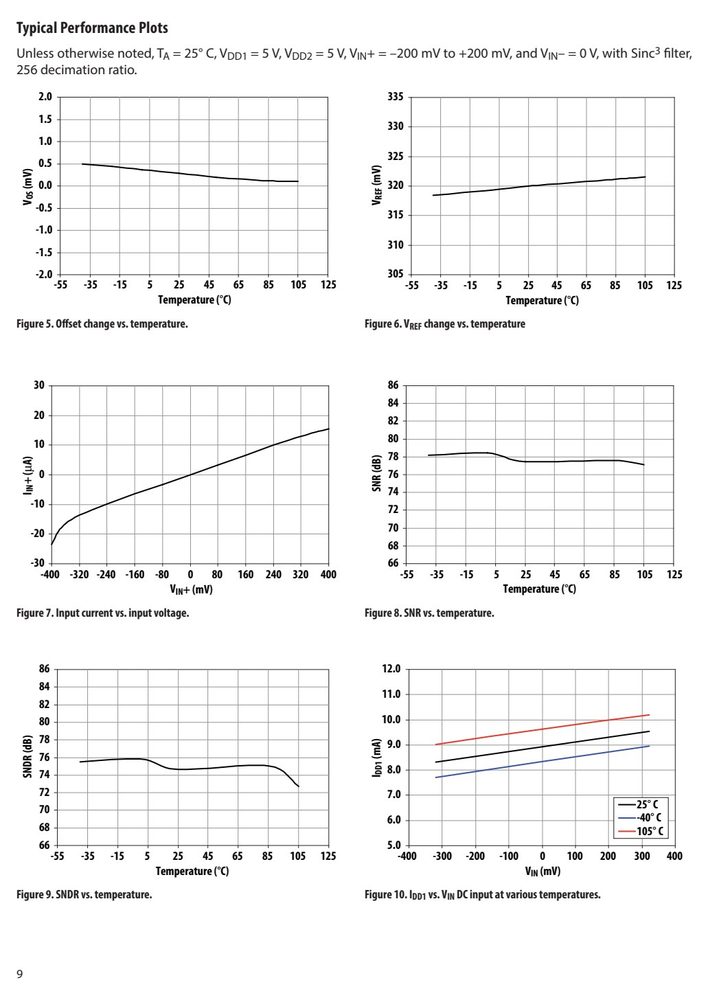

特性曲线（Typical Performance Curves）

应用领域 Applications

25 kV/ms common-mode transient immunitySafety and regulatory approvals:Motor phase and rail current sensingAnalog InputLatch-up ConsiderationModulator Data OutputAnalog Input Voltage InputFull-Scale Range 640 mV+Full-Scale +320 mV+Recommended Input Range +200 mV
