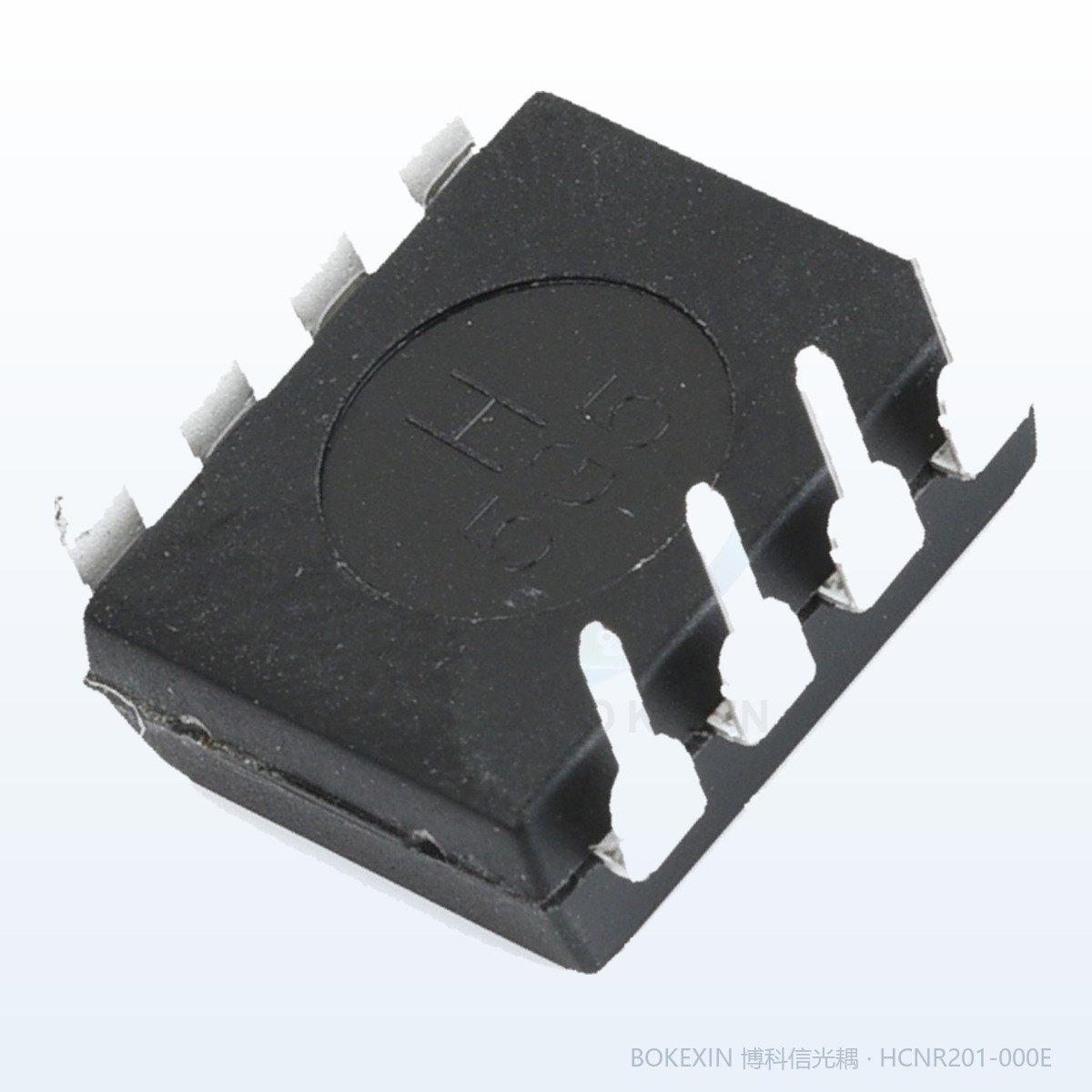

本页为博科信现货实拍（器件丝印 见规格书）。图片已加防盗水印，需要最新批次照片或未加水印原图请联系销售；点击图片可放大。
产品应用与封装尺寸

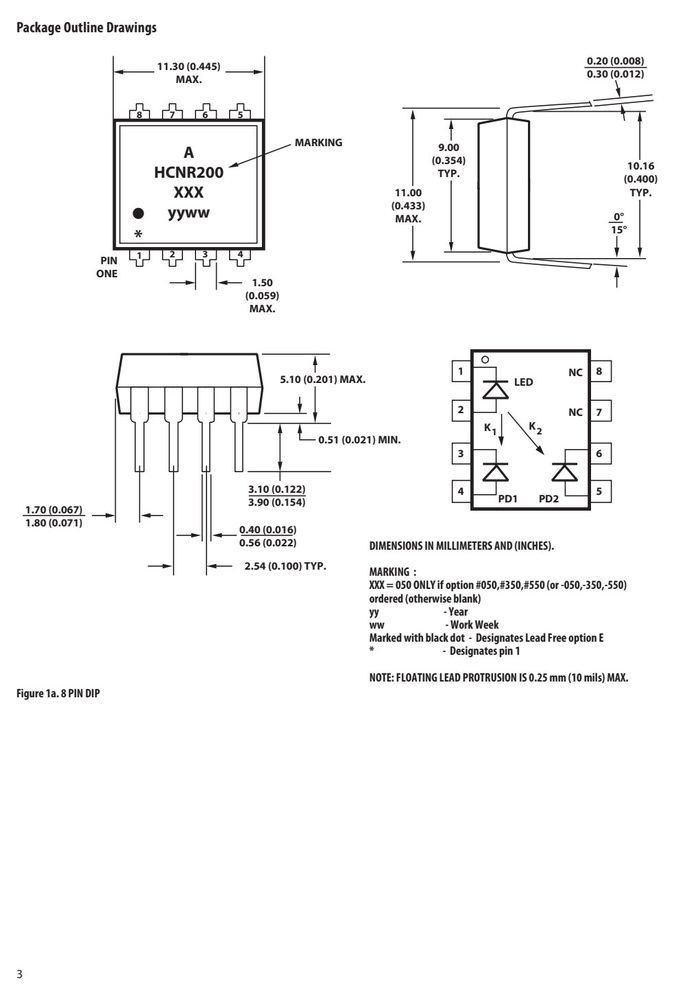

图纸取自原厂规格书，点击可放大查看原始尺寸标注。

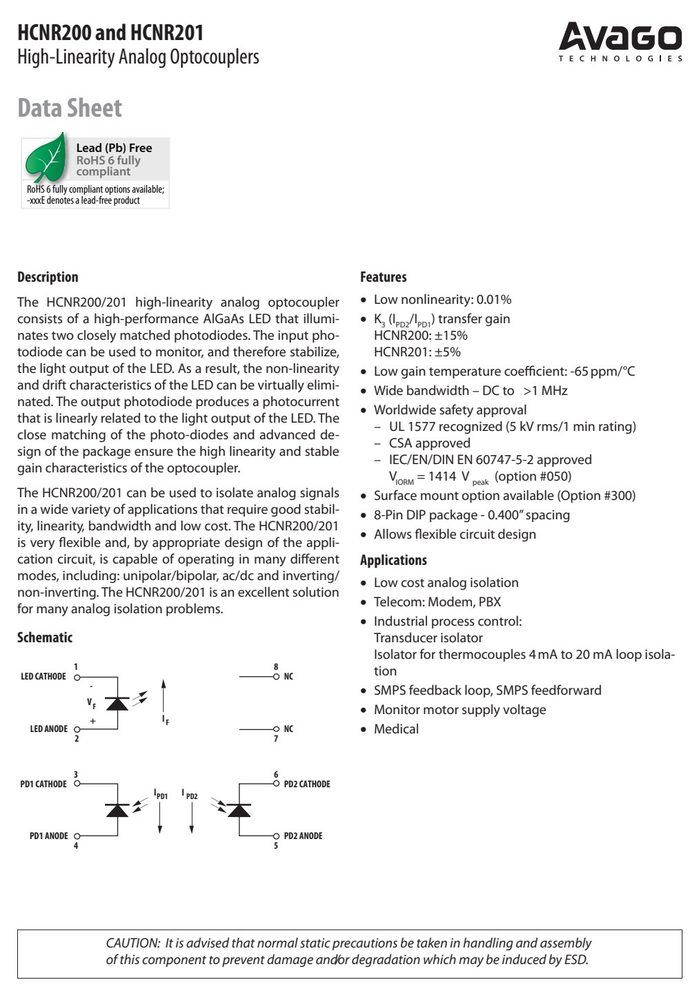

产品特点 Features
- Low nonlinearity: 0.01%
- K (I /I ) transfer gain
- 3 PD2 PD1
- HCNR200: ±15%
- HCNR201: ±5%
- Low gain temperature coeffi cient: -65 ppm/°C
- Wide bandwidth – DC to >1 MHz
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| 参数 | 符号 | 值 | 单位 | 条件 |
|---|---|---|---|---|
| Min. External Clearance | L(IO1) | 9.6 | mm | Measured from input terminals to output |
| (External Air Gap) | terminals, shortest distance through air | |||
| Min. External Creepage | L(IO2) | 10.0 | mm | Measured from input terminals to output |
| (External Tracking Path) | terminals, shortest distance path along body | |||
| (Internal Plastic Gap) | conductor, usually the direct distance | |||
| (Internal Tracking Path) | between two diff erent insulating materials | |||
| Comparative Tracking | Index CTI | 200 | V | DIN IEC 112/VDE 0303 PART 1 |
| Isolation Group | IIIa | Material group (DIN VDE 0110) | ||
| Option 300 – surface mount | classifi cation is Class A in | accordance with | CECC 00802. | |
| Input to Output Test | Voltage, Method b* | V 2651 V | ||
| V = 1.875 x V , | 100% Production Test with | |||
| t = 1 sec, Partial | Discharge < 5 pC | |||
| Input to Output Test | Voltage, Method a* | V 2121 V | ||
| V = 1.5 x V , Type | and sample test, t = 60 | sec, | ||
| Partial Discharge < 5 | pC | |||
| Highest Allowable | Overvoltage* | V 8000 V | ||
| (Transient Overvoltage, | t = 10 sec) |
订货信息与供货形式
| 型号 | RoHS | non | RoHS2 | Surface | Gull | 包装 | UL | 5000 | Vrms/ | 60747-5-2 |
|---|---|---|---|---|---|---|---|---|---|---|
| Part | RoHS | non | RoHS | Surface | Gull | Tape | UL | 5000 | Vrms/ | 60747-5-2 |
| Number | Compliant | Compliant Package | Mount | Wing | & Reel | 1 | Minute | rating | V = 1414 V Quantity | |
| HCNR200 | -500E | #500 | DIP-8 | X | X | X | X | 750 per reel | ||
| HCNR201 | -050E | #050 | X | X 42 per tube | ||||||
