Name: AVAGO ACPL-M43T-500E
Brand: AVAGO
Availability: InStock

产品实拍图

本型号暂无已核对的专属实拍图。为避免图文不符，本页不放同系列近似图；如需实物照片，请联系销售获取本批次实拍。

产品应用与封装尺寸

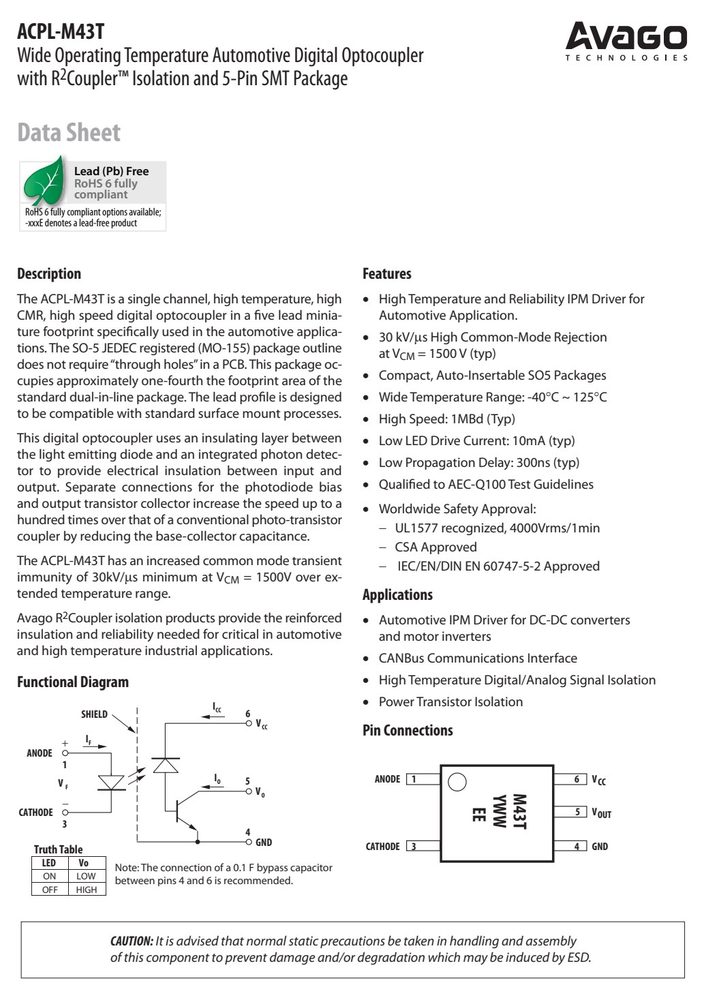

图纸取自原厂规格书，点击可放大查看原始尺寸标注。

超过下表数值可能造成器件永久损坏，设计时请留余量。

参数	符号	最小	最大	单位
Storage Temperature	T	-55	150	°C
Operating Temperature	T	-40	125	°C
Lead Soldering Cycle	Temperature		260	°C
	Time		10	s
Average Forward Input Current	I		20	mA
Peak Forward Input Current	I		40	mA
Peak Transient Input Current	I		100	mA
Input Power Dissipation	P		30	mW
Output Power Dissipation	P		100	mW
Average Output Current	I		8	mA
Peak Output Current	Io(pk)		16	mA
Supply Voltage (Pins 6-4)	V	-0.5	30	V
Output Voltage (Pins 5-4)	V	-0.5	20	V
Solder Refl ow Temperature	Profi le See Refl ow	Temperature	Profi le

数据来源：原厂规格书

说明	符号	Characteristic	单位
The ACPL-M43T is approved by the following	organizations:
UL	IEC/EN/DIN EN 60747-5-2
Approved under UL 1577, component	recognition pro- Approved under:
gram up to V = 4000 V	IEC 60747-5-5:2007
	EN 60747-5-2:2001 + A1
	DIN EN 60747-5-2 (VDE 0884	Teil 2)
Approved under CSA Component Acceptance	Notice #5.
Input to Output Test Voltage, Method b*	V	1063	V
V x 1.875=V , 100% Production Test with t	=1 sec, Partial discharge < 5 pC
Input to Output Test Voltage, Method a*	V	907	V
V x 1.6=V , Type and Sample Test, t =10	sec, Partial discharge < 5 pC
Highest Allowable Overvoltage (Transient	Overvoltage t = 60 sec) V ini IOTM	6000	V peak
Case Temperature	T	175	°C
Input Current	I	230	mA
Output Power	P	600	mW
Insulation Resistance at T S , V IO = 500 V	R S	>109	
Minimum External L(101) 5	mm Measured from input	terminals to output
Air Gap (Clearance)	terminals, shortest distance	through air.
Minimum External L(102) 5	mm Measured from input	terminals to output
Tracking (Creepage)	terminals, shortest distance	path along	body.
Plastic Gap	conductor, usually the	straight line distance
(Internal Clearance)	thickness between the	emitter and	detector.
Tracking Resistance CTI 175	V DIN IEC 112/VDE 0303	Part 1
Isolation Group IIIa	Material Group (DIN VDE	0109)
(DIN VDE0109)

型号	Compliant	封装	Mount	包装	EN	60747-5-2	数量
Part	RoHS		Surface	Tape &		IEC/EN/DIN
number	Compliant	Package	Mount	Reel	EN	60747-5-2	Quantity
ACPL-M43T	-000E	SO-5	X				100 per tube

Regulatory InformationUL IEC/EN/DIN EN 60747-5-2ISO RMSEN 60747-5-2:2001 + A1DIN EN 60747-5-2 (VDE 0884 Teil 2)
