Name: AVAGO ACPL-P340-560E
Brand: AVAGO
Availability: InStock

产品实拍图

本型号暂无已核对的专属实拍图。为避免图文不符，本页不放同系列近似图；如需实物照片，请联系销售获取本批次实拍。

索取实拍图在产品目录查看同类型号

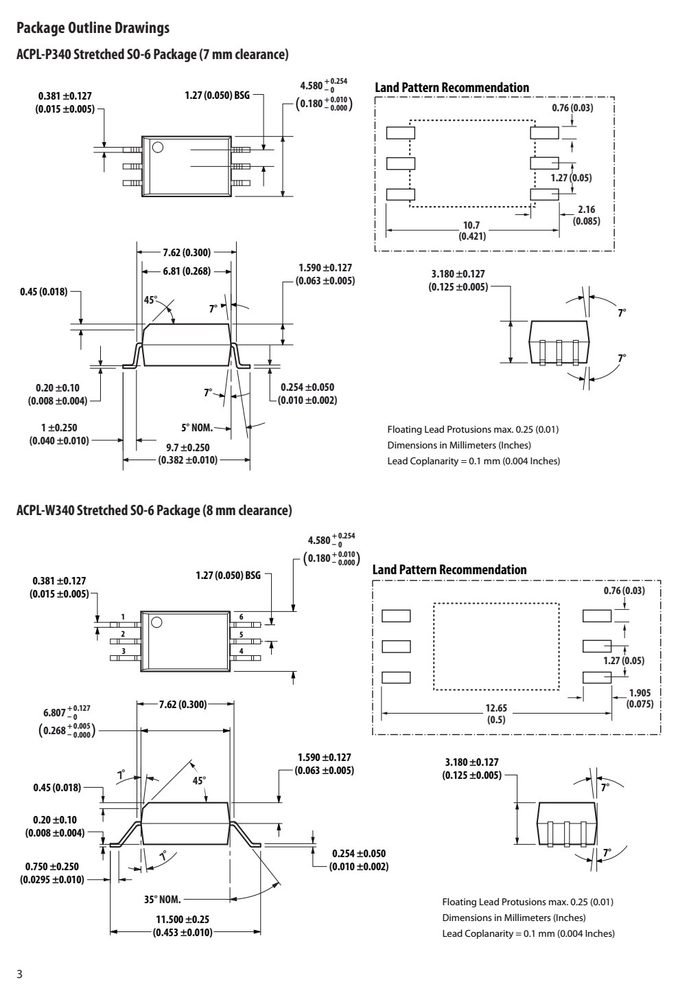

产品应用与封装尺寸

图纸取自原厂规格书，点击可放大查看原始尺寸标注。

关键参数速览

电源电压 VCC: 35
工作温度 TA: 105

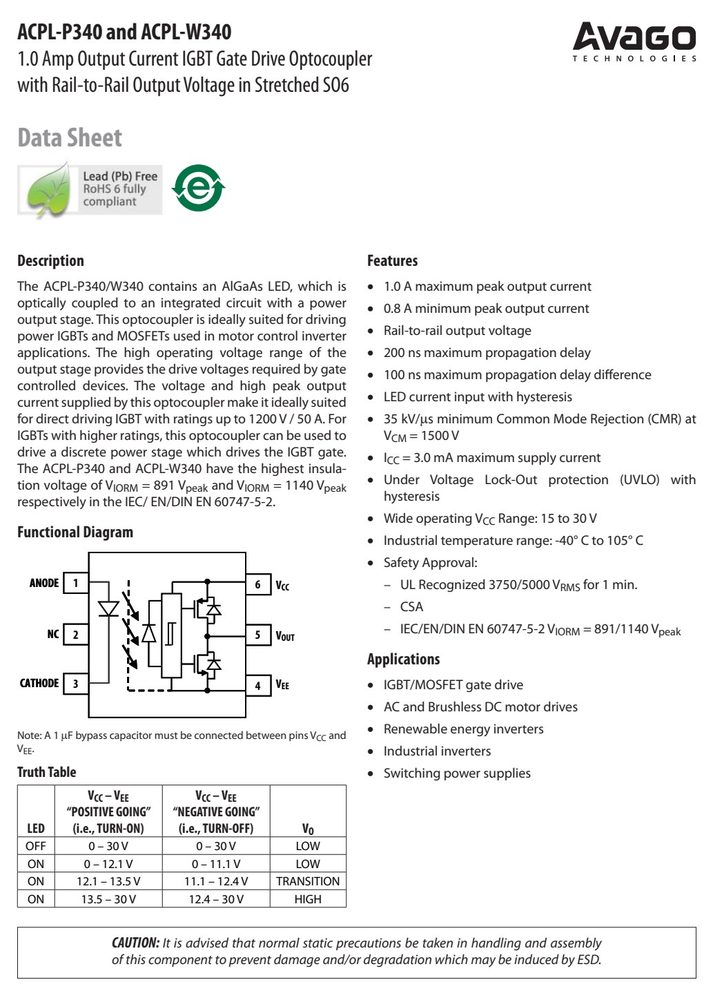

产品特点 Features

The ACPL-P340/W340 contains an AlGaAs LED, which is  1.0 A maximum peak output current optically coupled to an integrated circuit with a power
 0.8 A minimum peak output current output stage. This optocoupler is ideally suited for driving
 100 ns maximum propagation delay diff erence controlled devices. The voltage and high peak output
 LED current input with hysteresis current supplied by this optocoupler make it ideally suited for direct driving IGBT with ratings up to 1200 V / 50 A. For  35 kV/s minimum Common Mode Rejection (CMR) at
IGBTs with higher ratings, this optocoupler can be used to V = 1500 V drive a discrete power stage which drives the IGBT gate.
 I CC = 3.0 mA maximum supply current
The ACPL-P340 and ACPL-W340 have the highest insula-
 Under Voltage Lock-Out protection (UVLO) with tion voltage of V = 891 V and V = 1140 V
IORM peak IORM peak hysteresis respectively in the IEC/ EN/DIN EN 60747-5-2.
 Wide operating V CC Range: 15 to 30 V
Functional Diagram
 Industrial temperature range: -40° C to 105° C
 Safety Approval:
AANNOODDEE 1 6 V CC – UL Recognized 3750/5000 V RMS for 1 min.
IEC/EN/DIN EN 60747-5-2 V = 891/1140 V
NNCC 2 5 V IORM peak

绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）

超过下表数值可能造成器件永久损坏，设计时请留余量。

参数	符号	最小	最大	单位	备注
Storage Temperature	T	-55	125	°C
Operating Temperature	T	-40	105	°C
Output IC Junction Temperature	T		125	°C
Average Input Current	I		25	mA	1
Peak Transient Input Current	I		1	A
“High” Peak Output Current	I		1.0	A	2
“Low” Peak Output Current	I		1.0	A	2
Total Output Supply Voltage	(V - V )	0	35	V
Input Current (Rise/Fall Time)	t / t		500	ns
Output Voltage	V	-0.5	V	V
Output IC Power Dissipation	P		700	mW	3
Total Power Dissipation	P		745	mW	4
Lead Solder Temperature	260° C for	10 sec., 1.6 mm	below seating	plane

数据来源：原厂规格书

安全与绝缘额定值（DIN EN/IEC 60747−5−5）

说明	符号	包装	包装2	单位
Input to Output Test Voltage, Method	b* V	1671	2137	V
Input to Output Test Voltage, Method	a* V	1426	1824	V
Highest Allowable Overvoltage	V	6000	8000	V

订货信息与供货形式

型号	型号2	RoHS	Compliant
Part	number	RoHS	Compliant
column Example	to form 1:	an order	entry.

应用领域 Applications

 AC and Brushless DC motor drives Renewable energy invertersV EE .  Industrial invertersRail-to-Rail OutputANODE 1 8 V CCNC 2 7CATHODE 3 6NC 4 5 EEANODE 1 6 VNC 2 5 VCATHODE 3 4 V EEvoltage

资料下载

📄 ACPL-P340-560E 规格书 PDF

规格书为原厂公开资料，点击在新窗口打开下载。

获取报价 / 申请样品

常备现货、免费送样、支持小批量试产。报出用量与封装要求，当天给报价与交期。

💬 咨询 / 询价查看完整产品目录

ACPL-P340-560E 栅极驱动光耦
