产品应用与封装尺寸
图纸取自原厂规格书，点击可放大查看原始尺寸标注。
关键参数速览
- 正向电压 VF
- 4
- 电流传输比 CTR
- 5
- 电源电压 VCC
- 30
- 工作温度 TA
- 100

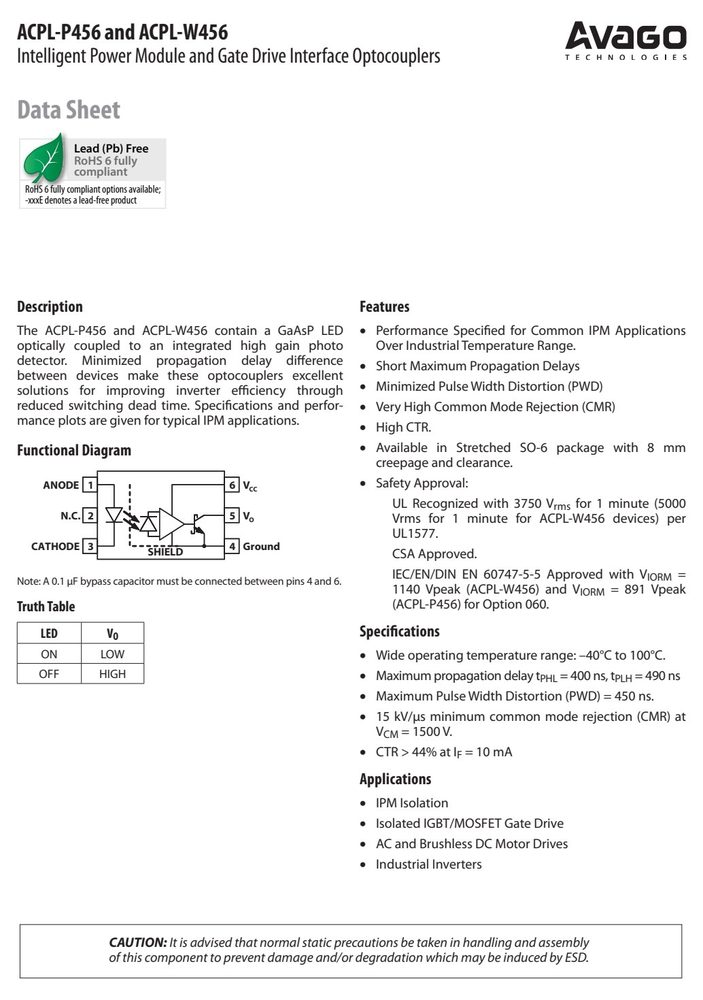

产品特点 Features
- The ACPL-P456 and ACPL-W456 contain a GaAsP LED kΩ Performance Specified for Common IPM Applications optically coupled to an integrated high gain photo Over Industrial Temperature Range.
- detector. Minimized propagation delay difference kΩ Short Maximum Propagation Delays between devices make these optocouplers excellent
- kΩ High CTR.
- Functional Diagram kΩ Available in Stretched SO-6 package with 8 mm creepage and clearance.
- ANODE 1 6 V kΩ Safety Approval:
- UL Recognized with 3750 V for 1 minute (5000 rms
- N.C. 2 5 V Vrms for 1 minute for ACPL-W456 devices) per
- UL1577.
- CATHODE 3 4 Ground
- SHIELD CSA Approved.
- IEC/EN/DIN EN 60747-5-5 Approved with V =
- Note: A 0.1 μF bypass capacitor must be connected between pins 4 and 6.
- 1140 Vpeak (ACPL-W456) and V = 891 Vpeak
- Specifications
- LED V
- ON LOW kΩ Wide operating temperature range: –40°C to 100°C.
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 符号 | 最小 | 最大 | 单位 | 备注 |
|---|---|---|---|---|---|
| Storage Temperature | T | -55 | 125 | °C | |
| Operating Temperature | T | -40 | 100 | °C | |
| Average Input Current | I | 25 | mA | 1 | |
| Peak Input Current | I | 50 | mA | 2 | |
| Peak Transient Input Current | I | 1.0 | A | ||
| Average Output Current | (Pin 5) I | 15 | mA | ||
| Output Voltage (Pin 5-4) | V | -0.5 | 30 | ||
| Supply Voltage (Pin 6-4) | V | -0.5 | 30 | ||
| Output Power Dissipation | P | 100 | mW | 3 | |
| Total Power Dissipation | P | 145 | mW | 4 |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| 参数 | 符号 | ACPL-P456 | ACPL-W456 | 单位 | 条件 |
|---|---|---|---|---|---|
| V x 1.875=V , | 100% Production Test with | t =1 sec, | V | 2138 1671 V | |
| IORM PR | m | PR | peak | ||
| V x 1.5=V , Type | and Sample Test, t =10 | sec, | V | 1824 1425 V | |
| IORM PR | m | PR | peak | ||
| Highest Allowable | Overvoltage | V | 8000 6000 V | ||
| Minimum External Air | Gap L(101) | 7.0 | 8.0 | mm | Measured from input terminals to output |
| (External Clearance) | terminals, shortest distance through air. | ||||
| Minimum External | Tracking L(102) | 8.0 | 8.0 | mm | Measured from input terminals to output |
| (External Creepage) | terminals, shortest distance path along body. | ||||
| Minimum Internal | Plastic Gap | 0.08 | 0.08 | mm | Through insulation distance conductor to |
| (Internal Clearance) | conductor, usually the straight line distance | ||||
| Minimum Internal | Tracking | NA | NA | mm | Measured from input terminals to output |
| (Internal Creepage) | terminals, along internal cavity. | ||||
| Tracking Resistance | CTI | >175 | >175 | V | DIN IEC 112/VDE 0303 Part 1 |
| Isolation Group | IIIa | IIIa | Material Group (DIN VDE 0110, 1/89, Table 1) |
电气特性 Electrical Characteristics（TA = 25°C）
| 参数 | 符号 | 最小 | Typ.* | 最大 | 单位 | 测试条件 | 图号 | 备注 |
|---|---|---|---|---|---|---|---|---|
| A | CC | F(on) | ||||||
| Current Transfer Ratio | CTR | 44 | 90 | % | I = 10 mA, V = 0.6 | V | 5 | |
| Low Level Output Current | I OL | 4.4 | 9.0 | mA | I = 10 mA, V = 0.6 F O | V 1, 2 | ||
| Low Level Output Voltage | V | 0.3 | 0.6 | V | I = 2.4 mA | |||
| Input Threshold Current | I TH | 1.5 | 5.0 | mA | V = 0.8 V, I = 0.75 O O | mA 1 | 9 | |
| High Level Output Current | I | 5 | 50 | μA | V = 0.8 V | 3 | ||
| High Level Supply Current | I CCH | 0.6 | 1.3 | mA | V = 0.8 V, V = Open F O | 9 | ||
| Low Level Supply Current | I CCL | 0.6 | 1.3 | mA | I = 10 mA, V = F O | Open | 9 | |
| Input Forward Voltage | V | 1.5 | 1.8 | V | I = 10 mA | 4 | ||
| Temperature Coefficient | ΔV /ΔT | -1.6 | mV/°C | I = 10 mA | ||||
| Input Capacitance | C | 60 | pF | f = 1 MHz, V = 0 V |

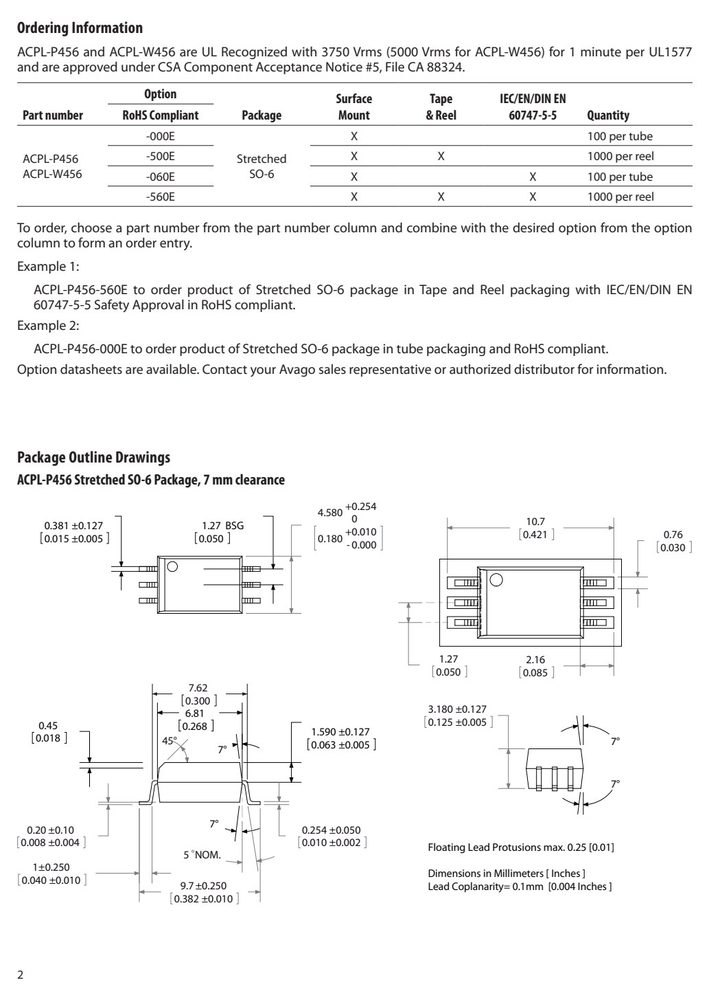

订货信息与供货形式
| 型号 | 型号2 | RoHS | Compliant | 封装 | Mount | & | 包装 | 60747-5-5 | 数量 |
|---|---|---|---|---|---|---|---|---|---|
| and | are approved | under | CSA | Component Accep tance | Notice #5, | File CA | 88324. | ||
| Part | number | RoHS | Compliant | Package | Mount | & | Reel | 60747-5-5 | Quantity |
| column | to form | an order | entry. |
