产品应用与封装尺寸

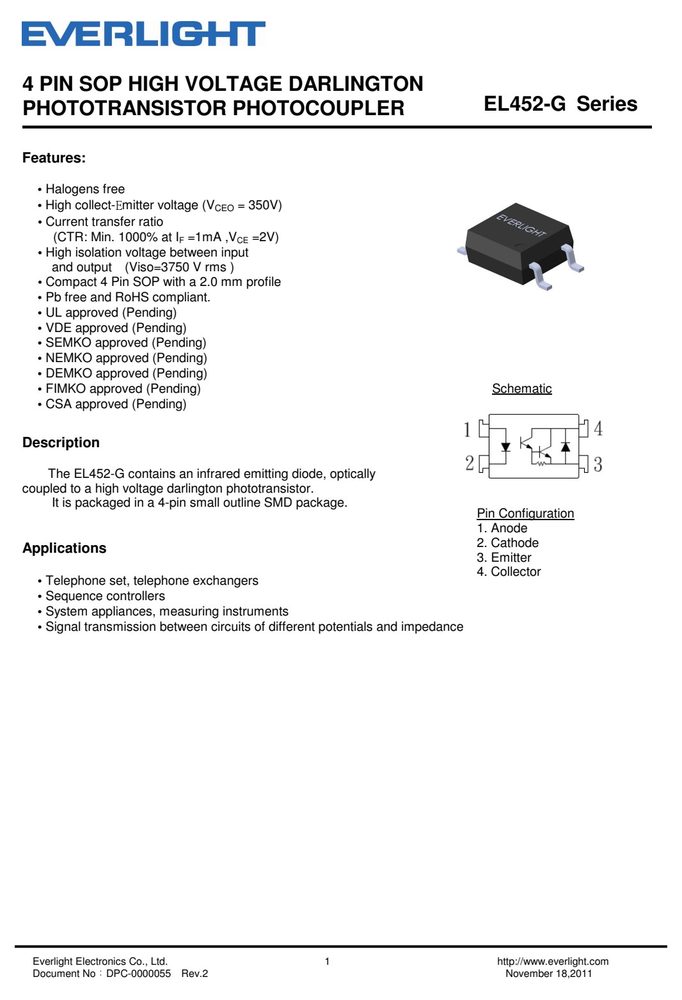

-G-appcircuit.jpg)

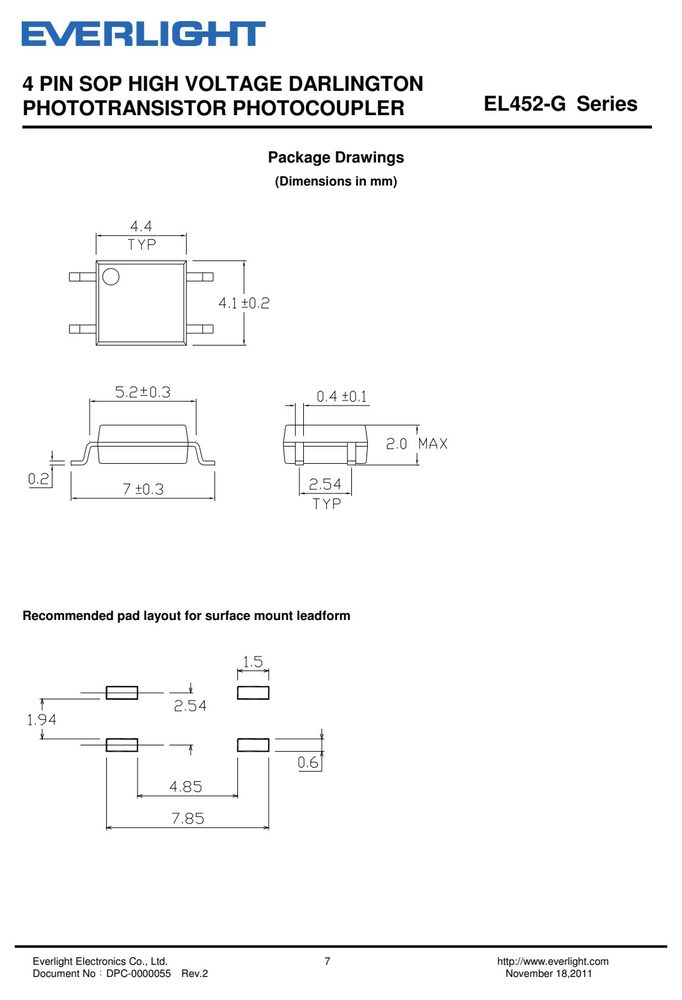

-G-package.jpg)
图纸取自原厂规格书，点击可放大查看原始尺寸标注。
关键参数速览
- 正向电压 VF
- 10mA
- 电流传输比 CTR
- 2000
- 正向电流 IF
- 60
- 集电极-发射极电压 VCEO
- 350
- 隔离电压 VISO
- 1011
产品特点 Features
- Halogens free
- High collect-E mitter voltage (V CEO = 350V)
- Current transfer ratio
- (CTR: Min. 1000% at I F =1mA ,V CE =2V)
- High isolation voltage between input
- and output (Viso=3750 V rms )
- Compact 4 Pin SOP with a 2.0 mm profile
- Pb free and RoHS compliant.
- UL approved (Pending)
- VDE approved (Pending)
- SEMKO approved (Pending)
- NEMKO approved (Pending)
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 符号 | 额定值 | 单位 |
|---|---|---|---|
| Forward current | I | 60 | mA |
| Input Peak forward current (t = 10µs) | I FM | 1 | A |
| Power dissipation | P | 100 | |
| Power dissipation | P | 150 | mW |
| Collector current | I | 150 | mA |
| Collector-Emitter voltage | V | 350 | V |
| Emitter-Collector voltage | V | 0.1 | V |
| Total power dissipation | P | 170 | mW |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| 参数 | 符号 | 额定值 | 单位 |
|---|---|---|---|
| 4 PIN SOP HIGH VOLTAGE | DARLINGTON | ||
| EL452-G | Series | ||
| Operating temperature | T | -55~+110 | °C |
| Storage temperature | T | -55~+125 | °C |
| Soldering temperature | T | 260 | °C |
电气特性 Electrical Characteristics（TA = 25°C）
| 参数 | 符号 | 最小 | Typ.* | 最大 | 单位 | 条件 |
|---|---|---|---|---|---|---|
| Forward voltage | V | - | 1.2 | 1.4 | V I = | 10mA |
| Input capacitance | C | - | 50 | - | pF V = | 0, f = 1KHz |
| I | - | - | 100 | nA V | = 200V, I =0mA | |
| current | CEO | CE | F | |||
| 350 | - | - | I | =0.1mA | ||
| breakdown voltage | BV CEO | V c | ||||
| BV | 0.1 | - | - | V I | =0.01mA | |
| breakdown voltage | ECO | E | ||||
| Transfer Characteristics | (T =25°C | unless | specified | otherwise) | ||
| Current Transfer ratio | CTR | 1000 | 2000 | - | % I = | 1mA ,V = 2V |
| - | 1.2 | 1.5 | I = | 20mA ,I = 100mA | ||
| voltage | V CE(sat) | V F | c | |||
| Isolation resistance | R | 5×1010 | 1011 | - | Ω V | = 500Vdc, 40~60%R.H |
| V | =2V, I =2mA,R =100Ω, | |||||
| Cut-off frequency | fc | - | 7 | - | KHz CE -3db | C L |
| Floating capacitance | C | - | 0.6 | - | pF V | = 0, f = 1MHz |
| Rise time | T | - | 80 | 250 | ||
| V | =2V, I =20mA,R =100Ω | |||||
| Fall time | - | 10 | 100 |
特性曲线（Typical Performance Curves）

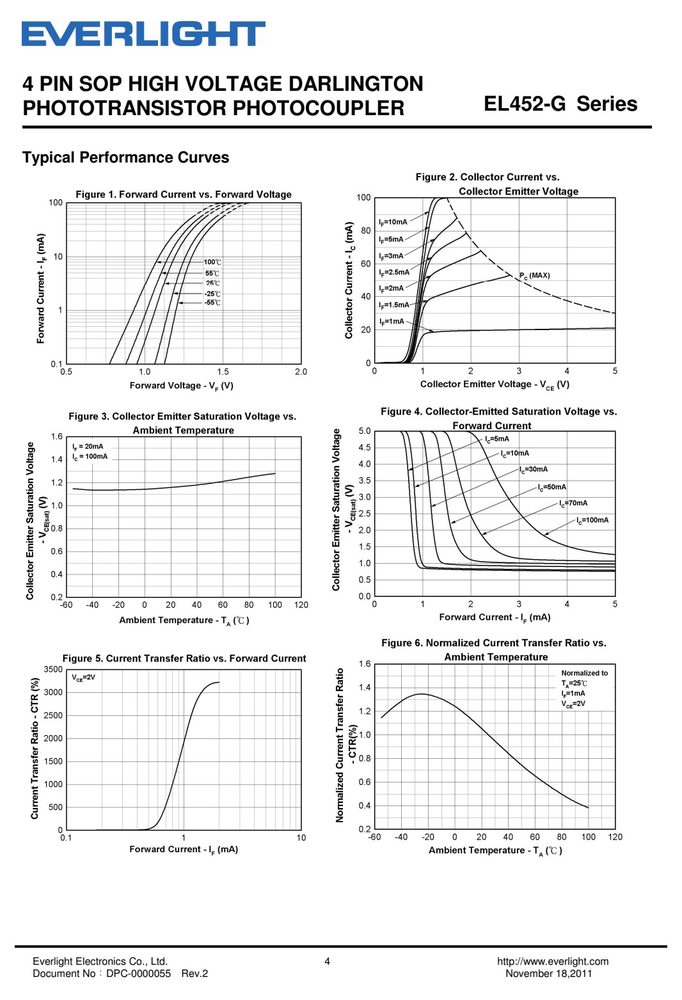

-G-curves.jpg)
订货信息与供货形式
| 452 | denotes | 型号 | 型号2 |
|---|---|---|---|
| Device | Marking | ||
| Option | TA | Option | TB |
