产品应用与封装尺寸

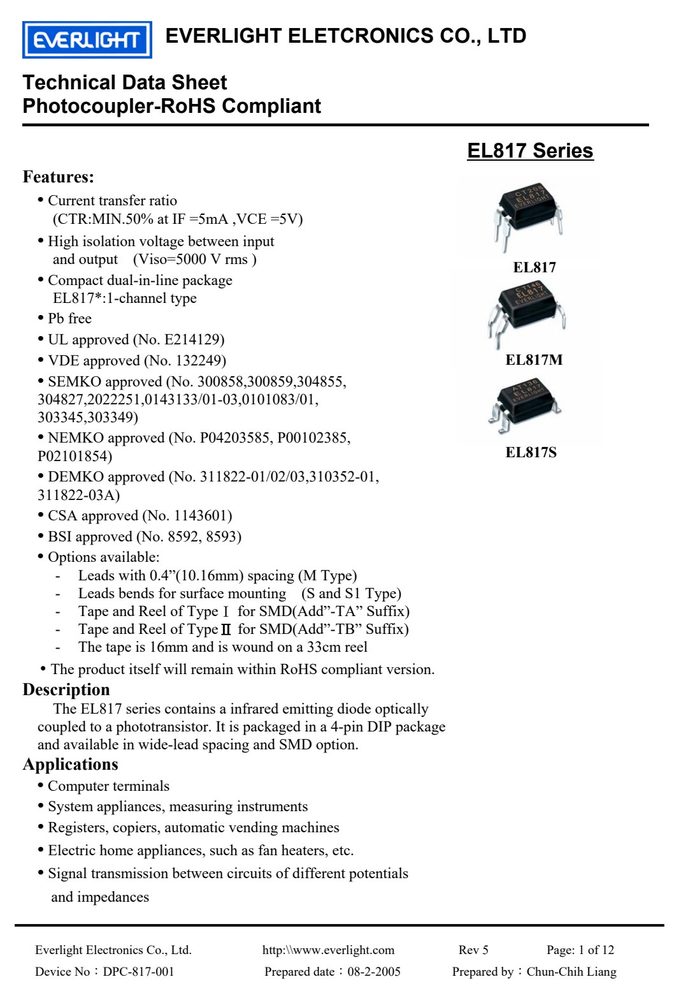

(TU)-FG-appcircuit.jpg)

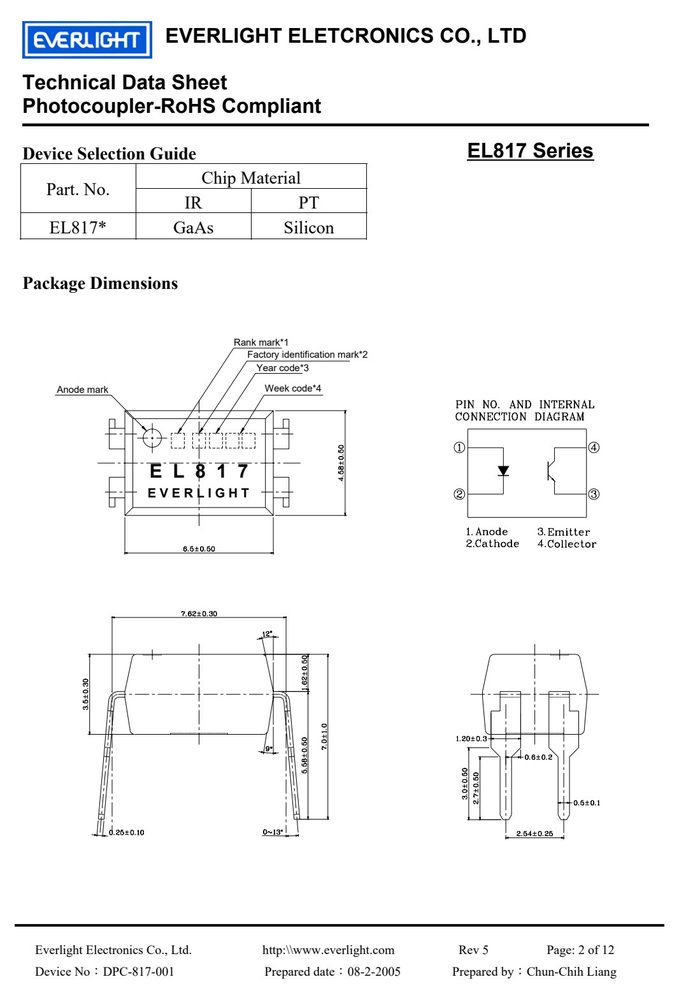

(TU)-FG-package.jpg)
图纸取自原厂规格书，点击可放大查看原始尺寸标注。
关键参数速览
- 正向电流 IF
- 50
- 集电极-发射极电压 VCEO
- 35
产品特点 Features
- Current transfer ratio
- (CTR:MIN.50% at IF =5mA ,VCE =5V)
- High isolation voltage between input
- and output (Viso=5000 V rms )
- Compact dual-in-line package
- EL817*:1-channel type
- Pb free
- UL approved (No. E214129)
- VDE approved (No. 132249)
- SEMKO approved (No. 300858,300859,304855,
- 304827,2022251,0143133/01-03,0101083/01,
- 303345,303349)
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 符号 | 额定值 | 单位 |
|---|---|---|---|
| Forward Current | I | 50 | mA |
| Power Dissipation | P | 70 | mW |
| Collector Power Dissipation | P | 150 | mW |
| Output Collector Current | I | 50 | mA |
| Collector-Emitter Voltage | V | 35 | V |
| Emitter-Collector Voltage | V | 6 | V |
| Total Power Dissipation | Ptot | 200 | mW |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| 参数 | 符号 | 额定值 | 单位 |
|---|---|---|---|
| Operating Temperature | Topr | -55~+110 | °C |
| Storage Temperature | Tstg | -55~+125 | °C |
| ＊2 Soldering Temperature | Tsol | 260 | °C |
| -Isolation voltage shall be measured | using the following method. | ||
| (1) Short between anode and cathode | on the primary side and | ||
| between collector, emitter and | base on the secondary side. | ||
| (2) The isolation voltage tester with | zero-cross circuit shall be | used. | |
| (3) The waveform of applied voltage | shall be a sine wave |
电气特性 Electrical Characteristics（TA = 25°C）
| 参数 | 符号 | 最小 | 典型 | 最大 | 单位 | 条件 |
|---|---|---|---|---|---|---|
| (Ta=25°C) | ||||||
| Forward | V | - | 1.2 | 1.4 | V | I =20mA |
| Input | I | - | - | 10 | uA | V =4V |
| Terminal | Ct | - | 30 | 250 | pF | V=0,f=1kHz |
| I | - | - | 100 | nA | V =20V | |
| BV | 35 | - | - | V | Ic=0.1mA |
相关 / 可替代型号
以上型号来自规格书与型号命名比对，参数需以各自规格书为准；下单前请与销售确认封装与脚位。
