产品应用与封装尺寸

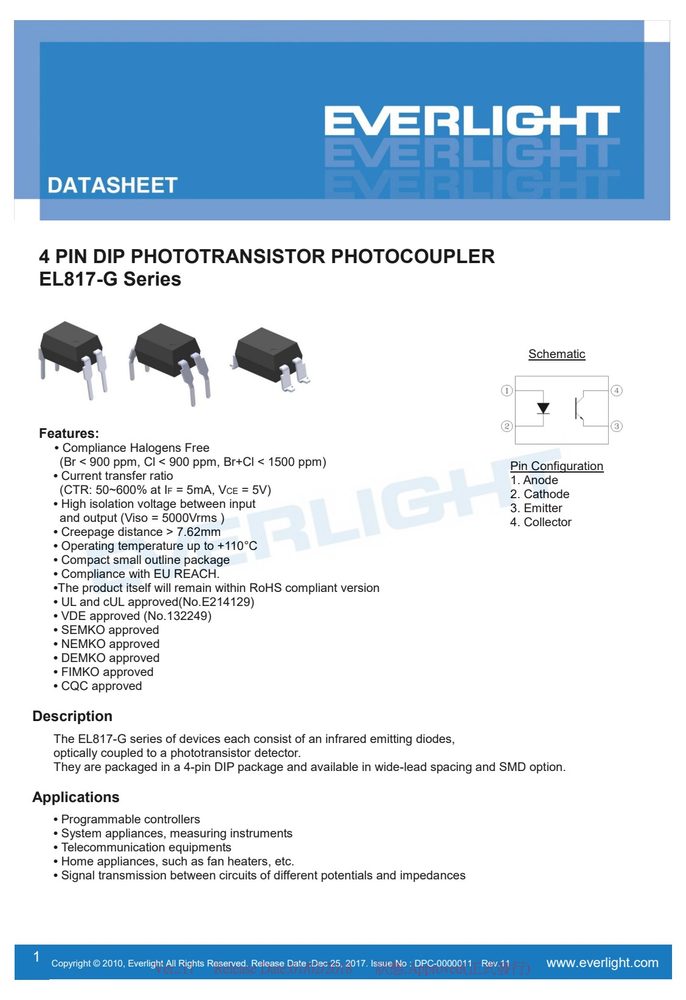

(TA)-F-appcircuit.jpg)
图纸取自原厂规格书，点击可放大查看原始尺寸标注。
关键参数速览
- 正向电压 VF
- 1.4
- 电流传输比 CTR
- 400
- 正向电流 IF
- 400
- 集电极-发射极电压 VCEO
- 80
- 隔离电压 VISO
- 5×1010
产品特点 Features
- .• Compliance Halogens Free
- (Br < 900 ppm, Cl < 900 ppm, Br+Cl < 1500 ppm)
- Current transfer ratio
- (CTR: 50~600% at IF = 5mA, VCE = 5V)
- High isolation voltage between input
- and output (Viso = 5000Vrms )
- Creepage distance > 7.62mm
- Operating temperature up to +110°C
- Compact small outline package
- Compliance with EU REACH.
- The product itself will remain within RoHS compliant version
- UL and cUL approved(No.E214129)
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 符号 | 额定值 | 单位 |
|---|---|---|---|
| Forward current | I | 60 | mA |
| Peak forward current (1us, | pulse) I | 1 100 | A mW |
| Derating factor (above T = | 100°C) | 2.9 150 | mW/°C mW |
| Derating factor (above T = | 100°C) | ||
| a | 5.8 | mW/°C | |
| Output Collector current | I | 50 | mA |
| Collector-Emitter voltage | V | 80 | V |
| Emitter-Collector voltage | V | 7 | V |
| Total Power Dissipation | P | 200 | mW |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| 参数 | 符号 | 额定值 | 单位 |
|---|---|---|---|
| 4PIN DIP PHOTOTRANSISTOR | PHOTOCOUPLER | ||
| EL817-G Series | |||
| Operating Temperature | T | -55 to 110 | °C |
| Storage Temperature | T | -55 to 125 | °C |
| Soldering Temperature* 2 | T | 260 | °C |
电气特性 Electrical Characteristics（TA = 25°C）
| 参数 | 符号 | 最小 | 典型 | 最大 | 单位 | 条件 |
|---|---|---|---|---|---|---|
| Forward Voltage | V | - | 1.2 | 1.4 | V | I = 20mA |
| Input capacitance | C | - | 30 | 250 | pF | V = 0, f = 1kHz |
| I | - | - | 100 | nA | V = 20V, I = 0mA | |
| BV | 80 | - | - | V | I = 0.1mA | |
| BV | 7 | - | - | V | I = 0.1mA | |
| EL817 | 50 | - | 600 | |||
| EL817A | 80 | - | 160 | |||
| EL817B | 130 | - | 260 | |||
| Transfer EL817C | CTR | 200 | - | 400 | % | I F = 5mA ,V CE = 5V |
| EL817D | 300 | - | 600 | |||
| EL817X | 100 | - | 200 | |||
| EL817Y | 150 | - | 300 | |||
| V | - | 0.1 | 0.2 | V I | = 20mA ,I = 1mA | |
| saturation voltage | CE(sat) | F C V = 500Vdc, | ||||
| Isolation resistance | R | 5×1010 | - | - | | IO |
| IO | 40~60% R.H. | |||||
| Floating capacitance | C | - | 0.6 | 1.0 | pF | V = 0, f = 1MHz |
| V = 5V, I = 2mA | ||||||
| Cut-off frequency | fc | - | 80 | - | kHz | CE C |
| R = 100, -3dB | ||||||
| Rise time | t | - | 6 | 18 | µs | |
| r | V = 2V, I = 2mA, R = 100 | |||||
| Fall time | t | - | 8 | 18 | µs | L |
相关 / 可替代型号
以上型号来自规格书与型号命名比对，参数需以各自规格书为准；下单前请与销售确认封装与脚位。
订货信息与供货形式
| 包装 | M | 型号 |
|---|---|---|
| EL817-G | Series | |
| Package | Dimension (Dimensions in mm) | |
| Standard | DIP Type | |
| Option | M | Type |
| EL817-G | Series | |
| Option | S1 | Type |
| Option | S2 | Type |
