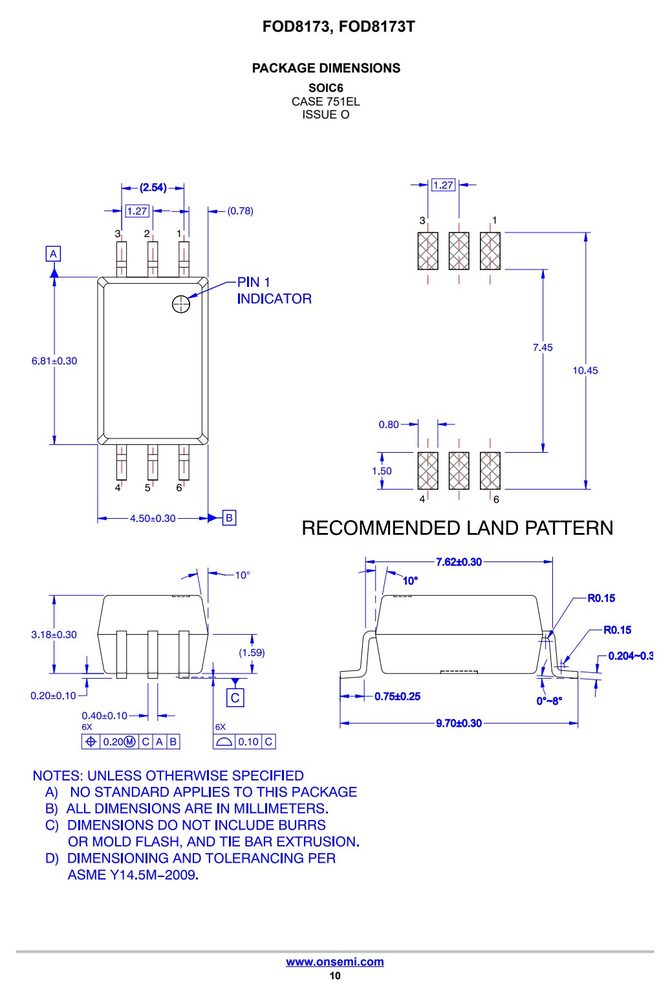

产品应用与封装尺寸
图纸取自原厂规格书，点击可放大查看原始尺寸标注。
关键参数速览
- 正向电压 VF
- 1.80
- 正向电流 IF
- 5.0
- 电源电压 VCC
- 0 to 6.0
- 工作温度 TA
- −40 to +100
产品特点 Features
- FOD8173T − 8 mm Creepage and Clearance Distance, and 0.4 mm ON
- Temperature Min. (Tsmin) 150°C
- Temperature Max. (Tsmax) 200°C
- Time (tS) from (Tsmin to Tsmax) 60 − 120 seconds
- Ramp−up Rate (tL to tP) 3°C/second max
- Liquidous Temperature (TL) 217°C
- Time (tL) Maintained Above (TL) 60 − 150 seconds
- Peak Body Package Temperature 260°C + 0°C / −5°C
- Time (tP) within 5°C of 260°C 30 seconds
- Ramp−down Rate (TP to TL) 6°C / second max.
- Time 25°C to Peak Temperature 8 minutes max.
- FOD8173, FOD8173T
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 符号 | 参数 | 值 | 单位 |
|---|---|---|---|
| T Storage | Temperature | −40 to +125 | °C |
| T Operating | Temperature | −40 to +100 | °C |
| T Junction | Temperature | −40 to +125 | °C |
| T Lead | Solder Temperature (Refer to Reflow Temperature | Profile) 260 for 10sec | °C |
| I Average | Forward Input Current | 20 | mA |
| P Input | Power Dissipation (Note 1) | 40 | mW |
| V Supply | Voltage | 0 to 6.0 | V |
| V Output | Voltage | −0.5 to VDD + 0.5 | V |
| I Average | Output Current | 10 | mA |
| P Output | Power Dissipation (Note 1) | 70 | mW |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| 8173 | = | 器件 | 型号 |
|---|---|---|---|
| 8173 | = | Device | Number |
| 3.3 V and 5 V CMOS Compatibility V | = | DIN | EN/IEC60747−5−5 Option |
| Specifications Guaranteed Over 3 V to 5.5 V supply voltage and −40 | |||
| YY | = | Digit | Work Week |
| to 100°C extended industrial temperature range | |||
| P | = | Assembly | Package Code |
电气特性 Electrical Characteristics（TA = 25°C）
| 符号 | 参数 | 条件 | 最小 | 典型 | 最大 | 单位 |
|---|---|---|---|---|---|---|
| V | Forward Voltage | I = 10 mA | 1.0 | 1.35 | 1.80 | V |
| BV | I = 10 kΩA | 5.0 | 18 | V | ||
| I | Threshold Input Current | 2.8 | 5.0 | mA | ||
| I = 20 uA, I = 10 mA | 0.0027 | 0.01 | ||||
| V | Logic Low Output Voltage | V | ||||
| I = 4 mA, I = 10 mA | 0.27 | 0.8 | ||||
| V = 3.3 V, I = −20 kΩA, I = 0 | mA V − 0.1 | 3.3 | ||||
| V = 3.3 V, I = −4 mA, I = 0 | mA V − 0.5 | 3.1 | ||||
| V | Logic High Output Voltage | V | ||||
| V DD = 5.0 V, I O =−20 kΩA, I F = 0 | mA V DD − 0.1 | 5.0 | ||||
| V DD = 5.0 V, I O =−4 mA, I F = 0 mA | V DD − 0.5 | 4.9 | ||||
| I = 10 mA, V = 3.3 V | 3.3 | 4.8 | ||||
| I = 10 mA, V = 5.0 V | 4.0 | 5.0 | ||||
| I = 0 mA, V = 3.3 V | 3.3 | 4.8 | ||||
| I = 0 mA, V = 5.0 V | 4.0 | 5.0 |
特性曲线（Typical Performance Curves）
