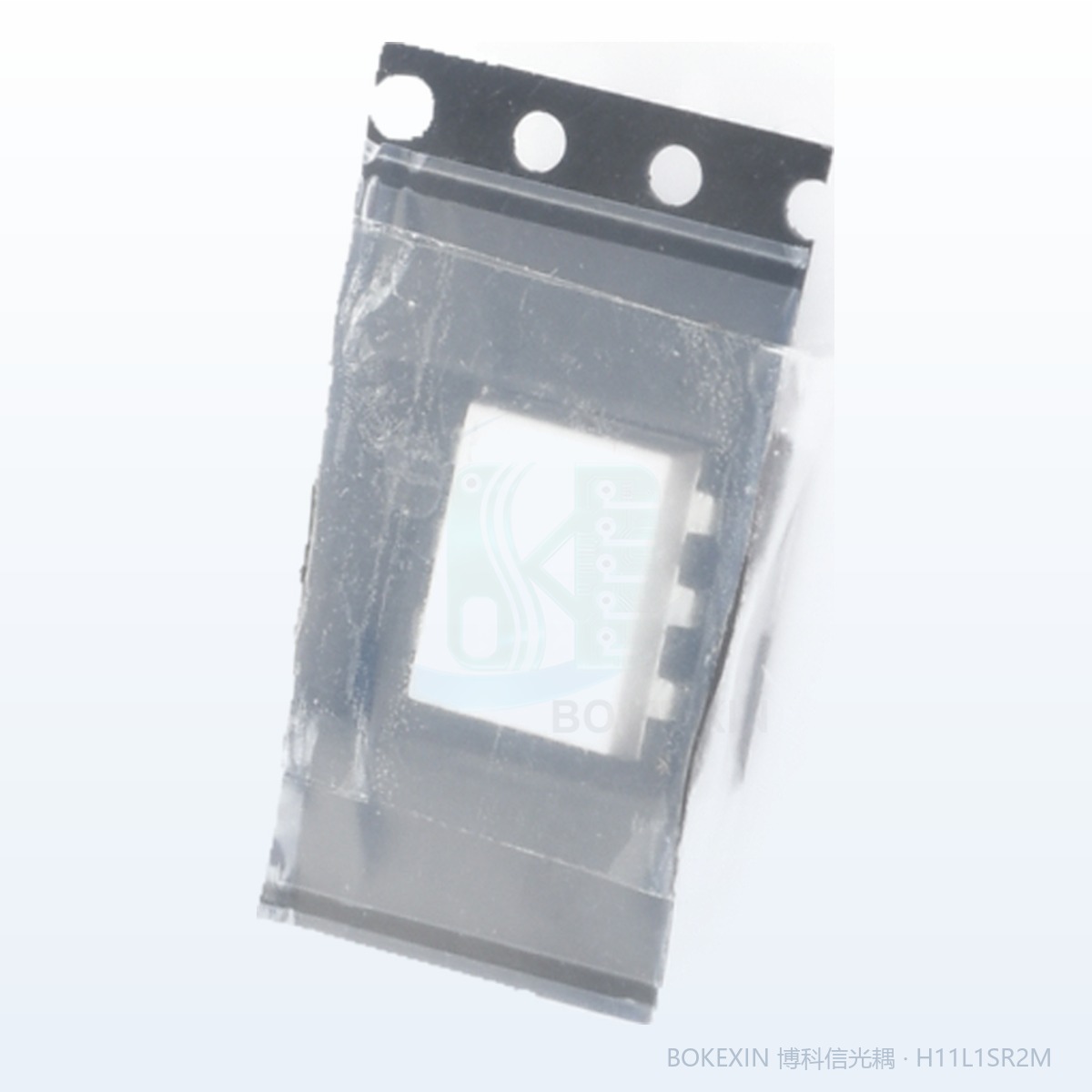

产品实拍图
本页为博科信现货实拍（器件丝印 见规格书）。图片已加防盗水印，需要最新批次照片或未加水印原图请联系销售；点击图片可放大。

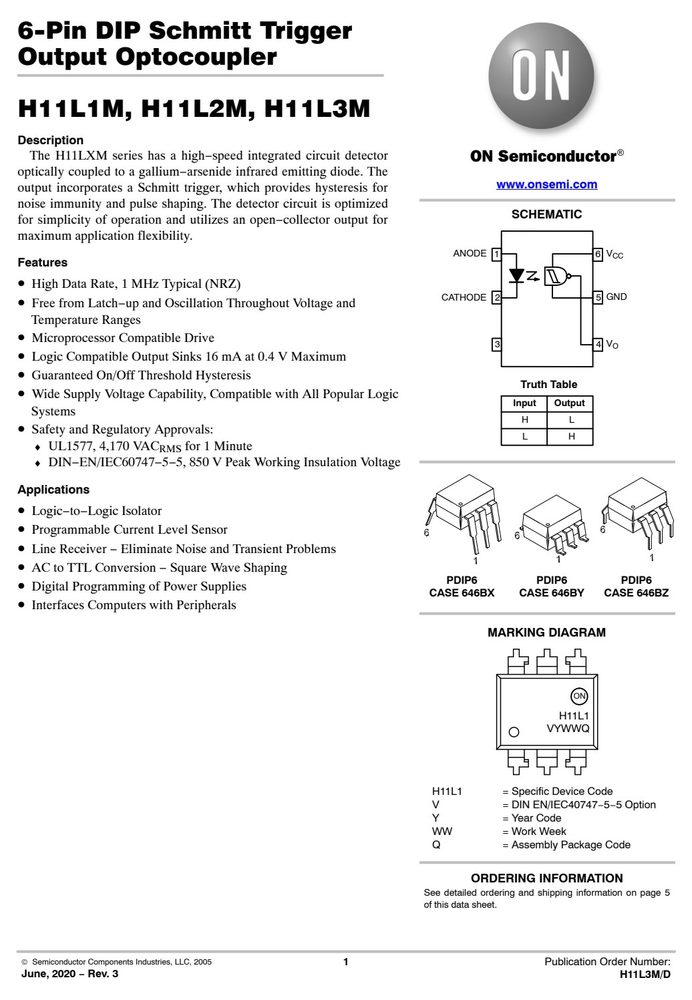

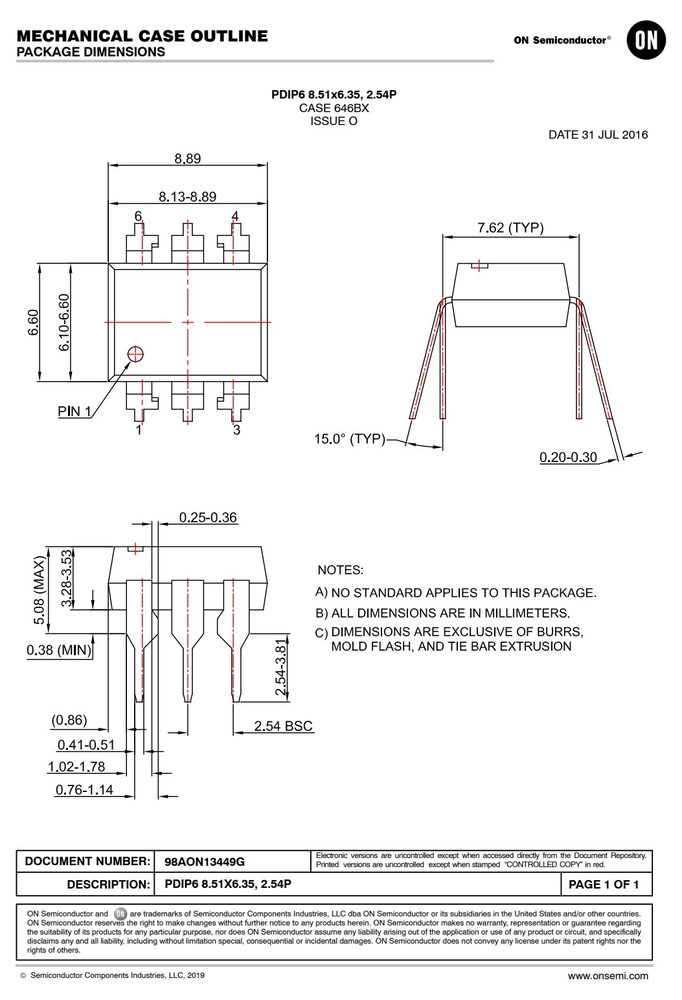

产品应用与封装尺寸
图纸取自原厂规格书，点击可放大查看原始尺寸标注。
引脚定义与内部结构
| 引脚 | 符号 | 名称 |
|---|---|---|
| 1 | I | |
| 2 | T | |
| 4 | V | |
| 5 | GND | |
| 6 | V |
数据来源：原厂规格书引脚图
关键参数速览
- 正向电压 VF
- 1.5
- 正向电流 IF
- 30
- 工作温度 TA
- −40 to +85
产品特点 Features
- High Data Rate, 1 MHz Typical (NRZ)
- CATHODE 2 5 GND
- Free from Latch−up and Oscillation Throughout Voltage and
- Temperature Ranges
- Microprocessor Compatible Drive
- 3 4 V O
- Logic Compatible Output Sinks 16 mA at 0.4 V Maximum
- Guaranteed On/Off Threshold Hysteresis
- H11L1M, H11L2M, H11L3M
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 符号 | 参数 | 值 | 单位 |
|---|---|---|---|
| T Storage Temperature | −40 to +125 | °C | |
| T Operating | Temperature | −40 to +85 | °C |
| T Junction Temperature | −40 to +125 | °C | |
| T Lead Solder | Temperature | 260 for 10 seconds | °C |
| P Total Device | Power Dissipation at 25°C | 250 | mW |
| Derate Above | 25°C | ||
| I Continuous | Forward Current | 30 | mA |
| I (pk) Forward Current | − Peak (1 µs pulse, 300 pps) | 100 | mA |
| P LED Power | Dissipation | 60 | mW |
| P Detector Power | Dissipation | 150 | mW |
| V V Allowed O 45 | Range | 0 to 16 | V |
| V V Allowed CC 65 | Range | 3 to 16 | V |
| I I Output Current O 4 | 50 | mA |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| 符号 | 参数 | 值 | 单位 |
|---|---|---|---|
| H11L1M, H11L2M, H11L3M | |||
| the safety ratings shall be ensured | by means of protective circuits. | ||
| Installation Classifications per DIN | VDE < 150 V | I−IV | |
| 0110/1.89 Table 1, For For Rated | Mains Voltage < 300 V | I−IV | |
| Pollution Degree (DIN VDE | 0110/1.89) | 2 | |
| Comparative Tracking Index | 175 | ||
| V Input−to−Output | Test Voltage, Method A, V × 1.6 = V , | 1360 | V |
| PR | IORM PR | peak | |
| Type and Sample | Test with t = 10 s, Partial Discharge < 5 pC | ||
| Input−to−Output | Test Voltage, Method B, V × 1.875 = V , | 1594 | V |
| 100% Production | Test with t = 1 s, Partial Discharge < 5 pC | ||
| V Highest Allowable | Over−Voltage | 6000 | V |
| External Creepage | ≥7 | mm | |
| External Clearance | ≥7 | mm | |
| External Clearance | (for Option TV, 0.4” Lead Spacing) | ≥10 | mm |
| T Case Temperature | (Note 1) | 175 | °C |
| I Input Current | (Note 1) | 350 | mA |
| P Output Power | (Note 1) | 800 | mW |
| R Insulation | Resistance at T , V = 500 V (Note 1) | >109 | kΩ |
电气特性 Electrical Characteristics（TA = 25°C）
| 符号 | 参数 | 测试条件 | 器件 | 最小 | 典型 | 最大 | 单位 |
|---|---|---|---|---|---|---|---|
| V Input | Forward Voltage | I = 10 mA | All | 1.2 | 1.5 | V | |
| I = 0.3 mA | 0.75 | 1.0 | |||||
| C | Capacitance | V = 0, f = 1.0 MHz | All | 100 | pF | ||
| V | Operating Voltage Range | All | 3 | 15 | V | ||
| I Supply | Current | I = 0, V = 5 V | All | 1.6 | 5.0 | mA | |
| I Output | Current, High | I = 0, V = V = 15 V | All | 100 | µA | ||
| I Supply | Current | I = 10 mA, V = 5 V | All | 1.6 | 5.0 | mA | |
| V Output | Voltage, Low | R = 270 kΩ, V = 5 V, | All | 0.2 | 0.4 | V | |
| I | Turn−On Threshold Current | R = 270 kΩ, V = 5 V | H11L1M H11L2M H11L3M | 1.6 10.0 5.0 | mA | ||
| I | Turn−Off Threshold Current | R = 270 kΩ, V = 5 V | All | 0.3 | 1.0 | mA | |
| I /I | Hysteresis Ratio | R = 270 kΩ, V = 5 V | All | 0.50 | 0.75 | 0.90 |

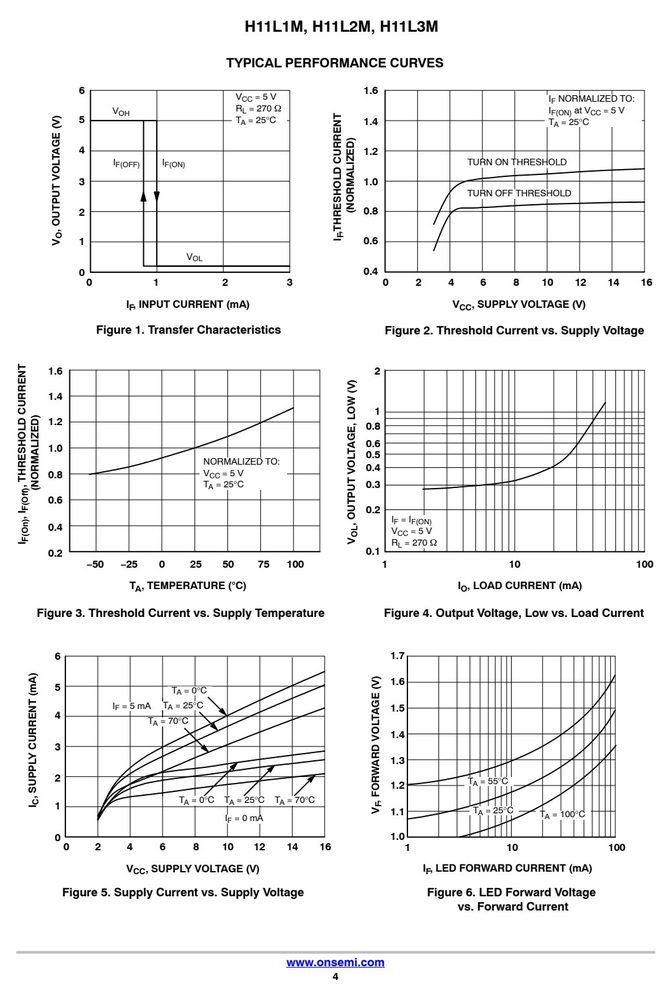

特性曲线（Typical Performance Curves）
