产品应用与封装尺寸
图纸取自原厂规格书，点击可放大查看原始尺寸标注。
引脚定义与内部结构
| 引脚 | 符号 | 名称 |
|---|---|---|
| 5 | GND | |
| 6 | VO | |
| 7 | VE | |
| 8 | VCC |
数据来源：原厂规格书引脚图
关键参数速览
- 电源电压 VCC
- 2
- 工作温度 TA
- +85°C) unless

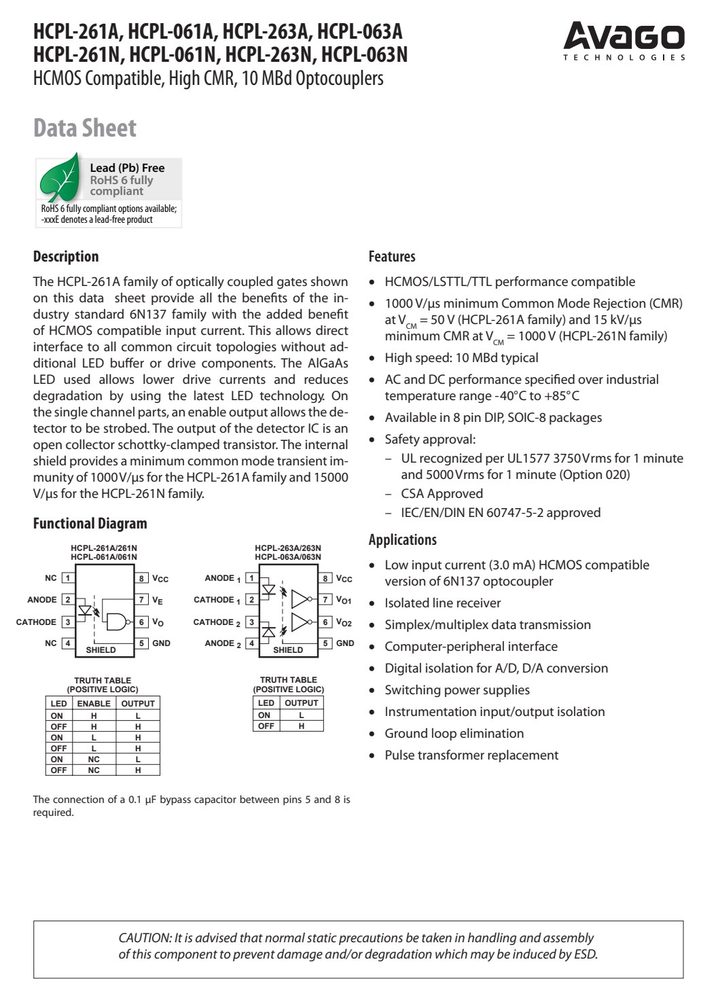

产品特点 Features
- The HCPL-261A family of optically coupled gates shown • HCMOS/LSTTL/TTL performance compatible on this data sheet provide all the benefits of the in-
- High speed: 10 MBd typical ditional LED buffer or drive components. The AlGaAs
- LED used allows lower drive currents and reduces • AC and DC performance specified over industrial the single channel parts, an enable output allows the de-
- Available in 8 pin DIP, SOIC-8 packages tector to be strobed. The output of the detector IC is an
- Safety approval:
- V/µs for the HCPL-261N family. – CSA Approved
- IEC/EN/DIN EN 60747-5-2 approved
- Functional Diagram
- Selection Guide
- Widebody
- Minimum CMR Inpu t 8-Pin DIP (300 Mil) Small-Outline SO-8 (400 Mil) Hermetic
- On- Single Dual Single Dual Single Single and dV/dt V Current Output Channel Channel Channel Channel Channel Dual Channel
- (V/µs) (V) (mA) Enable Package Package Package Package Package Packages
- NA NA 5 YES 6N137[1] HCPL-0600[1] HCNW137[1]
- NO HCPL-2630[1] HCPL-0630[1]
- 5,000 50 YES HCPL-2601[1] HCPL-0601[1] HCNW2601[1]

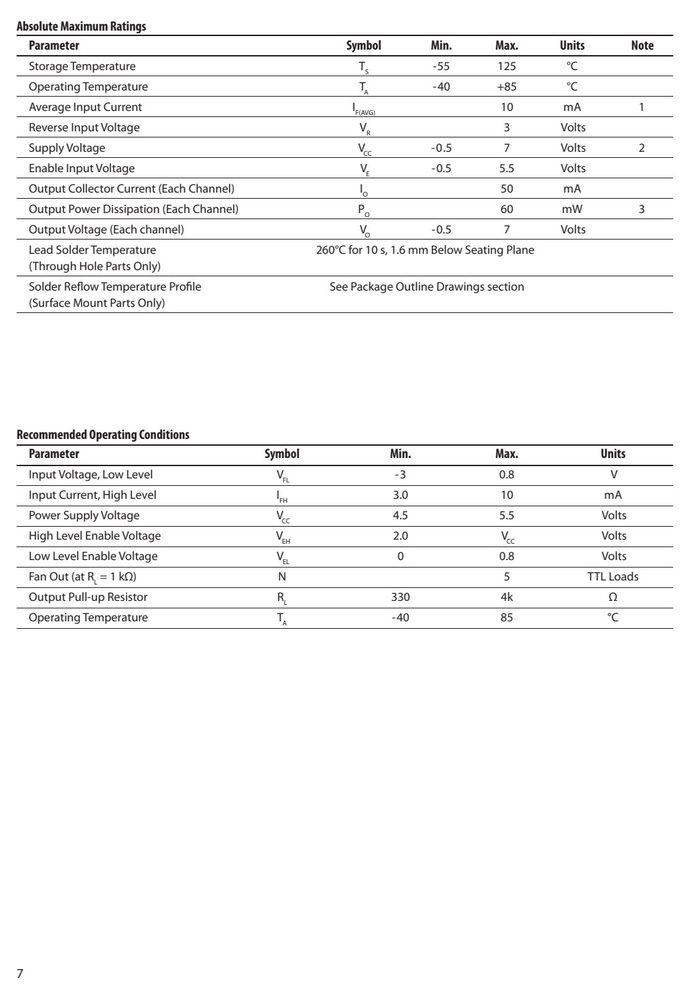

绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 符号 | 最小 | 最大 | 单位 | 备注 |
|---|---|---|---|---|---|
| Storage Temperature | T | -55 | 125 | °C | |
| Operating Temperature | T | -40 | +85 | °C | |
| Average Input Current | I | 10 | mA | 1 | |
| Supply Voltage | V | -0.5 | 7 | Volts | 2 |
| Enable Input Voltage | V | -0.5 | 5.5 | Volts | |
| Output Collector Current (Each | Channel) I | 50 | mA | ||
| Output Power Dissipation (Each | Channel) P | 60 | mW | 3 | |
| Output Voltage (Each channel) | V | -0.5 | 7 | Volts | |
| Lead Solder Temperature | 260°C for 10 s, 1.6 | mm Below | Seating Plane |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| 参数 | 符号 | 值 | 值2 | 单位 | 条件 |
|---|---|---|---|---|---|
| 8-Pin DIP | |||||
| (300 Mil) | SO-8 | ||||
| Minimum External Air | L(101) | 7.1 | 4.9 | mm | Measured from input terminals to |
| Gap (External | output terminals, shortest distance | ||||
| Clearance) | through air. | ||||
| Minimum External | L(102) | 7.4 | 4.8 | mm | Measured from input terminals to |
| Tracking (External | output terminals, shortest distance | ||||
| Creepage) | path along body. | ||||
| Gap (Internal Clearance) | to conductor, usually the direct | ||||
| Tracking Resistance | CTI | 200 | 200 | Volts | DIN IEC 112/ VDE 0303 Part 1 |
| Isolation Group | IIIa | IIIa | Material Group (DIN VDE 0110, 1/89, Table 1) | ||
| Option 300 – surface | mount classification is | Class A in | accordance with | CECC | 00802. |
| Installation classification | per DIN VDE 0110/1.89, | Table 1 | |||
| for rated mains voltage | ≤ 150 V rms | I-IV | |||
| for rated mains | voltage ≤ 300 V rms | I-IV | I-III | ||
| for rated mains | voltage ≤ 600 V rms | I-III | I-II | ||
| Pollution Degree (DIN | VDE 0110/1.89) | 2 | 2 | ||
| V x 1.875 = V , | 100% Production Test | V | 1181 | 1063 V | |
| IORM PR | PR | peak | |||
| V x 1.5 = V , Type | and Sample Test, | V | 945 | 849 V | |
| IORM PR | PR | peak | |||
| Highest Allowable | Overvoltage* | V | 6000 | 4000 V |
电气特性 Electrical Characteristics（TA = 25°C）
| 参数 | 符号 | 最小 | Typ.* | 最大 | 单位 | 测试条件 | 图号 | 备注 |
|---|---|---|---|---|---|---|---|---|
| Over recommended | operating | temperature | (T = | -40°C to | +85°C) unless | otherwise specified. | ||
| High Level Output | I | 3.1 | 100 | µA V | = 5.5 V, V = 5.5 V, | 4 | 18 | |
| OH | CC | O | ||||||
| Current | V | = 0.8 V, V = 2.0 V | ||||||
| Low Level Output | V | 0.4 | 0.6 | V V | = 5.5 V, I = 13 mA | 5, 8 | 4, 18 | |
| Voltage | V | (sinking), I = 3.0 mA, = 2.0 V | ||||||
| High Level Supply | I | 7 | 10 | mA V | = 0.5 V** V = 5.5 | V | 4 | |
| CCH | E | CC | ||||||
| Current | 9 | 15 | Dual Channel I = 0 mA | |||||
| Low Level Supply | I | 8 | 13 | mA V | = 0.5 V** V = 5.5 | V | ||
| CCL | E | CC | ||||||
| Current | I = 3.0 | mA | ||||||
| 12 | 21 | Dual Channel F | ||||||
| High Level Enable | I | -0.6 | -1.6 | mA V | = 5.5 V, V = 2.0 V | |||
| EH | CC | E | ||||||
| Low Level Enable | I | -0.9 | -1.6 | mA V | = 5.5 V, V = 0.5 V | |||
| EL | CC | E | ||||||
| Input Forward | V | 1.0 | 1.3 | 1.6 | V I | = 4 mA | 6 | 4 |
| Temperature Co- | ∆V /∆T | -1.25 | mV/°C I | = 4 mA | 4 | |||
| Input Capacitance | C | 60 | pF f = | 1 MHz, V = 0 V |
