HCPL-0731-500E 达林顿输出光耦

Installation Classification per DIN VDE 0110/1.89, Table 1 for rated mains voltage ≤600 V rms I-IV for rated mains voltage ≤1000 V rms Pollution Degree (DIN VDE 0110/1.89) 2
电流传输比 CTR 2电源电压 VCC 18工作温度 TA 85

产品实拍图

本型号暂无已核对的专属实拍图。为避免图文不符,本页不放同系列近似图;如需实物照片,请联系销售获取本批次实拍。

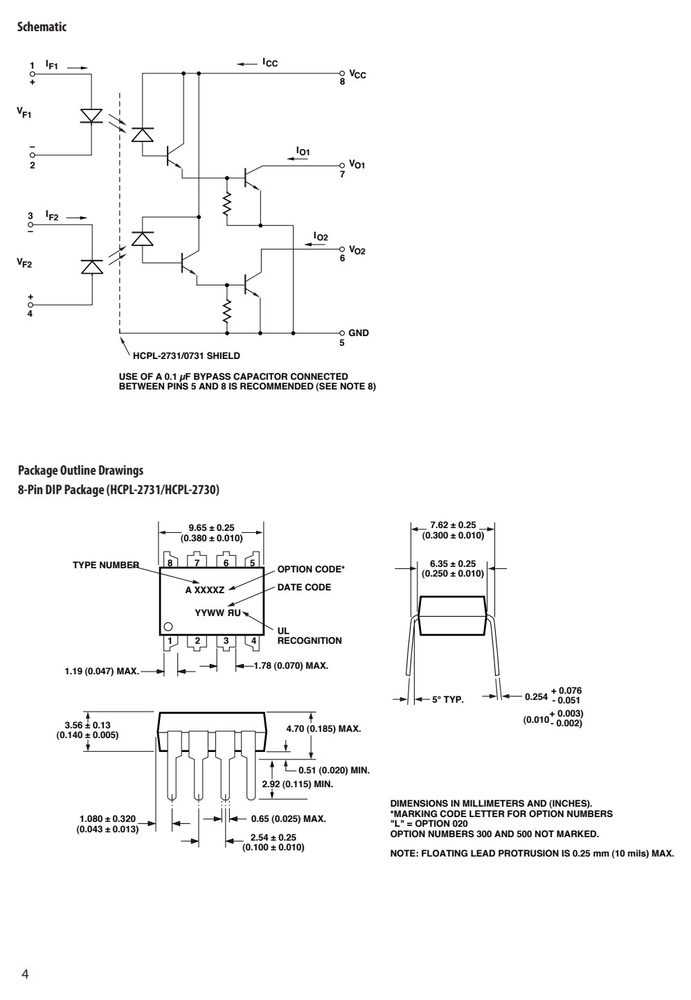

产品应用与封装尺寸

图纸取自原厂规格书,点击可放大查看原始尺寸标注。

引脚定义与内部结构

引脚符号名称
1I
3I
4RECOGNITION
5GND
8VCC
数据来源:原厂规格书引脚图

关键参数速览

电流传输比 CTR
2
电源电压 VCC
18
工作温度 TA
85

产品特点 Features

  • High current transfer ratio – 1800% typical
  • Low input current requirements – 0.5 mA
  • Low output saturation voltage – 0.1 V
  • High density packaging
  • Performance guaranteed over temperature 0°C to 70°C
  • LSTTL compatible
  • High output current – 60 mA
  • Safety approval:
  • UL recognized – 3750 V rms for 1 minute and
  • 5000 V rms* for 1 minute
  • CSA approved
  • Available in 8 pin DIP and SO-8 footprint

绝对最大额定值 Absolute Maximum Ratings(TA = 25°C)

超过下表数值可能造成器件永久损坏,设计时请留余量。

参数符号最小最大单位
Storage TemperatureT-55125°C
Operating TemperatureT-4085°C
Average Forward Input CurrentI20mA
Peak Forward Input CurrentI40mA
Input Power Dissipation (Each Channel)P35mW
Output Current (Each Channel)I60mA
Output Power Dissipation (EachChannel) -Note 12 P100mW
Total Power Dissipation (Each Channel)P135mW
数据来源:原厂规格书

安全与绝缘额定值(DIN EN/IEC 60747−5−5)

参数符号值值2单位条件
8-Pin DIP
(300 Mil)SO-8
Minimum ExternalAir L(101)7.14.9mmMeasured from input terminals to output
Gap (ExternalClearance)terminals, shortest distance through air.
Minimum ExternalL(102)7.44.8mmMeasured from input terminals to
Tracking (Externaloutput terminals, shortest distance
Creepage)path along body.
Gap (InternalClearance)to conductor, usually the direct distance
Tracking ResistanceCTI200200VoltsDIN IEC 112/ VDE 0303 Part 1
Isolation GroupIIIaIIIaMaterial Group DIN VDE 0110
Option 300 – surfacemount classificationis Class A inaccordancewithCECC 00802.
Input to Output TestVoltage, Method b*VPR2652 V
V = 1.875 x V ,100% Production Testwith t = 1sec,
Input to Output TestVoltage, Method a*VPR2121 V
Highest AllowableOvervoltage*VIOTM8000 V

电气特性 Electrical Characteristics(TA = 25°C)

参数符号HCPL-最小Typ.*最大单位测试条件图号备注
0°C ≤ T ≤ 70°C,4.5 V ≤ V≤ 18 V, 0.5mA ≤ I≤ 12mA, 0 V ≤V ≤ 0.8V, unless otherwisespecified.
ACCF(ON)F(OFF)
CurrentCTR273140018005000% I= 0.5 mA V =4.5 2, 32
Transfer0731V =0.4 V
50016002600I= 1.6 mA
2730/073030016002600I= 1.6 mA
Logic LowV27310.10.4V I= 1.6 mA, V =4.5 V 1
OLFCC
Output0731I= 8 mA
Voltage0.10.4I I= 5.0 mA, = 15 mA
0.20.4I I= 12 mA, = 24 mA
2730/07300.10.4I I= 1.6 mA, = 4.8 mA
Logic HighI OH2731/07310.05100µA V= V = 18 V I = 0 O CC FmA2
Current2730/07310.1250V= V = 7 V
Logic LowI CCL2731/07311.23mA V= 18 V I = I = CC F1 F21.6 mA 5
SupplyV = V = 01 02Open
Current2730/07300.9V= 7 V
Logic HighI CCH2731/07310.00520µA V= 18 V I = I = CC F1 F20 mA, 5
SupplyV = V = 01 02Open
Current2730/07300.004V= 7 V
InputV1.41.7V T= 25°C4
Voltage1.75I = 1.6 mA
InputBV5.0V I= 10 µA, T = 25°C2
RRA
Temperature∆V-1.8mV/°C I= 1.6 mA
InputC60pF f= 1 MHz, V = 02
Input-OutputMomentary V3750V rmsRH ≤50%,4, 9
Withstand Voltage**t = 1 min., T = 25°C
Option020273050004, 10
ResistanceR1012ΩV = 500 VDC4
(Input-Output)RH ≤45%
CapacitanceC0.6pFf = 1 MHz11

订货信息与供货形式

8-PinDIP封装withGullWingSurfaceMount包装300(HCPL-2731/HCPL-2730)
SmallOutlineSO-8Package(HCPL-0731/HCPL-0730)

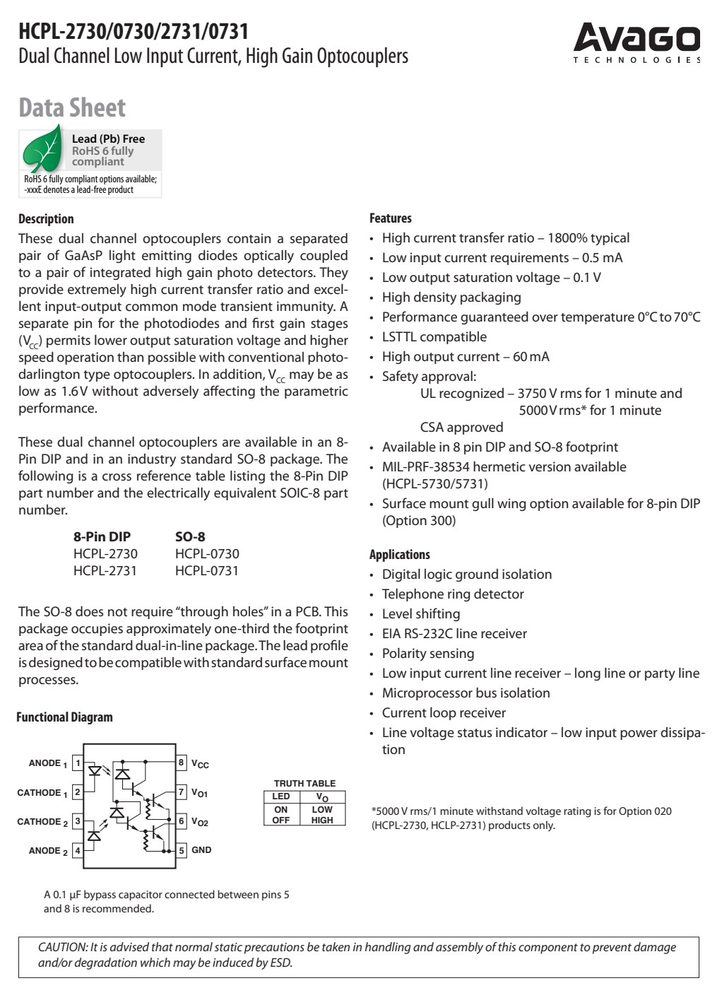

应用领域 Applications

HCPL-2731 HCPL-0731Functional DiagramANODE 1 1 8 VCCDigital logic ground isolationTelephone ring detectorLevel shiftingEIA RS-232C line receiverPolarity sensingMicroprocessor bus isolationCurrent loop receiverSchematic1 I F1 ICC
