Name: AVAGO HCPL-2200-000E
Brand: AVAGO
Availability: InStock

产品实拍图

本型号暂无已核对的专属实拍图。为避免图文不符，本页不放同系列近似图；如需实物照片，请联系销售获取本批次实拍。

索取实拍图在产品目录查看同类型号

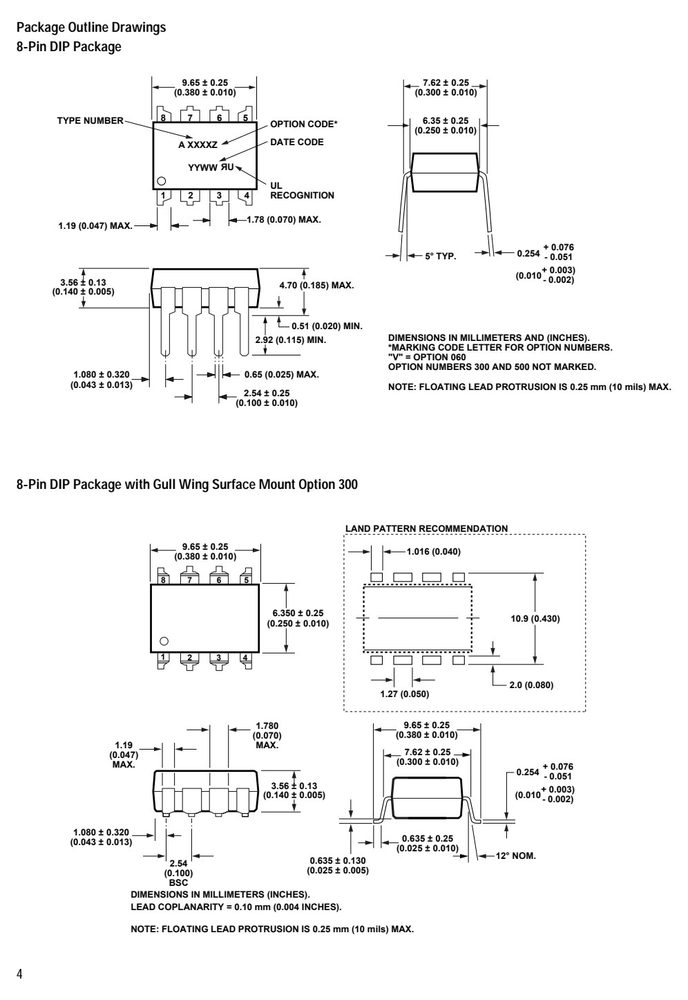

产品应用与封装尺寸

图纸取自原厂规格书，点击可放大查看原始尺寸标注。

引脚定义与内部结构

引脚	符号	名称
4	RECOGNITION
5	GND
6	VE
7	VO
8	VCC

数据来源：原厂规格书引脚图

关键参数速览

正向电压 VF: 6.0
电源电压 VCC: 500
工作温度 TA: 1

产品特点 Features

Compatible with LSTTL, TTL, and CMOS logic stage and has a detector threshold with hysteresis. The
Wide V range (4.5 to 20 V) three state output eliminates the need for a pullup CC
Three state output (no pullup resistor required)
Guaranteed performance from 0°C to 85°C
A superior internal shield on the HCPL-2219 guarantees
Hysteresis common mode transient immunity of 2.5 kV/µs at a
Selection Guide
Small-Outline Widebody
Minimum CMR 8-Pin DIP (300 Mil) SO-8 (400 Mil) Hermetic
Input On- Single Dual Single Single Single and Dual dV/dt V Current Channel Channel Channel Channel Channel
(V/µs) (V) (mA) Package Package Package Package Packages
1,000 50 1.6 HCPL-2200[1] HCPL-0201 HCNW2201
HCPL-2201
HCPL-2202
1.8 HCPL-2231
2,500 400 1.6 HCPL-2219[1]

绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）

超过下表数值可能造成器件永久损坏，设计时请留余量。

参数	符号	最小	最大	单位	备注
Storage Temperature	T	-55	125	°C
Operating Temperature	T	-40	85	°C	1
Average Forward Input Current	I		10	mA
Peak Transient Input Current	I		1.0	A
Average Output Current	I		25	mA
Supply Voltage	V	0	20	V
Three State Enable Voltage	V	-0.5	20	V
Output Voltage	V	-0.5	20	V
Total Package Power Dissipation	P		210	mW	1
Lead Solder Temperature	260°C for	10 sec., 1.6 mm	below seating	plane

数据来源：原厂规格书

安全与绝缘额定值（DIN EN/IEC 60747−5−5）

参数	符号	值	单位	条件
Min. External Air	Gap L(IO1)	7.1	mm	Measured from input terminals to output terminals,
(External Clearance)				shortest distance through air.
Min. External	L(IO2)	7.4	mm	Measured from input terminals to output terminals,
Tracking Path				shortest distance path along body.
Minimum Internal		0.08	mm	Through insulation distance, conductor to conductor,
Plastic Gap				usually the direct distance between the photoemitter
(Internal Clearance)				and photodetector inside the optocoupler cavity.
Tracking Resistance	CTI	200	V	DIN IEC 112/VDE 0303 Part 1
Isolation Group		IIIa		Material Group (DIN VDE 0110, 1/89, Table 1)
Option 300 – surface	mount classification	is Class	A in accordance	with CECC 00802.

电气特性 Electrical Characteristics（TA = 25°C）

参数	符号	最小	典型	最大	单位	测试条件	图号	备注
A	CC			F(ON)		EH EL	F(OFF)
All Typicals at T =	25°C, V = 5 V, I	= 3	mA unless	otherwise	specified.	See Note 7.
Logic Low	V			0.5	V I	= 6.4 mA (4 TTL Loads)	1
Logic High	V	2.4	*		V I	= -2.6 mA *V = V - 2.1 V	2
	OH				OH	OH CC
Output Leakage	I			100	µA V	= 5.5 V I = 5 mA
	OHH				O	F
Current (V OUT > V	CC )			500	µA V	= 20 V V CC = 4.5 V
Logic High Enable	V	2.0			V
Logic Low Enable	V			0.8	V
Logic High Enable	I			20	µA V	= 2.7 V
Current				100	µA V	= 5.5 V
			0.004	250	µA V	= 20 V
Logic Low Enable	I			-0.32	mA V	= 0.4 V
Logic Low Supply	I					I = 0 mA
	CCL		4.5	6.0	mA V	= 5.5 V F
			5.25	7.5	mA V	= 20 V V = Don’t	Care
Logic High Supply	I					I = 5 mA
	CCH		2.7	4.5	mA V	= 5.5 V F
			3.1	6.0	mA V	= 20 V
					CC	V = Don’t	Care
High Impedance	I			-20	µA V	= 0.4 V V = 2 V,
	OZL				O	EN
State Output	Current					I = 5 mA
	I			20	µA V	= 2.4 V V = 2 V,
	OZH				O	EN
				100	µA V	= 5.5 V I = 5 mA
				500	µA V	= 20 V
Logic Low Short	I							2
	OSL	25			mA V O	= V = 5.5 V I = 0 mA CC F
Current		40			mA V	= V = 20 V
Logic High Short	I					I = 5 mA,		2
	OSH	-10			mA V	= 5.5 V F
Current		-25			mA V CC	= 20 V
Input Current	I		0.12		mA V	= 5 V	3
Input Forward	V		1.5	1.7	V T	= 25°C I = 5 mA	4
	F				A	F
Input Diode	∆V		-1.7		mV/°C I =	5 mA

订货信息与供货形式

型号	RoHS	non	RoHS2	Surface	Gull	包装	UL	5000	Vrms/	IEC/EN/DIN
under	CSA	Component	Acceptance	Notice #5, File	CA 88324.
Part	RoHS	non	RoHS	Surface	Gull	Tape	UL	5000	Vrms/	IEC/EN/DIN
Number	Compliant		Compliant Package	Mount	Wing	& Reel	1	Minute	rating	EN 60747-5-2 Quantity
HCPL-2200	-300E	-300		X	X					50 per tube
HCPL-2219	-500E	-500		X	X	X				1000 per reel
the	option column	to	form an order	entry.
packaging	with	IEC/EN/DIN	EN	60747-5-2 Safety	Approval	and	RoHS		compliant.

应用领域 Applications

typical propagation delay of 160 nsec.Isolation of high speed logic systemsPulse transformer replacementIsolated buss driverFunctional DiagramHigh speed line receiverNC 1 8 VCCSelection GuideSmall-Outline WidebodyHCPL-2201HCPL-22021.8 HCPL-2231
