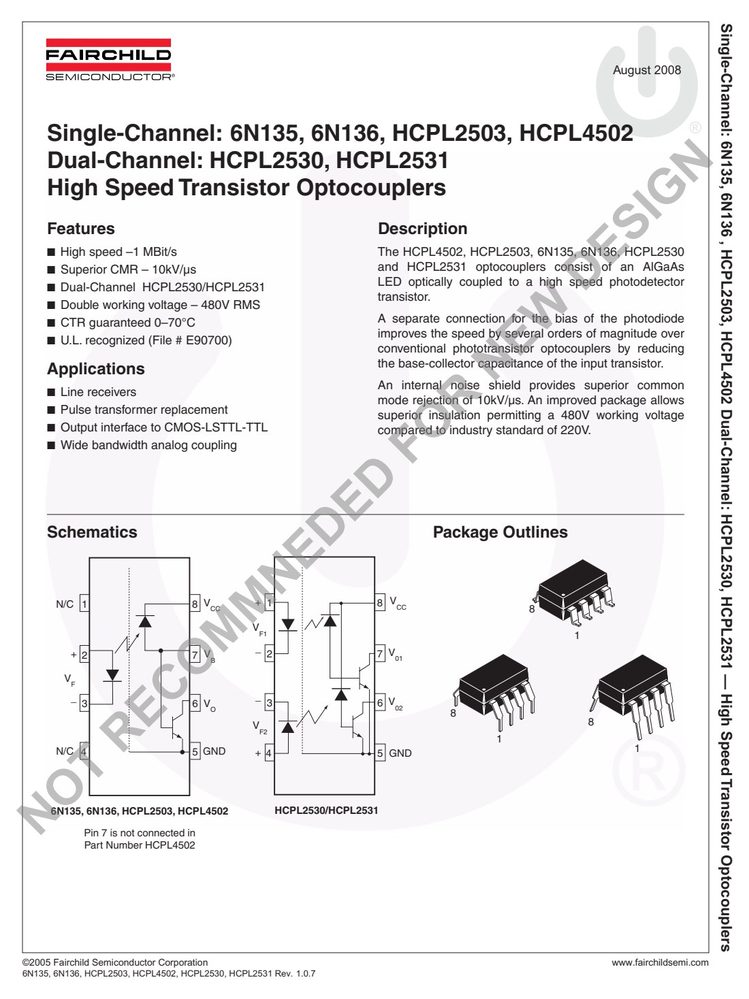

产品应用与封装尺寸
图纸取自原厂规格书，点击可放大查看原始尺寸标注。
关键参数速览
- 电流传输比 CTR
- 1, 2
- 电源电压 VCC
- 30
- 工作温度 TA
- 100
产品特点 Features
- These dual channel optocoup lers contain a pair of light emitting diodes and integrated photo-detec tors with
- 15 kV/µs minimum common mode transient immunity at V = 1500 V (HCPL-4534/0534)
- TTL compatible
- The HCPL-2530/0530 is for use in TTL/CMOS, TTL/LSTTL or wide bandwidth analog applications. Current transfer ratio
- (CTR) for the HCPL-2530/0530 is 7% minimum at I = 16 mA.
- The HCPL-2531/0531 is designed for high speed TTL/TTL applications. A standard 16 mA TTL sink current through the is 19% minimum at I = 16 mA.
- The HCPL-4534/0534 is an HCPL-2531/0531 with increased common mode transient immunity of 15,000 V/µs minimum at V = 1500 V guaranteed.
- Selection Guide
- Widebody
- Minimum CMR 8-pin DIP (300 Mil) Small-Outline SO-8 (400 Mil) Hermetic
- Current Dual Single Dual Single Single Single and dV/dt V Transfer Channel Channel Channel Channel Channel Dual Channel
- (V/µs) (V) Ratio (%) Package Package* Package Package* Package* Packages*
- 1,000 10 7 HCPL-2530 6N135 HCPL-0530 HCPL-0500 HCNW135
- 19 HCPL-2531 6N136 HCPL-0531 HCPL-0501 HCNW136
- HCPL-4502 HCPL-0452 HCNW4502
- 15,000 1500 19 HCPL-4534 HCPL-4503 HCPL-0534 HCPL-0453 HCNW4503
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 符号 | 器件 | 最小 | 最大 | 单位 | 备注 |
|---|---|---|---|---|---|---|
| Storage Temperature | T | -55 | 125 | °C | ||
| Operating Temperature | T | -55 | 100 | °C | ||
| Average Forward Input Current | I | 25 | mA | |||
| Peak Forward Input Current | (each channel) I | 50 | mA | |||
| Peak Transient Input Current | (each channel) I | 1 | A | |||
| Input Power Dissipation (each | channel) P | 45 | mW | |||
| Average Output Current (each | channel) I | 8 | mA | |||
| Peak Output Current | I | 16 | mA | |||
| Supply Voltage (Pin 8-5) | V | -0.5 | 30 | V | ||
| Output Voltage (Pins 7-5, 6-5) | V | -0.5 | 20 | V | ||
| Output Power Dissipation | (each channel) P | 35 | mW | 13 | ||
| Lead Solder Temperature | T | 8 Pin DIP | 260 | °C |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| 参数 | 符号 | 值 | 值2 | 单位 | 条件 |
|---|---|---|---|---|---|
| 8-Pin DIP | |||||
| (300 Mil) | SO-8 | ||||
| Minimum External | L(101) | 7.1 | 4.9 | mm | Measured from input terminals to output terminals, |
| Air Gap (External | shortest distance through air. | ||||
| Minimum External | L(102) | 7.4 | 4.8 | mm | Measured from input terminals to output terminals, |
| Tracking (External | shortest distance path along body. | ||||
| Minimum Internal | 0.08 | 0.08 | mm | Through insulation distance, conductor to conductor, | |
| Plastic Gap | usually the direct distance between the photoemitter | ||||
| (Internal Clearance) | and photodetector inside the optocoupler cavity. | ||||
| Minimum Internal | NA | NA | mm | Measured from input terminals to output | |
| Tracking (Internal | terminals, along internal cavity. | ||||
| Tracking Resistance | CTI | 200 | 200 | Volts | DIN IEC 112/VDE 0303 Part 1 |
| Isolation Group | IIIa | IIIa | Material Group (DIN VDE 0110, 1/89, Table 1) | ||
| Option 300 – surface | mount classification | is Class | A in accordance | with | CECC 00802. |
电气特性 Electrical Characteristics（TA = 25°C）
| 参数 | 符号 | 器件 | 最小 | Typ.* | 最大 | 单位 | 测试条件 | 图号 | 备注 |
|---|---|---|---|---|---|---|---|---|---|
| Over | recommended | temperature | (T = 0°C | to 70°C) | unless | otherwise | specified. See note 9. | ||
| Current | CTR | HCPL-2530/ | 7 | 18 | 50 | % | T = 25°C I = | 16 mA, 1, 2 | 1, 2 |
| Transfer | 0530 | V | = 4.5 V 4 | ||||||
| Ratio | 5 | V | = 0.5 V | ||||||
| HCPL-2531/ | 19 | 24 | 50 | % | T = 25°C | ||||
| Logic Low | V | HCPL-2530/ | 0.1 | 0.5 | V T | = 25°C I = 1.1 mA I = | 16 mA, 1 | 1 | |
| OL | A | O F | |||||||
| Output | 0530 | V | = 4.5 V | ||||||
| Voltage | 0.5 | I = 0.8 mA | |||||||
| HCPL-2531/ | 0.1 | 0.5 | V T | = 25°C I = 3.0 mA | |||||
| HCPL-4534/ | 0.5 | I = 2.4 mA | |||||||
| Logic High | I | 0.003 | 0.5 | µA T | = 25°C V = V = 5.5V, I = | 0 mA 6 | 1 | ||
| OH | A | CC O F | |||||||
| Output | I = 0 mA | ||||||||
| 50 | T A | = 25°C V = V = 15V, CC O I = 0 mA | |||||||
| Logic Low | I | 100 | 400 | µA I = | 16 mA, V = Open, | ||||
| CCL | F | O | |||||||
| Supply | V | = 15 V | |||||||
| Logic High | I | 0.05 | 4 | µA I = | 0 mA, V = Open, | ||||
| CCH | F | O | |||||||
| Supply | V | = 15 V | |||||||
| Input | V | 1.5 | 1.7 | V T | = 25°C | 3 | 1 | ||
| Forward | I = 16 mA | ||||||||
| Input | BV | 5 | V I | =10 µA | 1 | ||||
| Temperature | ΔV | -1.6 | mV/ I = | 16 mA | |||||
| Input | C | 60 | pF f = | 1 MHz, V = 0 V | 1 |

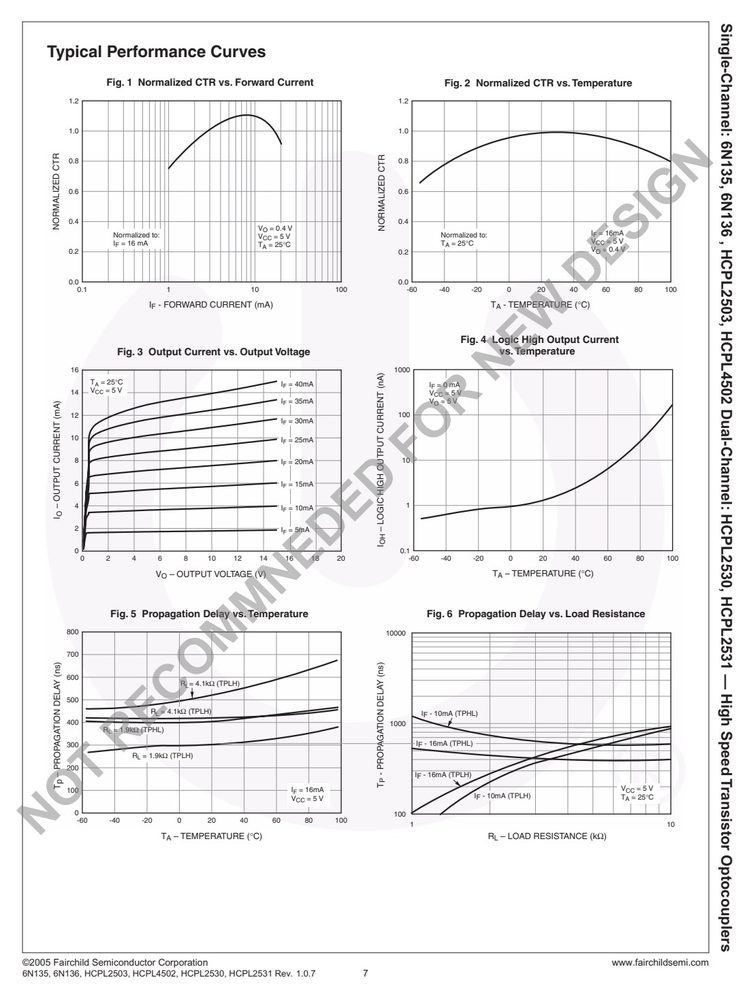

特性曲线（Typical Performance Curves）
相关 / 可替代型号
以上型号来自规格书与型号命名比对，参数需以各自规格书为准；下单前请与销售确认封装与脚位。
订货信息与供货形式
| 型号 | Compliant | Compliant2 | 封装 | Mount | Wing | & | 包装 | 额定值 | EN | 60747-5-5 | 数量 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Part | RoHS | Non RoHS | Surface | Gull | Tape | 1 Minute | IEC/EN/DIN | ||||
| HCPL-2531 | -320E | #320 | X | X | X | 50 per tube | |||||
| HCPL-0530 | -000E | No option | 100 per tube |
