Name: AVAGO HCPL-2602-000E
Brand: AVAGO
Availability: InStock

产品实拍图

本型号暂无已核对的专属实拍图。为避免图文不符，本页不放同系列近似图；如需实物照片，请联系销售获取本批次实拍。

索取实拍图在产品目录查看同类型号

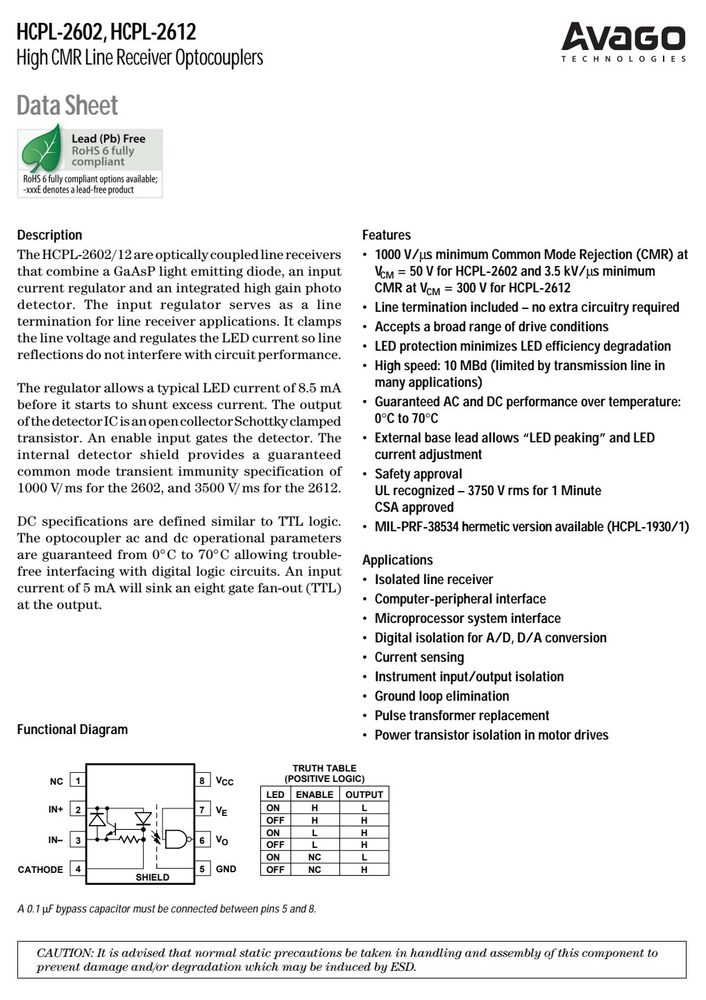

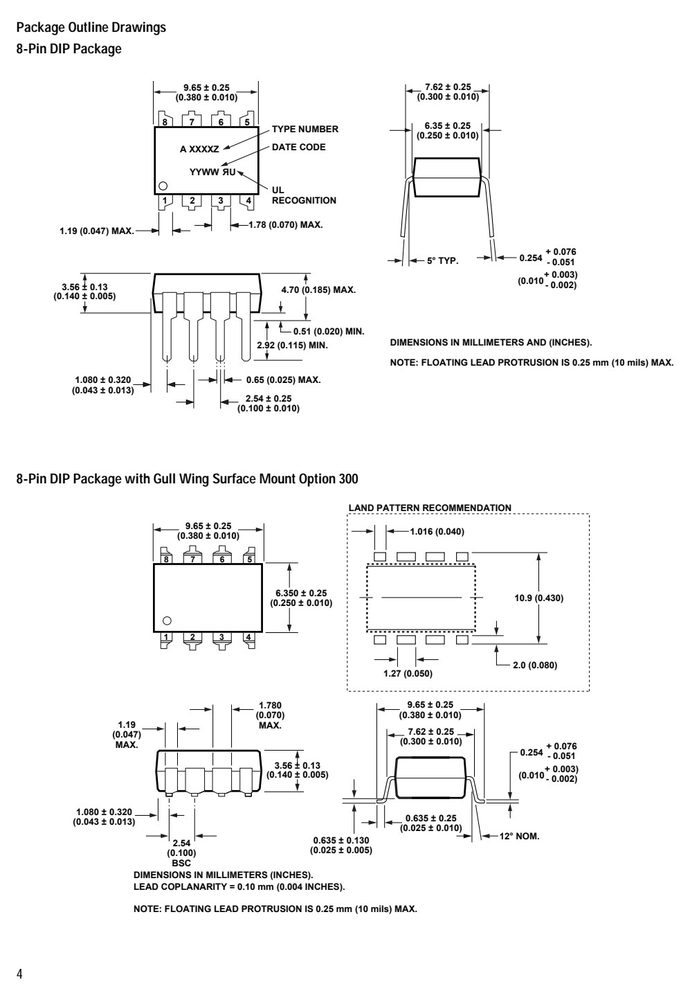

产品应用与封装尺寸

图纸取自原厂规格书，点击可放大查看原始尺寸标注。

引脚定义与内部结构

引脚	符号	名称
2	II
3	YES
4	RECOGNITION
5	GND
6	V
7	V
8	VCC

数据来源：原厂规格书引脚图

关键参数速览

电源电压 VCC: 7
工作温度 TA: 85

产品特点 Features

The HCPL-2602/12 are optically coupled line receivers that combine a GaAsP light emitting diode, an input current regulator and an integrated high gain photo detector. The input regulator serves as a line
1000 V/µs minimum Common Mode Rejection (CMR) at
V = 50 V for HCPL-2602 and 3.5 kV/µs minimum
CMR at V = 300 V for HCPL-2612
Line termination included – no extra circuitry required
Selection Guide
Widebody
Minimum CMR 8-Pin DIP (300 Mil) Small-Outline SO-8(400 Mil) Hermetic Hermetic
Input
On- Single Dual Single Dual Single Single and dV/dt V Current Output Channel Channel Channel Channel Channel Dual Channel
(V/µs) (V) (mA) Enable Package Package Package Package Package Packages
NA NA 5 YES 6N137 HCPL-0600 HCNW137
NO HCPL-2630 HCPL-0630
5,000 50 YES HCPL-2601 HCPL-0601 HCNW2601
NO HCPL-2631 HCPL-0631
10,000 1,000 YES HCPL-2611 HCPL-0611 HCNW2611

绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）

超过下表数值可能造成器件永久损坏，设计时请留余量。

参数	符号	最小	最大	单位
Storage Temperature	T	-55	125	°C
Operating Temperature	T	-40	85	°C
Forward Input Current	I		60	mA
Input Current, Pin 4		-10	10	mA
Supply Voltage (1 Minute Maximum)	V		7	V
Enable Input Voltage (Not to Exceed	V by V		V + 0.5	V
Output Collector Current	I		50	mA
Output Collector Voltage (Selection	for Higher V		7	V
Output Voltages up to 20 V is	Available.)
Output Collector Power Dissipation	P		40	mW
Lead Solder Temperature	T	260°C for	10 sec., 1.6 mm	below

数据来源：原厂规格书

安全与绝缘额定值（DIN EN/IEC 60747−5−5）

参数	符号	值	单位	条件
Min. External Air Gap	L(I01)	7.1	mm	Measured from input terminals to output terminals,
(External Clearance)				shortest distance through air.
Min. External Tracking	L(I02)	7.4	mm	Measured from input terminals to output terminals,
Path (External Creepage)				shortest distance path along body.
Min. Internal Plastic		0.08	mm	Through insulation distance, conductor to conductor,
Gap (Internal Clearance)				usually the direct distance between the photoemitter
Tracking Resistance	CTI	200	V	DIN IEC 112/VDE 0303 Part 1
Isolation Group		IIIa		Material Group (DIN VDE 0110, 1/89, Table 1)
Option 300 - surface	mount classification	is Class A	in accordance	with CECC 00802.

电气特性 Electrical Characteristics（TA = 25°C）

参数	符号	最小	Typ.*	最大	单位	测试条件	图号	备注
Over recommended	temperature (T	= 0°C to	+70°C)	unless otherwise	specified.	See note 1.
High Level Output	I OH		5.5	100	µA	V = 5.5 V, V = 5.5 V, CC O	1
Current						I = 250 µA, V = 2.0 V
Low Level Output	V OL		0.35	0.6	V	V = 5.5 V, I = 5 mA, CC I	2, 4,
Voltage						V = 2.0 V,	5, 14
						I (Sinking) = 13 mA
High Level Supply	I CCH		7.5	10	mA	V = 5.5 V, I = 0 mA, CC I
Current						V = 0.5 V
Low Level Supply	I CCL		10	13	mA	V = 5.5 V, I = 60 mA, CC I
Current						V = 0.5 V
High Level Enable	I EH		-0.7	-1.6	mA	V = 5.5 V, V = 2.0 V CC E
Low Level Enable	I EL		-0.9	-1.6	mA	V = 5.5 V, V = 0.5 V CC E
High Level Enable	V	2.0			V			10
Low Level Enable	V			0.8	V
Input Voltage	V				V		3
Input Capacitance	C		90		pF	V = 0 V, f = 1 MHz

订货信息与供货形式

型号	Compliant	Compliant2	封装	Mount	Wing	&	包装	数量
Part	RoHS	non RoHS		Surface	Gull	Tape
Number	Compliant	Compliant	Package	Mount	Wing	&	Reel	Quantity
HCPL-2602	-000E	no option	300 mil DIP-8					50 per tube
HCPL-2612	-300E	#300		X	X			50 per tube
option	column to form	an order	entry.

应用领域 Applications

0°C to 70°CFunctional DiagramTRUTHNC 1 8 VCC (POSITIVELED ENABLEIN+ 2 7 V ON HOFF HIN– 3 6 V O OFF LON NCCATHODE 4 5 GND OFF NCSHIELDIsolated line receiver

资料下载

📄 HCPL-2602-000E 规格书 PDF

规格书为原厂公开资料，点击在新窗口打开下载。

获取报价 / 申请样品

常备现货、免费送样、支持小批量试产。报出用量与封装要求，当天给报价与交期。

💬 咨询 / 询价查看完整产品目录

HCPL-2602-000E 8-Pin DIP
