Name: AVAGO HCPL-2630-000E
Brand: AVAGO
Availability: InStock

产品实拍图

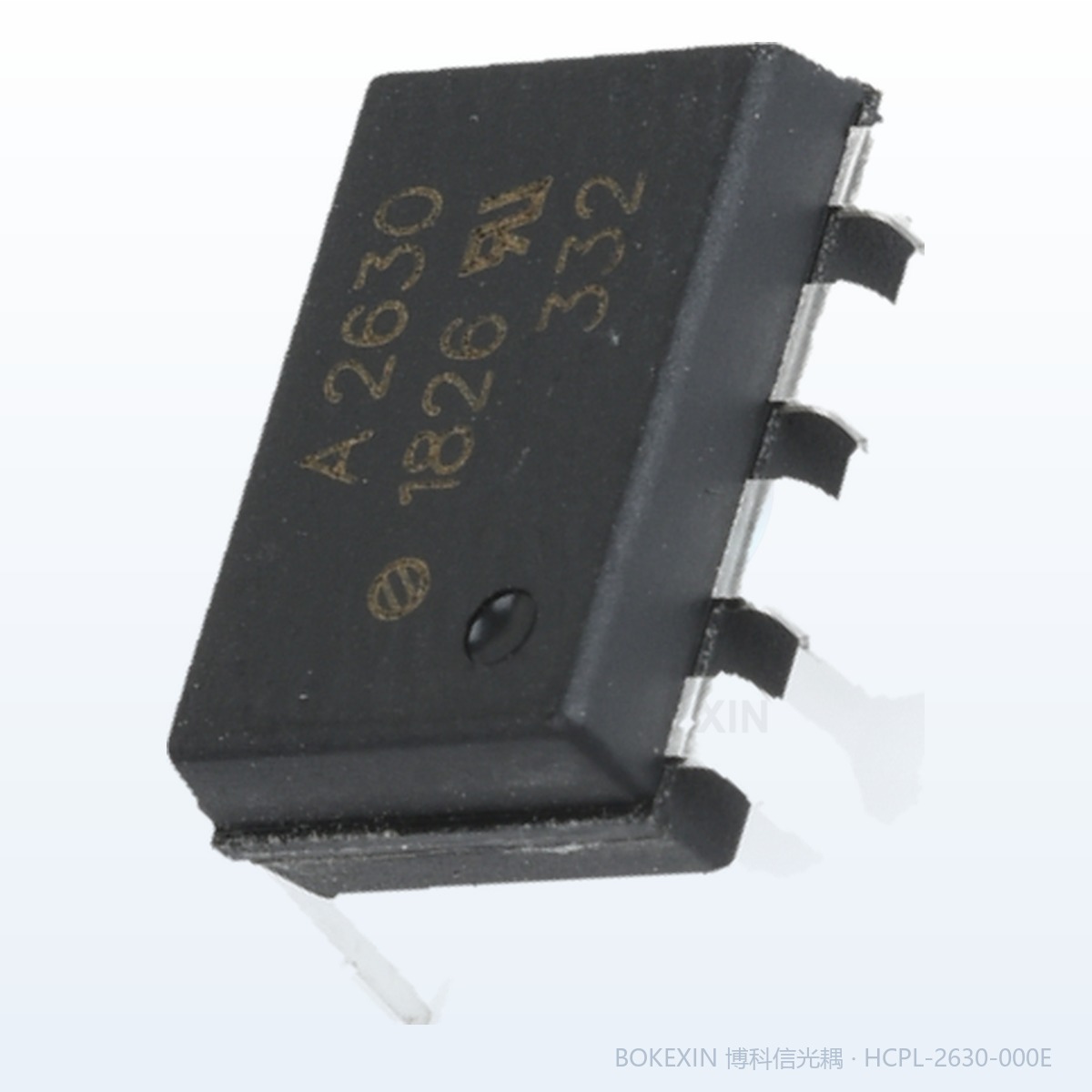

本页为博科信现货实拍（器件丝印见规格书）。图片已加防盗水印，需要最新批次照片或未加水印原图请联系销售；点击图片可放大。

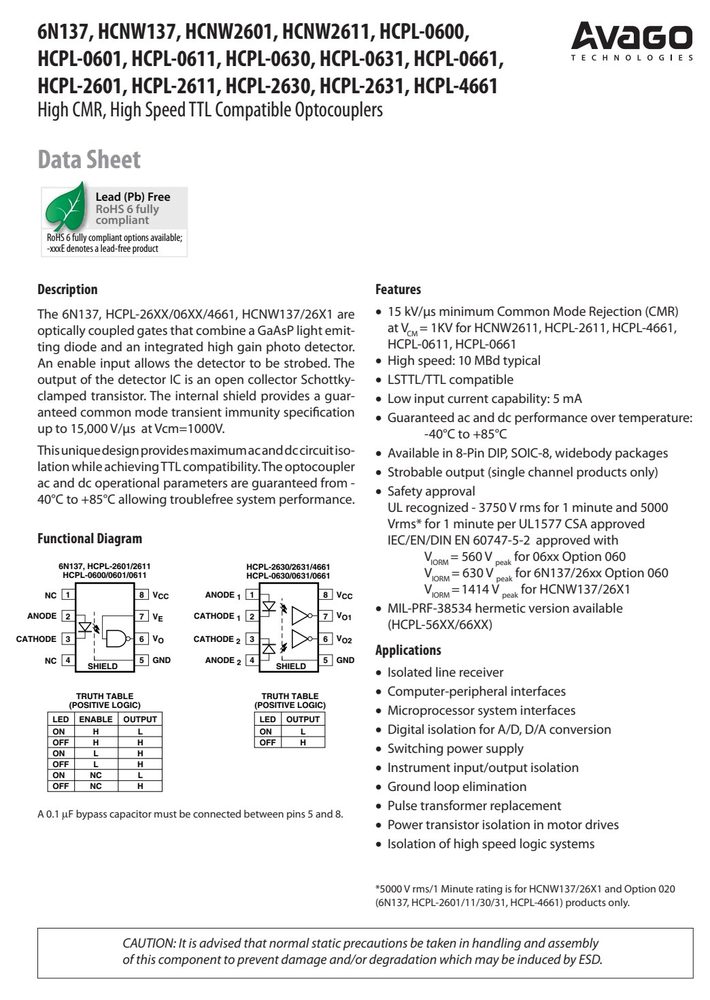

产品应用与封装尺寸

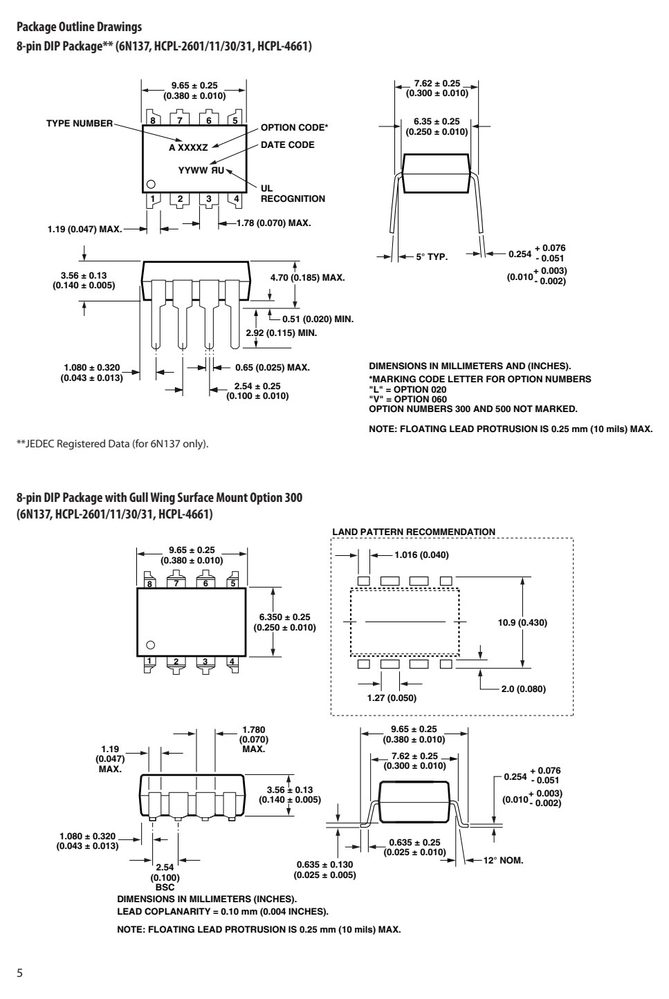

图纸取自原厂规格书，点击可放大查看原始尺寸标注。

引脚定义与内部结构

引脚	符号	名称
3	YES
4	RECOGNITION
5	GND
6	VO
7	VE
8	VCC

数据来源：原厂规格书引脚图

关键参数速览

电源电压 VCC: 7
工作温度 TA: 85

产品特点 Features

The 6N137, HCPL-26XX/06XX/4661, HCNW137/26X1 are optically coupled gates that combine a GaAsP light emit- ting diode and an integrated high gain photo detector.
This unique design provides maximum ac and dc circuit iso- lation while achieving TTL compatibility. The optocoupler ac and dc operational param e ters are guaranteed from -
 15 kV/μs minimum Common Mode Rejection (CMR) at V = 1KV for HCNW2611, HCPL-2611, HCPL-4661,
HCPL-0611, HCPL-0661
 High speed: 10 MBd typical
 LSTTL/TTL compatible
 Low input current capability: 5 mA
 Guaranteed ac and dc performance over temper ature:
-40°C to +85°C
 Available in 8-Pin DIP, SOIC-8, widebody packages
 Strobable output (single channel products only)
Selection Guide
Widebody
Minimum CMR 8-Pin DIP (300 Mil) Small-Outline SO-8 (400 Mil) Hermetic
Input Single
On- Single Dual Single Dual Single and Dual dV/dt V Current Output Channel Channel Channel Channel Channel Channel

绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）

超过下表数值可能造成器件永久损坏，设计时请留余量。

参数	符号	Package**	最小	最大	单位	备注
Storage Temperature	T		-55	125	°C
Operating Temperature†	T		-40	85	°C
Average Forward Input Current	I	Single 8-Pin DIP		20	mA	2
		Dual 8-Pin DIP Widebody		15 3		1, 3
Input Power Dissipation	P	Widebody		40	mW
Supply Voltage	V			7	V
Enable Input Voltage (Not to	V	Single 8-Pin DIP		V + 0.5	V
Enable Input Current	I			5	mA
Output Collector Current	I			50	mA	1
Output Collector Voltage	V			7	V	1
Output Collector Power	P	Single 8-Pin DIP		85	mW
		Dual 8-Pin DIP		60		1, 4
Lead Solder Temperature	T	8-Pin DIP		260°C for 10 sec.,
(Through Hole Parts Only)			1.6 mm below	seating plane
		Widebody		260°C for 10 sec.,
			up	to seating	plane

数据来源：原厂规格书

安全与绝缘额定值（DIN EN/IEC 60747−5−5）

参数	符号	值	值2	值3	单位	条件
		8-pin DIP		Widebody
		(300 Mil)	SO-8	(400 Mil)
Minimum External	L(101)	7.1	4.9	9.6	mm	Measured from input terminals
Air Gap (External						to output terminals, shortest
Clearance)						distance through air.
Minimum External	L(102)	7.4	4.8	10.0	mm	Measured from input terminals
Tracking (External						to output terminals, shortest
Creepage)						distance path along body.
Minimum Internal		0.08	0.08	1.0	mm	Through insulation distance,
Plastic Gap						conductor to conductor, usually
(Internal Clearance)						the direct distance between the
Minimum Internal		NA	NA	4.0	mm	Measured from input terminals
Tracking (Internal						to output terminals, along
Creepage)						internal cavity.
Tracking Resistance	CTI	200	200	200	Volts	DIN IEC 112/VDE 0303 Part 1
Isolation Group		IIIa	IIIa	IIIa		Material Group
						(DIN VDE 0110, 1/89, Table 1)
Option 300 - surface	mount classifi	cation is Class	A in accordance	with	CECC 00802.

订货信息与供货形式

型号	Compliant	Compliant2	封装	Mount	Wing	包装	额定值	60747-5-2	数量
HCPL-xxxx	is UL Recognized	with 3750	Vrms for	1 minute	per	UL1577.
HCNWxxxx	is UL Rcognized	with 5000	Vrms for	1 minute	per UL1577.
Part	RoHS	Non RoHS		Surface	Gull	Tape &	1 Minute	IEC/EN/DIN
Part	RoHS	Non RoHS		Surface	Gull	Tape &	1 Minute	IEC/EN/DIN
HCPL-0630	-000E	No option		X					100 per tube
HCNW2601	-300E	#300		X	X		X	X	42 per tube
ing	with IEC/EN/DIN	EN	60747-5-2 Safety	Approval	in RoHS	compliant.

应用领域 Applications

NC 4 5 GND ANODE 2 4 5 GNDSHIELD SHIELD Isolated line receiver Computer-peripheral interfacesSelection GuideWidebodyInput Single1000 10 5 YES 6N1375,000 1,000 5 YES HCPL-0600 HCNW137NO HCPL-2630 HCPL-0630NO HCPL-2631 HCPL-0631NO HCPL-4661 HCPL-0661

资料下载

📄 HCPL-2630-000E 规格书 PDF

规格书为原厂公开资料，点击在新窗口打开下载。

获取报价 / 申请样品

常备现货、免费送样、支持小批量试产。报出用量与封装要求，当天给报价与交期。

💬 咨询 / 询价查看完整产品目录

HCPL-2630-000E 8-Pin DIP
