Name: AVAGO HCPL-314J-500E
Brand: AVAGO
Availability: InStock

产品实拍图

本型号暂无已核对的专属实拍图。为避免图文不符，本页不放同系列近似图；如需实物照片，请联系销售获取本批次实拍。

索取实拍图在产品目录查看同类型号

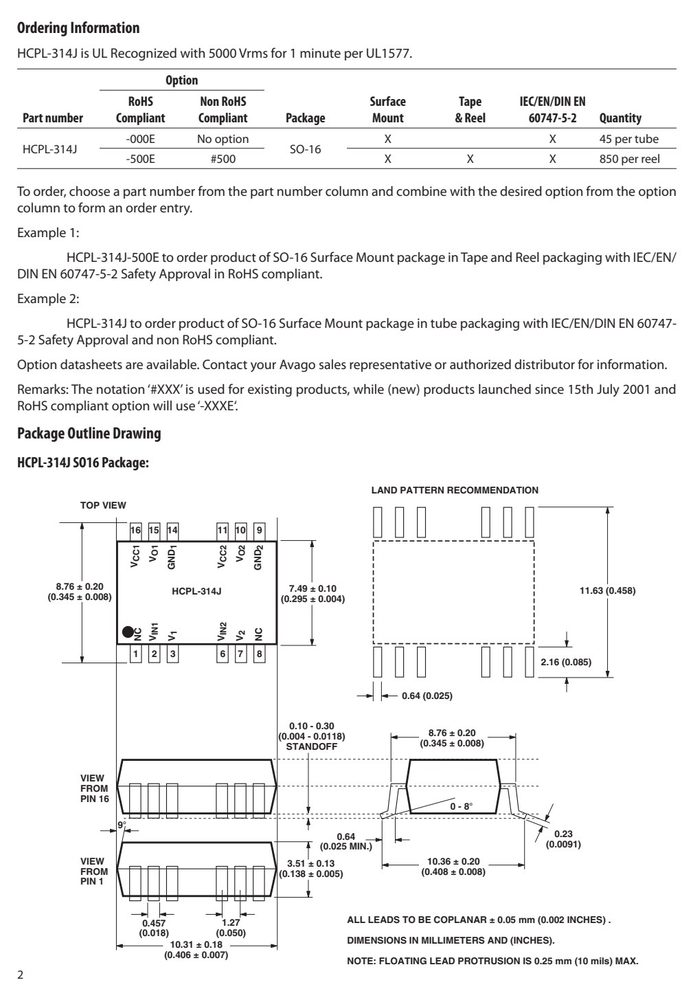

产品应用与封装尺寸

图纸取自原厂规格书，点击可放大查看原始尺寸标注。

关键参数速览

正向电压 VF: 16
电源电压 VCC: 35
工作温度 TA: 100

产品特点 Features

The HCPL-314J family of devices consists of an Al-
GaAs LED optically coupled to an integrated circuit with a power output stage. These optocouplers are ideally suited for driving power IGBTs and MOSFETs
kΩ 0.4 A minimum peak output current
kΩ High speed response:
0.7 μs max. propagation delay over temp. range
kΩ Ultra high CMR: min. 25 kV/μs at V = 1.5 kV
Recommended Pb-Free IR Profile
Regulatory Information
The HCPL-314J has been approved by the following organizations:
IEC/EN/DIN EN 60747-5-2 UL
Approved under: Approval under UL 1577, component recognition pro-
IEC 60747-5-5:1997 + A1:2002 gram up to V = 5000 Vrms. File E55361.
EN 60747-5-2:2001 + A1:2002
DIN EN 60747-5-2 (VDE 0884
Approved under CSA Component Acceptance Notice
Teil 2):2003-01.

绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）

超过下表数值可能造成器件永久损坏，设计时请留余量。

参数	符号	最小	最大	单位	备注
Storage Temperature	T	-55	125	°C
Operating Temperature	T	-40	100	°C
Average Input Current	I		25	mA	1
Peak Transient Input	Current I		1.0	A
“High” Peak Output	Current I		0.6	A	2
“Low” Peak Output Current	I		0.6	A	2
Supply Voltage	V -V	-0.5	35	V
Output Voltage	V	-0.5	V	V
Output Power Dissipation	P		260	mW	3
Input Power Dissipation	P		105	mW	4
Lead Solder Temperature	260°C for 10 sec.,	1.6 mm below	seating plane

数据来源：原厂规格书

安全与绝缘额定值（DIN EN/IEC 60747−5−5）

说明	符号	Characteristic	单位
Input to Output Test Voltage, Method	b* V	2306	V
V x 1.875=V , 100% Production	Test with
t =1 sec, Partial discharge < 5 pC
Input to Output Test Voltage, Method	a* V	1968	V
V x 1.6=V , Type and Sample	Test,
t =10 sec, Partial discharge < 5 pC
Highest Allowable Overvoltage	V	8000	V
(Transient Overvoltage t = 60 sec)

电气特性 Electrical Characteristics（TA = 25°C）

参数	符号	最小	典型	最大	单位	测试条件	图号	备注
Over recommended	operating conditions	unless	otherwise	specified.
High Level Output	Current I	0.2			A	Vo = V - 4	2	5
			0.4	0.5		Vo = V -10	3	2
Low Level Output	Current I	0.2	0.4		A	Vo = V +2.5	5	5
			0.4	0.5		Vo = V +10	6	2
High Level Output	Voltage V	V -4	V -1.8		V	Io = -100 mA	1	6, 7
Low Level Output	Voltage V		0.4	1	V	Io = 100 mA	4
High Level Supply	Current I		0.7	3	mA	Io = 0 mA	7, 8	15
Low Level Supply	Current I		1.2	3	mA	Io = 0 mA
Threshold Input Current	I			5	mA	Io = 0 mA, Vo>5 V	9, 15
Threshold Input Voltage	V	0.8			V
Input Forward Voltage	V	1.2	1.5	1.8	V	I = 10 mA	16
Temperature Coefficient	µV /µT		-1.2		mV/°C
Input Capacitance	C		70		pF	f = 1 MHz, V = 0 V
Input-Output Momentary	V	5000			Vrms	T =25°C,		8,9

订货信息与供货形式

型号	型号2	Compliant	Compliant2	封装	Mount	&	包装	60747-5-2	数量
HCPL-314J	is UL	Recognized	with 5000 Vrms	for 1 minute	per UL1577.
Part	number	Compliant	Compliant	Package	Mount	&	Reel	60747-5-2	Quantity
DIN	EN 60747-5-2	Safety	Approval in RoHS	compliant.
RoHS	compliant	option will	use ‘-XXXE‘.

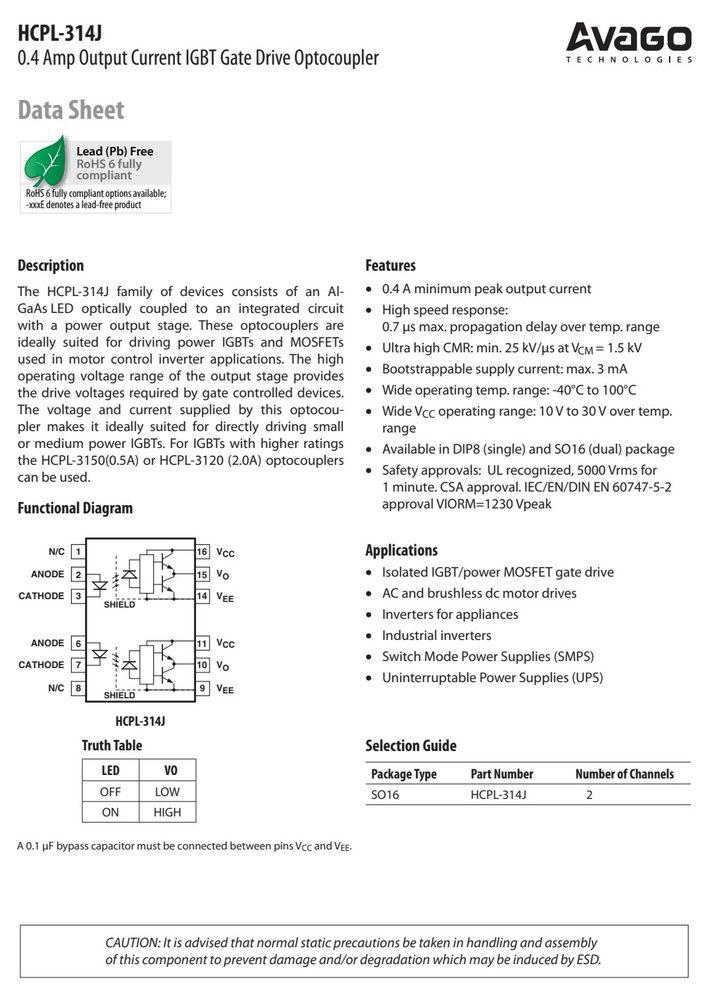

应用领域 Applications

rangeN/C 1 16 VCCANODE 2 15 VOCATHODE 3 14 VEESHIELDANODE 6 11 VCCCATHODE 7 10 VON/C 8 9 VEEHCPL-314JkΩ AC and brushless dc motor driveskΩ Inverters for applianceskΩ Industrial inverters

资料下载

📄 HCPL-314J-500E 规格书 PDF

规格书为原厂公开资料，点击在新窗口打开下载。
