Name: AVAGO HCPL-3760-500E
Brand: AVAGO
Availability: InStock

产品实拍图

本型号暂无已核对的专属实拍图。为避免图文不符，本页不放同系列近似图；如需实物照片，请联系销售获取本批次实拍。

索取实拍图在产品目录查看同类型号

产品应用与封装尺寸

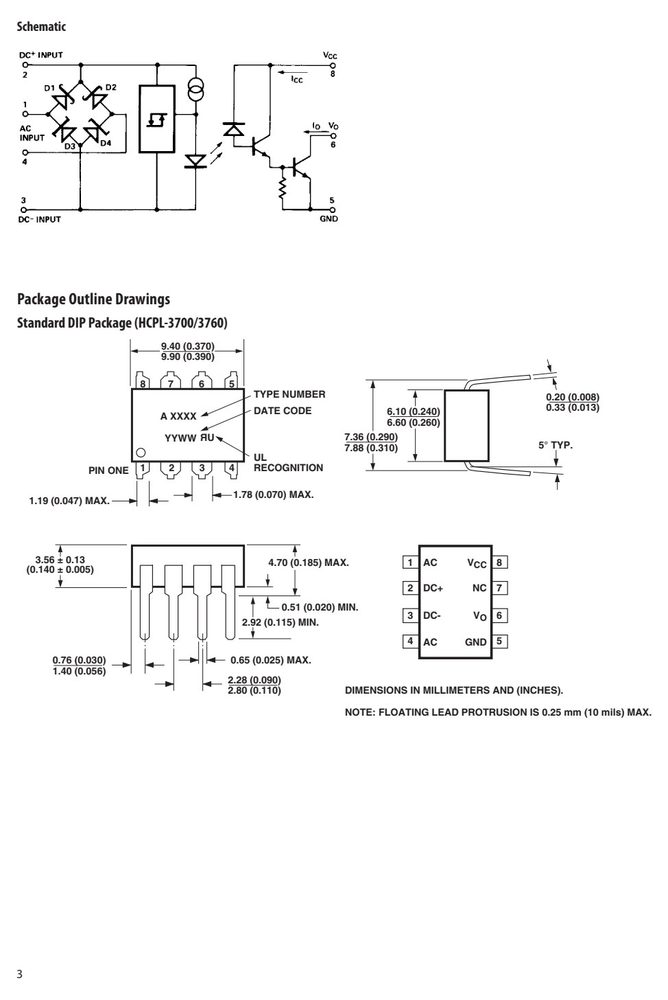

图纸取自原厂规格书，点击可放大查看原始尺寸标注。

引脚定义与内部结构

引脚	符号	名称
4	RECOGNITION
5	GND
6	VO
7	NC
8	VCC

数据来源：原厂规格书引脚图

关键参数速览

电源电压 VCC: 20
工作温度 TA: 85

产品特点 Features

The input buffer incorporates several features: hysteresis for extra noise immunity and switching immunity, a di-
Standard (HCPL-0370/3700) and low input current
(HCPL-3760) versions
AC or DC input
Programmable sense voltage
Hysteresis
Logic compatible output
Thresholds guaranteed over temperature
Thresholds independent of LED optical parameters
Recognized under UL 1577 and CSA approved for power dissipation.
V (V ) - V (V )
TH- + TH+ -
In applications where dV /dt may be extremely large R = (2)
(such as static discharge), a series resis tor, R , should I (V ) - I (V )
CC TH+ TH- TH- TH+ be con nected in series with V and Pin 8 to pro tect the detector IC from destruc tively high surge currents. See V (V ) - V (V )
Note 13 for deter mination of R . In addi tion, it is recom- R = (3)

绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）

超过下表数值可能造成器件永久损坏，设计时请留余量。

参数	符号	最小	最大	单位	备注
Storage Temperature	T	-55	125	°C
Operating Temperature	T	-40	85	°C
Lead Soldering Cycle	Temperature		260	°C	1
	Time		10	s
Input Current	Average		50		2
	Surge I Transient		140 500	mA	2, 3
Input Voltage (Pins 2-3)	V	-0.5		V
Input Power Dissipation	HCPL-3700/3760 P HCPL-0370		230 172	mW	4
Total Package Power Dissipation	HCPL-3700/3760 P HCPL-0370		305 275	mW	5
Output Power Dissipation	HCPL-3700/3760 P HCPL-0370		210 103	mW	6
Output Current	Average I		30	mA	7
Supply Voltage (Pins 8-5)	V	-0.5	20	V
Output Voltage (Pins 6-5)	V	-0.5	20	V

数据来源：原厂规格书

安全与绝缘额定值（DIN EN/IEC 60747−5−5）

参数	符号	值	值2	单位	条件
		8-Pin DIP
		(300 mil)	SO-8
Min.. External Air	Gap L(IO1)	7.1	4.9	mm	Measured from input terminals to output
(External Clearance)					terminals, hortest distance through air
Min.. External Tracking	L(IO2)	7.4	4.8	mm	Measured from input terminals to output
Path (External	Creepage)				terminals, shortest distance path along body
Gap (Internal	Clearance)				conductor, usually the direct distance between
Tracking Resistance	CTI	200	200	V	DIN IEC 112/VDE 0303 PART 1
Isolation Group			IIIa		Material Group (DIN VDE 0110, 1/89, Table 1)
Input to Output Test	Voltage, Method	b		V	1063 1181 V peak
V x 1.875 = V ,	100% Production Test	with tm =	1 sec
Input to Output Test	Voltage, Method	a		V	907 1008 V peak
V x 1.6 = V , Type	and sample test,	tm = 10 sec,
Highest Allowable	Overvoltage			V	6000 6000 V peak

电气特性 Electrical Characteristics（TA = 25°C）

参数	符号	器件	最小	Typ.[9]	最大	单位	条件	图号	备注
Over Recommended		Temperature T =	0°C to 70°C,	Unless	Otherwise	Specified.
Input	I	HCPL-0370/3700	1.96	2.5	3.11	mA V =	V ; V = 4.5 V;	2, 3	14
	TH+					IN	TH+ CC
Threshold						V =	0.4 V; I ≥ 4.2 mA
		HCPL-3760	0.87	1.2	1.56	O	O
	I	HCPL-0370/3700	1.00	1.3	1.62	V =	V ; V = 4.5 V;
	TH-					IN	TH- CC
						V =	2.4 V; I ≤ 100 µA
		HCPL-3760	0.43	0.6	0.80	O	OH
Input	DC V		3.35	3.7	4.05	V V =	V - V ; Pins 1 & 4	Open
	TH+					IN	2 3
Threshold	(Pins					V =	4.5 V; V = 0.4 V;
Voltage	2, 3)					I ≥	4.2 mA
	V		2.01	2.6	2.86	V V =	V - V ; Pins 1 & 4	Open
	TH-					IN	2 3
						V = I ≤	4.5 V; V = 2.4 V; 100 µA
	AC V		4.23	4.9	5.50	V V =	\|V - V \|;		14, 15
	TH+					IN	1 4
	(Pins					Pins	2 & 3 Open
	1, 4)					V = I ≥	4.5 V; V = 0.4 V; 4.2 mA
	V		2.87	3.7	4.20	V V =	\|V - V \|;
	TH-					IN	1 4
						Pins	2 & 3 Open
						V = I ≤	4.5 V; V = 2.4 V; 100 µA
Hysteresis	I	HCPL-0370/3700		1.2		mA I =	I – I	2
	HYS					HYS	TH+ TH-
	V			1.2		V V	= V – V
	HYS					HYS	TH+ TH-
Input Clamp	V		5.4	6.0	6.6	V V	= V - V ;V = GND;	1
	IHC1					IHC1	2 3 3
Voltage						I =	10 mA; Pins 1 & 4
							Connected to Pin 3
	V		6.1	6.7	7.3	V V	= \|V - V \|;
	IHC2					IHC2 \|I \| =	1 4 10 mA;
						Pins	2 & 3 Open
	V			12.0	13.4	V V	= V - V ; V = GND;
	IHC3					IHC3	2 3 3
						I =	15 mA; Pins 1 & 4	Open
	V			-0.76		V V =	V - V ; V = GND;
	ILC					ILC I =	2 3 3 -10 mA
Input Current	I	HCPL-0370/3700	3.0	3.7	4.4	mA V =	V – V = 5.0 V	5
	IN					IN	2 3
						Pins	1 & 4 Open
		HCPL-3760	1.5	1.8	2.2
Bridge Diode	V D1,2	HCPL-0370/3700		0.59		V I = IN	3 mA
		HCPL-3760		0.51		I =	1.5 mA
	V D3,4	HCPL-0370/3700		0.74		I = IN	3 mA
		HCPL-3760		0.71		I =	1.5 mA
Logic Low	V			0.1	0.4	V V =	4.5 V; I = 4.2 mA	5	14
	OL					CC	OL
Logic High	I				100	µA V =	V = 18 V		14
	OH					OH	CC
Logic Low	I	HCPL-0370/3700		1.2	4	mA V –	V = 5.0 V; V = Open;	6
	CCL					2	3 O
		HCPL-3760		0.7	3	V =	5.0 V
Logic High	I			0.002	4	µA V =	18 V; V = Open	4	14
	CCH					CC	O
Input	C			50		pF f = 1	MHz; V = 0 V,
Capacitance						Pins	2 & 3, Pins 1 & 4 Open

订货信息与供货形式

型号	Compliant	Compliant2	封装	Mount	Wing	&	包装	Minute	EN	60747-5-5	数量
Part	RoHS	Non-RoHS		Surface	Gull		Tape	Vrms/1		IEC/EN/DIN
number	Compliant	Compliant	Package	Mount	Wing	&	Reel	Minute	EN	60747-5-5	Quantity

应用领域 Applications

Functional DiagramAC 1 8 VCCDC+ 2 7 NCDC- 3 6 VOAC 4 5 GNDLimit switch sensingLow voltage detectorAC mains and DC link voltage detectionRelay contact monitorRelay coil voltage monitorCurrent sensingMicroprocessor interfacing

资料下载

📄 HCPL-3760-500E 规格书 PDF

规格书为原厂公开资料，点击在新窗口打开下载。

获取报价 / 申请样品

常备现货、免费送样、支持小批量试产。报出用量与封装要求，当天给报价与交期。

💬 咨询 / 询价查看完整产品目录

HCPL-3760-500E 二极管、三极管等分立器件
