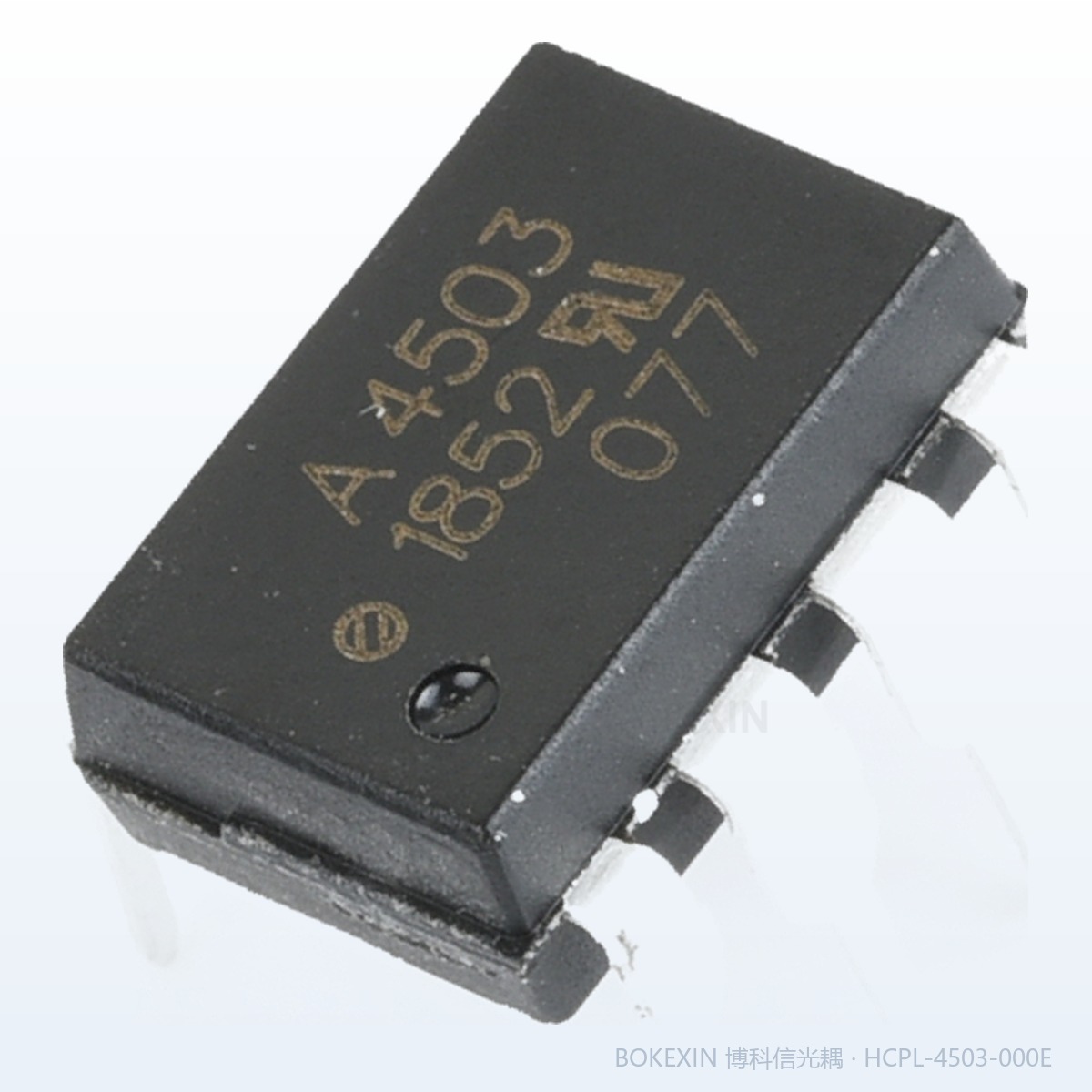

产品实拍图
本页为博科信现货实拍（器件丝印 见规格书）。图片已加防盗水印，需要最新批次照片或未加水印原图请联系销售；点击图片可放大。

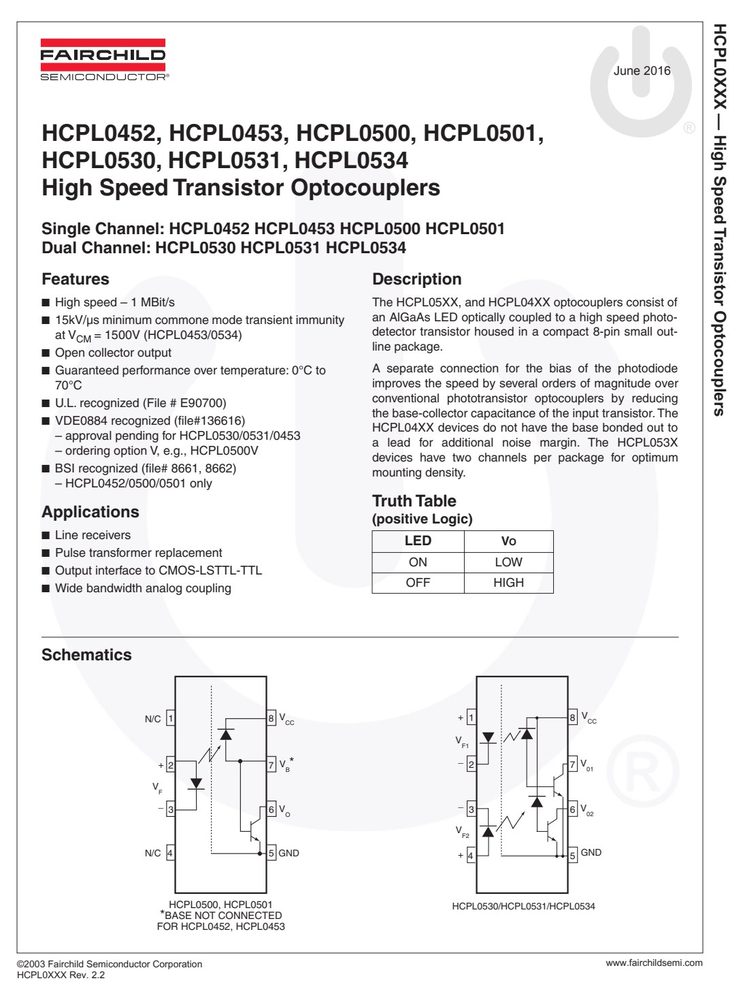

产品应用与封装尺寸
图纸取自原厂规格书，点击可放大查看原始尺寸标注。
引脚定义与内部结构
| 引脚 | 符号 | 名称 |
|---|---|---|
| 5 | VEE | |
| 6 | VO | |
| 7 | VO | |
| 8 | VCC |
数据来源：原厂规格书引脚图
关键参数速览
- 正向电压 VF
- 16
- 隔离电压 VISO
- 1 second
- 电源电压 VCC
- 35
- 工作温度 TA
- 100
产品特点 Features
- The HCPL-3120 contains a GaAsP LED while the HCPL-J312 and the HCNW3120 contain an AlGaAs LED. The LED is optically coupled to an integrated circuit with a power output stage.
- These optocouplers are ideally suited for driving power IGBTs
- 2.5 A maximum peak output current
- 2.0 A minimum peak output current
- 25 kV/μs minimum Common Mode Rejection (CMR) at V CM
- = 1500 V
- Data Sheet
- ILED1
- (Discussion applies to HCPL-3120, HCPL-J312, and HCNW3120)
- The HCPL-3120 contains an under voltage lockout (UVLO)
- VOUT1
- Q1 OFF conditions which cause the HCPL-3120 supply voltage
- (equivalent to the fully-charged IGBT gate voltage) to drop
- Q2 ON below a level necessary to keep the IGBT in a low resistance
- Q2 OFF
- VOUT2 state. When the HCPL-3120 output is in the high state and the supply voltage drops below the HCPL-3120 V threshold
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 符号 | 最小 | 最大 | 单位 | 备注 |
|---|---|---|---|---|---|
| Storage Temperature | T | -55 | 125 | °C | |
| Operating Temperature | T | -40 | 100 | °C | |
| Average Input Current | I | 25 | mA | a | |
| Peak Transient Input Current (<1 μs pulse | I HCPL-J312 | 1.0 5 | A | ||
| “High” Peak Output Current | I | 2.5 | A | b | |
| “Low” Peak Output Current | I | 2.5 | A | b | |
| Supply Voltage | (V – V ) | 0 | 35 | Volts | |
| Input Current (Rise/Fall Time) | t /t | 500 | ns | ||
| Output Voltage | V | 0 | V | Volts | |
| Output Power Dissipation | P | 250 | mW | c | |
| Total Power Dissipation | P | 295 | mW | d | |
| Lead Solder Temperature | HCPL-3120 | 260°C for 10 | sec., 1.6 mm below | seating plane | |
| HCNW3120 | 260 °C for 10 | sec., up to seating | plane |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| 符号 | 单位 | 条件 |
|---|---|---|
| HCPL-3120 HCPL-J312 | HCNW3120 | |
| Minimum External Air Gap L(101) 7.1 7.4 | 9.6 mm Measured | from input terminals to output |
| (Clearance) | terminals, | shortest distance through air. |
| Minimum External Tracking L(102) 7.4 8.0 | 10.0 mm Measured | from input terminals to output |
| (Creepage) | terminals, | shortest distance path along body. |
| Minimum Internal Plastic 0.08 0.5 | 1.0 mm Insulation | thickness between emitter and |
| Gap (Internal Clearance) | detector; | also known as distance through |
| Tracking Resistance CTI >175 >175 | >200 Volts DIN IEC | 112/VDE 0303 Part 1 |
| Isolation Group IIIa IIIa | IIIa Material - 11 - | Group (DIN VDE 0110, 1/89, Table 1) |
电气特性 Electrical Characteristics（TA = 25°C）
| 参数 | 符号 | 器件 | 最小 | Typ.a | 最大 | 单位 | 测试条件 | 图号 | 备注 |
|---|---|---|---|---|---|---|---|---|---|
| A | F(ON) | F(ON) | |||||||
| 10 to 16 mA, V = | –3.6 to 0.8 V, V | = 15 to 30 V, | V = Ground) | unless | otherwise | specified. | |||
| High Level Output Current | I OH | 0.5 | 1.5 | A | V = (V – 4 V) O CC | 2, 3, | b | ||
| 2.0 | A | V = (V – 15 V) | 17 | c | |||||
| Low Level Output Current | I OL | 0.5 | 2.0 | A | V = (V + 2.5 V) O EE | 5, 6, | b | ||
| 2.0 | A | V = (V + 15 V) | 18 | c | |||||
| High Level Output Voltage | V | (V – 4) | (V – 3) | V | I = –100 mA | 1, 3, 19 | d, e | ||
| OH | CC | CC | O | ||||||
| Low Level Output Voltage | V | 0.1 | 0.5 | V | I = 100 mA | 4, 6, 20 | |||
| High Level Supply Current | I | 2.5 | 5.0 | mA | Output Open, | 7, 8 | |||
| I = 7 to 16 mA | |||||||||
| Low Level Supply Current | I | 2.5 | 5.0 | mA | Output Open, | ||||
| V = –3.0 to +0.8 V | |||||||||
| Threshold Input Current | I | HCPL-3120 | 2.3 | 5.0 | mA | I = 0 mA, | 9, 15, | ||
| Low to High | V > 5 V | ||||||||
| HCPL-J312 | 1.0 | O | 21 | ||||||
| Threshold Input Voltage | V | 0.8 | V | ||||||
| Input Forward Voltage | V | HCPL-3120 | 1.2 | 1.5 | 1.8 | V | I = 10 mA | 16 | |
| Temperature Coefficient | of V /T | HCPL-3120 | –1.6 | mV/°C | I = 10 mA | ||||
| HCPL-J312 | 3 | I = 100 μA | |||||||
| Input Capacitance | C | HCPL-3120 | 60 | pF | f = 1 MHz, V = 0 V | ||||
| UVLO Threshold | V | 11.0 | 12.3 | 13.5 | V | V > 5 V, I = 10 mA | 22, 34 | ||
| V | 9.5 | 10.7 | 12.0 | F | |||||
| 2.0 A. See Applications | section for additional | details on limiting | I peak. | ||||||
| OH | OH | CC | OH | ||||||
| Over recommended | temperature (T = –40 | to 100 °C) unless | otherwise | specified. | |||||
| Input-Output Momentary | V | HCPL-3120 | 3750 | V | RH < 50%, | c, d | |||
| Withstand Voltageb | t = 1 min., | ||||||||
| HCPL-J312 | 3750 | T = 25°C | e, d | ||||||
| HCNW3120 | 5000 | f, d | |||||||
| Resistance (Input-Output) | R I-O | HCPL-3120 | 1012 | | V = 500 V I-O DC | d | |||
| HCNW3120 | 1012 | 1013 | T = 25°C | ||||||
| 1011 | T = 100°C | ||||||||
| Capacitance (Input-Output) | C | HCPL-3120 | 0.6 | pF | f = 1 MHz | ||||
| LED-to-Case Thermal Resistance | | 467 | °C/W | Thermocouple | 28 | ||||
| located at center | |||||||||
| LED-to-Detector Thermal | | 442 | °C/W | ||||||
| LD | underside of | ||||||||
| Detector-to-Case Thermal | D | 126 | °C/W |

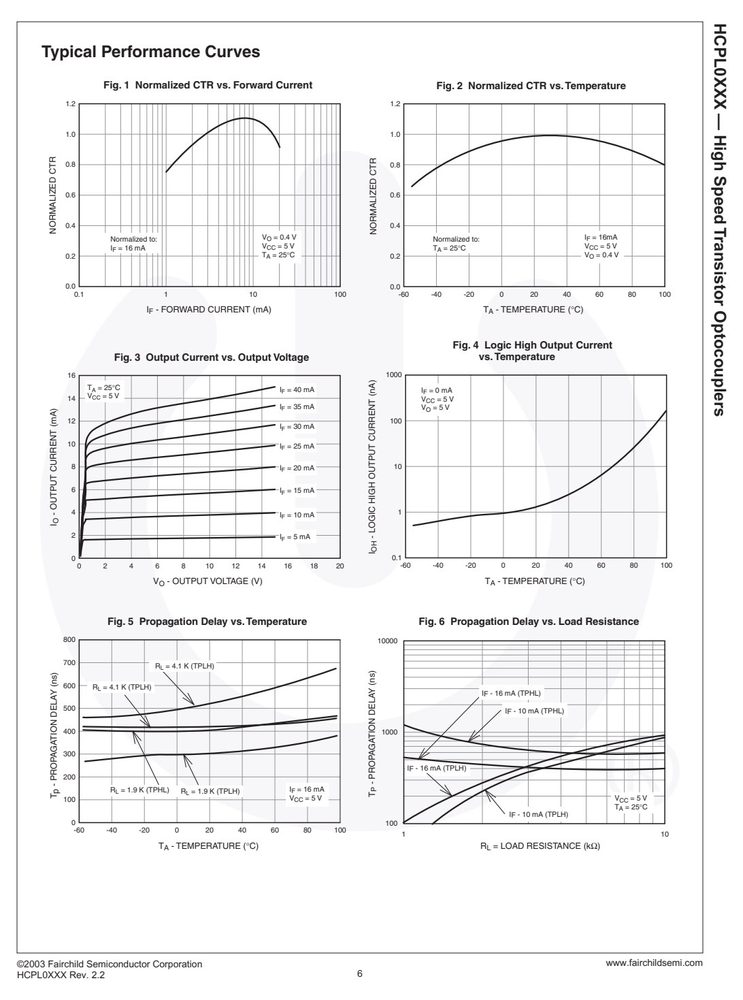

特性曲线（Typical Performance Curves）
