产品应用与封装尺寸

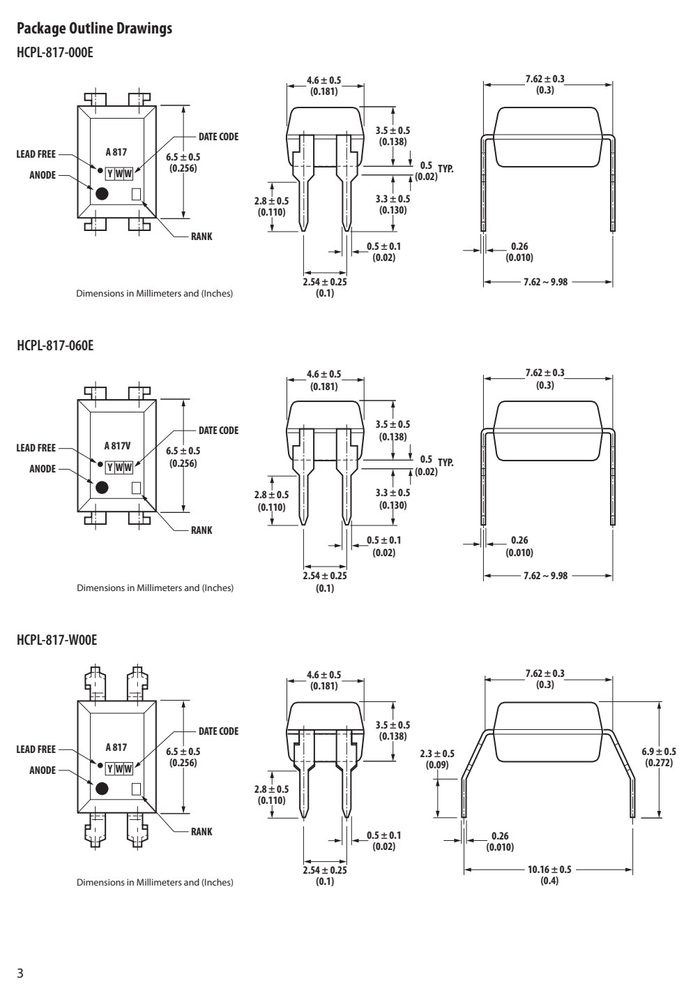

图纸取自原厂规格书，点击可放大查看原始尺寸标注。
引脚定义与内部结构
| 引脚 | 符号 | 名称 |
|---|---|---|
| 1 | I | |
| 2 | RTC | |
| 3 | I | |
| 4 | V | |
| 5 | I | |
| 6 | V |
数据来源：原厂规格书引脚图
关键参数速览
- 正向电压 VF
- 1.4
- 集电极-发射极电压 VCEO
- 0.1 mA
产品特点 Features

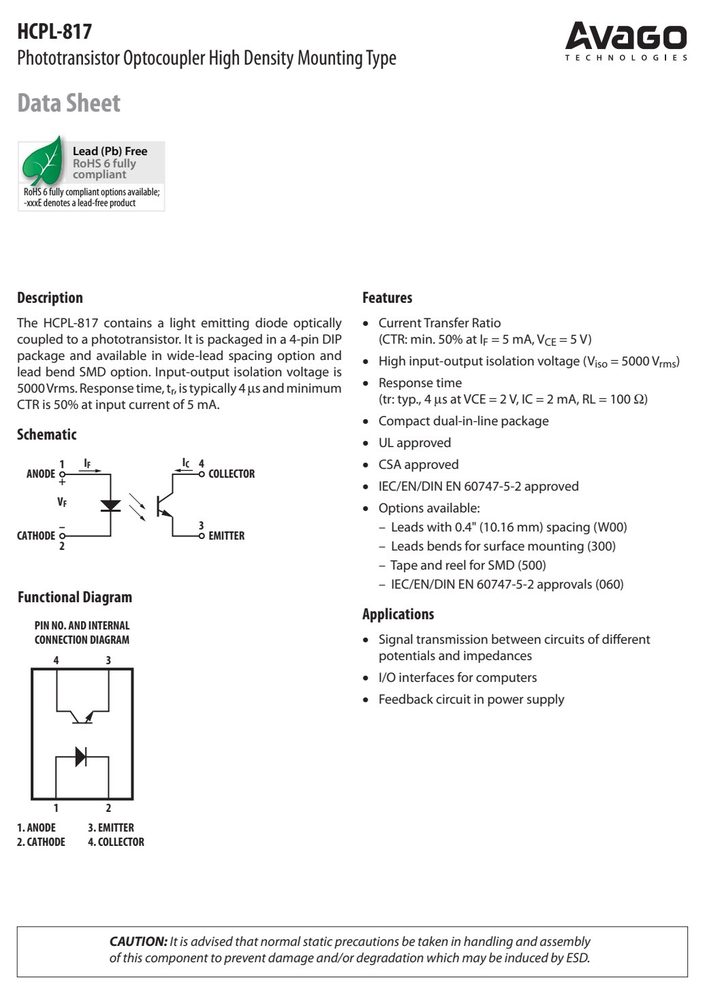

- The HCPL-817 contains a light emitting diode optically • Current Transfer Ratio coupled to a phototransistor. It is packaged in a 4-pin DIP (CTR: min. 50% at I = 5 mA, V = 5 V)
- F CE package and available in wide-lead spacing option and • High input-output isolation voltage (V = 5000 V ) iso rms
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| – | 包装 | and | 包装2 | for | SMD | (500) |
|---|---|---|---|---|---|---|
| 5000 Vrms. Response time, t , is typically 4 μs and minimum • | Response | time | ||||
| (tr: | typ., | 4 μs | at | VCE | = 2 V, | IC = 2 mA, RL = 100 Ω) |
| + • | IEC/EN/DIN | EN | 60747-5-2 | approved | ||
| F • | Options | available: | ||||
| – 3 – | Leads | with | 0.4" | (10.16 | mm) spacing (W00) | |
| 2 – | Leads | bends | for | surface | mounting (300) | |
| – | Tape | and | reel | for | SMD | (500) |
| – | IEC/EN/DIN | EN | 60747-5-2 | approvals (060) |
电气特性 Electrical Characteristics（TA = 25°C）
| 参数 | 符号 | 最小 | 典型 | 最大 | 单位 | 测试条件 |
|---|---|---|---|---|---|---|
| Forward Voltage | V | – | 1.2 | 1.4 | V | I = 20 mA |
| Terminal Capacitance | C | – | 30 | 250 | pF | V = 0, f = 1 KHz |
| Collector Dark Current | I | – | – | 100 | nA | V = 20 V |
| Collector-Emitter Breakdown | Voltage BV | 70 | – | – | V | I = 0.1 mA |
| Emitter-Collector Breakdown | Voltage BV | 6 | – | – | V | I = 10 μA |
| Collector Current | I C | 2.5 | – | 30 | mA | I = 5 mA, V = 5 V, F CE |
订货信息与供货形式
| 型号 | | Surface | Gull | 包装 | 60747- | | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Acceptance | Notice | #5, File | CA 88324. |
