Name: AVAGO HCPL-J314-500E
Brand: AVAGO
Availability: InStock

产品实拍图

本型号暂无已核对的专属实拍图。为避免图文不符，本页不放同系列近似图；如需实物照片，请联系销售获取本批次实拍。

索取实拍图在产品目录查看同类型号

产品应用与封装尺寸

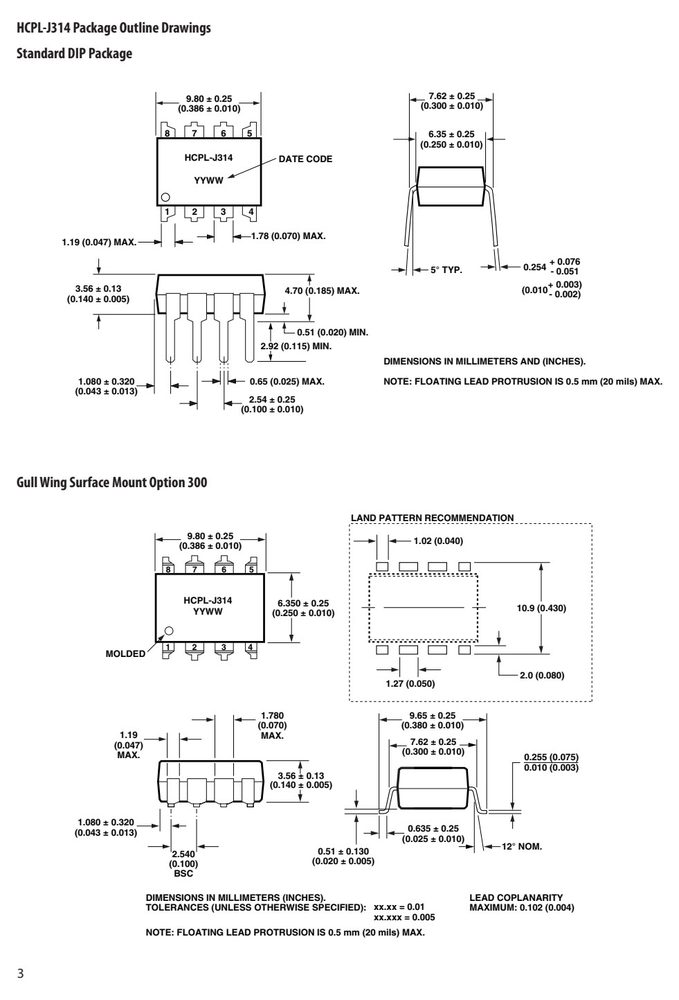

图纸取自原厂规格书，点击可放大查看原始尺寸标注。

引脚定义与内部结构

引脚	符号	名称
5	VEE
6	VO
7	VO
8	VCC

数据来源：原厂规格书引脚图

关键参数速览

正向电压 VF: 16
电源电压 VCC: 35
工作温度 TA: 100

产品特点 Features

The HCPL-J314 family of devices consists of an AlGaAs LED • 0.6 A maximum peak output current optically coupled to an integrated circuit with a power
0.4 A minimum peak output current output stage. These optocouplers are ideally suited for
High speed response:
driving power IGBTs and MOSFETs used in motor control
0.7 µs max. propagation delay over temperature
Selection Guide
Package Type Part Number Number of Channels
8-pin DIP (300 Mil) HCPL-J314 1
SO16 HCPL-314J 2

绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）

超过下表数值可能造成器件永久损坏，设计时请留余量。

参数	符号	最小	最大	单位	备注
Storage Temperature	T	-55	125	°C
Operating Temperature	T	-40	100	°C
Average Input Current	I		25	mA	1
Peak Transient Input	Current I		1.0	A
“High” Peak Output Current	I		0.6	A	2
“Low” Peak Output Current	I		0.6	A	2
Supply Voltage	V - V	-0.5	35	V
Output Voltage	V	-0.5	V	V
Output Power Dissipation	P		260	mW	3
Input Power Dissipation	P		105	mW	4
Lead Solder Temperature	260°C for 10	sec., 1.6 mm below	seating plane

数据来源：原厂规格书

安全与绝缘额定值（DIN EN/IEC 60747−5−5）

Safety-limiting	值	–	maximum	值2	allowed	in	the	event	of	a	failure.
Input to Output	Test	Voltage,		Method b*
V x	1.875 = V	, 100%		Production	Test with	t	= 1	sec,			V 1670 V
IORM	PR					m					PR peak
Input to Output	Test	Voltage,		Method a*
V x 1.5	= V ,	Type	and	Sample Test,	t =	60 sec,					V 1336 V
IORM	PR				m						PR peak
Highest	Allowable	Overvoltage		(Transient		Overvoltage	t	= ini	10	sec)	V 6000 V IOTM peak
Case	Temperature										T 175 °C
Input	Current**										I 400 mA
Output	Power**										P 1200 mW
Insulation	Resistance	at T	, V =	500 V							R >109 Ω
		S	IO								S
0 25	50 75 100	125	150 175	200
TS –	CASE	TEMPERATURE	– °C

电气特性 Electrical Characteristics（TA = 25°C）

参数	符号	最小	典型	最大	单位	条件	图号	备注
Over recommended	operating conditions unless	otherwise	specified.
High Level Output Current	I	0.2			A	V = V – 4	2	5
		0.4	0.5			V = V –	10 3	2
Low Level Output Current	I	0.2	0.4		A	V = V +	2.5 5	5
		0.4	0.5			V = V +10	6	2
High Level Output Voltage	V	V -4	V -1.8		V	I = -100 mA	1	6,7
	OH	CC	CC			O
Low Level Output Voltage	V		0.4	1	V	I = 100 mA	4
High Level Supply Current	I		0.7	3	mA	I = 0 mA	7,8	14
Low Level Supply Current	I		1.2	3	mA	I = 0 mA
Threshold Input Current	Low to High I			6	mA	I = 0 mA,	9,15
Threshold Input Voltage	Low to High V FHL	0.8			V	V O > 5 V
Input Forward Voltage	V	1.2	1.5	1.8	V	I = 10 mA	16
Temperature Coefficient	of Input DV /DT		-1.6		mV/°C
Input Capacitance	C		60		pF	f = 1 MHz, V = 0 V

订货信息与供货形式

型号	Compliant	Compliant2	封装	Mount	Wing	&	包装	EN	60747-5-2	数量
HCPL-J314	is UL Recognized	with 3750	Vrms for 1	minute per	UL1577.
Part	RoHS	Non RoHS		Surface	Gull		Tape		IEC/EN/DIN
Number	Compliant	Compliant	Package	Mount	Wing	&	Reel	EN	60747-5-2	Quantity
HCPL-J314	-300E	#300		X	X				X	50 per tube
packaging	with IEC/EN/DIN	EN 60747-5-2	Safety	Approval in RoHS	compliant.

应用领域 Applications

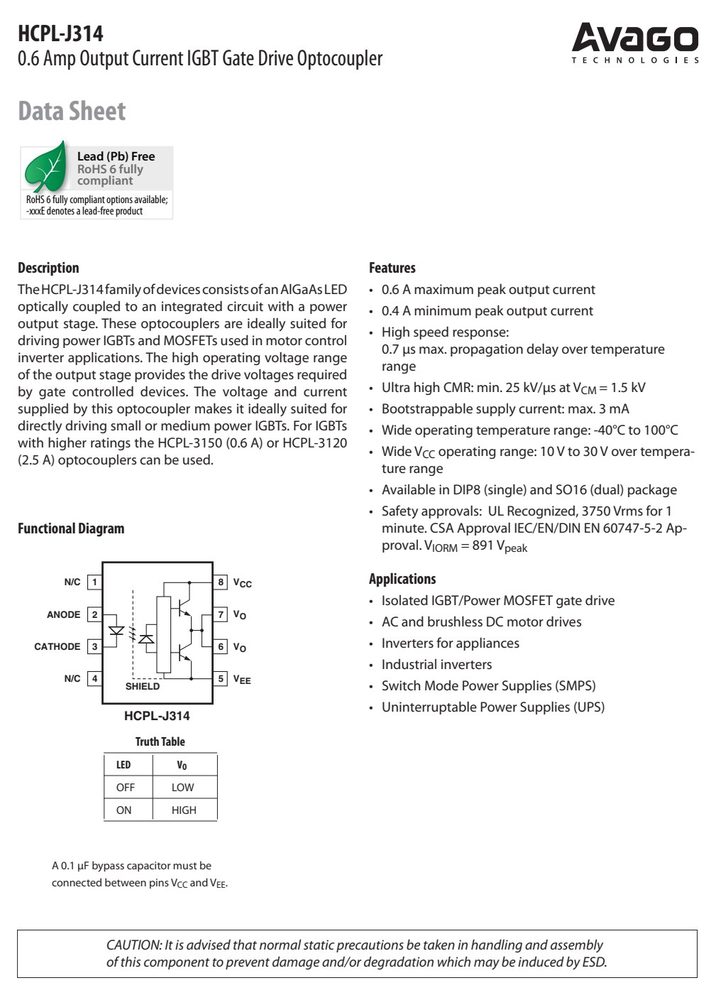

(2.5 A) optocouplers can be used.ture rangeN/C 1 8 VCCIsolated IGBT/Power MOSFET gate driveANODE 2 7 VOAC and brushless DC motor drivesInverters for appliancesCATHODE 3 6 VOIndustrial invertersN/C 4 5 VEEUninterruptable Power Supplies (UPS)HCPL-J314

资料下载

📄 HCPL-J314-500E 规格书 PDF

规格书为原厂公开资料，点击在新窗口打开下载。

获取报价 / 申请样品

常备现货、免费送样、支持小批量试产。报出用量与封装要求，当天给报价与交期。

💬 咨询 / 询价查看完整产品目录

HCPL-J314-500E 栅极驱动光耦
