产品实拍图

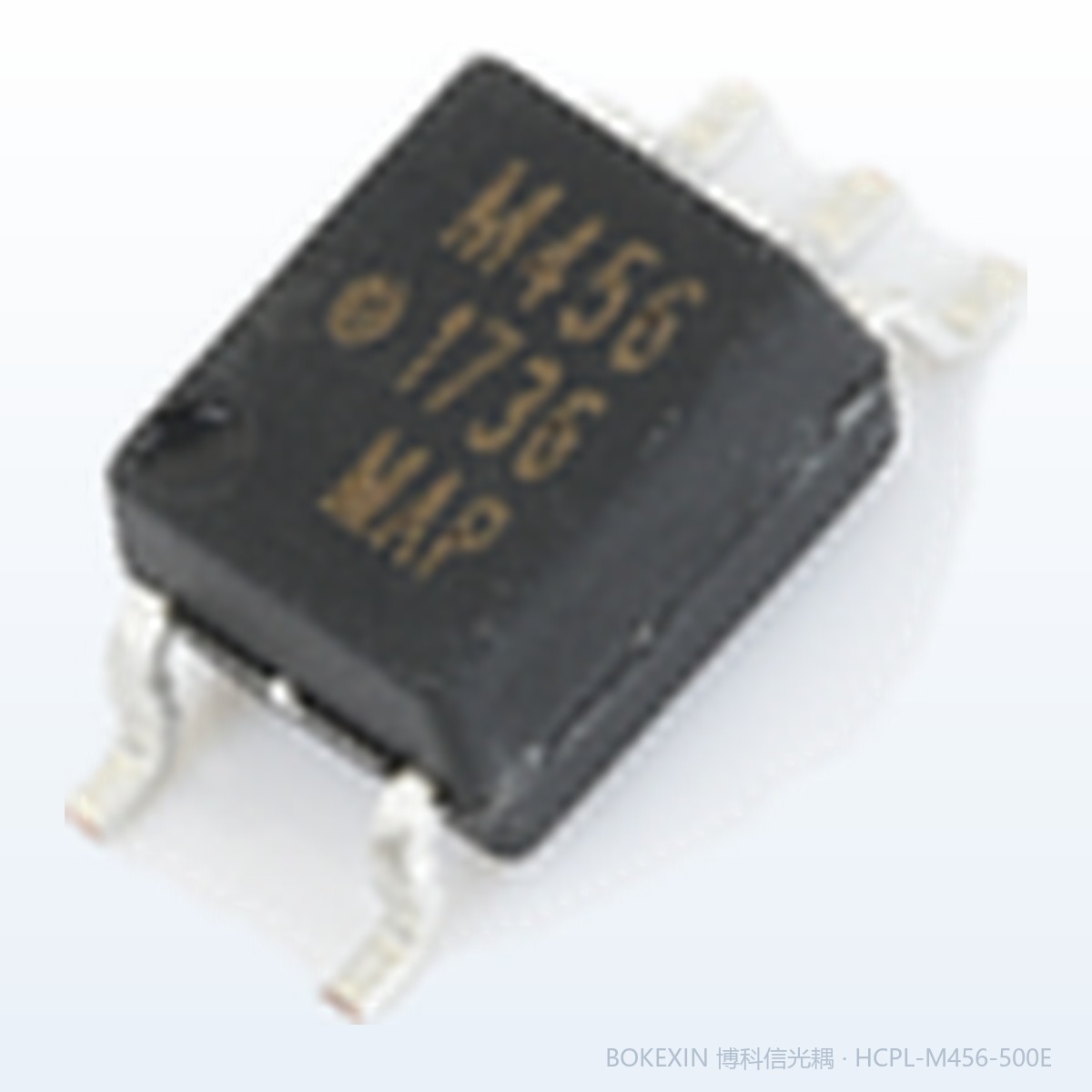

本页为博科信现货实拍（器件丝印 见规格书）。图片已加防盗水印，需要最新批次照片或未加水印原图请联系销售；点击图片可放大。

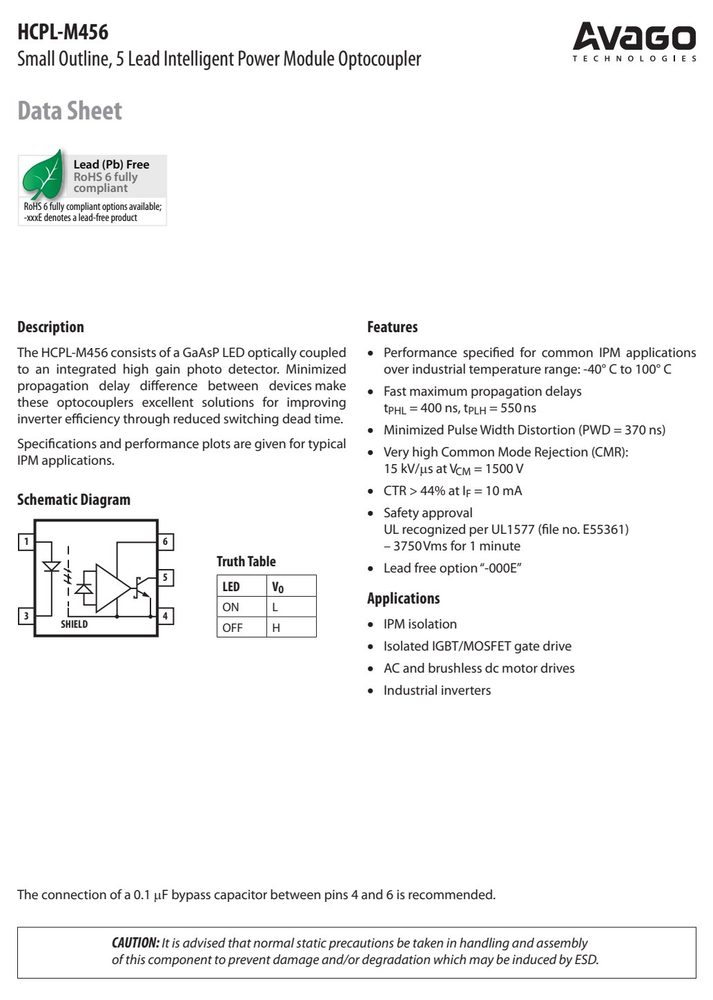

产品应用与封装尺寸
图纸取自原厂规格书，点击可放大查看原始尺寸标注。
关键参数速览
- 正向电压 VF
- 5
- 电流传输比 CTR
- 5
- 隔离电压 VISO
- 6, 7
- 电源电压 VCC
- 30
- 工作温度 TA
- 100
产品特点 Features
- PHL PLH inverter efficiency through reduced switching dead time.
- kΩ Minimized Pulse Width Distortion (PWD = 370 ns)
- Specifications and performance plots are given for typical
- kΩ Very high Common Mode Rejection (CMR):
- IPM applications.
- 15 kV/s at V = 1500 V
- Land Pattern Recommendation
- (0.17)
- (0.05)
- (0.10)
- (0.080) 0.64
- (0.025)
- (0.325)
- DIMENSION IN MILLIMETERS (INCHES)
- Figure 1. 5 Pin SOIC Package (JEDEC MO-155) Device Outline Drawing.
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 符号 | 最小 | 最大 | 单位 |
|---|---|---|---|---|
| Storage Temperature | T | -55 | 125 | °C |
| Operating Temperature | T | -40 | 100 | °C |
| Average Input Current [1] | I | 25 | mA | |
| Peak Input Current [2] | I | 50 | mA | |
| Peak Transient Input Current | I | 1.0 | A | |
| Average Output Current (Pin 5) | I | 15 | mA | |
| Output Voltage (Pin 5-4) | V | -0.5 | 30 | Volts |
| Supply Voltage (Pin 6-4) | V | -0.5 | 30 | Volts |
| Output Power Dissipation[3] | P | 100 | mW | |
| Total Power Dissipation[4] | P | 145 | mW |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| 参数 | 符号 | 值 | 单位 | 条件 |
|---|---|---|---|---|
| Minimum External Air | Gap L(101) | ≥ 5 | mm | Measured from input terminals to output terminals, |
| External Clearance | shortest distance through air. | |||
| External Creepage | shortest distance path along body. | |||
| Minimum Internal Plastic | 0.08 | mm | Insulation thickness between emitter and detector; | |
| Gap Internal Clearance | also known as distance through insulation. | |||
| Tracking Resistance | CTI | 200 | Volts | DIN IEC 112/VDE 0303 Part 1 |
| Isolation Group | IIIa | Material Group DIN VDE 0110 | ||
| voltages of 2500 | V , 1 minute. |
电气特性 Electrical Characteristics（TA = 25°C）
| 参数 | 符号 | 最小 | Typ.* | 最大 | 单位 | 测试条件 | 图号 | 备注 |
|---|---|---|---|---|---|---|---|---|
| Over recommended | operating conditions | unless | otherwise | specified: | ||||
| T = -40° C to +100° | C, V = +4.5 V to 30 | V, I = | 10 mA to | 20 mA, V | = -5 | V to 0.8 V | ||
| A | CC | F(on) | F(off) | |||||
| Current Transfer Ratio | CTR | 44 | 90 | % | I = 10 mA, V = 0.6 | V | 5 | |
| Low Level Output | Current I OL | 4.4 | 9.0 | mA | I = 10 mA, V = 0.6 F O | V 2,3 | ||
| Low Level Output | Voltage V | 0.3 | 0.6 | V | I = 2.4 mA | |||
| Input Threshold Current | I TH | 1.5 | 5.0 | mA | V = 0.8 V, I = 0.75 O O | mA 2 | 9 | |
| High Level Output | Current I | 5 | 50 | A | V = 0.8 V | 4 | ||
| High Level Supply | Current I CCH | 0.6 | 1.3 | mA | V = 0.8 V, V = Open F O | 9 | ||
| Low Level Supply Current | I CCL | 0.6 | 1.3 | mA | I = 10 mA, V = F O | Open | 9 | |
| Input Forward Voltage | V | 1.5 | 1.8 | V | I = 10 mA | 5 | ||
| Temperature Coefficient | of V /T | -1.6 | mV/°C | I = 10 mA | ||||
| Input Capacitance | C | 60 | pF | f = 1 MHz, V = 0 V | ||||
| Input-Output Insulation | V | 3750 | V | RH < 50%, t = 1 min, | 6, 7 | |||
| Voltage | T = 25° C | |||||||
| Resistance (Input - | Output) R | 1012 | V = 500 Vdc | 6 | ||||
| Capacitance (Input - | Output) C | 0.6 | pF | f = 1 MHz | 6 |
