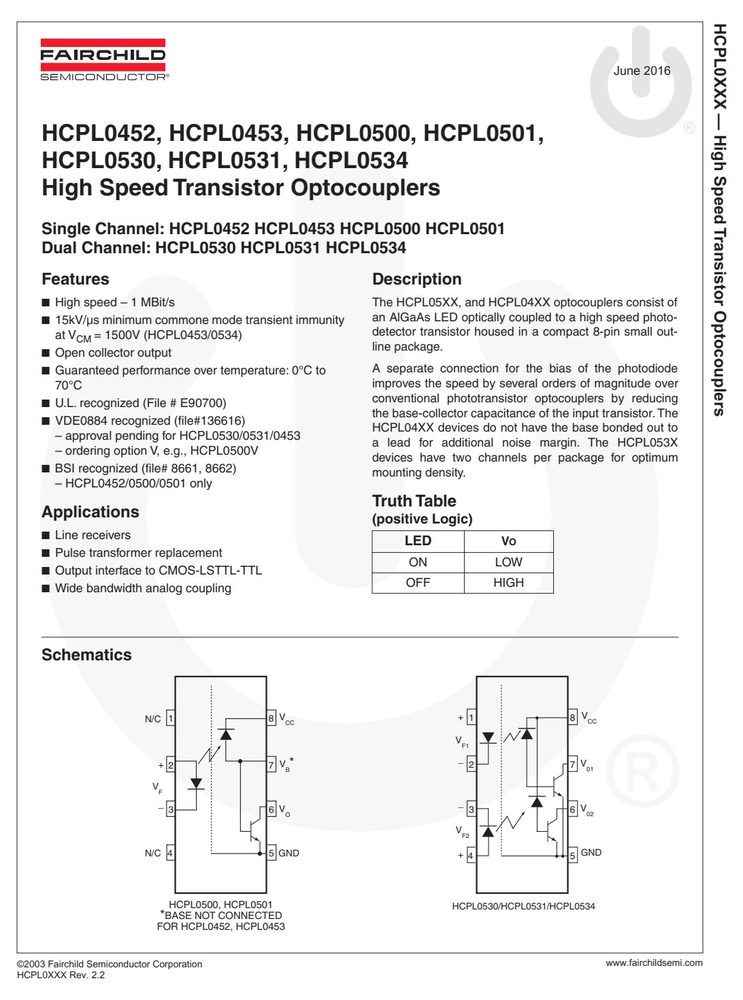

产品应用与封装尺寸
图纸取自原厂规格书，点击可放大查看原始尺寸标注。
引脚定义与内部结构
| 引脚 | 符号 | 名称 |
|---|---|---|
| 5 | GND | |
| 6 | V | |
| 7 | V | |
| 8 | V |
数据来源：原厂规格书引脚图
关键参数速览
- 正向电压 VF
- 1.7
- 电流传输比 CTR
- 50
- 电源电压 VCC
- -0.5 to 30
- 工作温度 TA
- -40 to +85
产品特点 Features
- High speed – 1 MBit/s The HCPL05XX, and HCPL04XX optocouplers consist of
- 15kV/μs minimum commone mode transient immunity an AlGaAs LED optically coupled to a high speed photo- Optocouplers at V = 1500V (HCPL0453/0534) detector transistor housed in a compact 8-pin small out- line package.
- Open collector output
- Guaranteed performance over temperature: 0°C to A separate connection for the bias of the photodiode
- 70°C improves the speed by several orders of magnitude over conventional phototransistor optocouplers by reducing
- U.L. recognized (File # E90700) the base-collector capacitance of the input transistor. The
- VDE0884 recognized (file#136616)
- HCPL04XX devices do not have the base bonded out to a lead for additional noise margin. The HCPL053X ordering option V, e.g., HCPL0500V devices have two channels per package for optimum
- BSI recognized (file# 8661, 8662) mounting density.
- HCPL0452/0500/0501 only
- HCPL0XXX
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 符号 | 参数 | 值 | 单位 |
|---|---|---|---|
| T Storage | Temperature | -40 to +125 | °C |
| T Operating | Temperature | -40 to +85 | °C |
| I (avg) DC/Average | Forward Input Current | 25 | mA |
| I (pk) Peak Forward | Input Current (50% duty cycle, 1ms | P.W.) 50 | mA |
| I (trans) Peak | Transient Input Current - ([≤1μs P.W., 300 pps) | 1.0 | A |
| P Input Power | Dissipation | 45 | mW Optocouplers |
| I (avg) Average | Output Current (Pin 6) | 8 | mA |
| I (pk) Peak Output | Current | 16 | mA |
| V Supply | Voltage | -0.5 to 30 | V |
| V Output | Voltage | -0.5 to 20 | V |
| I Base Current | (HCPL0500/HCPL0501 only) | 5 | mA |
| P Output | power dissipation | 100 | mW |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| 符号 | 特性 | 测试条件 | 最小 | Typ.* | 最大 | . | 单位 |
|---|---|---|---|---|---|---|---|
| V | Input-Output Isolation Voltage | f = 60 Hz, t = 1.0 min., I ≤ 2μA | 2500 | Vac | |||
| ISO | I-O | RMS | |||||
| R Isolation | Resistance | V = 500V (Note 5) | 1011 | ||||
| C Isolation | Capacitance | V = 0 , f = 1.0MHz (Note 5) | 0.2 | pF |
电气特性 Electrical Characteristics（TA = 25°C）
| 符号 | 参数 | 测试条件 | 器件 | 最小 | Typ.* | 最大 | 单位 |
|---|---|---|---|---|---|---|---|
| V Input | Forward Voltage | I = 16mA, T = 25°C I = 16mA | All | 1.45 | 1.7 1.8 | V High | |
| ΔV / ΔT | Temperature Coefficient | of I = 16mA | All | -1.6 | mV/°C | ||
| I Logic | High Output Current | I = 0mA, V = V = 5.5V, | All | 0.001 | 0.5 | μA | |
| I = 0mA, V = V = 15V, | All | 0.005 | 1 | ||||
| T = 25°C | Optocouplers | ||||||
| I = 0 mA, V = V = 15V | All | 50 | |||||
| I Logic | Low Supply Current | I = 16mA, V = Open, | HCPL0452/3/ | 120 | 200 | μA | |
| HCPL0530/1/4 | 400 | ||||||
| I Logic | High Supply Current | I = 0mA, V = Open, | All | 0.01 | 1 | μA | |
| HCPL0530/1/4 | 4 | ||||||
| CTR Current | Tranfer Ratio | I = 16mA, V = 0.4V, | HCPL0500/0530 | 7 | 27 | 50 | % |
| (Note | 1) | V = 4.5V, T = 25°C | |||||
| CC A | HCPL0452/3 | 19 | 27 | 50 | |||
| I = 16mA, V = 0.5V, | HCPL0500 | 5 | 30 | ||||
| CC | HCPL0452/3 | 15 | 30 | ||||
| V Logic | Low Output Voltage | I = 16mA, I = 1.1mA, | HCPL0500 | 0.18 | 0.4 | V | |
| CC A | HCPL0530 | 0.5 | |||||
| I = 16mA, I = 3mA, | HCPL0452/3 | 0.25 | 0.4 | ||||
| I = 16mA, I = 0.8mA, | HCPL0500 | 0.13 | 0.5 | ||||
| I = 16mA, I = 2.4mA, | HCPL0452/3 | 0.23 | 0.5 | HCPL0XXX |

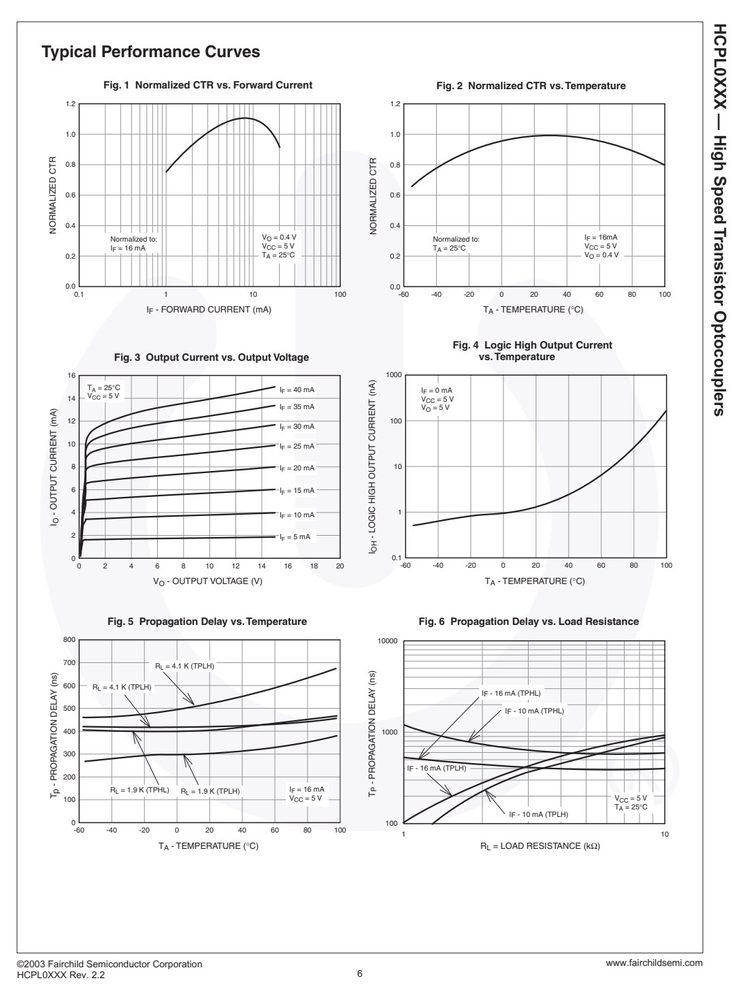

特性曲线（Typical Performance Curves）
相关 / 可替代型号
以上型号来自规格书与型号命名比对，参数需以各自规格书为准；下单前请与销售确认封装与脚位。
