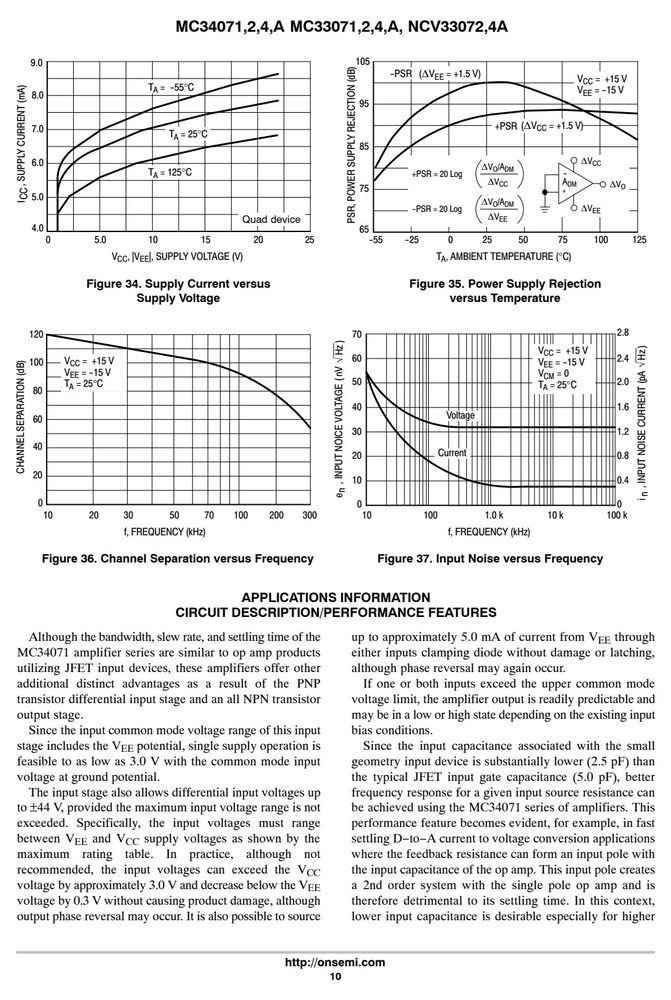

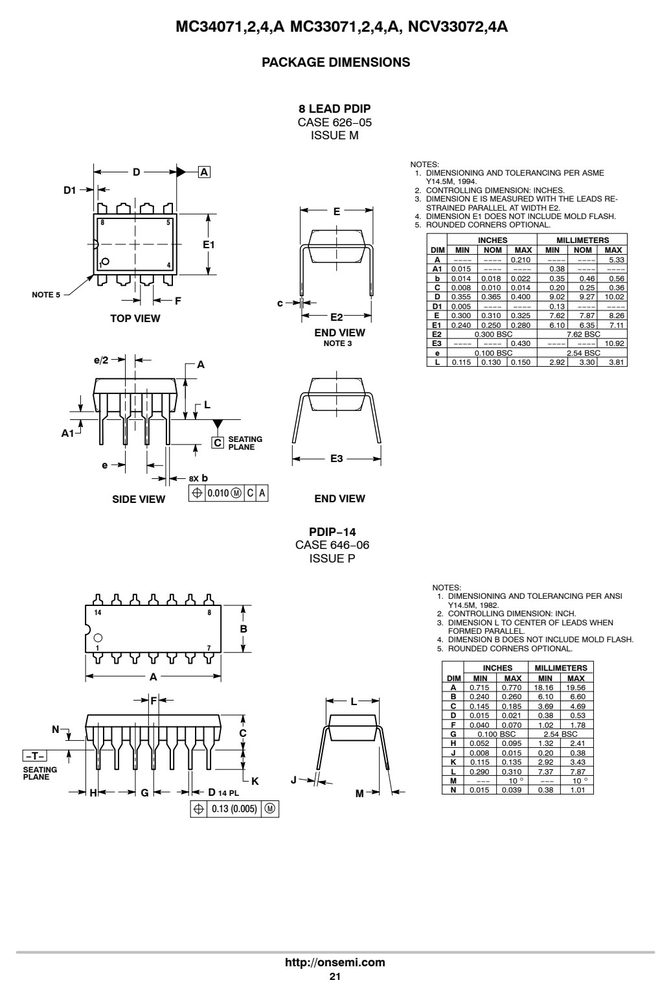

产品应用与封装尺寸
图纸取自原厂规格书，点击可放大查看原始尺寸标注。
关键参数速览
- 电源电压 VCC
- +44
产品特点 Features
- CASE 646
- Wide Bandwidth: 4.5 MHz 14
- kΩ 1
- High Slew Rate: 13 V/ s
- Fast Settling Time: 1.1 s to 0.1% SOIC−14
- Wide Single Supply Operation: 3.0 V to 44 V 14 D SUFFIX
- CASE 751A
- Wide Input Common Mode Voltage Range: Includes Ground (V 1
- Low Input Offset Voltage: 3.0 mV Maximum (A Suffix)
- Large Output Voltage Swing: −14.7 V to +14 V (with 15 V TSSOP−14
- Supplies) DTB SUFFIX
- CASE 948G
- Large Capacitance Drive Capability: 0 pF to 10,000 pF 1
- Low Total Harmonic Distortion: 0.02%
- Excellent Phase Margin: 60
- Although the bandwidth, slew rate, and settling time of the
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 额定值 | 符号 | 值 | 单位 |
|---|---|---|---|
| Supply Voltage (from V to V ) | V | +44 | V |
| Input Differential Voltage Range | V | (Note 1) | V |
| Input Voltage Range | V | (Note 1) | V |
| Output Short Circuit Duration (Note 2) | t | Indefinite | Sec |
| Operating Junction Temperature | T | +150 | °C |
| Storage Temperature Range | T | −60 to +150 | °C |
数据来源：原厂规格书
订货信息与供货形式
| Function | 器件 | Temperature | Range | 封装 |
|---|---|---|---|---|
| Dual | T = 0° to | +70°C | ||
| Dual | (Pb−Free) | |||
| Quad | T = 0° to | +70°C | 55 Units / Rail | |
| Specifications | Brochure, BRD8011/D. | |||
| Specifications | Brochure, BRD8011/D. |
