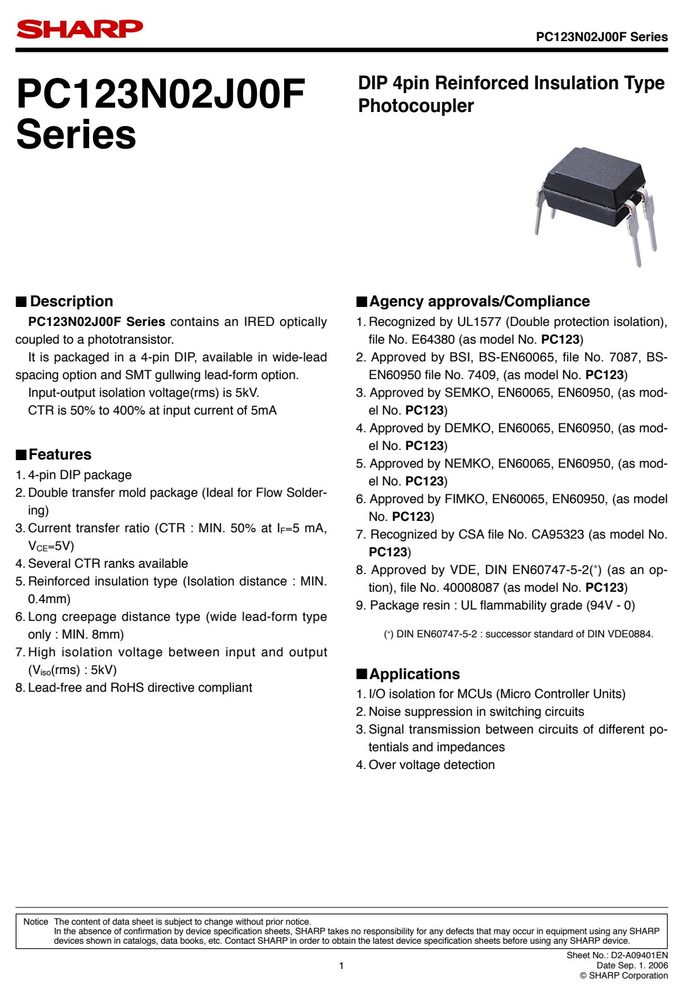

产品应用与封装尺寸
图纸取自原厂规格书，点击可放大查看原始尺寸标注。
关键参数速览
- 正向电压 VF
- 1.4
- 正向电流 IF
- 50
- 集电极-发射极电压 VCEO
- 70
- 隔离电压 VISO
- 1×1011
产品特点 Features
- 5. Approved by NEMKO, EN60065, EN60950, (as mod-
- 1. 4-pin DIP package el No. PC123)
- 2. Double transfer mold package (Ideal for Flow Solder-
- 6. Approved by FIMKO, EN60065, EN60950, (as model ing)
- No. PC123)
- 3. Current transfer ratio (CTR : MIN. 50% at I =5 mA,
- F 7. Recognized by CSA fi le No. CA95323 (as model No.
- V =5V)
- CE PC123)

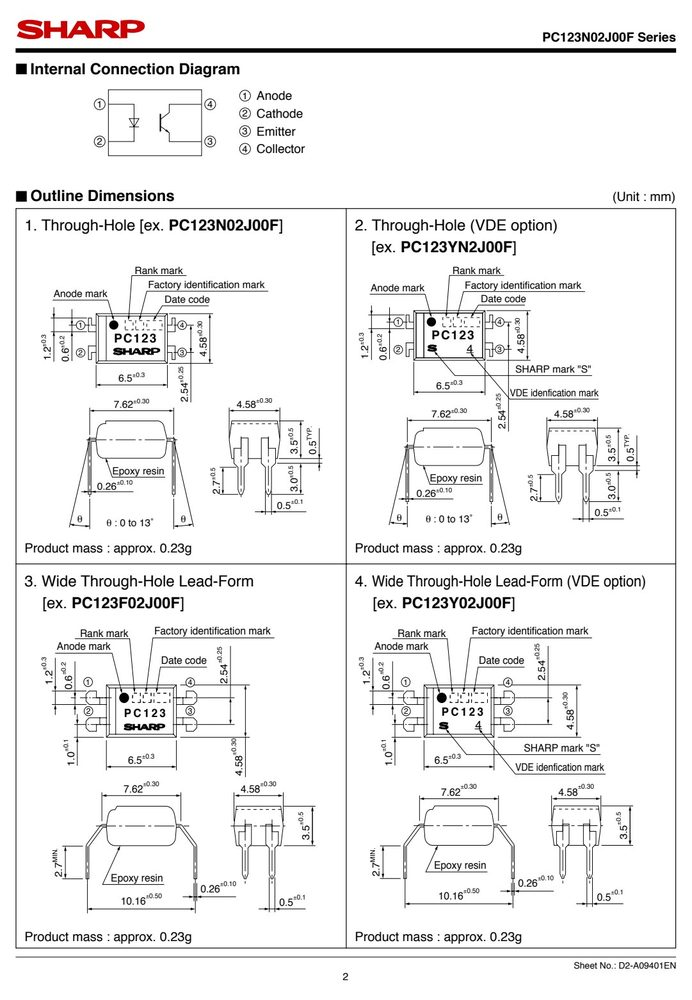

- Internal Connection Diagram
- 1 Anode
- 3 Emitter
- PC123N02J00F Series
- (Unit : mm)
- 5. SMT Gullwing Lead-Form 6. SMT Gullwing Lead-Form (VDE option)
- [ex. PC123P02J00F] [ex. PC123GY2J00F]
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 符号 | 额定值 | 单位 |
|---|---|---|---|
| (T =25̊C) | |||
| Forward current | I | 50 | mA |
| Power dissipation | P | 70 | mW |
| Collector-emitter | voltage V | 70 | V |
| Emitter-collector | voltage V | 6 | V |
| Collector current | I | 50 | mA |
| Collector power dissipation | P | 150 | mW |
| Total power dissipation | P | 200 | mW |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| 参数 | 符号 | 额定值 | 单位 |
|---|---|---|---|
| Operating temperature | T | −30 to +100 | ̊C |
| Storage temperature | T | −55 to +125 | ̊C |
电气特性 Electrical Characteristics（TA = 25°C）
| 参数 | 符号 | 条件 | 最小 | 典型 | 最大 | 单位 |
|---|---|---|---|---|---|---|
| (T =25̊C) | ||||||
| Forward voltage | V | I =20mA | − | 1.2 | 1.4 | V |
| Terminal capacitance | C | V=0, f=1kHz | − | 30 | 250 | pF |
| Collector dark current | I | V =50V, I =0 | − | − | 100 | nA |
| Output Collector-emitter breakdown | voltage BV | I =0.1mA, I =0 | 70 | − | − | V |
| Emitter-collector breakdown | voltage BV | I =10μA, I =0 | 6 | − | − | nA |
| Collector current | I | I =5mA, V =5V | 2.5 | − | 20 | mA |
| Collector-emitter saturation | voltage V | I =20mA, I =1mA | − | 0.1 | 0.2 | V |
| Transfer Isolation resistance | R | DC500V, 40 to 60%RH | 5×1010 | 1×1011 | − | Ω |
| charac− Floating capacitance | C | V=0, f=1MHz | − | 0.6 | 1 | pF |
| teristics Cut-off frequency | f V | =5V, I =2mA, R =100Ω, | −3dB − | 80 | − | kHz |
| Rise time t | − | 4 | 18 | μs | ||
| Fall time t | − | 3 | 18 | μs | ||
| Sheet No.: | D2-A09401EN |
