产品应用与封装尺寸
图纸取自原厂规格书，点击可放大查看原始尺寸标注。
关键参数速览
- 正向电压 VF
- 1.4
- 正向电流 IF
- ±50
- 集电极-发射极电压 VCEO
- 80
- 隔离电压 VISO
- 1×1011
- 工作温度 TA
- −30 to +100

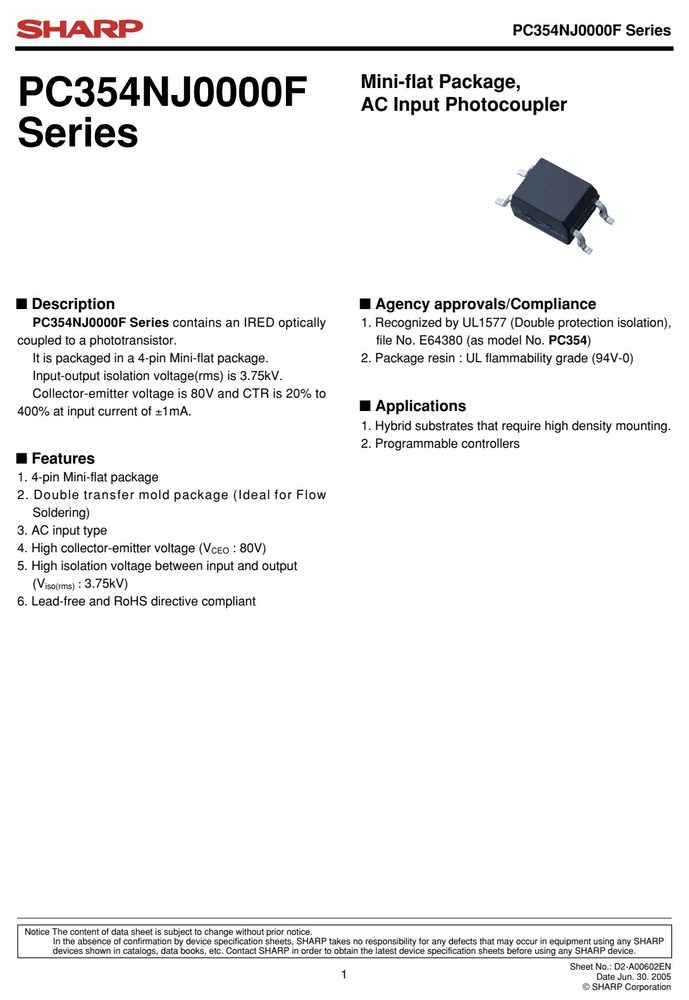

产品特点 Features
- 1. 4-pin Mini-flat package
- 2. Double transfer mold package (Ideal for Flow
- Soldering)
- 3. AC input type
- 4. High collector-emitter voltage (V : 80V)
- PC354NJ0000F Series

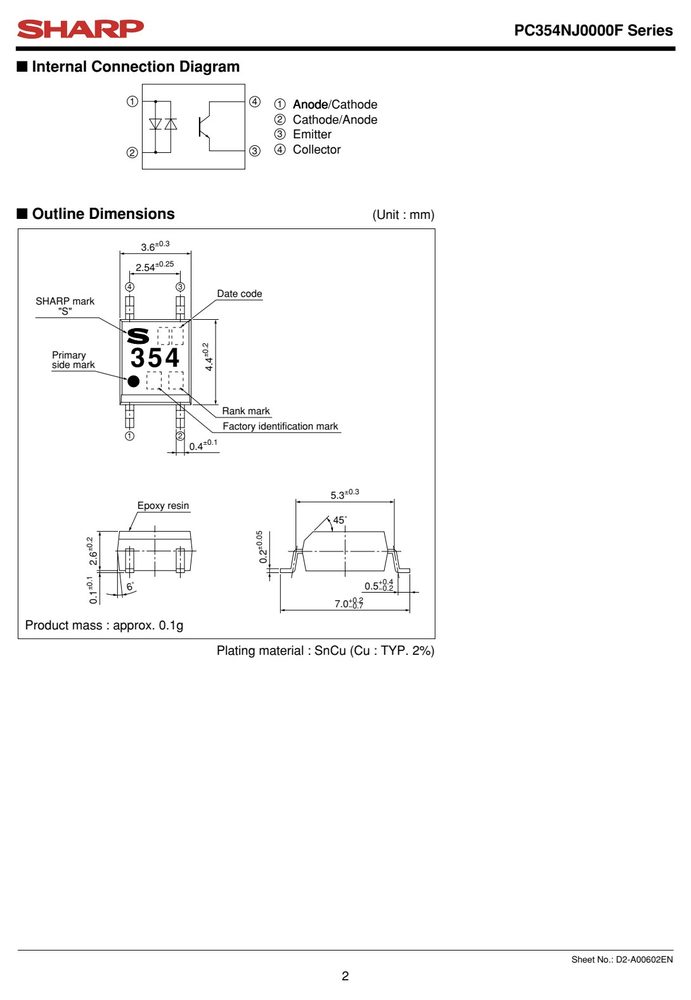

- Internal Connection Diagram
- 1 4 1 AAnnooddee/Cathode
- 2 Cathode/Anode
- 3 Emitter
- 2 3 4 Collector
- Date code (2 digit)
- 1st digit 2nd digit
- Year of production Month of production
- A.D. Mark A.D Mark Month Mark
- 1990 A 2002 P January 1
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 符号 | 额定值 | 单位 |
|---|---|---|---|
| (T =25˚C) | |||
| Forward current | I | ±50 | mA |
| Power dissipation | P | 70 | mW |
| Collector-emitter | voltage V | 80 | V |
| Emitter-collector | voltage V | 6 | V |
| Collector current | I | 50 | mA |
| Collector power dissipation | P | 150 | mW |
| Total power dissipation | P | 170 | mW |
| Operating temperature | T | −30 to +100 | ˚C |
| Storage temperature | T | −40 to +125 | ˚C |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| 参数 | 符号 | 额定值 | 单位 |
|---|---|---|---|
| PC354NJ0000F Series |
电气特性 Electrical Characteristics（TA = 25°C）
| 参数 | 符号 | 条件 | 最小 | 典型 | 最大 | 单位 |
|---|---|---|---|---|---|---|
| (T =25˚C) | ||||||
| Forward voltage | V | I =±20mA | − | 1.2 | 1.4 | V |
| Terminal capacitance | C | V=0, f=1kHz | − | 30 | 250 | pF |
| Collector dark | current I | V =50V, I =0 | − | − | 100 | nA |
| Output Collector-emitter breakdown | voltage BV | I =0.1mA, I =0 | 80 | − | − | V |
| Emitter-collector breakdown | voltage BV | I =10µA, I =0 | 6 | − | − | V |
| Collector current | I | I =±1mA, V =5V | 0.2 | − | 4.0 | mA |
| Collector-emitter saturation | voltage V | I =±20mA, I =1mA | − | 0.1 | 0.2 | V |
| Isolation resistance | R | DC500V, 40 to 60%RH | 5×1010 | 1×1011 | − | Ω |
| Floating capacitance | C | V=0, f=1MHz | − | 0.6 | 1.0 | pF |
| Rise | time t | − | 4 | 18 | µs | |
| Fall | time t | − | 3 | 18 | µs | |
| Sheet No.: | D2-A00602EN |
