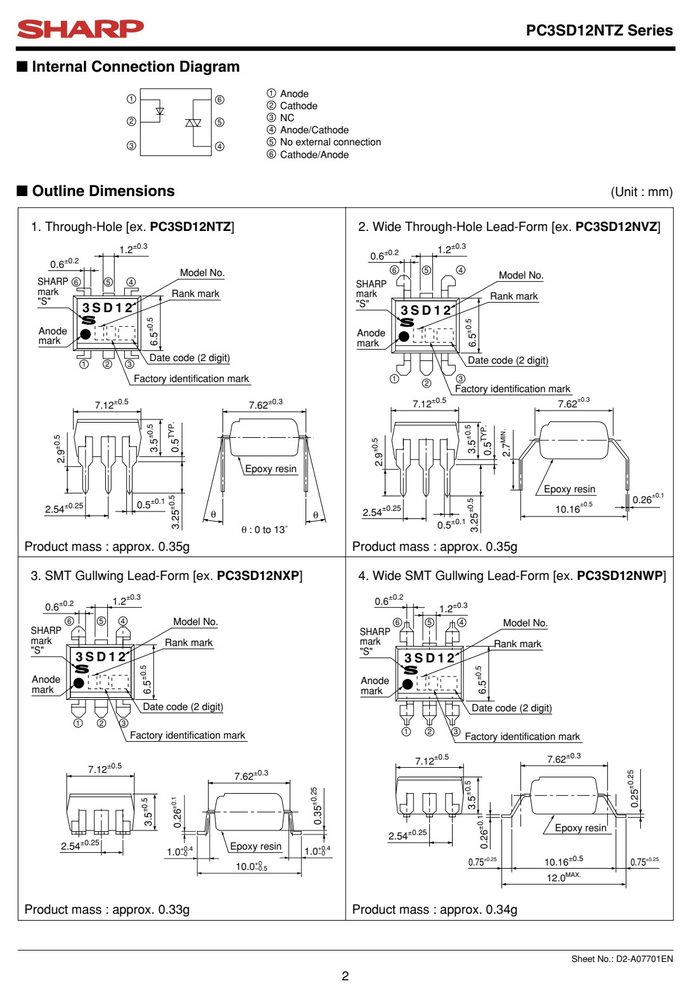

产品应用与封装尺寸
图纸取自原厂规格书，点击可放大查看原始尺寸标注。
引脚定义与内部结构
| 引脚 | 符号 | 名称 |
|---|---|---|
| 1 | 000 | |
| 2 | 000 | |
| 3 | NC | |
| 4 | SHARP |
数据来源：原厂规格书引脚图
关键参数速览
- 正向电压 VF
- 1.4
- 正向电流 IF
- 50
- 隔离电压 VISO
- 1011

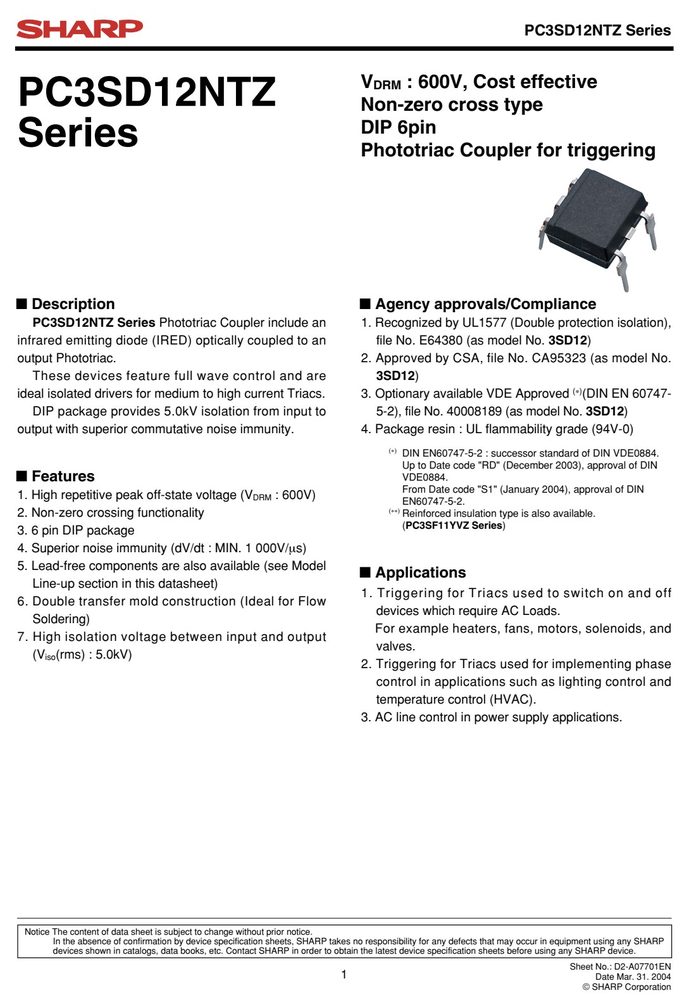

产品特点 Features
- ideal isolated drivers for medium to high current Triacs. 3. Optionary available VDE Approved (∗)(DIN EN 60747-
- DIP package provides 5.0kV isolation from input to 5-2), file No. 40008189 (as model No. 3SD12) output with superior commutative noise immunity. 4. Package resin : UL flammability grade (94V-0)
- (∗) DIN EN60747-5-2 : successor standard of DIN VDE0884.
- Up to Date code "RD" (December 2003), approval of DIN
- VDE0884.
- From Date code "S1" (January 2004), approval of DIN
- 1. High repetitive peak off-state voltage (V : 600V)
- DRM EN60747-5-2.
- 2. Non-zero crossing functionality (∗∗) Reinforced insulation type is also available.
- (PC3SF11YVZ Series)
- 3. 6 pin DIP package
- 4. Superior noise immunity (dV/dt : MIN. 1 000V/µs)
- 5. Lead-free components are also available (see Model ■
- PC3SD12NTZ Series
- Internal Connection Diagram
- 1 Anode
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 符号 | 额定值 | 单位 |
|---|---|---|---|
| (T =25˚C) | |||
| Forward current | I | 50 | mA |
| RMS ON-state current | I (rms) | 0.1 | A |
| Output Peak one cycle surge | current I surge | 1.2 | A mm1 |
| Repetitive peak OFF-state | voltage V | 600 | V |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| 参数 | 符号 | 额定值 | 单位 |
|---|---|---|---|
| Operating temperature | T | −30 to +100 | ˚C |
| Storage temperature | T stg | −55 to +125 | ˚C Soldering area |
电气特性 Electrical Characteristics（TA = 25°C）
| 参数 | 符号 | 条件 | 最小 | 典型 | 最大 | 单位 |
|---|---|---|---|---|---|---|
| (T | =25˚C) | |||||
| Forward voltage | V | I =20mA | − | 1.2 | 1.4 | V |
| Repentitive peak OFF-state | current I | V =V | − | − | 1 | µA |
| ON-state voltage | V | I =0.1A | − | − | 2.5 | V |
| Holding current | I | V =6V | 0.1 | − | 3.5 | mA |
| Critical rate of rise of OFF-state | voltage dV/dt | V =1/√2 ·V | 1 000 | 2 000 | − | V/µs |
| Transfer Minimum trigger current | Rank A I FT | V D =6V, R L =100Ω | − | − | 10 | mA |
| charac- Isolation resistance | R ISO | DC500V,40 to 60%RH | 5×1010 | 1011 | − | Ω |
| teristics Turn-on time | t on | V D =6V, R L =100Ω, I F =20mA | − | − | 50 | µs |
| Sheet | No.: | D2-A07701EN |
