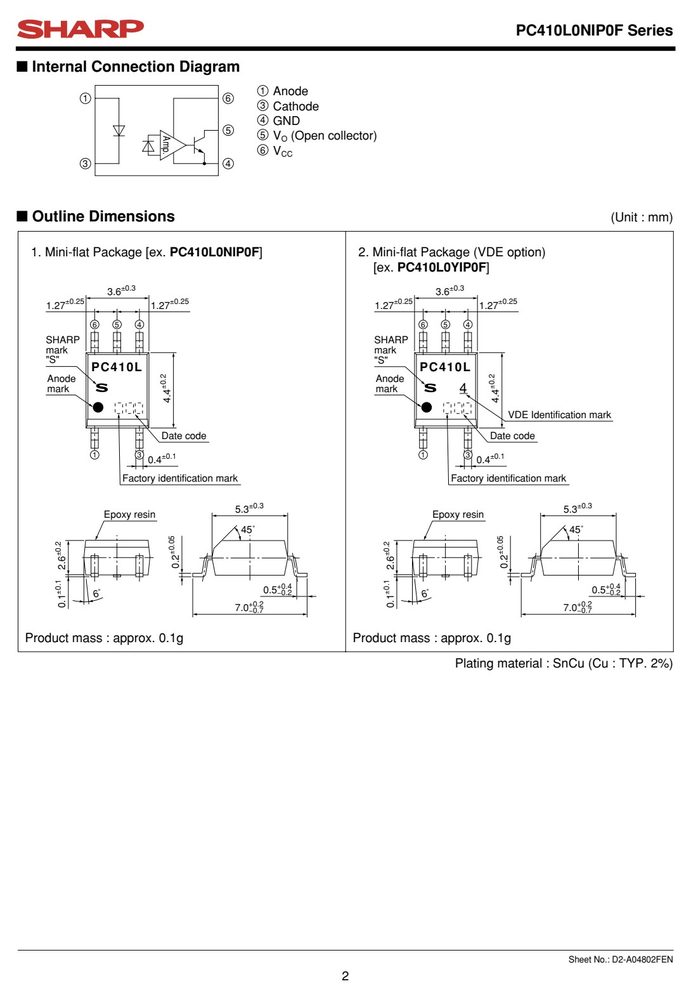

产品应用与封装尺寸
图纸取自原厂规格书，点击可放大查看原始尺寸标注。
引脚定义与内部结构
| 引脚 | 符号 | 名称 |
|---|---|---|
| 4 | GND | |
| 5 | V | |
| 6 | V | |
| 7 | V |
数据来源：原厂规格书引脚图
关键参数速览
- 正向电压 VF
- 1.9
- 正向电流 IF
- 10
- 隔离电压 VISO
- 1011
- 电源电压 VCC
- 10
- 工作温度 TA
- 75

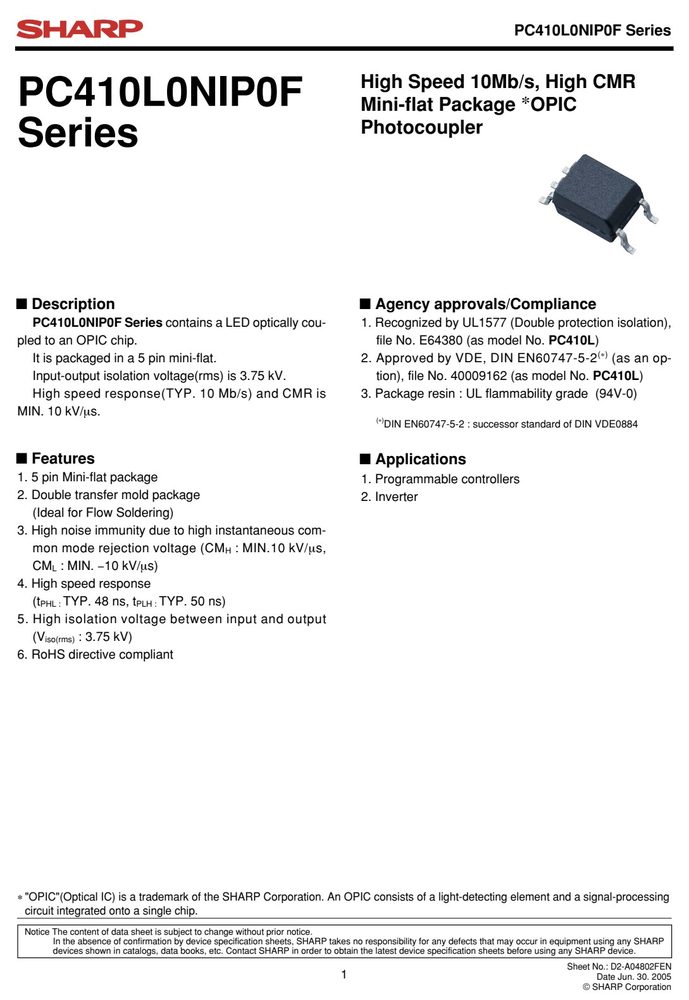

产品特点 Features
- 1. 5 pin Mini-flat package 1. Programmable controllers
- 2. Double transfer mold package 2. Inverter
- (Ideal for Flow Soldering)
- 3. High noise immunity due to high instantaneous com- mon mode rejection voltage (CM : MIN.10 kV/µs,
- CM : MIN. −10 kV/µs)
- 4. High speed response
- (t TYP. 48 ns, t TYP. 50 ns)
- PHL : PLH :
- PC410L0NIP0F Series
- Internal Connection Diagram
- 1 Anode
- 3 Cathode
- 4 GND
- 5 V (Open collector)
- Amp. O
- Date code (2 digit)
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 符号 | 额定值 | 单位 |
|---|---|---|---|
| (T =25˚C) | |||
| Forward current | I | 20 | mA |
| Power dissipation | P | 40 | mW |
| Supply voltage | V | 7 | V |
| High level output voltage | V | 7 | V |
| Low level output | current I | 50 | mA |
| Collector power dissipation | P | 85 | mW |
| Operating temperature | T | −40 to +85 | ˚C |
| Storage temperature | T | −40 to +125 | ˚C |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| 1. | Mini-flat | 封装 | [ex. | PC410L0NIP0F] | 2. | Mini-flat2 | 封装2 | (VDE | option) |
|---|---|---|---|---|---|---|---|---|---|
| PC410L0NIP0F Series |
电气特性 Electrical Characteristics（TA = 25°C）
| 参数 | 符号 | 条件 | 最小 | 典型 | 最大 | 单位 |
|---|---|---|---|---|---|---|
| (unless otherwise | specified | T =−40 | to 85˚C) | |||
| Forward voltage | V | T =25˚C, I =10mA | − | 1.6 | 1.9 | V |
| Terminal capacitance | C | T =25˚C, V=0, f=1MHz | − | 60 | 150 | pF |
| Low level output voltage | V I | =13mA, V =5.5V, I | =5mA − | 0.4 | 0.6 | V |
| High level output current | I | V =V =5.5V, I =250µA | − | 0.02 | 100 | µA |
| Low level supply current | I | V =5.5V, I =10mA | − | 7 | 13 | mA |
| High level supply current | I CCH | V CC =5.5V, I F =0 | − | 5 | 10 | mA |
| "High→Low" input threshold | current I V | =5V,V =0.8V, R =350Ω | − | 2.5 | 5 | mA |
| Isolation resistance | R T | =25˚C, DC500V, 40 to | 60%RH 5×1010 | 1011 | − | Ω |
| Floating capacitance | C | T =25˚C, V=0, f=1MHz | − | 0.6 | − | pF |
| "High→Low" propagation | delay time t | 25 | 48 | 75 | ns | |
| Transfer "Low→High" propagation | delay time t PLH | T a =25˚C, | 25 | 50 | 75 | ns |
| charac- *3Distortion of pulse | width ∆t | V =5V, I =7.5mA, | − | − | 35 | ns |
| teristics Rise time | t | R L =350Ω, C L =15pF, | − | 20 | − | ns |
| Fall time | t | − | 10 | − | ns | |
| rejection voltage | CM | F | 10 | 20 | − | kV/µs |
| (High level output) | V O(MIN.) | =2V T a =25˚C, V CC V =1kV | =5V , | |||
| rejection voltage | CM F | −10 | −20 | − | kV/µs | |
| Sheet | No.: | D2-A04802FEN |
