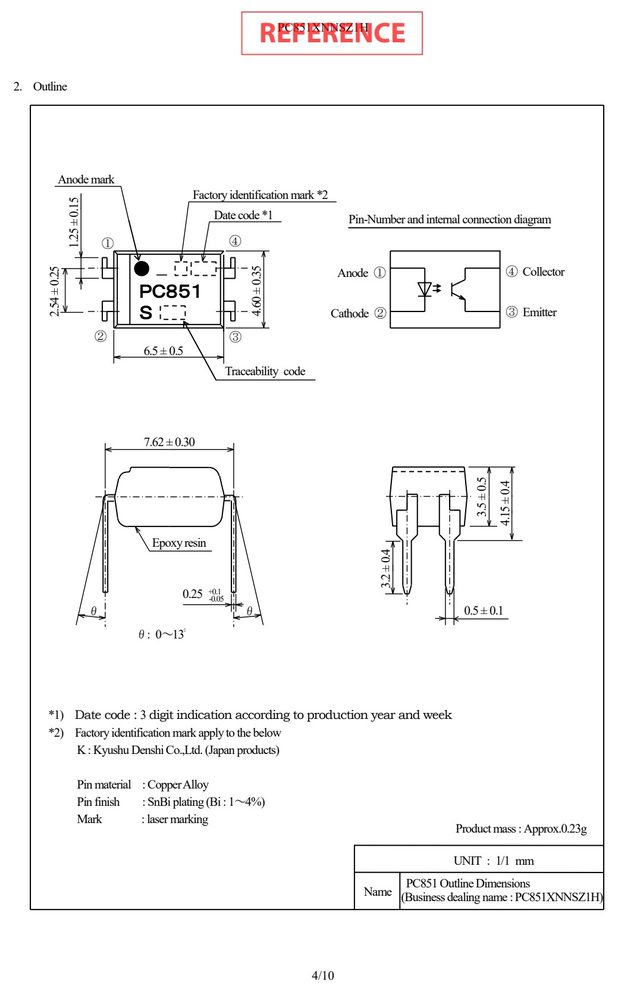

产品应用与封装尺寸
图纸取自原厂规格书，点击可放大查看原始尺寸标注。
关键参数速览
- 正向电压 VF
- 1.4
- 正向电流 IF
- 4.0
- 集电极-发射极电压 VCEO
- 350
- 隔离电压 VISO
- 1011
- 工作温度 TA
- -25 to +100
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 符号 | 额定值 | 单位 |
|---|---|---|---|
| Collector-emitter voltage | V | 350 | V |
| Emitter-collector voltage | V | 6 | V |
| Collector current | I | 50 | mA |
| Operating temperature | T | -25 to +100 | ℃ |
| Storage temperature | T | -55 to +125 | ℃ |
数据来源：原厂规格书
电气特性 Electrical Characteristics（TA = 25°C）
| 参数 | 符号 | 条件 | 最小 | 典型 | 最大 | 单位 |
|---|---|---|---|---|---|---|
| Forward voltage | V I | =20mA | - | 1.2 | 1.4 | V |
| Terminal capacitance | C | V=0, f=1kHz | - | 30 | 250 | pF |
| Dark current | I V | =200V, I =0 | - | - | 1 | μA |
| Output Collector-emitter breakdown | voltage BV I | =0.1mA, I =0 | 350 | - | - | V |
| Emitter-collector breakdown | voltage BV I | =10μA, I =0 | 6 | - | - | V |
| Collector current | I c I F | =5mA, V CE =5V | 2.0 | 4.0 | - | mA |
| Collector-emitter saturation | voltage V I | =20mA, I =1mA | - 5× | 0.1 | 0.3 | V |
| Isolation resistance | R ISO | DC500V 40 to 60%RH | 1010 | 1011 | - | Ω |
| charac- Floating capacitance | C f | V=0, f=1MHz | - | 0.6 | 1.0 | pF |
| Cut-off frequency | f | - | 50 | - | kHz | |
| Rise time | tr V | =2V, I =2mA | - | 4 | 10 | μs |
| Fall time | t f R L | =100Ω | - | 5 | 12 | μs |
