关键参数速览
- 正向电压 VF
- 2.2
- 反向电压 VR
- 3 750
- 电流传输比 CTR
- 35
- 正向电流 IF
- 0.4
- 隔离电压 VISO
- % 1011
- 电源电压 VCC
- 0.4
- 工作温度 TA
- 109
产品特点 Features
- High common mode transient immunity (|CM |, |CM | = 15 kV/µs MIN.)
- Small package (SO-5) PIN CONNECTION
- (Top View)
- High supply voltage (V = 35 V)
- High isolation voltage (BV = 3 750 Vr.m.s.) 5 4 3
- High-speed response (t = 0.8 µs MAX., t = 1.2 µs MAX.)
- PHL PLH
- 1. Anode
- Embossed tape product：PS8101-F3: 2 500 pcs/reel
- 2. Cathode
- Pb-free product 3. GND
- PS8101
- MARKING EXAMPLE
- Ni/Pd/Au PLATING
- 8101 Type Number
- N931 Assembly Lot
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 符号 | 额定值 | 单位 |
|---|---|---|---|
| Diode Forward Current | I | 25 | mA |
| Power Dissipation *1 | PD | 45 | mW |
| Detector Supply Voltage | V CC | 35 | V |
| Output Voltage | V | 35 | V |
| Output Current | I | 8.0 | mA |
| Power Dissipation *2 | P | 100 | mW |
| Isolation Voltage *3 | BV | 3 750 | Vr.m.s. |
| Operating Ambient Temperature | T | −55 to +100 | °C |
| Storage Temperature | T | −55 to +125 | °C |
| Pins 1-2 shorted together, 3-5 | shorted together. | ||
| Feb. 17, 2026 | |||
| Maximum ambient temperature | T | 150 | °C |
| Maximum input current | I | 200 | mA |
| Maximum output power dissipation | P | 300 | mW |
| Isolation resistance, minimum value at V I-O = 500 V dc, T A = T S | R I-O MIN. | 109 | Ω |
数据来源：原厂规格书
安全与绝缘额定值（DIN EN/IEC 60747−5−5）
| 参数 | 符号 | 额定值 | 单位 |
|---|---|---|---|
| V = 1.6 × V , q < 5 pC | |||
| V m | 1 326 | V peak | |
| V = 1.875 × V , q < 5 pC | |||
| Highest permissible overvoltage | V | 6 000 | V |
| Degree of pollution (IEC 60664-1/DIN EN 60664-1 (VDE 0110-1)) | 2 | ||
| Comparative tracking index (IEC 60112/DIN EN 60112 (VDE | 0303-11)) CTI | 175 | |
| Material group (IEC 60664-1/DIN EN 60664-1 (VDE 0110-1)) | III a | ||
| Storage temperature range | T | －55 to +125 | °C |
| Operating temperature range | T | －55 to +100 | °C |
| V = 500 V dc, T = 25 °C | R MIN. | 1012 | Ω |
| V = 500 V dc, T = maximum temperature of rating, at least | 100 °C R MIN. | 1011 | Ω |
电气特性 Electrical Characteristics（TA = 25°C）
| 参数 | 符号 | 条件 | 最小 | 典型 | 最大 | 单位 |
|---|---|---|---|---|---|---|
| Diode Forward Voltage | V I = 16 | mA | 1.7 | 2.2 | V | |
| Forward Voltage | ∆V /∆T I = 16 | mA | −2.1 | mV/°C | ||
| Terminal Capacitance | C V = 0 | V, f = 1 MHz | 30 | pF | ||
| Detector High Level Output | Current I (1) I = 0 | mA, V = V = 5.5 V | 3 | 500 | nA | |
| High Level Output | Current I (2) I = 0 | mA, V = V = 30 V | 100 | µA | ||
| Low Level Output | Voltage V OL I F = 16 | mA, V CC = 4.5 V, | 0.1 | 0.4 | V | |
| Low Level Supply | Current I CCL I F = 16 | mA, V O = open, V CC = | 30 V | 50 | µA | |
| High Level Supply | Current I I = 0 | mA, V = open, V = | 30 V | 0.01 | 2 | |
| Coupled Current Transfer | Ratio *1 CTR I = 16 | mA, V = 4.5 V,V = | 0.4 V 15 | 20 | 35 | % |
| Isolation Resistance | R V = | 1 kV , RH = 40 to 60 | % 1011 | Ω | ||
| Isolation Capacitance | C V = 0 | V, f = 1 MHz | 0.4 | pF | ||
| Propagation Delay | Time t PHL I F = 16 | mA, V CC = 5 V, R L = | 2.2 kΩ, | 0.5 | 0.8 | µs |
| Propagation Delay | Time t | 0.6 | 1.2 | |||
| Common Mode | Transient |CM H | I F = 0 | mA, V CC = 5 V, R L = 4.1 | kΩ, 15 | kV/µs | ||
| Common Mode | Transient |CM L | I F = 16 | mA, V CC = 5 V, R L = | 4.1 kΩ, 15 |
应用领域 Applications
产品应用与封装尺寸

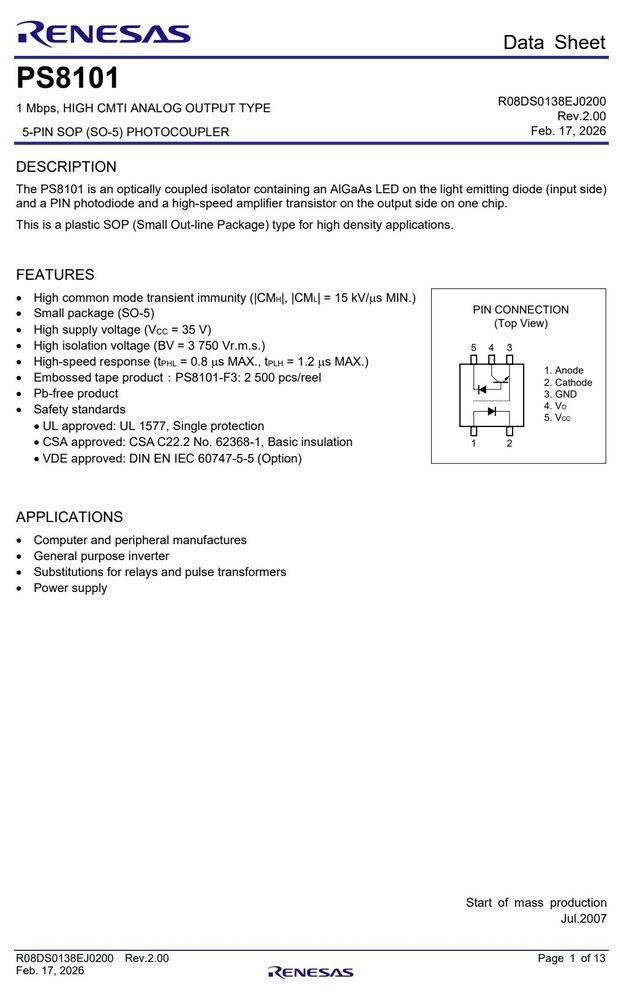

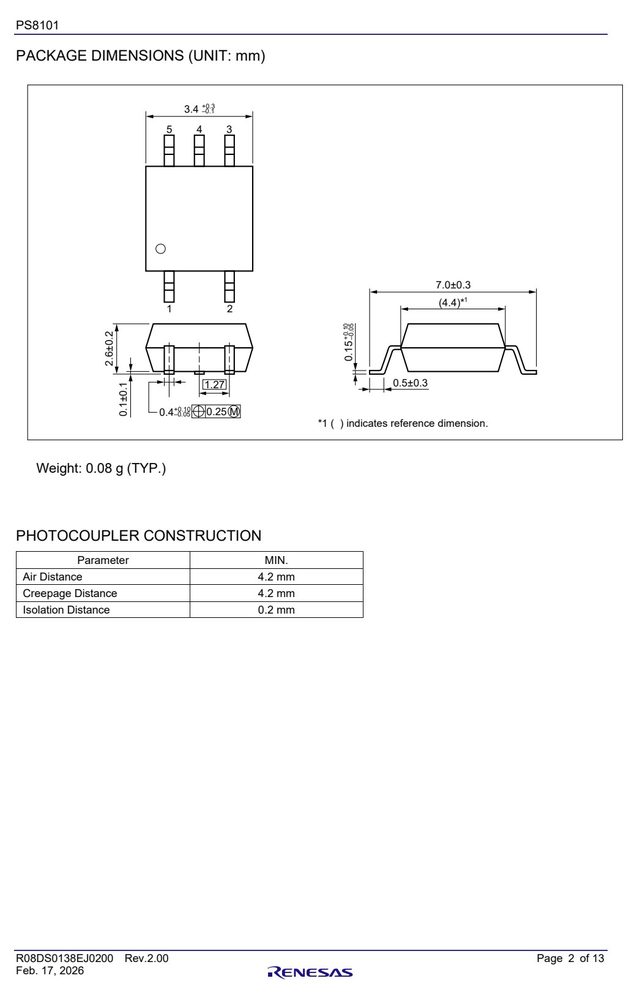

图纸取自该型号原厂规格书的应用电路与封装尺寸章节，点击图片可放大查看原始尺寸标注。
