关键参数速览
- 工作温度 TA
- 5.0

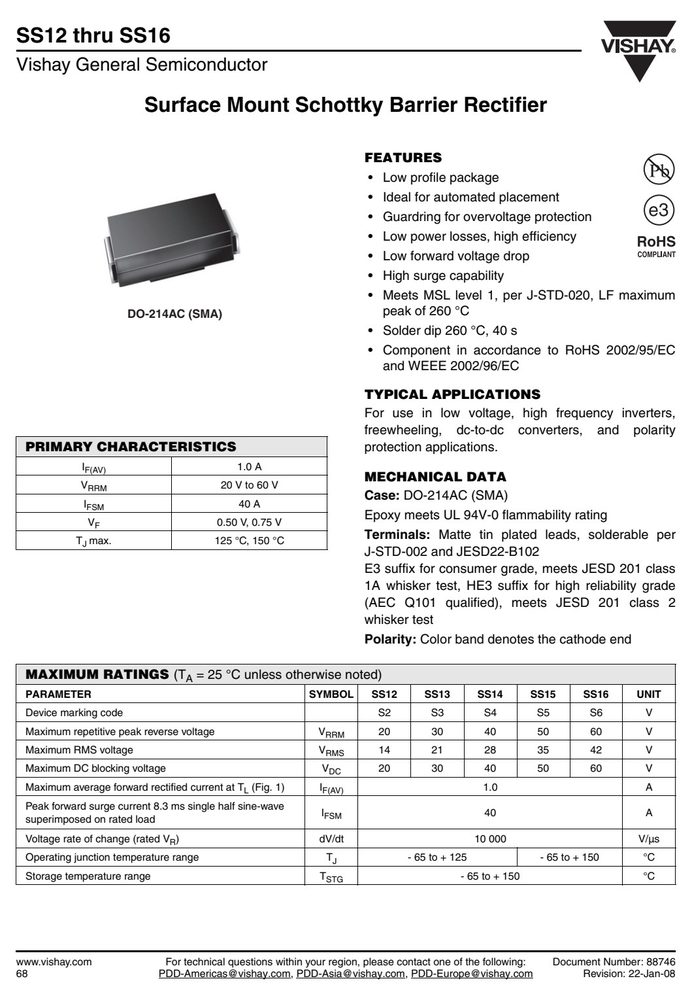

产品特点 Features
- Low profile package
- Ideal for automated placement
- Guardring for overvoltage protection
- Low power losses, high efficiency
- Low forward voltage drop
- High surge capability
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
- DO-214AC (SMA)
- Solder dip 260 °C, 40 s
- Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC
- SS12 thru SS16
- 100 1000
- A) T J = 125 °C T J = 2 5 °C f = 1 . 0 M Hz nt )F V sig = 50 mVp-p urr e 10 T = 150 °C p (
- C J e c d n ar a tic or 1 a p 100
- F a s C e o u T J = 25 °C SS12 - SS14 n o itc a 0.1 SS15 & SS16 n nt u a J st Pulse Width = 300 µs SS12 - SS14
- I 1 % Duty Cycle SS15 & SS16
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 符号 | SS12 | SS13 | SS14 | SS15 | SS16 | 单位 |
|---|---|---|---|---|---|---|---|
| Device marking code | S2 | S3 | S4 | S5 | S6 | V | |
| Maximum RMS voltage | V | 14 | 21 | 28 | 35 | 42 | V |
| Maximum DC blocking voltage | V | 20 | 30 | 40 | 50 | 60 | V |
| Maximum average forward rectified | current at T (Fig. 1) I | 1.0 | A | ||||
| I | 40 | A | |||||
| Voltage rate of change (rated V ) | dV/dt | 10 000 | V/µs | ||||
| Operating junction temperature range | T | - | 65 to + 125 | - 65 to | + 150 | °C | |
| Storage temperature range | T | - | 65 to + 150 | °C |
数据来源：原厂规格书
电气特性 Electrical Characteristics（TA = 25°C）
| 参数 | 测试条件 | 符号 | SS12 | SS13 | SS14 | SS15 | SS16 | 单位 |
|---|---|---|---|---|---|---|---|---|
| 1.0 A | V | 0.50 | 0.75 | V | ||||
| A | I | mA | ||||||
| DC blocking voltage (1) | T A = 100 °C | R | 6.0 | 5.0 | ||||
| THERMAL | CHARACTERISTICS (T = 25 | °C unless R | otherwise | noted) | 88 | |||
| Typical thermal resistance | (1) | θJA R | 28 | °C/W | ||||
| (1) P.C.B. mounted with | 0.2 x 0.2" (5.0 x 5.0 mm) copper pad | areas |
应用领域 Applications

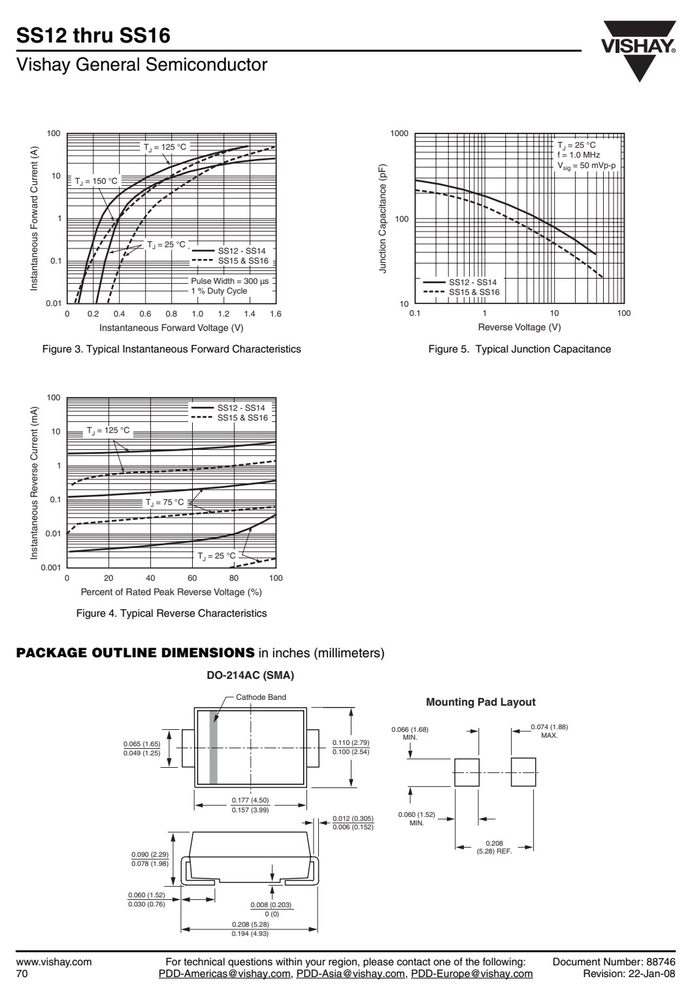

产品应用与封装尺寸
图纸取自该型号原厂规格书的应用电路与封装尺寸章节，点击图片可放大查看原始尺寸标注。
