产品应用与封装尺寸

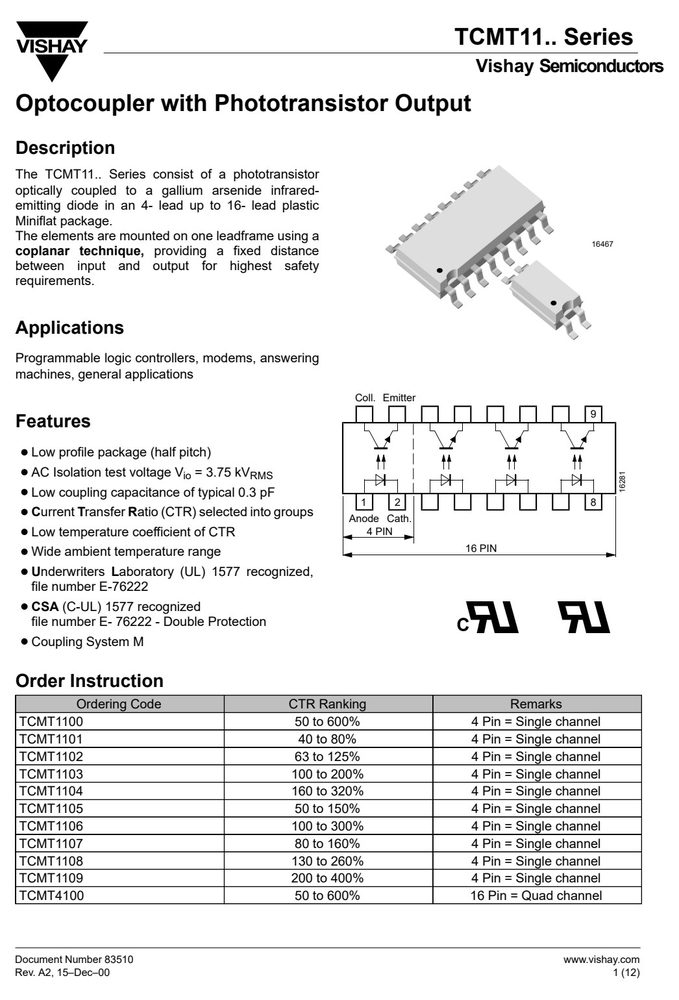

图纸取自原厂规格书，点击可放大查看原始尺寸标注。
引脚定义与内部结构
| 引脚 | 符号 | 名称 |
|---|---|---|
| 4 | PIN | |
| 5 | V | |
| 6 | V | |
| 7 | V | |
| 8 | V |
数据来源：原厂规格书引脚图
关键参数速览
- 正向电压 VF
- 1.6
- 正向电流 IF
- 60
- 隔离电压 VISO
- 3.75
产品特点 Features
- Low profile package (half
- AC Isolation test voltage V
- Low coupling capacitance
- = 3.75 kV
- RMS 18261 typical 0.3 pF
- 1 2 8
- TCMT11.. Series
绝对最大额定值 Absolute Maximum Ratings（TA = 25°C）
超过下表数值可能造成器件永久损坏，设计时请留余量。
| 参数 | 测试条件 | 符号 | 值 | 单位 |
|---|---|---|---|---|
| Forward current | I | 60 | mA | |
| Forward surge current | t ≤ 10 Ωs p Ω | I FSM | 1.5 | A |
| Power dissipation | T ≤ 25 C | P | 100 | mW Ω |
| Junction temperature | T | 125 | C | |
| Collector emitter voltage | V | 70 | V | |
| Emitter collector voltage | V | 7 | V | |
| Collector current | I | 50 | mA | |
| Peak collector current | t /T = 0.5, t ≤ 10 ms | I | 100 | mA |
| Power dissipation | T ≤ 25 C | P | 150 | mW |
| amb | V | Ω | ||
| Junction temperature | T | 125 | C | |
| AC isolation test voltage (RMS) | Ω | V 1) IO | 3.75 | kV |
| Total power dissipation | T ≤ 25 C | P | 250 | mW Ω |
| Operating ambient temperature | T | –40 to +100 | C Ω | |
| Storage temperature range | T | –40 to +100 | C Ω | |
| Soldering temperature | T | 235 | C |
数据来源：原厂规格书
电气特性 Electrical Characteristics（TA = 25°C）
| 参数 | 测试条件 | 符号 | 最小 | 典型 | 最大 | 单位 |
|---|---|---|---|---|---|---|
| Forward voltage | I = 50 mA | V | 1.25 | 1.6 | V | |
| Junction capacitance | V = 0 V, f = 1 MHz | C | 50 | pF | ||
| Collector emitter voltage | I = 100 ΩA | V | 70 | V | ||
| Emitter collector voltage | I = 100 ΩA | V | 7 | V | ||
| Collector dark current | V = 20 V, I = 0, E = | 0 I | 100 | nA | ||
| Collector emitter saturation | I = 10 mA, I = 1 mA | V | 0.3 | V | ||
| Cut-off frequency | I = 10 mA, V = 5 V, | f | 100 | kHz | ||
| Coupling capacitance | f = 1 MHz | C | 0.3 | pF |

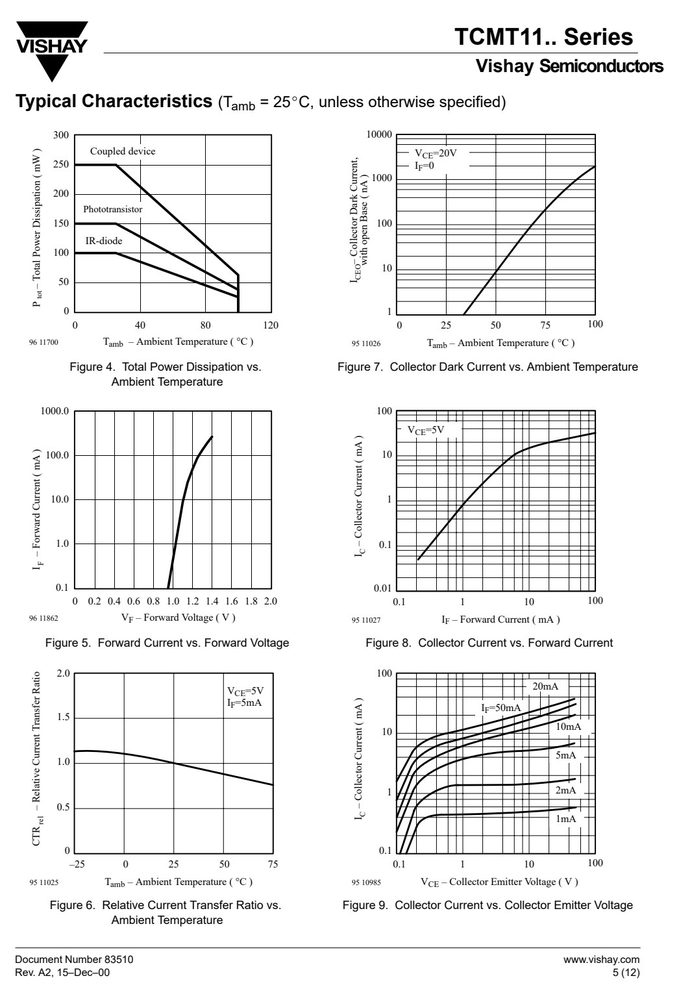

特性曲线（Typical Performance Curves）
